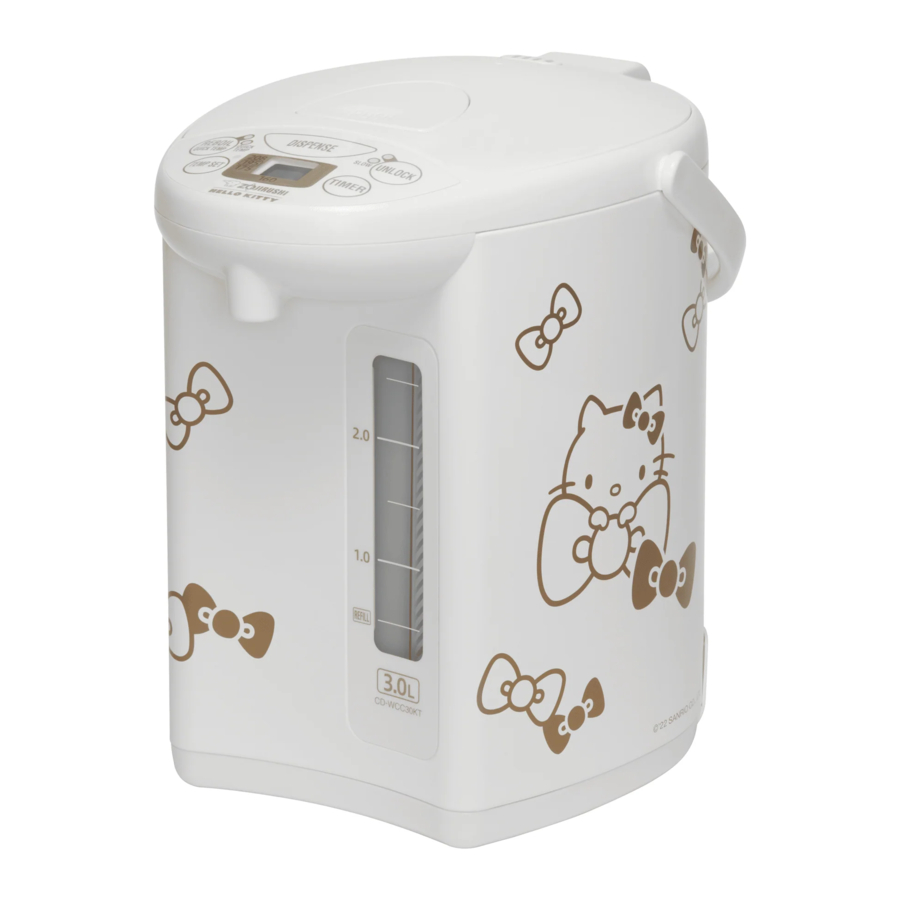

Zojirushi CD-WCC30KT - Water Boilers Manual

PARTS NAMES AND FUNCTIONS

Power Cord

• Please remove the twist tie holding the Power Cord before use.
• Do not use the Power Cord bundled up. Doing so may cause the Power Cord to become excessively hot, resulting in malfunction.

CONTROL PANEL

• Press buttons down firmly.
• The Notification Sounds and raised dot ( • ) in the center of the DISPENSE button is provided for those with visual impairment.

How to Open/Close the Upper Lid
To Open

• Press the indented area of the Lid Lock with your thumb.
• Pull the Lid Lock up with your fingers to open the Upper Lid.

To Close
Depress the Upper Lid until it clicks shut.

BOIL MODE

1. Open the Upper Lid and fill the Water Tank with wa ter using a pitcher or other container.


NOTE

• Do not fill the Water Tank directly from a water faucet or place the product on a wet surface such as a sink. (Exposing the heating element directly to water may cause malfunction.)
• Avoid splashing water on the Body or Control Panel. (May cause malfunction.)

2. Close the Upper Lid and connect the Power Cord.


NOTE

• Do not allow the end of the Appliance Plug to get soiled with dust or come into contact with metal objects such as pins.

Temperature Convention Guide

Fahrenheit (°F)	Celsius (°C)
212	100
208	98
195	90
175	80
160	70
73	23

• Do not fill over the Maximum Water Level Line. (Hot water may overflow from the Spout or the Steam Vent, resulting in scalds)
• Do not fill the Water Tank with hot water. (The Automatic Shut-Off function may be activated.)
• Do not fill the Water Tank with any liquid other than water.
• Do not use water additives such as charcoal for water purification or mineral additives. (Small particles may get clogged inside of the product.)
• If you wish to shorten the completion time, add less water to the Water Tank.

The first time you use the product you may notice the smell of plastic. This is normal and will gradually fade away.

• A t your initial use or when using the product after a long period of storage:
  Fill the Water Tank with water to the Maximum Water Level Line (), and boil water as directed. Once it reaches a boil, press the UNLOCK button, then press the DISPENSE button to dispense about 34 oz. (1 liter) of hot water in order to rinse the water route, and dispose the remaining water. Fill with fresh water. (Always remember to attach the Filter.)
• When using mineral or alkaline ionized water:
  When mineral or alkaline ionized water is used, a floating residue may develop or a milky white substance may form on the surface of the Water Tank. This is due to the ingredients in the water and is harmless to your health. Frequent cleaning is recommended.

When boiling has completed, a melody sounds and it automatically switches to 195°F Keep Warm mode.
The BOIL light turns off, the KEEP WARM light turns on and "212" appears on the Display.

• The length of time for the water temperature to reach 195°F will vary depending on the temperature of the room and water.

NOTE

• Add water when the water level is low during the Keep Warm mode. (The product automatically begins heating the water.) If the water level is still not high enough, it will not automatically switch to Boil. In this case, press the REBOIL/QUICK TEMP button to manually start the process,
• Please follow the instructions below to prevent the risk of scalding:
  • Do not cover the Steam Vent with a cloth.
  • Do not touch the Steam Vent or bring your hands or face near the Steam Vent.
  • Do not open the Upper Lid while the BOIL light is on.
  • Do not dispense hot water while it is boiling.

DISPENSE HOT WATER

1. Press the button

   The UNLOCK light turns on and hot water can be dispensed.
2. Press the button to dispense hot water.

Do not swivel the product while dispensing water.

• Initially upon boiling or if it has been a while after dispensing, the water may not be very hot. Please discard the first cup (of the hot water).
• Do not attempt to dispense hot water while boiling.
• Water may not dispense smoothly shortly after boiling. Wait for a short period of time before dispensing hot water again.
• Be careful as the Body heats up during the Boil and Keep Warm modes.

NOTE

• Do not unlock and press the DISPENSE button if the Water Tank is empty.

DISPOSE WATER

Dispose leftover water when the product is not in use.

1. Unplug the Power Cord and detach the Upper Lid.


When detaching the Upper Lid:

• Take precaution with the steam. You may scald yourself.

2. Hold the product with both hands and dispose water where indicated "EMPTY FROM HERE" on the wall of the Water Tank.


When disposing hot water:

• Take precaution with the hot water and steam. You may scald yourself.
• Take precaution as hot water may drip from the Spout, causing scalds.

10 seconds after dispensing, the UNLOCK light turns off and the Automatic Dispense Lock is activated.

Automatic Dispense Lock
A safety function to prevent hot water from dispensing if the DISPENSE button is accidentally pressed.

• Even if no water is dispensed, the Automatic Dispense Lock will be activated after about 10 seconds.

Do not tilt or shake the product after dispensing. Hot water may drip from the Spout, causing scalds.

Time required to finish reboiling (At a room temperature of 73°F / 23°C with the Water Tank filled to the Maximum Water Level Line.)

208°F Keep Warm Mode

Approx. 3-4 minutes

195°F Keep Warm Mode

Approx. 5-8 minutes

When the Reboil process is completed, a melody sounds and the product switches to Keep Warm mode.

• Pressing the REBOIL/QUICK TEMP button twice activates the Quick Temp mode
• Do not attempt to dispense hot water while reboiling.
• Water may not dispense smoothly shortly after boiling. Wait for a short period of time before dispensing hot water again.

NOTE

• Make sure the water level is above the REFILL Line before pressing the REBOIL/QUICK TEMP button.

NOTE

• Do not plug or unplug the Power Plug or Appliance Plug with wet hands. (Doing so may cause short circuit or electric shock.)
• Do not dispose hot water with the Upper Lid in place. (The Upper Lid may come off, spilling hot water and causing scalds.)
• Do not allow water to splash on the Control Panel, Hinge, Handle or Receptacle. (Could cause scalding or breakdown.)
• Take precaution as not attaching the Filter properly may cause it to fall out when dispensing hot water.
• Dispose the water at least once a day. (Leaving water in the Water Tank can cause unwanted odor or scale build-up.)

Automatic Shut-Off function

• Be careful not to repeat the boiling process without filling the Water Tank with water, as the Nonstick Coating may discolor and peel.

The Automatic Shut-Off function activates to shut down power to the heater in order to prevent damage from overheating. The Display will show "HH" and beeps will sound to alert you that the Automatic Shut-Off has been activated. The following conditions may cause activation:

• When plugged in without filling the Water Tank with water.
• When the water level is lower than the REFILL Line and boiling has been attempted.
• When the Water Tank is empty or the Upper Lid is left open for adding water.
• When pouring in hot water immediately after plugging in the unit. →

Remedy
Unplug the product. Allow the Water Tank to cool. Fill the Water Tank with water and plug back in.

HOW TO SET THE KEEP WARM MODE

Press the button to change the settings.

• Depending on the altitude where the product is used, the Keep Warm mode may be set at 205°F-207°F, in order to prevent continuous boiling.

• Length of time for the water temperature to reach 175°F after boiling:
  Approx. 1 hour and 10 minutes

(At a room temperature of 73°F with the Water Tank filled to the Maximum Water Level Line.)

• The length of time for the water temperature to reach 175°F will vary depending on the room temperature and amount of water.

• You can change the temperature setting during the Keep Warm mode. (It may start reboiling depending on the water temperature and the selected setting.)
• You cannot select the 208°F Keep Warm mode while the Quick Temp mode is selected.

160°F Keep Warm Mode
160°F is ideal for preparing baby formula.
Select the "160" on the Display.

(At a room temperature of 73"F.)

• The length of time for the water temperature to reach 160°F will vary depending on the room temperature and amount of water.

When preparing baby formula:
160 F is ideal for preparing formula. Dissolve the formula and let cool to optimum temperature (slightly higher than body temperature). If fed without cooling, babies are at risk of scalding.

• Be sure to check that the KEEP WARM light is on and NOT blinking before dispensing.
• Do not use the Quick Temp mode,

• Temperature Conversion Guide

Fahrenheit (°F)	Celsius (°C)
212	100
208	98
207	97
205	96
195	90
175	80
160	70
73	23

QUICK TEMP MODE

This function heats the water to the selected Keep Warm temperature without reaching a boil. The water will reach the selected Keep Warm temperature quicker than the regular Boil mode. Other benefits include reduced steam and reduced energy use. Use this mode when dechlorination is not necessary, such as when using bottled or purified water.

1. While the water is heating, press the button to select the Quick Temp mode.
   You cannot activate Quick Temp mode while the product is set at 208°F Keep Warm mode.


• You cannot select 208°F Keep Warm mode while Quick Temp mode is activated.
• There may be a lingering chlorine smell if tap water is used while Quick Temp mode is activated. If this is an issue, use the regular Boil mode instead.
• Depending on the room temperature and amount of water the actual water temperature after heating may differ from that shown on the Display.
• Depending on the temperature of the room and water, and atmospheric pressure, some steam may be produced.
• The Quick Temp mode may be canceled if the Power Cord is detached. Set to the desired mode again.
• The product begins the Regular Boil mode when water is added. Activate the QUICK TEMP mode again.

2. After reaching the selected temperature, it will automatically switch to Keep Warm.

NOTE

• Water does not reach a boil under Quick Temp mode, and should not be used to prepare baby formula.
• Although the water will not reach a boil when Quick Temp mode is activateid, the Steam Vent will become hot. Please do not touch it.

► If the product is idle for about 2 seconds, the time currently displayed will be applied.

NOTE

• To cancel the Timer, press the TIMER button several times until the temperature appears on the Display, or press the REBOIL/QUICK TEMP button once.
• When using the Quick Temp mode with the Energy-Saving Timer function, set the Energy-Saving Timer function after selecting the Quick Temp mode.
• If the Power Cord is detached, the Energy-Saving Timer function will be canceled and must be reset.

CAFE DRIP DISPENSING MODE

This mode decreases the amount of water dispensed to 60% of the normal setting, making it suitable for brewing café drip coffee.

1. Press the button twice.
   When the CAFÉ DRIP lights turn on, the Café Drip Dispensing mode is activated.


• Pressing the UNLOCK button again during Café Drip Dispensing mode will reset the product to the normal dispensing mode.
• When the CAFÉ DRIP lights turn off, the Automatic Dispense Lock is activated.
• If the water level is low, it may take longer for water to begin dispensing after pressing the DISPENSE button, or water may not dispense smoothly.
• Water may not dispense smoothly just after boiling has completed. In this case, wait for a short period of time before dispensing hot water again.

2. Press the button to dispense hot water.
   You can use the Café Drip Dispensing mode for about 60 seconds while the CAFÉ DRIP lights are on.


NOTE

• Be careful not to burn yourself.
• If using a cone filter placed directly on a cup, be careful not to let it fall inside the cup while brewing.
• The first cup of water may not be hot enough just after boiling has completed, or when you have not dispensed water for a while. Discard a cup of hot water before brewing.
• If the cup or other container that you use is cold, the hot water may cool quickly. To prevent this, warm the container before use.

HOW TO CHANGE THE NOTIFICATION SOUND

• Notification Sound: The product informs you with a melody or beeps that it has finished boiling or the timer has been set.

When and what types of Notification Sounds are heard:

How to change the Notification Sound:

1. Hold the button for more than 3 seconds during the boiling process or Keep Warm mode.
   Each time the UNLOCK button is held for more than 3 seconds, the Notification Sound will change.

2. Setup is complete when the desired sound (melody or beep) is heard.

• The selected Notification Sound is stored even if the product is unplugged.

CLEANING AND MAINTENANCE

Always unplug the Power Cord, dispose all water, and allow to cool completely before cleaning.

NOTE

• Do not attempt to dry the product by turning it upside down when the bottom is wet. (Water may get inside the body and cause it to break or rust.)
• Do not use the following:
  • Thinner and bleach. (Doing so may cause discoloration, crack, degradation and corrosion.)
  • Polishing powder, nylon brushes, anything m ade with m etal, eraser pads, hard nylon sponges and abrasive cleaners. (Doing so may cause corrosion.)
  • Detergent. (Hot water may spill out, resulting in scalds or damage. Doing so may cause unwanted odor.)
• Do not use scrub brushes for any portions other than the Filter. (Doing so may cause corrosion.)
• When using chemically treated cloths, do not rub too hard or leave them on the product for a long time as the surfaces of the product may be damaged by chemical reactions.
• Do not use a dishwasher or dish dryer for cleaning or drying. (Doing so may cause the plastic parts to deform.)
• Before storing the product for a longer period of time, dry it completely and pack in a plastic bag to prevent odors from being absorbed.
• Never wash the Body, Upper Lid, or Power Cord with water.

When the Inner Lid Gasket hardens, changes shape, turns white, or otherwise becomes worn out.
→
Please purchase and replace with a new one.

To attach the Inner Lid Gasket

1. Fit the Inner Lid Gasket securely to the outer circumference as shown in the figure.
2. Line up the pin on the Upper Lid with the hole on the Inner Lid, and tighten the four screws securely.

If the Inner Lid Gasket hardens, changes shape, turns white, or otherwise becomes worn out, hot water may leak from the gap between the Upper Lid and Body when tilted. Steam may also leak from the gap, causing burns and product failures, which may result in scalds. If hot water spews from the gap or there is steam even after replacing the Inner Lid Gasket, other parts may be in need of repair. Please contact Zojirushi Customer Service.

CITRIC ACID CLEANING

Perform every 1-3 month(s) of usage

Do not drink the water used for CITRIC ACID CLEANING

NOTE
In order to prevent gas bubbles and bubbllng-over, the Citric Acid Cleaner for Electric Water Boilers (CD-K03E-JU) is recommended for cleaning. To purchase this cleaner, please visit an authorized Zojirushi dealer or www.zojirushi.com.

Preparation: Check that the Filter is attached to the Water Tank.

NOTE

• If the Filter is dirty, remove it from the Water Tank, wash with a soft brush and reinstall.

1. Put 1 package of the Citric Acid Cleaner CD-K03E-JU in a cup and add warm water to dissolve. Pour it into the Water Tank and fill with water to the Maximum Water Level Line.

NOTE

• Do not fill over the Maximum Water Level Line. (Hot water may spill out, resulting in scalds.)

2. Close the Upper Lid, insert the Power Plug and press the button for more than 3 seconds.


Cleaning time: Approx. 1.5 hours.*
* Cleaning times may vary depending on the amount of water, water temperature and room temperature.

3. Unplug the Power Plug, detach the Upper Lid and dispose water where indicated "EMPTY FROM HERE." (Please take precautions not to splash water on the Hinge.)
4. To rinse, fill the Water Tank with water. Boil and dispense about a cup of hot water to rinse out the Spout, allow to cool, then dispose the remaining water.

To cancel the Citric Acid Cleaning at any time, unplug the Power Plug for more than 5 seconds.

NOTE

• Repeated citric acid cleaning may be necessary for hard-to-remove residues or if water does not dispense smoothly.

When disposing hot water:

• Take precaution with the hot water and steam. You may scald yourself.
• Take precaution as hot water may drip from the Spout, causing scalds.
• If mineral or alkaline ionized water is used, calcium tends to build up on the surface of the Water Tank. If scale accumulates on the Water Tank or the Filter, boiling may become louder than usual and water may not dispense smoothly. Frequent cleaning is recommended when using mineral or alkaline ionized water.

REPLACEMENT PARTS

• Replacement parts may be available for an additional charge. Please replace damaged parts only with new parts.
• When purchaising parts, please record the model number and part name beforehand. Parts can be purchased through Zojirushi.com, by contacting Zojirushi Customer Service, or the store where you purchased the product.
  Zojirushi Customer Service
  1-800-733-6270
  www.zojirushi.com

Parts Names	Parts Number
Inner Lid Gasket	625702-00
Filter	627402-00
Citric Acid Cleaner for Electric Water Boilers (1 oz. / 30 g X 4 packets)	CD-K03E-JU

Q&A ON PRODUCT USE

Is it okay to use the product for heating liquids other than water?	Do not fill the product with any liquid other than water. It may cause ^ malfunction, or may overflow and cause scalding.
Does the water need to be changed every day?	To prevent odor and scale build-up, please change the water at least once a day.
Is it okay to use mineral water or alkaline ionized water?	Yes. However, when mineral or alkaline ionized water is used, a floating ^ residue may develop or milky white substance may form on the surface of r the Water Tank. This is due to the ingredients in the water and is harmless to your health. Frequent cleaning is recommended.
I accidentally drank water while performing the Citric Acid Cleaning. Is this harmful to my health?	Please follow the instructions shown on the package of the citric acid cleaner CD-K03E-JU.
Is it okay to leave the product unattended while it is turned on?	It is safe to use the product unattended as it has an Automatic Shut-Off function (power to the heater will be automatically turned off), which will be activated once it is empty of water. However be careful not to repeat the boiling process without filling the Water Tank with water, as the Nonstick Coating may discolor and peel.

TROUBLESHOOTING GUIDE

Please check the following points before calling for service.

The Nonstick Coating of the Water Tank may become damaged with use. Contact or call Zojirushi Customer Service to discuss available options we may have for you: 1-800-733-6270

SPECIFICATIONS

Model No.		CD -WCC30KT
Capacity		101 oz. (3.0 liters)
Rating		AC 120 V 60 H z
Electric Consumption		700 W
Average Power Consumption during Keep Warm	208°F (98°C)	Approx. 41 W
	195°F (90°C)	Approx. 34 W
	175°F(80°C)	Approx. 28 W
	160°F (70°C)	Approx. 23 W
Length of the Power Cord		2 ' 1 1 " (0.9 m)
External Dimensions	(approx. inches)	8 - 1/4 ( W ) x 11 - 1/4 ( D ) x 1 1 - 1/2 ( H )
	(approx. cm)	21 (W ) x 28.5 (D) x 29 (H)
Weight (including the Power Cord)		Approx. 5 lbs. (2.3 kg)

• The average Keep W arm electric power consumption is for one hour, provided that the Water Tank is full and the room temperature is approximately 73°F (23°C).
• The height refers to the product when the handle is down.
• In high altitudes or severely cold areas, the product may not perform as specified. Avoid using the product in such areas or in other extreme conditions.
• This product is not suitable for use in countries or regions with different power supply voltages or frequencies.

IMPORTANT SAFEGUARDS

BASIC SAFETY PRECAUTIONS SHOULD ALW AYS BE FOLLOWED WHEN USING ELECTRICAL APPLIANCES, INCLUDING THE FOLLOWING:

1. Read all instructions thoroughly.
2. Avoid touching hot surfaces and do not close or clog the steam vent opening under any circumstances. The handles and knobs are provided for your safety and protection.
3. To safeguard against fire, electric shock and possible injury, keep the power cord, plugs and the appliance away from water or other liquids.
4. Close supervision is recommended when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow the appliance to cool before adding or removing parts, and before cleaning the appliance.
6. Do not use or operate any appliance with a damaged cord or plug. If the appliance malfunctions or has been damaged in any manner, unplug the appliance and return it to the nearest authorized service facility or dealer for examination, repair or adjustment.
7. The use of accessories or attachments not recommended by the appliance manufacturer may result in fire, electric shock or other injury to persons.
8. Do not use outdoors.
9. Keep the power cord away from hot surfaces and do not let the cord hang over the edge of tables or counters.
10. Do not place on or near a heated surface such as a gas or electric stove, or in a heated oven.
11. Always use extreme caution when moving an appliance containing hot liquids.
12. The plug to the appliance should be attached first before plugging the cord into a wall outlet.
13. Do not use the appliance for other than intended or specified purposes.
14. To protect against electrical hazard, unplug the cord before cleaning.
15. Scalding may occur if the lid is removed during boiling cycles.
16. Do not remove the Control Panel or the Water Level Gauge.

NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug was designed to fit into a polarized outlet in only one direction. If the plug does not fit fully into the outlet, do not attempt to force it or modify it in any way. Simply reverse the plug and insert. If it still does not fit, contact a qualified electrician.

SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.

1. A short detachable power-supply cord has been provided for your safety. To reduce risks from entanglement or tripping, a longer cord is not recommended.
2. Extension cords should only be used if care is exercised.
3. If using an extension cord:
   1. the marked electrical rating of the detachable power-supply cord or extension cord should be at least as high as the electrical rating of the appliance;
   2. if the appliance is of the grounded type, the extension cord should have a ground-type 3-pronged plug; and
   3. the longer cord should not drape over the countertop or tabletop where it can be pulled on by children or tripped over.
