Zojirushi CD-NAC40 Operating Instructions Manual

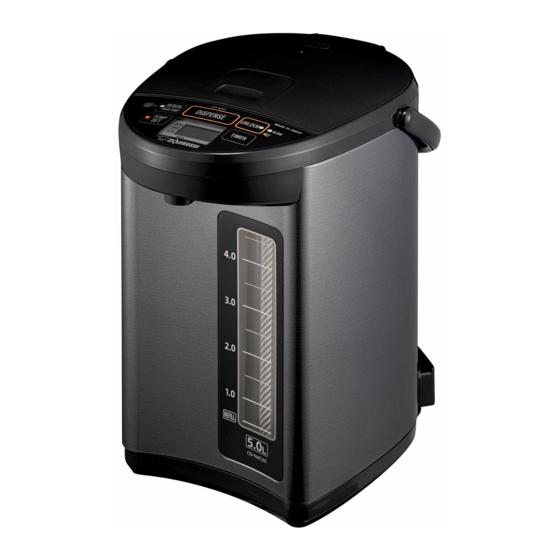

Micom water boiler & warmer
Hide thumbs Also See for CD-NAC40:
Table of Contents

Advertisement

Quick Links

Download this manual

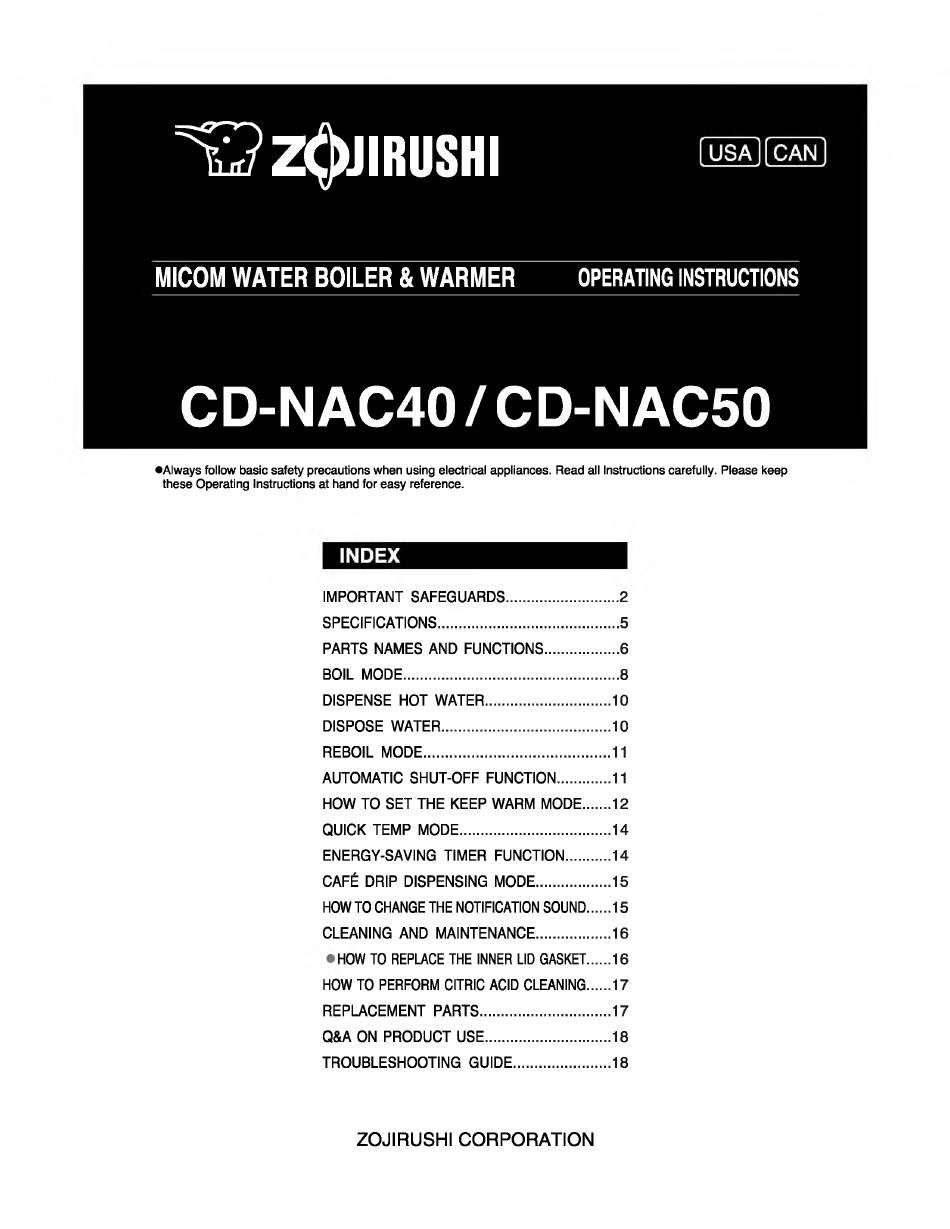

"S? Z0JIRUSHI
MICOM WATER BOILER & WARMER
CD-NAC40 / CD-NAC50
•Always follow basic safety precautions when using electrical appliances. Read all Instructions carefully. Please keep
these Operating Instructions at hand for easy reference.
.............................
..............................................
.......................................................
...............................
............................................
.................................................
.......................................
.................................
................................
.........................
ZOJIRUSHI CORPORATION
OPERATING INSTRUCTIONS
2
5
...................
6
8
10
10
11
..............
11
.......
12
14
............
14
..................
15
......
15
...................
16
......
16
......
17
.
17
18
18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-NAC40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zojirushi CD-NAC40

Summary of Contents for Zojirushi CD-NAC40

  • Page 1: Table Of Contents

    "S? Z0JIRUSHI MICOM WATER BOILER & WARMER OPERATING INSTRUCTIONS CD-NAC40 / CD-NAC50 •Always follow basic safety precautions when using electrical appliances. Read all Instructions carefully. Please keep these Operating Instructions at hand for easy reference. IMPORTANT SAFEGUARDS ......SPECIFICATIONS ..........

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS BASIC SAFETY PRECAUTIONS SHOULD ALW AYS BE FOLLOWED WHEN USING ELECTRICAL APPLIANCES, INCLUDING THE FOLLOWING: 1. Read all instructions thoroughly. 2. Avoid touching hot surfaces and do not close or clog the steam vent opening under any circumstances. The handles and knobs are provided for your safety and protection.

  • Page 3: Before Use

    ■Attempting to do so may cause fire, electric shock or injury. Make any repair inquiries to Zojirushi Customer Do not remove the Upper Lid while boiling. Service. Do not damage the Power Cord.
  • Page 4 If any of the above occurs, unplug the product immediately and return to do not play with the product. Zojirushi Customer Service for check-ups and/or repairs. CAUTIONS Always use caution when opening the Upper Lid Do not use other Power Cords than the one provided.

  • Page 5: Specifications

    SPECIFICATIONS C D -N A C 4 0 r Model No. C D -N A C 5 0 C apacity 135 oz. (4.0 liters) 169 oz. (5.0 liters) Rating AC 120 V 60 Hz 800 W E lectric C onsum ption 208°F (98°C) Approx.

  • Page 6: Parts Names And Functions

    PARTS NAMES AND FUNCTIONS Lid Lock --------------------------------------------------\ The light sound you may hear when opening and closing the Upper Lid is normal, (see pg.19) ____ Steam Vent •Exercise care during the boiling process as steam emitting from the Steam Vent is very hot. Inner Lid Gasket (Consumable Part) •...
  • Page 7 PARTS NAMES AND FUNCTIONS (cont.) «Press buttons down firmly. £ \ C I J N T H l_ J I N F I ©The Notification Sounds and raised dot ( • ) in the center of the DISPENSE button is provided for those with visual impairment. UNLOCK button DISPENSE button Press to dispense hot water, (see pg-10,15)

  • Page 8: Boil Mode

    BOIL MODE ■ Inner Container with wa ter using a pitcher or other conta ner. To monitor the amount of water you are filling, look at the thickness of the stripes on •D o not fill the Inner the Water Level Gauge. Container directly from a water faucet When the Inner...
  • Page 9 8 Ś • Do not cover the Steam Vent with a CD-N AC 40 Approx. 35 minutes CD-NAC40 Approx. 45 minutes cloth. CD-NAC50 Approx. 45 minutes CD-N AC 50 Approx. 42 minutes* ■ Do not touch the Steam Vent or bring your hands or face near the (At a room temperature of 73°F with the...

  • Page 10: Dispense Hot Water

    DISPENSE HOT WATER D IS P E N S E button to dispense hot water. Press the The UNLOCK light turns on and hot water can be dispensed. Do not swivel the product while dispensing water. •Initially upon boiling or if it has been a while after dispensing, the water may not be very hot.

  • Page 11: Reboil Mode

    DISPENSE HOT WATER (cont.) This function is used when reboiling Reboil mode water in the Keep W arm m ode. The BOIL light turns on when Press the ( ° S | button. the boiling process begins. Time required to finish reboiling (At a room temperature of 73°F / 23°C with the Inner...

  • Page 12: How To Set The Keep Warm Mode

    ILength of time for the water temperature to When the water reach 175°F after boiling: temperature reaches Approx. 2 hours and 20 minutes CD-NAC40 208°F, "208" appears on the Display. CD-NAC50 Approx. 2 hours and 20 minutes •Depending on the altitude where the product (At a room temperature of 73°...

  • Page 13: Conversion Guide

    ILength of time for the water temperature to reach 160°F after boiling: ..... 1.0 L Max Capacity Approx. hour Approx. 4 hours CD-NAC40 and 20 minutes Approx. hour ■Tem perature Approx. 4 hours CD-NAC50 and 20 minutes Conversion Guide (At a room temperature of 73”F.)

  • Page 14: Quick Temp Mode

    QUICK TEMP MODE This function heats the water to the selected Keep Warm temperature without reaching a boil. The water will reach the selected Keep Warm temperature quicker than the regular Boil mode. Other benefits include reduced steam and reduced energy use. Use this mode when dechlorination is not necessary, such as when using bottled or purified water. While the water is heating, After reaching the selected temperature, it...

  • Page 15: Café Drip Dispensing Mode

    CAFE DRIP DISPENSING MODE This mode decreases the amount of water dispensed to 60% of the normal setting, making it suitable for brewing café drip coffee. Press the •Pressing the UNLOCK button again during Café Drip Dispensing mode will reset the product to the normal button twice.

  • Page 16: Cleaning And Maintenance

    Body when tilted. Steam may also leak from the gap, causing burns and product failures, which may result in scalds. If hot water spews from the gap or there is steam even after replacing the Inner Lid Gasket, other parts may be in need of repair. Please contact Zojirushi Customer Service.

  • Page 17: How To Perform Citric Acid Cleaning

    In order to prevent gas bubbles and bubbllng-over, the Citric Acid Cleaner for Electric Water Boilers (CD-K03E-JU) is recommended for cleaning. To purchase this cleaner, please visit an authorized Zojirushi dealer or www.zojirushi.com. Preparation: I ® ---- •...

  • Page 18: Q&A On Product Use

    Q&A ON PRODUCT USE Is it okay to use the product for Do not fill the product with any liquid other than water. It may cause pg-3 ► malfunction, or may overflow and cause scalding. heating liquids other than water? Does the water need to be To prevent odor and scale build-up, please change the water at least once pg-10...
  • Page 19 The Nonstick Coating of the Inner Container may become damaged w ith use. Contact or call Zojirushi Customer Service to discuss available options we may have fo r you: 1-800-733-6270...
  • Page 20 ^wZ0JIRUSHI www.zojirushi.com CD-NAC_1 © @ ®...

This manual is also suitable for:

Cd-nac50
