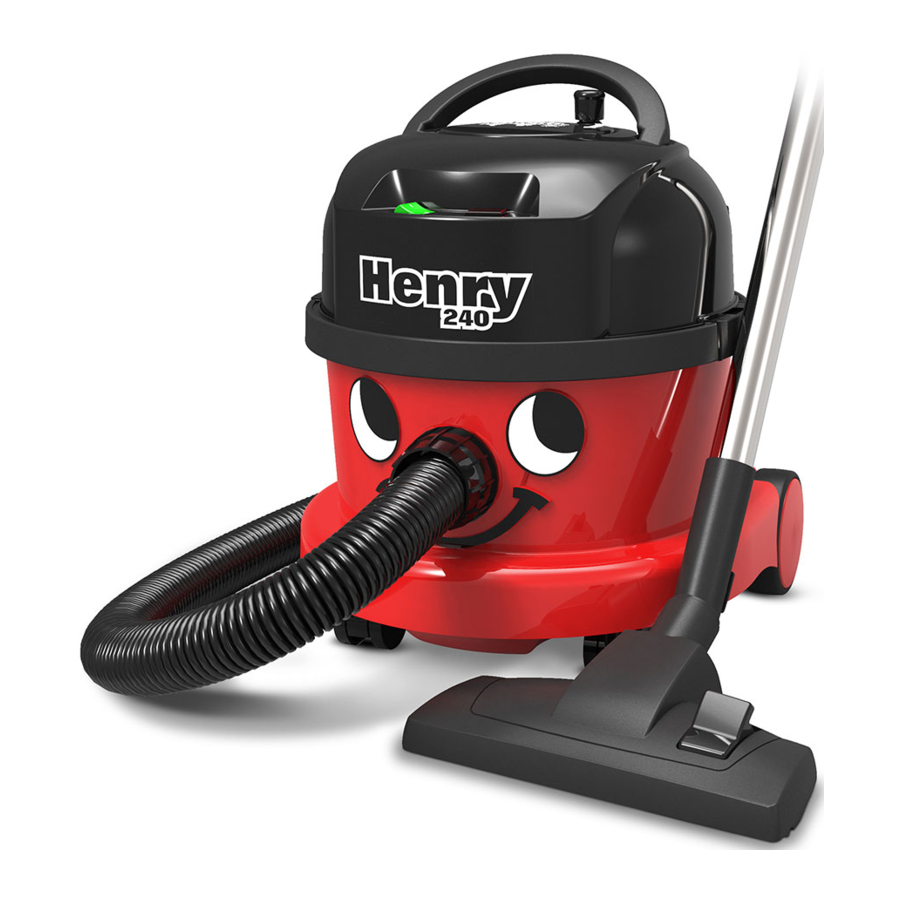

Numatic HENRY, HVR240-11 - Vacuum Cleaner Manual

Fitting the Face

Removing the Face

About your machine

1. Company Name & Address
2. Model
3. Voltage / Alternating Current
4. Frequency
5. Rated Input Power
6. Weight
7. WEEE Logo
8. Protection Class 2 Symbol
9. Approval Mark
10. Machine yr/wk Serial Number

Maintenance

Daily
Keep the machine clean, including hoses and tubes. Ensure the bag and filter are fitted. Regularly examine the power cord. Check dust bag frequently. Check filters are clean.

Weekly - as daily and:-
Check for any worn or damaged parts and replace immediately.

Information for DRY use Vacuum cleaners

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of their machine.

As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

Maintenance should only be carried out by a qualified person.

This machine is for DRY USE only and must not be stored outside or used in wet conditions.

The machine shall be disconnected from the mains power by removing the plug from the power supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

Only use the socket outlet on the machine for purposes specified in the instructions (if fitted).

This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.

This appliance is intended to be cleaned and maintained by an adult.

Children being supervised are not to play with the machine.

This machine is not a toy.

This machine is not suitable for picking up hazardous or explosive dust.

Contact your local distributor if you require a machine capable of performing these tasks.

Ensure that the filtration system fitted to the machine is suitable for the material being collected. This vacuum cleaner is intended for indoor use in the collection of dry materials. This machine should be stored indoors only.

NOTES

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.

This vacuum cleaner is fitted with a thermal protection device.

If the vacuum cleaner stops working, remove the plug from the wall before investigating where the fault lies.

If the vacuum cleaner has a blockage, switch off, remove the plug from the power socket, inspect the fl oor tool, tubes and hose for debris. If the floor tool, tubes and hose are clear, replace the dust bag and clean the filter.

The vacuum cleaner should be inspected after use for damage.

The vacuum cleaner should be stored in a dry place.

When moving from one place to another, consider the weight of the machine.

DO

• Keep your machine clean including hoses and tubes.
• Change dust bag frequently.
• Keep filters clean.
• Keep diffuser filter(where fitted) clean.
• Use filter bags, they will enhance performance and help keep machine clean.
• Use a Numatic Original filter bag under fine dust conditions.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
• Only use the brushes provided with the machine. The use of other brushes may impair safety.
• Regularly examine the power cord. If damage is found such as cracking or ageing the power cord must be replaced by a qualified person.
• Only replace the power cord with the correct Numatic approved replacement part.

DO NOT

• Pull on the cable to unplug the machine from the power supply.
• Use to suck up hot ashes or lighted cigarette ends.
• Use steam cleaners or pressure washers to clean the machine or use in the rain.
• Immerse in water for cleaning.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Use in wet environments or to collect wet materials.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.
