Summary of Contents for Numatic HET.100

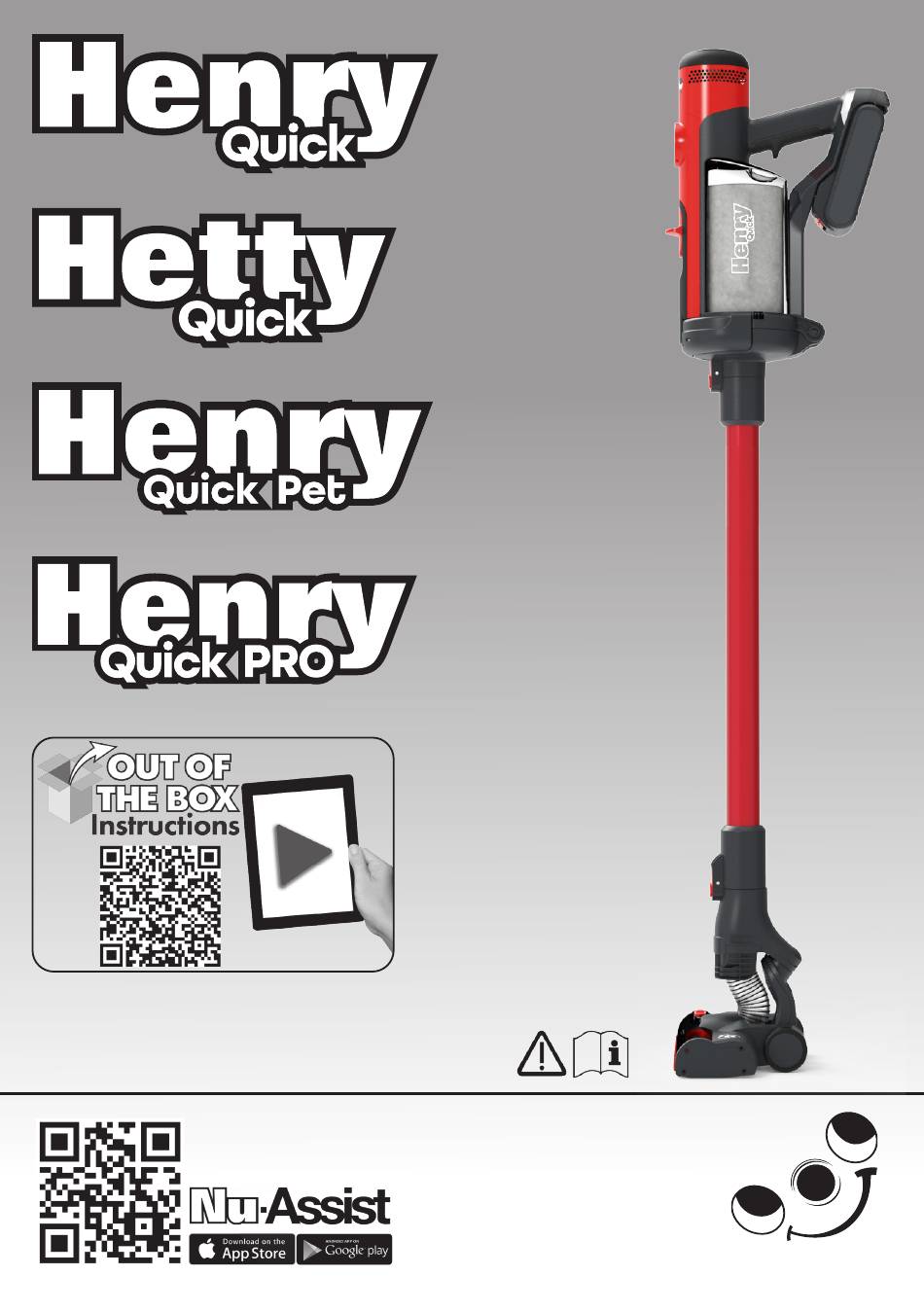

- Page 1 (HEN.100) (HET.100) (HEN.100) (HEN.100) Original Instructions CAUTION, Read instructions before using the machine KEEP FOR FUTURE REFERENCE myhenry.com...
- Page 2 Index Extension handle Page 10 Battery pack Page 5 & 11 Charging Port Page 8 & 11 Filter Pod / Tank Page 9 Hose Page 12 Brush release button Page 13 Brush release panel Page 13 Scent capsule cover Page 7 Control Panel Page 6 &...
-
Page 3: Box Contents
Box Contents Quick PRO Kit Henry Quick PRO Only. QK.150 Henry Quick Pet and PRO Only. Main Assembly... - Page 4 Accessory Fitting...
- Page 5 Battery Fitting Battery Removal...
-
Page 6: Control Panel
Control Panel Power on/off Battery life / Charge status Boost mode on/off Brush roll on/off Filter POD full / System blockage... - Page 7 Scent Capsule Fitting Floor Tool Air Bleed Control...
-
Page 8: Charger Wall Mounting
Charger Wall Mounting Use correct fixings for your wall type, which is suitable for the weight of the machine (3.2kg). The use of adhesives is not considered a reliable means of fixing. Routing the charging cable Accessory Storage... - Page 9 Disposable Pod Emptying Disposable Pod Fitting...
- Page 10 Extension Handle Fitting / Removal...
-
Page 11: Machine Charging
Machine Charging Recharge time 150 mins = 100%... - Page 12 Floortool Hose Cleaning / Blockage Removal...
- Page 13 Brush Roller Removal & Cleaning Mini Motorised Floor Tool Brush Roller Removal & Cleaning...
-
Page 14: Machine Data
Machine data Sound Pressure Protection Weight Model Voltage (LpA) *Run Time class (Ready to work) Uncertainty (KpA) 70 min (Low - Brush OFF) 77 dB(A) 55 min (Low - Brush ON) 25.2V Class III 3.2 kg 16 min (High - Brush OFF) 0.5 dB 14 min (High - Brush ON) HEN.100... - Page 15 (EN) About your machine Rating Label Model Machine yr/wk Serial Number Weight Approval Marks Voltage / Direct Current / Rated Power Company Name & Address Use Lithium-Ion Battery Only WEEE Logo Manufacturer Floor Tool Label Model Weight Voltage / Direct Current / Rated Power Approval Marks Manufacturer Battery Label...
- Page 16 Wet Floor Sign NOTE: A risk assessment should be conducted to determine which PPE should be worn. Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268...
- Page 17 Change the fi lter pod frequently. Keep hoses and tubes clear. Replace any worn or damaged parts immediately. Use OEM specifi ed Numatic Scent Capsules only as shown in this manual. Don’t Use to suck up hot ashes or lighted cigarette ends.
-
Page 18: Battery And Charger Information
Do not open the charger. Repairs shall be done only by authorised personnel. Warning: The battery included in this product must only be charged by the Numatic Charger supplied with the product under NO circumstances should an alternative non Numatic charger be used as there is risk severe damage and fi... - Page 19 Important Warnings – Batteries Read all the warnings before using the battery. This cleaner uses Numatic Lithium-Ion batteries. Used batteries should be disposed of safely and placed in a sealed plastic bag and then handled according to all locally approved precautions and environmental regulations.
-
Page 20: First Aid Measures
If on checking the battery is found to be operational then a single recharge cycle under observation can • be attempted with the appropriate Numatic charger. If the battery recharges correctly on this single recharge cycle then it can be deemed a good battery. -
Page 21: Schematic Diagram
Schematic diagram Replacement parts Spares and Accessories 915170 Battery Pack Assembly (25.2 V) 914440 Battery Charger - UK Plug 914303 Henry Floor Tool 914305 Hetty Floor Tool 914746 Henry Floor Tool Graphite For spares and 915527 Mini Motorised Floor Tool accessories visit myhenry.com 919221... -
Page 22: Warranty
Henry Quick Numatic International WARRANTY Numatic International Limited grants to the original purchaser a warranty on the terms and for the period set out below: Domestic Residential Use………………………………………………………….2 years Note: This warranty expressly excludes consumable parts that are considered replaceable from time to time during the normal working life of the machine. - Page 24 Numatic International Limited (Head Offi ce) Chard, Somerset TA20 2GB, UNITED KINGDOM Tel: 01460 68600 numatic.com Numatic International GmbH Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND Tel: +49 (0) 511 984 2160 numatic.de Numatic International Denmark Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND Tel: +45 (0) 316 40808 numatic-online.dk...
