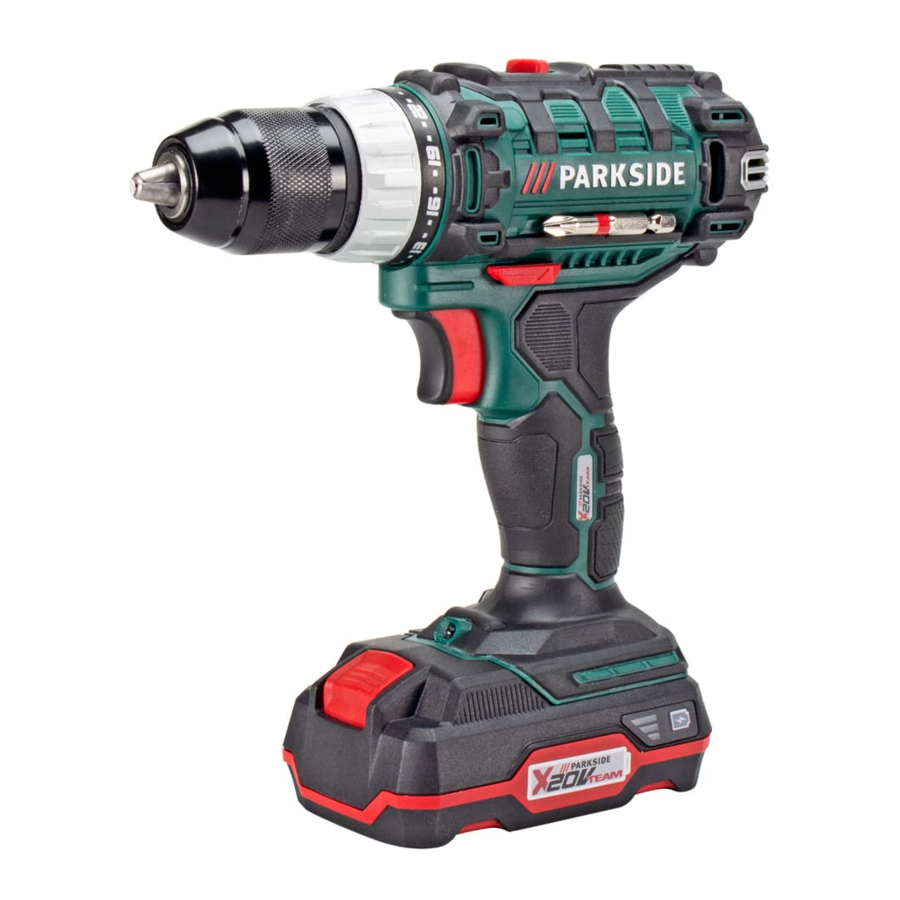

Parkside PABS 20-Li D4 (306436) - Power Screwdriver Manual

Introduction

BATTERY COMPATIBLE WITH ALL DEVICES OF THE SERIES „PARKSIDE X 20V TEAM"

The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is designed for screwing and drilling into wood, plastic and metal. Use this product only as described and for the areas of applications specified. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse. This appliance is not intended for commercial use.

Features

Fig. A

1. Gear selector
2. Bit holder (magnetic)
3. Rotational direction switch/lock
4. ON/OFF switch/speed control
5. Belt clip
6. Battery charge level button
7. Battery display LED
8. Battery pack
9. Release button for battery pack
10. LED work light
11. Chuck
12. Torque selection ring
13. High-speed charger
14. Red charge control LED
15. Green charge control LED

Package contents

1 cordless drill PABS 20-Li D4

1 high-speed battery charger PLG 20 A1

1 battery pack PAP 20 A1

1 bit PH2 50 mm

1 carrying case

1 set of operating instructions

Technical details

Cordless drill: PABS 20-Li D4

Rated voltage:	20 V (DC)
Rated idle speed:	1st gear: n0 0–400 rpm 2nd gear: n0 0–1400 rpm
Chuck clamping range :	max. Ø 13 mm
Max. drill diameter:	Steel: 13 mm Wood: 30 mm

Battery: PAP 20 A1

Type: LITHIUM ION
Rated voltage: 20 V (DC)
Capacity: 2.0 Ah
Cells: 5

High-speed battery charger: PLG 20 A1

INPUT:
Rated voltage: 230–240 V ~, 50 Hz(AC)
Rated power consumption: 65 W
Fuse (internal): 3.15 A

OUTPUT:
Rated voltage: 21,5 V (DC)
Rated current: 2.4 A
Charging time: approx. 60 min.
Protection class: II / (double insulation)

Noise emission value:
Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Vibration emission value:
Total vibration values (vector total of three directions) determined in accordance with EN 60745:

NOTE
The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure specified and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the electric tool in such a way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Power Tool Safety Warnings

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.

Work area safety

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1. Power tool plugs must match the outlet.
   Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Use and handling of the cordless electrical power tool

1. Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
2. Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
3. When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
4. Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

RISK OF EXPLOSION!
Never charge non-rechargeable batteries!

Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

Service

1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety guidelines for cordless screw drivers

Hold the power tool by the insulated gripping surfaces when performing an operation where the screw or attached tool could come into contact with hidden wiring. Contact between the screw or attached tool and a live wire may cause exposed metal parts of the power tool to become live and give the operator an electric shock.

Safety guidelines for battery chargers

• This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

The charger is suitable for in- door use only.

To avoid potential risks, damaged mains cables should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.

Before use

Charging the battery pack

(see fig. A)

Always pull out the plug before you remove the battery pack from or connect the battery pack to the charger.

• Never charge the battery pack when the ambient temperature is below 10°C or above 40°C.

• Connect the battery pack to the rapid battery charger (see Fig. A).
• Insert the power plug into the socket. The control LED lights up red to indicate that the appliance is charging.
• The green control LED indicates that the charging process is complete and the battery pack is ready.
• Insert the battery pack back into the appliance (see Fig. B).

  Fig. B

Attaching/disconnecting the battery pack to/from the appliance

Inserting the battery pack:

• Push the rotation direction switch into the middle position (lock) (see Fig. C).

  Fig. C
  Allow the battery pack to click into the handle (see Fig. B).

Removing the battery pack:

• Press the release button and remove the battery pack (see Fig. D).

  Fig. D

Checking the battery charge level

• Press the battery charge level button to check the charge level of the battery (see Fig. E).

  Fig. E
  The status/remaining charge will be shown on the battery display LED as follows:
• GREEN/RED/ORANGE = maximum charge/ performance
  RED/ORANGE = medium charge/performance
  RED = low charge – charge the battery

Changing tools

Your cordless drill has a fully automatic spindle lock .
When the motor is stopped, the power train locks so that the chuck can be opened by turning it . After you have attached the desired tool and tightened it by turning the chuck , you can continue working (see Fig. F).

Fig. F

The spindle lock is automatically released when the motor starts (ON/ OFF switch pressed).

Torque selection ring/drill setting

You can set the torque using the torque selection ring (see Fig. G).

Fig. G

• Select a low level for small screws or soft materials.
• Select a high level for large screws, hard materials or removing screws.
• Select the drill setting for drilling work by adjusting the torque selection ring to the position (see Fig. H).

  Fig. H

2 speed gearbox

Only operate the gear selection switch when the appliance is at a standstill. Otherwise the appliance can be damaged.

In first gear (gear selector switch in position: 1) (see Fig. I)

Fig. I
you can reach a speed of approx. 400 rpm and a high torque. This setting is suitable for all screwing jobs.

In second gear (gear selector switch in position: 2) (see Fig. J)

Fig. J
you can reach a speed of approx. 1400 rpm for carrying out drilling work.

Operation

Switching on and off

Switching on:

• To start the appliance, press the ON/OFF switch and keep it pressed in (see Fig. K).

  Fig. K
  The LED work light lights up when the ON/ OFF switch is depressed lightly or fully. This allows for illumination of the work area in low lighting.

Switching off:

• Release the appliance's ON/OFF switch to switch off the appliance.

Adjusting the rotational speed

The ON/OFF switch has a variable speed control. Pressing the ON/OFF switch lightly yields a low speed. Increasing pressure increases the speed (see Fig. K).

NOTE
The integrated motor brake ensures rapid stoppage

Changing the direction of rotation

• Change the direction of rotation by pressing the rotational direction switch towards the left or right (see Fig. L).

  Fig. L

Tips and tricks

Tip! This symbol indicates proper behaviour!

• Before operation, check whether the screw or drill bit is correctly positioned, i.e. centred in the drill chuck.
• Screw bits are labelled according to their dimensions and their shape. If you are uncertain, always check whether the bit fits tightly in the screw head without any free play.

Torque:

• Smaller screws/bits can be damaged if you set the torque or rotational speed too high.

Hard screw joints (in metal):

• Particularly high torques occur, for example, in metal screw joints made using drive sockets.
  Select a low rotational speed.

Soft screw joints (e.g. in soft wood):

• Again, use a low rotational speed, to avoid e.g. damaging the surface of the wood upon contact with the screw head. Use a countersink.

When drilling in wood, metal and other materials, observe the following:

• Use a high speed for drill bits with small diameter and a low speed for drill bits with large diameter.
• Select a low speed for hard materials and a high speed for soft materials.
• Secure or fasten the workpiece in a clamp or vice (if possible).
• Mark the spot where you want to drill using a centre punch or nail. Select a low rotational speed when starting.
• Pull the rotating drill bit from the hole repeatedly to remove dust and chips and clear the hole.

Drilling in metal:

• Use a metal drill (HSS). For optimum results, cool the drill bit with cutting oil. Metal drill bits can also be used to drill into plastics. Start with a 3 mm diameter drill bit and then increase the size until the desired hole diameter is achieved.

Drilling in wood:

• Use a wood drill with a lathe centre; for deep holes, use an auger bit; for large-diameter holes, use a Forstner bit. Small screws can be screwed directly into soft wood.

Maintenance and cleaning

RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.

The cordless drill is maintenance-free.

• The appliance must always be kept clean, dry and free from oil or grease.
• Never allow liquids to get into the appliance.
• Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
• If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.

NOTE
Replacement parts not listed (such as batteries, switches) can be ordered via our service hotline.

Service

• Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
• Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk

Ordering a replacement battery

If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.
The price of the replacement battery is €20, including VAT and shipping. Due to limited stocks, this item may sell out in a relatively short time.

NOTE
Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline.

• The promotion is limited to one battery per customer/appliance and also to a timeline of two months after the promotion period. Thereafter, the replacement battery can be ordered as a replacement part under other conditions.

Telephone ordering

Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk

To ensure a fast processing of your order, have the article number of you appliance to hand (e.g. IAN 306436) in case of questions. The article number can be found on the type plate or the title page of these instructions.
