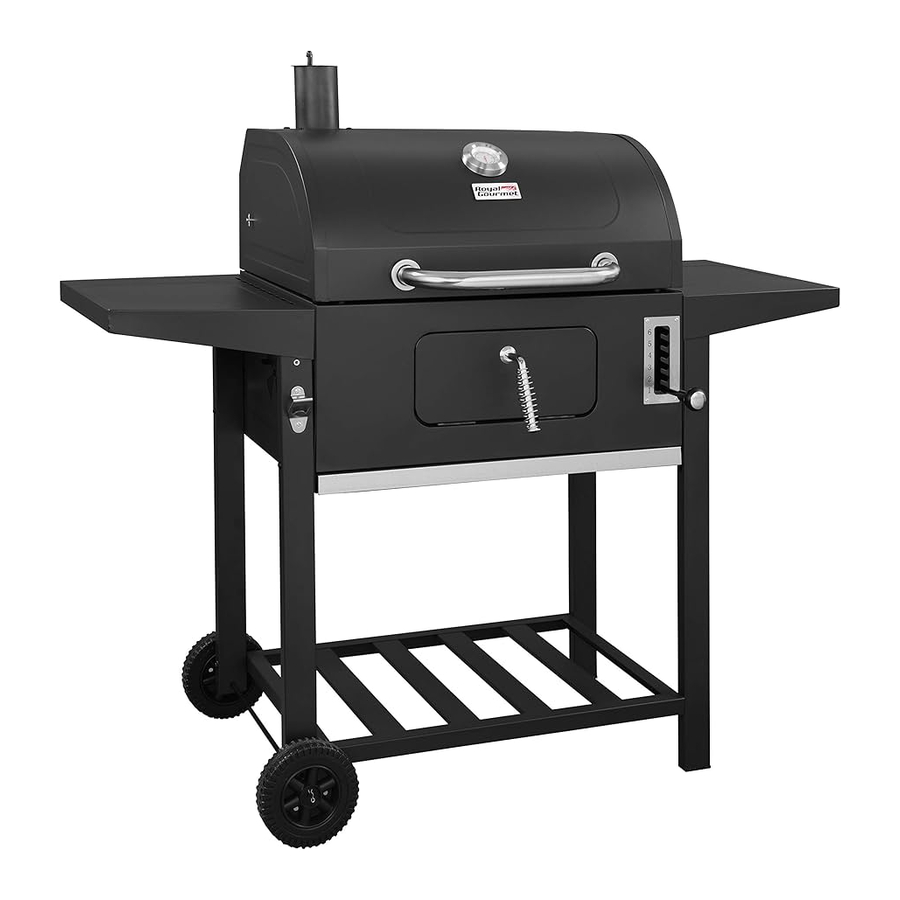

ROYAL GOURMET CD1824A, 0703-B - 24-Inch Charcoal Grill Manual

ROYAL GOURMET CD1824A, 0703-B - 24-Inch Charcoal Grill Manual

Also See for CD1824A:

Advertisement

ROYAL GOURMET CD1824A, 0703-B - 24-Inch Charcoal Grill Manual

Intended Use

Use this grill to heat, cook and grill food.
This grill is intended exclusively for outdoor use and not for use indoors.

Only use the product as described in this owner's manual.
All other uses are considered improper and can lead to material damage or even personal injuries.

The manufacturer accepts no liability for damage caused by improper use.

Assembly

Preparation


Risk of explosion!
Failure to follow these instructions can lead to problems and risks while using the grill

  • Follow all the assembly instructions listed here
  1. First read the assembly instructions completely.
  2. Allow yourself enough time for assembly and find an even working space of two to three square meters.
  3. Small parts such as handles are pre-assembled.

Required Tools

(Not included)

1 x Phillips screwdriver

1 x Wrench

Unpack Grill

Unpack the grill and dispose of all packaging materials. Keep the packaging materials out of the reach of children and dispose of them according to regulations after assembly of the grill. Take the following steps to assemble the grill.


Risk of damage!
During use, the screws can loosen slowly and impair the grill's stability.

  • Check that the screws are well-tightened prior to each use.
    If necessary, tighten all the screws again to ensure the grill is standing securely.

Before use, place the grill on an even, sturdy surface outdoors.

Exploded View

Exploded View

Parts and Hardwares

Parts and Hardwares

Assembly Instructions

Step 1: Assemble the two side panels (2), the front panel (1) and the rear panel (3) with 8 bolts (B) and 8 nuts (F) Please note: Screw the bolts into the second and the third screw-holes
Assembly - Step 1

Step 2: Assemble the right front leg (7), the right back leg (8), and the side table (4) to the right side panel with 4 bolts (A) and 4 nuts (F). Please note: Don't secure and tighten all the bolts until step 5.
Assembly - Step 2

Step 3: Assemble the left front leg (5), the left back leg (6), and the side table (4) to the left side panel with 4 bolts (A), and 4 nuts (F).
Assembly - Step 3

Step 4: Slide axle (10) through the left legs. Attach the wheel washers (1) and wheels (11) to both ends of the axle. Secure each wheel with a split pin (C).
Assembly - Step 4

Step 5: Assemble the bottom shelf (9) to legs with 4 bolts (A) Now tighten all the bolts.
Assembly - Step 5

Step 6: Assemble the side dampers (12) to side panels with 2 bolts (B) and 2 nuts (F).
Assembly - Step 6

Step 7: Insert the door handle (13) into the charchoal access door and secure with a nut and a split pin.
Assembly - Step 7

Step 8: Screw the lower hinges (14) to the rear panel with 4 bolts (E).
Assembly - Step 8

Step 9: Assemble the charcoal pan (15) and the charcoal pan brace (16) with 4 bolts (B), 4 washers (K) and 4 nuts (F) as shown, and (K) must be inserted between (B) and (F).
Assembly - Step 9

Step 10: Fasten the charcoal pan attached to the rear panel with 4 bolts (B).
Assembly - Step 10

Step 11: Twist the lever knob (18) onto the lever (17) as shown.
Assembly - Step 11

Step 12: Secure the lever (17) by using 1 split pin (H) and 1 hinge pin (D) to the right side of the charcoal pan lifting system. Secure the lever (17) to the rear panel with 2 bolts (B).
Assembly - Step 12
Please note: Tighten the bolt attached to the top screw-hole of the lever first, then tighten the other one. Slide the ash tray (19) underneath the firebox.

Step 13: Screw the lid handle (20) to the lid (21) with 2 bolts (J).
Assembly - Step 13

Step 14: Fasten the upper hinges (22) to the lid with 4 bolts (E) and 4 nuts (F)
Assembly - Step 14

Step 15: Connect the lid with the firebox by securing hinges with 2 hinge pins (G) and 2 split pins (H).
Assembly - Step 15

Step 16: Loosen the bolt on the stack (23), and take off the cover. Then assemble the stack (23) to the lid with 4 bolts (B) and 4 nuts (F)
Assembly - Step 16

Step 17: Assemble the cover to the stack, screw back the bolt as shown
Assembly - Step 17

Step 18: Insert the thermometer (24) into the lid and secure it in place by using a nut.
Assembly - Step 18

Step 19: Insert the warming rack (25) by attaching it to the firebox and the lid. Secure it with 2 split pins (C)
Assembly - Step 19

Step 20: Place the cooking grates (26) onto the firebox.
Assembly - Step 20

Before Grilling

  • Prior to first use, wash the cooking grates and the warming rack with warm soapy water.
  • Pre-firing
    Before you use the grill for the first time, it needs to be conditioned (pre-fired) for at least 1-2 hours at a temperature of 212ºF—392ºF.
    This is necessary to make the inside ready for barbecuing and to burn-in the heat-resistant paint on the outside. During pre-firing, do not close the cover completely. Only close the cover completely for a few minutes at the end.


The temperature must never exceed 400ºF.

warning Grill will drip oil during this process and for AL several uses afterwards. This is normal.
NEVER EXCEED 400ºF AS THIS WILL DAMAGE THE FINISH AND CONTRIBUTE TO RUST. PAINT IS NOT UNDER WARRANTY AND WILL REQUIRE TOUCH-UP. THE PRODUCT IS NOT WARRANTED AGAINST RUST.

Types of Charcoal

You can burn either charcoal briquettes or natural lump charcoal, which have different attributes. Charcoal briquettes typically provide longer cooking time and are usually less expensive while lump charcoal burns hotter and produces less ash.

Smoking Wood Chips

Tips for Using Wood Chips

A lot of smoke is produced when using wood chips. Smoke can escape through seams and turn the inside of the smoker black. This is normal. Wood chips must be used to produce smoke and create the smoke flavor. Never use more than I box of wood chips at a time. Never use wood chunks.

You can use dry or pre-soaked wood chips in your smoker. Dry chips burn faster and produce more intense smoke. Chips pre-soaked in water (for approximately 30 minutes) burn slower and produce a less intense smoke. Check wood chip box periodically to see if wood has burned down. Add more chips as required.

Smoking with wood chips/wood chunks

For a more robust smoke flavor while using charcoal briquettes or lump charcoal, try adding wood chips or several wood chunks to the fire. Wood chunks are available in a variety of natural flavors and can be used alone or in addition to charcoal. As a rule, any hardwood that bears a fruit or nut is suitable for cooking. However, different woods have different tastes. Experiment with different woods to determine your personal favorite, and always use well-seasoned wood. Green or fresh-cut wood can turn food black and taste bitter.

Our Recommendations

Chicken — Alder, Apple, Hickory, Mesquite, Sassafras, Grapevine

Beef — Hickory, Mesquite, Oak, Grapevine

Pork — Fruitwoods, Hickory, Oak, Sassafras

Lamb — Fruitwoods, Mesquite

Veal — Fruitwoods, Grapevine

Seafood — Alder, Mesquite, Sassafras, Grapevine

Vegetables —Mesquite

How to Use


Risk of burning!
A The grill, the charcoal, and the BBQ meat can become extremely hot during use. Any direct contact can result in serious burns.

  • Keep sufficient distance from hot parts, as any direct contact can lead to severe burns.
  • Always wear oven or BBQ gloves when grilling.
  • Use only long-handled utensils with heat-resistant grips.
  • Do not wear any clothing with wide sleeves.
  • Use only dry lighters or special fluid lighters.

warning Lighting Your Grill:

  1. Open the lid and remove the cooking grates.
  2. To start a charcoal fire, stack 4.5 lb. charcoal briquettes in a pyramid and saturate with lighter fluid. Do not use gasoline, kerosene, or alcohol for lighting charcoal. Use of any of these or similar products can cause an explosion possibly leading to severe bodily injury.
  3. Light the coals in several places.
  4. After the briquettes ash over or turn gray, spread them out. Please use a suitable fireproof tool with a long, fireproof handle when you do this.
  5. Put the cooking grates in place and adjust the charcoal pan to the desired height using the lifting handle/lever and start cooking
  6. If the charcoal is not burning evenly, please use long-handled tongs to move coals for even heat.
  7. Leave the lid open or closed based on the type of BBQ meat. Please close the lid when longer cooking time is needed. The thermometer located on the lid shows the temperature to ensure it is not too high for a particular BBQ meat.

warning Chimney starters, electric starters, or other types of fire. A starters may be used instead of lighter fluid to light fire but use only according to manufacturer's instructions.

Never use instant light charcoal or charcoal lighter fluid with any other starting methods.

warning Allow enough time for grill to heat up before cooking.
You can't cook properly when the grill is cold, and you can't build a fire properly when you are busy preparing food.
Once the fire is burning well, it is easy to keep it going with a little attention.

warning Rising heat will move up and out of the grill, pulling in Ld cooler air behind it, which provides oxygen for the fire Use the air vent and stack dampers to control the airflow and the cooking temperature, After the fire is established and the grill reaches the desired cooking temperature, the dampers can be left completely open for maximum airflow and a higher cooking temperature-or closed as needed to decrease airflow for a lower cooking temperature. Use the heat indicator to monitor grill temperature.

warning The adjustable charcoal pan can also be used to control the temperature.

Use the lifting handles to raise the charcoal pan for quick searing and lower it for slow cooking.

Always use a flame-retardant insulated grill mitt when adjusting the air vent or the charcoal pan.

Adding Additional Charcoal

For extended cooking times, additional charcoal can be added through the charcoal pan access door.

warning Use extreme caution when opening charcoal pan access door or adding charcoal, to avoid injury.

  1. Use the lifting handles to lower the charcoal pan to its lowest setting.
  2. Open the charcoal pan access door using a flame-retardant insulated grill mitt. (Handle will be extremely hot.) Please take out all the food and put on BBQ gloves, move the cooking grate to add charcoal if the grill doesn't have a device for adding charcoal. Make sure to move the cooking grate back into position after the procedure.
  3. Use flame-retardant insulated grill mitts and long-handled tongs to stoke coals, to make the ash fall through the slots in the charcoal pan or the slide below.
  4. Use flame-retardant insulated grill mitts and long-handled tongs to add charcoal to the pan as needed.
  5. Raise the charcoal pan to the desired level

warning Do not use lighter fluid or instant light charcoal when adding additional charcoal to an existing fire.

warning This is dangerous and can cause injury. It will also leave a lighter fluid aftertaste on your food. Only add regular charcoal or wood chunks to an existing fire.

Smoke by Cooking Operation

warning Smoke by cooking uses indirect heat and smoke.
SMOKE BY COOKING SLOWLY.

To light the barbecue

  1. Open the lid and remove the cooking grates.
  2. To start a charcoal fire, stack 4 lbs. of charcoal in a pyramid and saturate with lighter fluid.
    warning Do not use gasoline, kerosene, or alcohol for lighting charcoal. Use of any of these or similar products could cause an explosion and possibly cause severe bodily injury.
  3. Light coals in several places.
  4. After the briquettes ash over or turn gray, place hot charcoals on the cooking grates in the offside smoker if you have one.
    Place hot charcoals on the middle of the cooking grates. To do this, use a suitable fireproof tool with a long, fireproof handle.
  5. Place water/drip pan on the right side of the cooking grates in the offside smoker if have one.
  6. Place the cooking grates in low position.
  7. Add water-soaked hardwood chips for a smoked flavor.
  8. Put the cooking grates in place.
  9. Close the lid and control heat with the dampers and adjustable grate.

Tips for Smoked BBQ

warning Pans are not included, and a disposable bread pan is recommended. Please purchase it separately.

  • If you want to sear certain foods before smoking, please place meat directly above charcoals with the lid open and cooking grates in high (hot) position for several minutes.
  • Add flavor-soaked wood chips to the fire and add 1-part marinade, beer, or wine to 3 parts water, to the drip pan.
  • Opening the smoking chamber will extend cooking time.
  • Insert the thermometer into thickest part not touching the bone and allow five minutes to register.
  • Internal temperature for fowl should be 170ºF to 180ºFor when the leg moves easily in the joint.
  • Meat should be cooked to internal temperature of 140ºF for rare, 160ºF for medium, and 170ºF for well-done.
  • Check the water level when cooking for more than 4 hours or when you can't hear the water simmering.
  • Add water by moving the meat over and pouring water through the grill into the water pan.
    IF THE SMOKE IS WHITE, THE FIRE IS PERFECT.
    IF THE SMOKE IS BLACK, YOU NEED TO ADD SOME AIR

Maintenance and Cleaning

Your grill is made of high-quality materials. To clean and maintain the surfaces, please follow the below instructions:


Risk of burning!
Let the grill cool down completely before cleaning

  • Only tip out the ash when the charcoal has completely burned out.


Health risk!
Do not use any decolorants or thinners to remove stains.
These are harmful to health and must not come into contact with food.


Risk of damage!
Do not use any strong or grinding solvents or abrasive pads, as they can damage surfaces and leave behind scratch marks.

When you have finished grilling you can shut down your grill by closing both dampers and allowing the fire to extinguish Be patient. This may take an hour or more

Empty the Ashes & Ash Pan

warning After the fireis completely extinguished you should wait several hours before emptying the ashes to ensure they are not hot, or else there is risk of burns.

  • Knock any ashes that did not fall into the ash pan from the fire grate. (If there are pieces of partially burned charcoal on the cooking grate you can save them for use the next time. They are still good).
  • Tap the sides of the fire bowl to loosen any ash that is on the sides.
  • Unclip the ash pan from the bottom of the grill and slide out towards the front.
  • Give the ash pan a few firm taps to loosen any ash that may be stuck.
  • Place the ashes in a metal container and fill with water to ensure there are no lit coals, then you can dispose of the ashes.
  • Let the charcoal burn out completely after grilling. This eases the cleaning effort by burning away excess fat and BBQ residue.
  • Lift out the charcoal pan and empty out the cold ash. It is particularly important that you remove the ash before moisture combines with the cold ash. Ash is saline and when moist, can cause rust to form on the inside of the ash collecting tray. Thus, over years the ash collecting tray can get rusted and damage.
  • Clean the grill regularly, optimally, after every use.
  • Remove the cooking grates and clean them thoroughly wit.h soapy water. Then dry them off thoroughly.
  • Use a wet sponge to remove loose residue from the grill
  • Use a soft, clean cloth for drying. Do not scratch the surfaces when wiping them dry.
  • Clean the internal and external surfaces with warm soapy water.
  • Tighten all screws before every use, to ensure your grill is stable at all times.
  • Protect your grill against weather. Since it is manufactured from steel it will eventually rust. Clean possible rust spots and repair them with fireproof paint. It is important that you remove the ash from the firebox before moisture combines with the cold ash, as this can lead to rust damage.

warning The grill should always be stored where it is protected from moisture.

warning Charcoal is porous and holds moisture. DO NOT AX leave charcoal in your grill when you are not using it. Charcoal and ashes left inside the ash pan may reduce the life of your grill.

Grilling Recipes

Direct Heat

Grilling Recipes - Direct Heat

STEAK (& ALL MEATS):

  • Cook food on the charcoal side of the unit, directly above coals/ heat.
  • To grill meats, raise fire grate to high position (hot) and sear for one minute on each side with the lid open to seal in flavor and juices.
  • Then lower the fire grate to the medium position with lid closed and cook to desired degree
  • Control heat with dual dampers and adjustable fire grate
    information Tip: Place grilled meat back in the marinade for several minutes before serving it will be tastier and juicier.

    Boil extra marinade first to kill bacteria remaining from the raw meat.

MARINATED FLANK STEAK:

  • Mix marinade ingredients in a nonmetal dish.
  • Let steak stand in marinade for no less than 4 hours in the refrigerator.
  • Brown each side for 5 minutes, but center should remain rare
  • Cut steak diagonally across the grain into thin slices before serving
  • Grill with fire grate in high(hot) position with lid open or closed

Meat Marinade

1/2 cup vegetable or olive oil
1/3 cup soy sauce
1/4 cup red wine vinegar
2 tbsp lemon juice
1 tsp dry mustard
1 minced clove garlic
1 small minced onion
1/4 tsp pepper

QUAIL OR DOVES:

  • Cover the birds with good amount of seasoning and marinate overnight
  • Pour remaining dressing and cover with Texas Pete Hot Sauce for 6 hours.
  • Wrap birds in thick bacon secured by a toothpick
  • Place on grill. Keep turning until bacon is black.
  • Grill for 20 minutes. Sear with lid open and fire grate in high (hot) position for 1 minute on each side before lowering the grate and closing the lid.
  • To smoke the birds, place them in the center of the grates with fire in both ends of the fire box.

HOT DOGS

  • Grill with lid up and cooking grates in high (hot) position for approximately 6 minutes.
  • Turn every few minutes

SWEET CORN IN HUSKS:

  • Trim excess silk from end and soak in cold salted water 1 hour before grilling
  • Grill 25 minutes —turning several times

KABOBS:

  • Alternate any combination of meat, onions, tomatoes, green peppers, mushrooms, zucchini, circular slice of corn-on-the-cob, or pineapple on skewers. Meat could consist of shrimp, scallops, lobster, chicken, sausage, pork, beef, etc
  • Marinate the meat in refrigerator for several hours
  • Grill each side approximately 7 minutes, turning occasionally while basting with marinade.
  • Leave a small amount of room between pieces in order to cook faster.
  • Grill with lid up and the cooking grates in the lowest position

Kabob Marinade:

1 cup soy sauce
½ cup brown sugar
½ cup vinegar
½ cup pineapple juice
2 tsp salt
½ tsp garlic powder

  • Mix all ingredients in a saucepan and bring to boil
  • Allow marinade to cool before marinating your meat in it.
  • Marinate beef in the mixture a minimum of 4 hours

HAMBURGERS:

See meat marinade above.
You may also marinate by allowing to stand in marinade for 1 or 2 hours at room temperature before cooking or let it stand in a covered dish in the refrigerator for up to 24 hours.

  • Bring to room temperature before cooking.
  • Mix in chopped onions, green peppers, salt, sear 3/4 inch patties on each side, with cooking grates in high position for a few minutes
  • Lower fire grate to medium position and grill with lid down to avoid flare-ups.
  • Cook each side 3 to 7 minutes according to desired degree
  • Cook ground meat to 150º F internal temperature or until juice runs clear (free of blood) to prevent E-coli infections
  • Burgers can be basted with marinade when turning and/or other ingredients can be mixed in with the ground beef such as chili sauce or powder.

SHRIMP (Peeled) & CRAYFISH:

  • Place on skewers
  • Coat with melted butter and garlic salt.
  • Grill 4 minutes on each side or until pink. Cocktail sauce optional.

BAKED POTATOES:

  • Rub with butter and wrap in foil and cook on grill with lid down for 50 minutes.
  • Turn after 25 minutes (no need to turn if smoked)
  • Squeeze to check if it is cooked

Smoking Recipes

Indirect Heat

Smoking Time
Indirect Heat - Smoking Time

SMOKED TURKEY:

  • Empty cavity, rinse and pat dry with paper towel.
  • Tuck wing tips under the back and tie the legs together.
  • Place in center of cooking grate directly above the foil drip pan of water.
  • Smoke for 12 minutes per pound. Allow several extra minutes per pound if stuffed, to allow for expansion.
  • Use a meat thermometer for best results (190ºF internal).

SMOKED BAKED HAM:
You can smoke fully cooked canned ham or smoked and cured whole ham or shank or butt portion Glaze

1 cup of light brown sugar, firmly packed
1/2 cup orange juice
1/2 cup honey

  • Mix sugar, juice, and honey. Let the glaze sit for at least 4 hours
  • Place fire grate in the lowest position and a drip pan under the meat.
  • Remove rind and score fat diagonally to create a diamond pattern
  • Insert a whole clove into the center of every diamond
  • Place ham with fat side up in the center of the cooking grid directly above drip pan. Close lid.
  • Cooking for about 9 minutes per pound is suggested for fully cooked ham. Smoked or cured ham, which is not fully cooked, should be cooked to an internal temperature of 160ºF.
  • Baste with ham glaze 3 or 4 times during last 30 minutes of cooking time.
  • Garnish with pineapple rings about 15 minutes before end of cooking time.

STUFFED SMOKED HOT DOGS:

  • Slit hot dogs lengthwise, within 1/4 inch of each end.
  • Stuff hot dogs with cheese and relish and wrap in bacon.
  • Place on cooking grid over drip pan and smoke 15—20 minutes or until bacon is crisp.

SMOKED PIECES:

  • Rinse pieces in cold water and pat dry with paper towels.
  • Brush each piece with vegetable oil and season with salt and pepper to taste.
  • Brown pieces directly above coals with lid open and grate in high or medium position for several minutes.
  • Then, place pieces on cooking grate directly above drip pan.
  • With the grate in the low position, cook with lid down for 55 to 60 minutes or until done. Do not use vegetable oil or salt and pepper if using marinade.

SMOKED VENISON:

Venison Marinade:
1 cup balsamic or wine vinegar
1 cup olive oil
2 oz. Worcestershire
1/2 oz Tabasco
2 tbsp. Season-All
1—2chopped jalapenos
3 oz. soy sauce

Bacon Marinade
2 oz. wine vinegar
2 oz. Worcestershire
4 dashes tabasco sauce

  • Place leg of venison in a container or "hefty bag" and marinate for 2—4 days, turning daily. Marinate bacon overnight in its marinade
  • Remove roast from refrigerator at least an hour before cooking.
  • Season generously with seasoned salt and coarse ground black pepper.
  • Wrap 1 lb. bacon over the top of the roast, and smoke 20/25 minutes per pound, or until tender. Do not overcook.

SMOKED SHRIMP & CRAYFISH:

  • Mix 1/2 cup butter, two cloves of crushed garlic, tabasco sauce, sliced green pepper, I tablespoon each of minced onions, salt, and juice from one lemon in a foil pan.
  • Add shrimp and/ or crayfish and smoke for 45 minutes.

SMOKED VEGETABLES:

  • Turnips, potatoes, carrots, okra, mushrooms, peeled onions, zucchini, squash, etc.
  • Put in pan and cover with water and cook for several hours while cooking the meat, or place vegetables on grill and smoke for 50 minutes directly or wrapped in foil.

SMOKED FISH:

  • Marinate in brine (1/4 cup dissolved in I qt. of water) or marinate fish in I cup white wine, I cup soy sauce mixed with 1 cup lemon juice.
  • Marinate overnight in covered dish in refrigerator.
  • Let it air on rack 20 minutes before placing on Pam-sprayed grill.
  • Smoke 25 minutes

SMOKED SPARE/BACK RIBS:

  • Peel off tough layer of skin on back side.
  • Rub all surfaces with seasoning.
  • Place ribs in the center of the cooking grid above the drip pan and smoke approximately 1½ hours or until meat pulls away from bone
  • Baste with barbecue sauce during last 30 minutes.

CHICKEN MARINADE:

Mix
1/2 cup soy sauce
1/4 cup vegetable oil
1/4 cup red wine vinegar
1 teaspoon oregano
1/2 teaspoon sweet basil
1/2 teaspoon garlic powder with parsley
1/4 teaspoon pepper

  • Pour over chicken pieces in a non-metal dish
  • Cover and refrigerate overnight, turning occasionally. Use marinade to baste chicken while cooking

MEAT MARINADE: (For steaks, chops, and burgers)

Mix
1/4 cup soy sauce
2 coarsely chopped large onions
2 cloves garlic (halved)

  • Mix ingredients in an electric blender, cover, and process at high speed 1 minute or until mixture is smooth.
  • Stir in 1/4 cup bottle gravy coloring (Kitchen Bouquet and Gravy Master) and 2 teaspoons Beau Monde seasoning (or substitute 1 teaspoon MSG and 1 teaspoon seasoned salt).
  • Allow meat to stand in marinade at room temperature for 2 hours or refrigerate up to 24 hours in a covered dish.
  • Bring meat to room temperature before cooking.

SHISH KABOB MARINADE:

Mix
1 cup soy sauce
1/2 cup brown sugar
1/2 cup vinegar
1/2 cup pineapple juice
2 teaspoon salt
1/2 teaspoon garlic powder

  • Mix ingredients and bring to a boil.
  • Marinate beef in mixture a minimum of 4 hours.

Technical Details

Model: Royal Gourmet@
24-lnch Charcoal CD1824A
Net Weight: 57 lb
Overall Dimensions
(Grill Assembled):
(LxWxH)
50 x 24 x 46 inches
Cooking Area: 590 square inches
Max. Amount of Fuel: 4.5 lb. charcoal
Steel Paint: Heat-resistant up to 400ºF

For Your Safety

Before Using the Appliance

warning FOR YOUR SAFETY!
Use outdoors only! Do not use it inside a building, garage, or any other enclosed space. Read the instructions before assembling and using the appliance.
DO NOT use the grill unless it is completely assembled, and all the parts are securely fastened. This grill will become very hot, do not move it during use. Keep away from children and pets.

After unpacking and before every use, check whether there is any sign of damage. If there is any damage, please do not use the grill and call customer service at 1-800-618-6798 This owner's manual follows the standards and regulations applicable in the USA. For other countries, please follow the country-specific directives and laws!

warning Please read the safety information and this owner's manual before using the grill, to ensure safe and reliable use of this product
Keep this owner's manual in a safe place and please provide this owner's manual along with the grill if you give it to someone else

Symbols


High risk!
Failure to heed the warning can lead to injuries, with potentially fatal consequences.


Low risk!
Points to take note of when handling the appliance.

GENERAL SAFETY INSTRUCTIONS

  • To be observed during each use
  • Do not use indoors!

  • Do not use spirit or petrol for lighting or relighting!

  • This appliance becomes extremely hot, do not move it when in use!

  • Keep children and pets away!

Safety Instructions


Fire hazard!

Live coals and grill components get extremely hot during use and can start fires.

  • It is imperative that you have a fire extinguisher and first-aid kit handy in case of an accident or fire.
  • Place the grill on an even, horizontal, secure, heat-resistant, and clean surface
  • Set up the grill at least 3 feet (1 meter) away from highly flammable materials such as awnings, wooden patios, or furniture.
  • Do not move the grill during use.
  • Ignite the charcoal only at a sheltered location.
  • Fill the main chamber of the grill with a maximum of 4.5 lb. of charcoal.
  • Some foods produce flammable fats and juices. Clean the grill regularly preferably after each use.
  • Only tip out the ash once the charcoal has completely burned out and cooled down.


Risk of burning and accidents!

This device is not intended for use by persons (including children) with limited physical, sensory, or mental capacities, or lacking experience, or knowledge

  • Such persons must be informed about the dangers of using the appliance and supervised by a person responsible for their safety.
  • Any modifications to the product may lead to a large safety risk and are forbidden. Do not undertake any unauthorized modifications. In case of damage, repair, or other problems with the grill, contact our customer service at 1-800-618-6798 or send an email to service@royalgourmetusa.com
  • Keep children and pets away from the appliance The grill, the charcoal, and the grilled food becomes hot during use. Any direct contact can result in serious burns.
  • Keep sufficient distance from the hot parts, as any direct contact can lead to severe burns.
  • Always wear oven mitts or BBQ gloves when grilling.
  • Use only long-handled utensils with heat-resistant grips.
  • Do not wear any clothing with wide sleeves.
  • Use only dry lighters or special fluid lighters.
  • Let the grill cool down completely before cleaning and/or placing in storage.


Risk of explosion!
Flammable liquids that are poured on the embers may cause flash flames or explosions.

  • Never use flammable liquids such as petrol or spirit.
  • Do not put pieces of charcoal soaked in flammable liquid onto the embers.


Risk of poisoning!
Carbon monoxide is generated when burning charcoal, barbecue briquettes, etc. This gas is odorless and can be fatal in closed spaces!

  • Use the grill outdoors only!


Health risk!
Do not use any decolorants or thinners to remove stains. These are harmful to health and must not come into contact with food.


Injury to children!

While playing, children can become caught in the packaging film and choke.

  • Do not let children play with the packaging film
  • Make sure that children do not put any small assembly parts into their mouths. They could swallow the parts and choke on them.


Risk of injury
Both the grill and its components have some sharp edges.

  • Be careful when touching the grill and its components as there is risk of accidents and/or injury during assembly and use. Wear protective gloves if necessary.
  • Do not set up the grill near entryways or where a lot of people move around.
  • Always exercise extreme caution while grilling. If distracted, you can lose control of the appliance.
  • Always be attentive and aware of what you are doing. Do not use the grill if you are not focused, tired, or under the influence of drugs, alcohol, or medication. Just one moment of carelessness during use of the product can lead to serious injuries.


Risk of damage!
During use, the screws may loosen slowly and impair the grill's stability.

  • Check that the screws are well-tightened prior to each use If necessary, tighten all the screws again to ensure the grill is standing securely.


Risk of damage!
Do not use any strong or grinding solvents or abrasive.

ZJA pads, as these can damage the surface and leave behind scrape marks.

CALIFORNIA PROPOSITION 65 WARNING

  1. Fuels used in wood and charcoal burning appliances and the combustion of byproducts such fuels, can expose you to chemicals including carbon black and wood dust, which are known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm.
  2. This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
    For more information visit: www.P65Warnings.ca.gov

THESE WARNINGS ALSO APPLY TO THE SIDE FIRE BOX.

1-800-618-6798
service@royalgourmetusa.com

Mon - Fri, 8:30 AM- 5:30 PM, EST

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download ROYAL GOURMET CD1824A, 0703-B - 24-Inch Charcoal Grill Manual

Advertisement

Need help?

Need help?

Do you have a question about the CD1824A and is the answer not in the manual?

Questions and answers

Table of Contents
