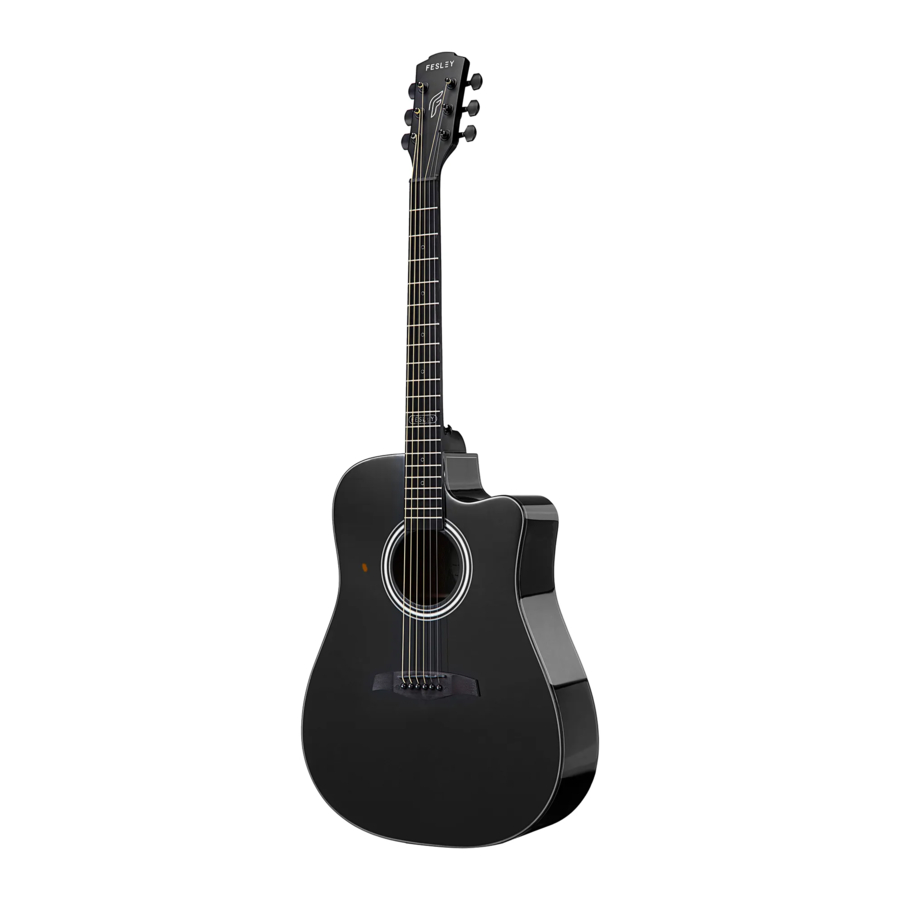

Fesley FD80, FDL60, FD60, FF60 - Acoustic-Electric Guitar Manual

FESLEY FD80/FDL60 ACOUSTIC-ELECTRIC GUITAR PRODUCT ACCESSORIES

TOOLS REQUIRED

In order to get the best performance and enjoy more fun with the Fesley guitar, it is strongly recommended that you read this instruction before using it. Please store this instruction in a safe place for future reference.

PARTS

DIAGRAM

Please retain these instructions for future reference.
DIAGRAM - Part 1

Tuning Pegs
Tuning Machine
Headstock/Head
Neck

String
Fret
Pick Guard: Remove backing and adhere

Bridge
Saddle
Bridge Pins
Equalizer& 9V Battery
Output Jack

EQUALIZER

FD80/FDL60 ACOUSTIC-ELECTRIC GUITAR TUNING STRINGS

Install a 9-volt battery in the battery compartment.
Turn the tuner on and tune the guitar strings accordingly.- Standard tuning is as follows (low to high): E, A, D, G, B, E

OPERATING INSTRUCTIONS

Plug one end of the part G ¼" cable into the guitar and plug the other end into the input of an amplifier.
Turn amplifier on and adjust sound according to your preference.
Attention: If the battery in the guitar is dead, the amplifier will not have any sound.

CAPO

CAPO
Place on different frets to play in different keys/tunings.

FESLEY FD60/FF60 ACOUSTIC GUITAR PRODUCT ACCESSORIES

TOOLS REQUIRED

PARTS

DIAGRAM

Please retain these instructions for future reference.
DIAGRAM - Part 2

Tuning Pegs
Tuning Machine
Headstock/Head
Neck

String
Fret
Pick Guard: Remove backing and adhere

Bridge
Saddle
Bridge Pins

FD60/FF60 ACOUSTIC GUITAR TUNING STRINGS

Install a 3V CR2032 battery in the part F tuner. Attach the tuner to the headstock of the guitar.
Turn tuner on and tune the guitar strings accordingly.
- Standard tuning is as follows (low to high): E, A, D, G, B, E

GUITAR CARE

Dust and other foreign matter can harm the quality of your guitar. Make sure to regularly clean and maintain your guitar, including around the tuning pegs and bridge. To clean your guitar, use a dry, soft cloth. If desired, guitar polish can be bought from any local music store. Do not leave your guitar exposed to the sunlight or elements, and be aware that guitars are made of wood and are therefore sensitive to changes in temperature, humidity, and altitude.

GUITAR STRING MAINTENANCE

If strings are difficult to play or do not play correctly:
Replacing guitar strings can remedy many problems involving poor sound. All strings can be changed at once or strings can be changed individually. To change a guitar string, the old string should be completely removed before attaching the new string. After the new string is attached, the guitar will need to be re-tuned.

CHANGING STRINGS

Removing Old Strings:

To remove a guitar string, find the tuning peg and tuning machine that the string is attached to. Loosen the string by winding the tuning peg until the string has no tension.
Continue to wind the string loose until the string can be pulled loose from the top. The strings can be pulled out via the bridge at the bottom of the guitar.
If you do not wish to use the old string again, you can cut the string near the middle of the strings viawire cutters. If you choose to do this, be careful and hold the string securely next to the cut; otherwise, the string will pop up and can potentially harm you.

Installing New Strings:

Remove the bridge pin of your guitar. Bridge pins can stick to the guitar, and may take some time to get off; the edge of peg winder (available at any local music store) can be used to help.locate the proper string to replace your old string. Then, from the end of the string that does NOT have a ball at the end, feed the string through the bridge via the open hole exposed by removing the pin. Then, press the bridge pin back into place gently with the slot facing forward, and while holding your finger on the pin, run the string through until the ball on the end of the string is flush to the bottom of the pin.
Secure the string to the headstock via the tuning machine. To do so, make sure the eye/hole of the tuning machine is parallel to the neck/headstock of the guitar. Feed the string through the eye of the tuning machine and pull the string fairly taut. The string should have a bit of slack (about 1-2 inches).
While holding the string taut, secure it to the tuning machine by turning the corresponding tuning peg to wrap the string around. For extra security, route the string through itself on the initial wrap around (see diagram). - For treble strings (G,B,E), wind the strings clockwise. For bass strings (E, A, D), wind the strings counter-clockwise.
Begin to tune the string by winding the tuning peg until the desired sound is produced. After reaching the desired tone, pull the string lightly. The string will go slightly out of tune. Readjust the tuning peg until receiving the desired tone again. Repeat the process a few more times. This will ensure that your string will stay in tune while playing.
You may cut off the excess string, but it is important to leave some excess still attached(about ¼-1inch) in case the guitar string needs to be restrung again. Remember, it is easy to cut more off later, but impossible to add string back.

ADJUST NECK TENSION

Locate the tension rod on the base of the neck under the strings.
Use Allen wrench to loosen/tighten the tension of the guitar neck.
