Dualit Hand Blender Manual

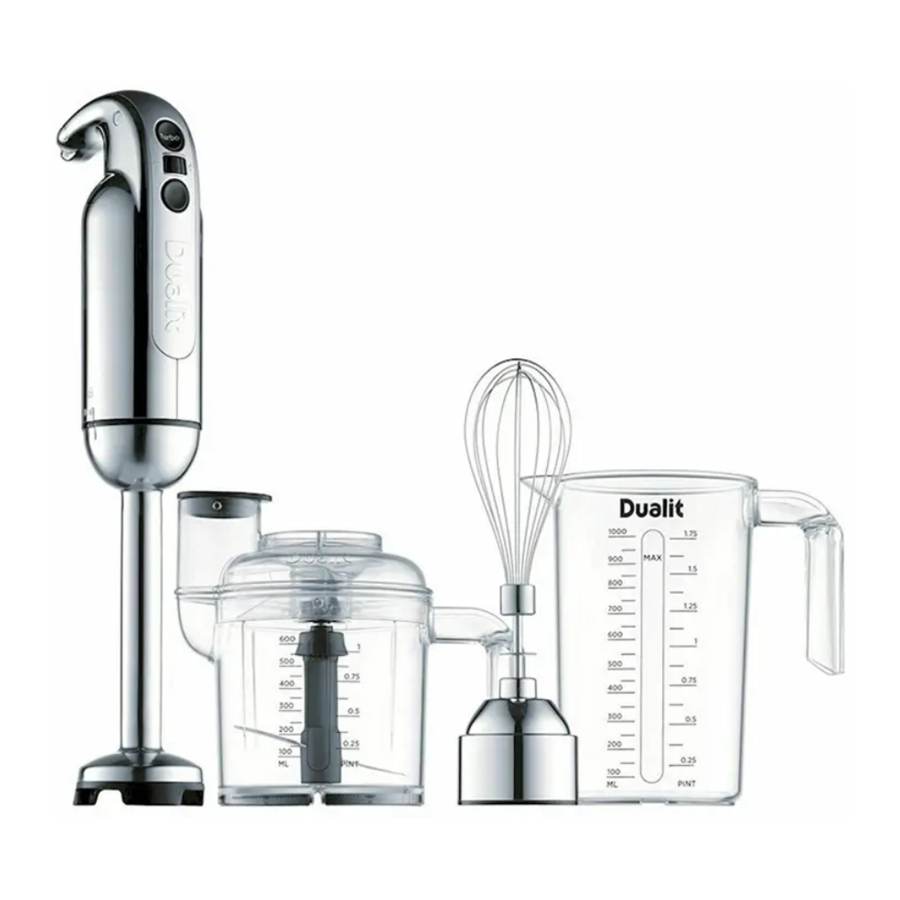

KNOW YOUR HAND BLENDER

USING YOUR HAND BLENDER

The following sections will explain use of your hand blender. please read this section carefully.

Do not blend for more than 1 minute in any 4 minute period, if you accidentally do, unplug and leave the hand blender to fully cool to room temperature before re-using.

For max loadings see "Maximum loading chart"

ATTACHING AND REMOVING ACCESSORIES

Do not attach or remove accessories with the main body plugged in to the supply.

1. LOCATE
   To attach the Wand or Gearbox - Hold the Main Body firmly with one hand, align the indent with the unlock symbol.

2. ATTACH
   Push and twist the accessory clockwise with your other hand, until the indents on the sides of the parts are aligned.

3. REMOVE
   To remove the accessory, unplug and reverse the procedure.


USING THE WAND

The wand is a powerful tool for liquidising or mixing ingredients.
For max loadings see "Maximum loading chart"

1. ATTACH WAND
   Ensure the hand blender is unplugged. Attach the wand to the main body. ensure the wand is securely attached into the main body.

   Avoid contact with the blades.

2. INGREDIENTS
   Place your ingredients into a tall container, pan or mixing jug to avoid splashing.

3. INSERT WAND
   Dip the wand deep into the pan or jug ensuring the depth of the mixture does not exceed the 'Max' marks on the wand shaft.
   NOTE: Keep wand foot submerged to avoid splashing.

4. TURN ON
   Plug in the hand blender. Set the speed to minimum (-), press the power button to start blending.

5. TURN OFF
   When blending is complete, release the power button then unplug.

6. CLEAN PARTS
   Remove the wand from the main body. Remove the wand from the jug or pan before pouring. clean parts immediately after use (see cleaning instructions).


USING THE CHOPPER BOWL & GEARBOX

With its sharp blades and 600ml capacity, the chopper bowl accessory is compact and handy for dry ingredients. For max loadings see "Maximum loading chart".

1. INSERT BLADES
   Ensure the hand blender is unplugged. Insert the blade in the chopper bowl; locate it over the chopper bowl shaft.

   Blades are sharp!

2. INGREDIENTS
   Distribute ingredients evenly in the bowl. pre-cut larger pieces of food into even-sized cubes (approximately 2cm). do not fill above the MAx.
   Note: Never put food in before blade.

3. ClOSE LID
   Place the lid on the bowl and rotate clockwise to lock.
   Ensure lid is correctly locked in place with the feed tube and spout aligned.

4. ATTACH GEARBOX
   Attach the gearbox to the centre of the lid. Align the four protruding dimples.

5. TURN ON
   Plug in the hand blender. Set the speed to minimum (-), press the power button to start chopping.

6. PULSE
   Pulse for a maximum of 25 seconds for meats or tough ingredients, 30 seconds for liquids and soft ingredients.
   Note: Use repeated short pulses (no more than 1 second) for best results.

   For best results short and regular 1 second pulses are recommended.
7. FEED TUBE
   Ensure the hand blender is unplugged. Remove the feed tube cover and drop ingredients down the feed tube into the bowl. Never reach into the feed tube with your fingers or utensils (e.g. a spatula).

8. FEED TUBE COVER
   Replace the feed tube cover. Plug in the appliance and continue operating the hand blender.

9. TURN OFF
   When chopping is complete, release the power button then unplug. ensure the motor and blades have stopped then lift the main body and gearbox vertically off the chopper bowl lid.

10. REMOVE GEARBOX
    Remove the gearbox from the main body by twisting anti-clockwise.

11. REMOVE LID
    Rotate the lid anti-clockwise. If scraping out a mixture take out the blades first. never touch the cutting edges of the blades.

    Blades are sharp!

12. CLEAN PARTS
    Clean parts immediately after use (see cleaning instructions).


USING THE BALLOON WHISK WITH GEARBOX

The balloon whisk is the perfect tool for incorporating air into light ingredients to create featherweight results. For max loadings see "Maximum loading chart".

Note: to prevent splashing use Mixing Jug supplied.

1. ATTACH GEARBOX
   Ensure the hand blender is unplugged. Attach the gearbox to the main body. ensure the gearbox is securely attached into the main body.

2. INSERT BALLOON WHISK
   Hold the main body with one hand and the whisk stem with the other hand and insert the whisk with a slight twist and push action until they click in to place.

3. LOW SPEED
   Plug in the hand blender. dip the whisk well into the mixture. Set the speed to minimum (-).

4. TURN ON
   Press the power button to start whisking.

5. TURN OFF
   When whisking is complete, release the power button then unplug from the mains.

6. CLEAN PARTS
   Detach whisk by firmly holding main body or gearbox & pulling the whisk downwards. Remove gearbox from the main body. clean parts immediately after use (see cleaning instructions).


MIXING TIPS

For best chopping results add ingredients gradually via the feed tube. This appliance is not suitable for frozen mangos, un-melted chocolate, coffee beans, seeds, uncooked-rice etc. Generally, there is not one set speed for an entire recipe. You will need to change the speed of the mixer depending on what stage of the recipe you are working on. This is communicated in the recipe section.

1. When processing liquids, such as soups with the wand, always ensure the foot is submerged in the liquid to prevent splashing. do not process uncooked vegetables.
2. When chopping small quantities of ingredients use a low speed and a pulsing action.
3. do not process ice in the chopping bowl.
4. For best results pulse repeatedly, holding the button for no longer than 1 second.

Extra or replacement accessories can be purchased directly from dualit. A second chopper bowl or mixing jug can be useful extras in busy kitchens. A dualit apron can also make a perfect gift. Knife Blade – contact customer services for availability details. note: Its max capacity is 70g of 2.5cm³ cubed beef on turbo speed for 3 seconds (not supplied in pack).

MAXIMUM LOADING CHART

Use the chart below as a guide to determine the maximum amount of ingredients to be mixed at one time.

OPERATION AND REST TIMES:
* Do not blend or process for more than 1 minute in any 4 minute period, if you accidentally do, unplug and leave the hand blender to fully cool to room temperature before re-using.
**Rest appliance for 1 minute per every minute of whisking.

USEFUL TIPS

• Roughly chop ingredients before blending for best results.
• Hold the chopper bowl or mixing jug steady during use, use a high sided bowl for whizzing even small amounts to prevent splattering.
• The variable speed control can vary the speed of the motor from 7000-16000rpm. for best results start blending on the lowest setting and gradually increase the blending speed.
• For best results work through the ingredients with a gentle up and down movement of the main body.
• To store a mixture in the jug, cover and refrigerate as required.

MIXING

The mixing jug is ideal for whipping up a quick smoothie or making frothy coffee. Blending is fast, easy and clean. Use the wand for mixtures that include solids such as fruits, ice cream etc.

• Make homemade smoothie in minutes. even fruit which is just past its best can be used. Most soft fruits are suitable. stir into cereal for a nutritious breakfast. to serve as a drink, pour the mixture into a glass and add milk, yogurt and/or fruit juice.
• No need to go out for a frothy coffee. Bring some semi-skimmed milk to the boil in a pan and whizz to a froth using the turbo button. pour into a cup of hot coffee and stir in gently, also good with instant coffee.
• For homemade hot chocolate, heat a cupful of milk until just boiling. remove from heat and drop in a couple of blocks of chocolate. Wait for it to soften and then whizz with the dualit hand blender using the power button, then change to the turbo setting to froth.

WHISKING

• Ingredients are whisked to incorporate air. By tipping a bowl at a safe angle, even more air can get into the mixture, resulting in light mixtures and increased volume.
• Whisked egg whites provide the base for soufflés, mousses and all types of meringues.
• The mixing bowl must be spotless as a speck of grease will stop egg white from holding air. Rub the bowl with a cut lemon if you have any doubts.
• Start slowly and only use a faster speed when the mixture starts to turn white.

CHOPPING

• Chop onions and garlic by putting into the chopper and whizzing, no smelly fingers!
• Grate cheeses in moments, ready for adding to sauces or sprinkling over baked dishes. Chop into 1.5cm cubes, place in chopper bowl and whizz.
• Produce fresh breadcrumbs with ease. Slightly stale white bread makes the fluffiest crumbs. remove the crusts and cut into cubes. half fill the chopper bowl and whizz until fine. Make in batches and store in the freezer.
• Nourishing, healthy soups can be quickly made in the chopper using cooked leftovers. root vegetables, tomatoes, pumpkin, squashes and courgettes are all suitable. Use flavourings such as curry powder, ginger, cumin, or sprigs of thyme, and a dash of soy sauce to add piquancy.
• To obtain the greatest volume when beating egg whites, be sure the bowl and beater are completely clean and dry before use. The smallest amount of grease or water can prevent the whites from aerating.
• The term "soft peaks" means that the egg white barely supports itself. When the head of the mixer is lifted, the egg white mixture will curl and may fall from the beater.

CLEANING AND MAINTENANCE

IT IS IMPORTANT TO CLEAN THE HAND BLENDER AND ALL PARTS IN CONTACT WITH FOOD AFTER EACH USE.

1. UNPLUG
   ALWAYS SWITCH OFF AND UNPLUG BEFORE ANY CLEANING. NEVER USE ABRASIVE CLEANERS ON ANY OF THE PARTS.

2. CLEANING ICONS
   Look for these symbols on the parts and follow the instruction:
   1. Not dishwasher safe
   2. Dishwasher safe
   3. Do not immerse parts

3. PRE-WASH
   To remove food particles from wand, chopping bowl and balloon whisk fill a jug (or half fill chopping bowl) with warm soapy water and whizz using the turbo button.

4. DO NOT SUBMERGE
   Do not submerge, or partially submerge the main body or gearbox in any liquid.

5. SHARP BLADES

   Avoid contact with the blades.
   Use a cleaning brush and soap suds when washing the blades.

6. USE DAMP CLOTH
   Do not use harsh or abrasive cleaning agents, solvents or steel wool. Use a damp cloth.


CLEANING INSTRUCTIONS

STORING YOUR HAND BLENDER

1. UNPLUG
   ENSURE THE HAND BLENDER IS UNPLUGGED WHILST IN STORAGE

2. CLEAN & DRY
   Ensure the unit is thoroughly cleaned before storing.
   Bacteria can build up quickly if not cleaned and food is left on the unit.

3. STORE
   Place the hand blender in its box in a cool, dry place and away from the reach of children.


TROUBLESHOOTING

IMPORTANT SAFETY PRECAUTIONS

Unpack the box with care, keeping all the packaging materials until you are satisfied everything is present and in working order. Once satisfied remove any tags from the hand blender and recycle the packaging appropriately. You may wish to keep the box to store your hand blender.
All illustrations are for representation only; your model may vary from illustrations shown.

READ ALL THE INSTRUCTIONS CAREFULLY BEFORE USING YOUR DUALIT HAND BLENDER. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE REFERENCE

Always follow these safety precautions when using your hand blender for your own safety and to avoid damaging the appliance.

• To protect against risk of electrical shock, do not submerge the main body, cord or plug, in water or any other liquids. do not allow liquid into the join where the main body and attachments meet.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not use outdoors, in moving vehicles, boats or caravans.
• This appliance is intended for domestic use only. If the appliance is used improperly, for professional, semi-professional purposes or if it is not used according to these instructions, the guarantee becomes invalid and dualit refuses any liability for damage caused.
• Never tamper with the safety systems. They are included for your personal safety.
• To avoid serious injury, should the unit start accidentally, unplug from outlet when: not in use, moving the appliance, before attaching or removing parts, before cleaning Bor storage.
• Do not place hand blender near edge of work surface.
• Do not let cord hang over edge of table or counter.
• Keep hands and utensils out of containers while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper should be used but must be used only when the hand blender is not running and blades safely removed.
• Blades are sharp. Handle carefully. Avoid contact with moving parts as serious injury could result
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• Always operate chopper bowl with lid securely in place. The bowl may leak if the lid is damaged, incorrectly fitted or over-filled.
• Do not disconnect accessories from the main body before the motor has stopped.
• Keep fingers, clothing, utensils and hair away from moving parts.
• Never reach into the chopper bowl with your fingers or an object (e.g. a spatula) while the hand blender is running.
• This is an attended appliance. Do not leave appliance unattended during use. Unplug appliance when unattended.
• the use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
• If the chopper blade, wand blades or whisk is jammed, switch off and unplug the hand blender before removing the blockage.
• The noise level of this appliance is Lc>70dB.
• For safest use it is recommended to remove pan from the stove and allow liquids to cool to room temperature before blending. Never blend hot oil or fat.
• Do not add boiling liquids or foods to the chopper bowl. Always cool liquids or food items.
• Do not insert frozen items into jug or chopper bowl taken directly from a hot dishwasher.
• Do not immerse or wash jug or chopper bowl in boiling or very hot water.
• When blending heavy loads pulse for 30 seconds and allow cooling until room temperature between each pulse. please note that no recipe contained within the manual is considered a heavy load.
• Do not operate the chopper bowl while empty.
• Never carry or pull the appliance by the cord.
• Make sure the electrical outlet is rated at the same A.c. voltage as that stated on the bottom of the main body. do not use if the voltages are different.
• If the power cord is damaged it must, for safety reasons, be replaced by dualit or an authorised dualit repairer.
• Do not operate the hand blender with a damaged cord or plug.
• Do not operate the hand blender after appliance malfunctions.
• Do not operate the hand blender if it is dropped and shows signs of damage. Return appliance to the nearest Authorized service centre for examination, repair or electrical or mechanical adjustment when there is any indication of damage.
• This product is fitted with a reset table thermal cut-out and surge protection, if the motor stops, the unit is not broken, stop, unplug, allow to cool and then restart.
•
  In order to avoid hazard following inadvertent resetting of the thermal cut out, this appliance must not be supplied through an external switching device such as a timer or connected to a circuit which is regularly turned off by the utility.
• We recommend that the appliance is plugged into a socket that has no other appliance connected to it. Failure to do this may cause an overload, trip a circuit breaker or blow a fuse. Preferably the socket outlet should be protected by a Residual current device (Rcd).
• The maximum rating is based on the attachment that draws the greatest load. Other attachments may draw less power.
• Be careful if hot liquid is utilized with the Hand Blender or its accessories as it can be ejected out of the container due to a sudden steaming.
• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

SAVE THESE INSTRUCTIONS

BEFORE FIRST USE

• Read this instruction book thoroughly.
• Clean all parts in contact with food before using for the first time. Wash with lukewarm water and detergent, then rinse and dry.
• Treat the blades with respect – they are very sharp!
• When you turn the hand blender on for the first time, a "new" smell may be given off, this will dissipate after a few uses.
