Jackery Explorer 240 - Power Station Manual

SPECIFICATIONS

Capacity	Lithium-ion 16.8Ah/14.4V(241.9Wh)
Weight	Around 3 kg / Around 6.6 lbs
Dimensions	Around 23 x 14 x 20cm / Around 9.1 x 5.4 x 7.8in
DC Input	12-30V 3.42A
Car Port	12V 10A
AC Output	240V~50Hz, 0.84A, 200W max continuous, 400W surge peak
USB output	2 x USB-A Output: 5V 2.4A
Management System	Under voltage Protection Over voltage Protection Over current in Charge / Discharge Protection Short Circuit in Charge / Discharge Protection Over temperature in Charge / Discharge Protection Overcharging Voltage Protection
Lifecycles	1000 cycles to 80%+ capacity
Warranty	24 Months
MPPT	Support Solar Panel MPPT Charging
Technical Support	Lifetime
Discharge Temperature	-10~40°C
Charge Temperature	0~40°C

WHAT'S IN BOX

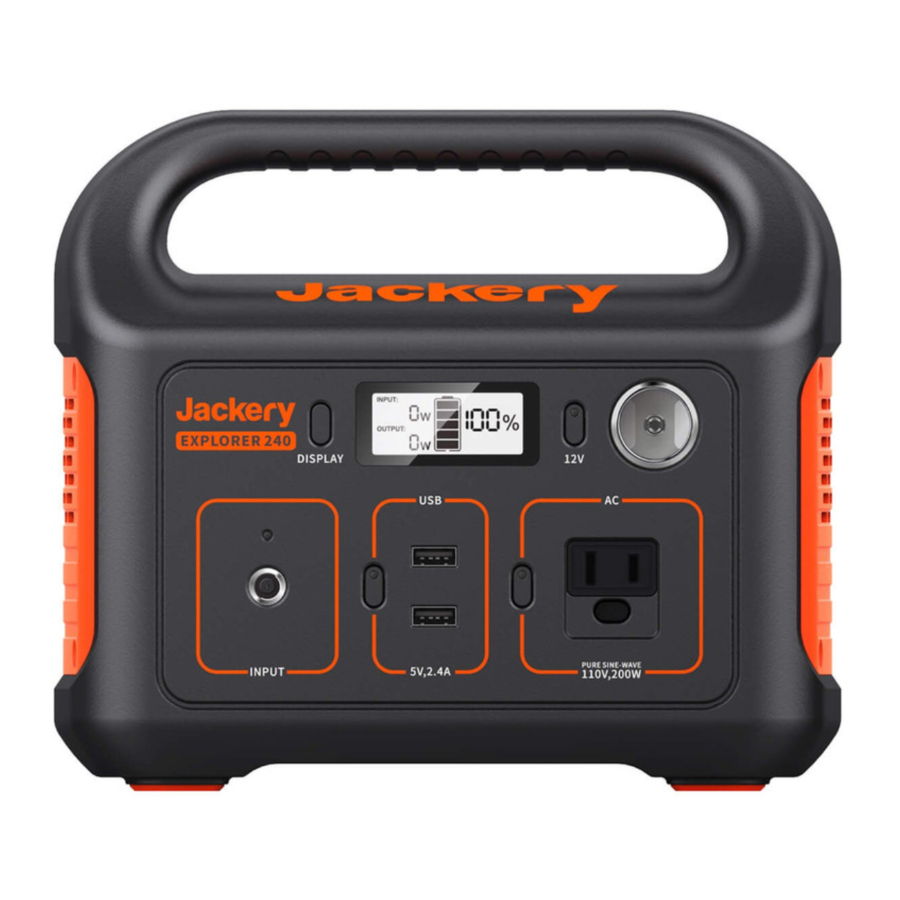

DEVICE OVERVIEW

DC INPUT
Wall Charger
Car Charger
Solar Panels(Optional)
Electric Generator

POWER
LCD Screen Button
Press the power button to check the remaining battery.
AC Button / DC 12V Button / USB Button
Turn off each output by pressing its power button as it does not turn off automatically or it will drain the battery out.

LCD
Power Level Percentage
Check the battery level by pressing the display button before use. If battery is at a low level, charge first.
LCD screen flickers 10 times when battery capacity drains to 20% and 10%

Power of Input & Output (W)
If the Jackery Explorer's total output exceeds 200W, it will automatically shut off.
Please ensure the power consumption is less than 200W, then press the power button.

Low & High Temperature Alarm
The Explorer 240 can power your devices at temperatures ranging from -10-40°C (14-104°F). If your working temperature is outside this range, the Explorer 240 may stop working.

CHARGING

Here are some common devices and their power requirements for each charging port.

Car Port

Car Fridge (60W)
Around 19 Hours

Drone(90W max)
Around 4.5 Recharges

AC Output

12" Laptop(30W)
Around 3.5 Recharges

32" TV (60W)
Around 3.5 Hours

CPAP Machihe
Around 6-21 Hours

USB output

Smartphone (18W max)
Around25 Recharges

Motion Camera(5W max)
Around45 Recharges

Explorer 240 will be turned off automatically in 12 hours when being drawn under IOW power for power saving

RECHARGING

Before use or storage, plug your Explorer 240 into the wall until it is fully charged. If the LCD shows less than 20% capacity, plug it into a power source, like an AC outlet or a solar panel, as soon as possible. There are four ways to recharge your Jackery Explorer:

Wall Charger Around 5 5 Hours	Car Charger Around 6.5 Hours
100W Solar Panels (Optional) Around 5 Hours (Depending on Weather)	Electric Generator Around 5.5 Hours

WARRANTY

How to Receive Service
To obtain warranty service, contact our customer service team at hello@jackery.com

FAQs

What type of battery is in the unit

Explorer 240 contains a battery pack which consists of an array of cylindrical 18650 lithium-ion battery cells with high energy density.

How do I know if my unit is charged?

To check the charge level of the Explorer 240, refer to the LCD Battery Display.

Can I charge the Explorer 240 while supplying power at the same time?
The Explorer 240 could power other devices while rechargingitself.

How do I know if my device will work with the Explorer 240?
You will need to check the amount of power your device requires. This may require some research on your end An online search or examining the user guide for your device should suffice. To be compatible with the Explorer 240 you should use devices that require less than 200W.

SAFETY INSTRUCTIONS

Read the following instructions to ensure safe usage:

Noncompliance may very likely lead to serious injury* or death

• DO NOT disassemble, repair or modify the unit or the battery.
• DO NOT place the unit close to or in a fire or expose it to heat. Keep out of direct sunlight.
• DO NOT charge, use or store the unit in a bathroom or in an area exposed to rain or moisture.
• Only use the output socket to power external devices. Never connect the output to mains power under any circumstances.
• DO NOT touch the unit or the plug-in points if your hands are wet.
• DO NOT connect any metallic objects to the AC input or output.
• DO NOT rub your eyes if fluid from inside the unit should get in your eyes.
• DO NOT dispose the unit together with household waste.
• DO NOT use any inappropriate power cords.
• DO NOT operate the unit above the specified input voltage
• DO NOT use the unit if it is not functioning correctly.
• DO NOT move the unit if it is recharging or in use.
• DO NOT put fingers or hands into the product
• DO NOT use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
•
  DO NOT disassemble the power pack, take it to aqualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.

Noncompliance may lead to serious injury** or death

• Use and store the unit only in a clean and dry environment. DO NOT use and store in dusty and wet environment.
• Check the unit prior to every use. DO NOT use the unit if it is damaged, broken.
• DO NOT use the unit if the power cord is damaged or broken.
• Keep the unit away from children. DO NOT let children use the power supply unit
• Keep this product away from pets
• DO NOT use or store the unit in an area or environment with high temperature.
• Should fluid from inside of the unit come in contact with your skin or clothing, wash the affected areas with tap water.
• In a storm, unplug the power cord from the socket.
• DO NOT charge the unit via power supply systems that operate outside of 100-240V.
• DO NOT place the unit on its side or upside down while in use or storage.
• DO NOT use accessories for other usage.

RISK OF EXPLOSIVE GASES
To reduce risk of battery explosion, follow these instructions and those published by battery manufacturer and manufacturer of any equipment you intend to use in vicinity of the battery. Review cautionary marking on these products and on engine.

Noncompliance may lead to injuries and/or property damage***

• If rust, peculiar odors, overheating or other abnormal circumstances are observed, stop using the unit immediately and contact the dealer or our customer service center.
• The unit complies with all legal requirements for transport of dangerous goods.
• Make sure that the unit is properly secured when transporting it in a motor vehicle.
• Only charge, use and store the unit within an ambient temperature of 0 to 40°C (32-104°F)
• Switch the unit off immediately if it has accidentally fallen, was dropped or was exposed to vibrations. Carefully read the instructions for the electric devices that you intend to connect to your power supply unit.
• Make sure that the device you are connecting is switched off before you connect it.

PERSONAL PRECAUTIONS

1. NEVER smoke or allow a spark or flame in vicinity of battery.
2. Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery or other electrical part that may cause explosion.
3. DO NOT expose a power pack to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.

* Serious injuries include blindness, burns, electric shock, fractures, poisoning, etc., which can lead to complications, hospitalization or permanent treatment.
**Injuries include burns, electric shock, etc., which do not lead to hospitalization or permanent treatment.
***Property damage: includes buildings, belongings and pets, etc.

ATTENTION

Not permitted on aircrafts.

To preserve the battery lifespan, please use and recharge at least once every 3 months.

Use original or certified charger and cables

Avoid extreme temperature.

Avoid dropping.

Do not disassemble

It's not waterproof, do not expose to liquids.

Please dispose of batteries and electronic goods in accordance with local regulations.

Hong Kong Hello Tech Energy Co., Limited
FLAT/RM08, 15/F, Witty Commercial Building, 1A-1L Tung Choi Street, Kowloon, Hong Kong
