Teac AG-H600NT - Stereo Receiver Manual

Before Use

Read this before attempting any operations.

  • When the unit is turned on, switching on the TV may cause lines to appear on the TV screen, depending on the condition of the electric waves of the TV broadcast. This is not malfunction in the unit or the TV. In this case, turn off the unit.
  • As the unit may become warm during operation, always leave sufficient space around the unit for ventilation.
    Make sure there is at least 20 cm of space above and at least 5 cm of space on each side of the unit. Do not place anything on top of the unit.
  • The voltage supplied to the unit should match the voltage as printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.
  • Choose the installation location of your unit carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, heat, cold or moisture.
  • Do not place the unit on an amplifier/receiver.
  • Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the unit, contact your dealer or service company.
  • When removing the power plug from the wall outlet, always pull directly on the plug, never yank on the cord.
  • Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean, dry or slightly damp cloth.
  • Keep this manual in a safe place for future reference.

Connecting Antennas (AM/FM)

AM Indoor Loop Antenna

The high-performance AM loop antenna provided with this unit is sufficient for good reception in most areas. To stand the loop antenna on a surface, fix the claw to the slot in the antenna base.
AM Indoor Loop Antenna
Connect the loop antenna's wires to the AM antenna terminals.

  • Make sure to connect the black wire to the GND terminal.

Place the antenna on a shelf or hang it on a window frame, etc., in the direction which gives the best reception. Keep all other wires such as power cords, speaker wires or interconnect wires as far away as possible from the antenna.

AM Outdoor Antenna

If the AM loop antenna provided does not deliver sufficient reception (often due to being too far from the transmitter or in a concrete building, etc.), it may be necessary to use an outdoor AM antenna.
AM Outdoor Antenna

Use either a high quality commercially available AM antenna or, if not available, an insulated wire more than 16 ft (5 m) long, strip one end, and connect this to the terminal as shown.

The antenna wire should be strung outdoors or indoors near a window. For better reception, connect the GND terminal to a reliable ground.

  • Even when using an outdoor AM antenna, do not disconnect the AM loop antenna.

FM Indoor Antenna

Connect the lead-type FM antenna to the FM 75Ω socket, extend the lead and tune in your favourite station. Adjust the antenna in a suitable location like a window frame or wall which gives the best reception and then fix the antenna in that position with thumb tacks or the like.
FM Indoor Antenna

FM Outdoor Antenna

In an area where FM signals are weak, it will be necessary to use an outdoor FM antenna. Generally, a 3-element antenna will be sufficient; if you live in an area where the FM signals are particularly weak, it may be necessary to use one with 5 or more elements.

  • Disconnect the FM indoor antenna when using an outdoor antenna.
    FM Outdoor Antenna

Connection

  • Connect the power plug to a wall socket after completing all other connections.
  • Be sure to thoroughly read through the instruction manuals of the equipment you will connect and observe all instructions.
    Connection

LINE IN/OUT jacks

These jacks transmit an analog 2-channel audio signal. Connect the components using RCA cables.

  • Make sure to connect the cables as follows:
    white plug → white jack (L: left channel)
    red plug → red jack (R: right channel)
    LINE IN/OUT jacks
  • Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the cables together with the AC power cord or speaker cables.

PHONO jacks

Connect the turntable's RCA pin cord to the PHONO jacks.

  • Make sure to connect the cables as follows:
    white plug → white jack (L: left channel)
    red plug → red jack (R: right channel)
  • Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the cables together with the AC power cord or speaker cables.

SIGNAL GND

To prevent hum and noise, connect the ground lead of the turntable to this terminal.

  • This is not a safety earth.

AC Inlet

Use only the supplied power cord.

  • Use of other power cord may result in fire or electric shock.
  • Unplug the power cord when you are not going to use the unit for an extended period of time.

iPod dock port

Connect the iPod dock (option) to this port.

  • Make sure the label A side of the plug is up.
  • Securely insert the plug until a slight "click" is heard.

To disconnect the dock
Push the buttons of the plug and pull.

Compatible iPod Software
If your iPod does not work with the unit or with the remote control unit, software update may solve the problem. Visit the Apple web site and download the latest iPod Software.

VIDEO OUT terminal

This terminal outputs video signal from iPod. Use a composite video cable to connect the dock to the composite video connector of a television or monitor.

S-VIDEO OUT terminal

This terminal outputs S-video signal from iPod. Use an S-video cable to connect the dock to the S-video input of a suitably equipped television or monitor. Use this connection in preference to a composite video connection.

Internet Connection

To enjoy the Internet Radio and the Music Player function, connect the unit to the broadband internet network.

  • If you can use a wireless LAN in your installation site, connect the supplied wireless LAN antenna to the WLAN jack.
  • To use a wired Internet connection, connect the Ethernet port of this unit to the Ethernet network using a commercially available Ethernet cable.
    Internet Connection

System Connection

If you have TEAC compact disc player PD-H600, convenient system control functions are possible.
System Connection

  • By pressing the STANDBY/ON button on the remote control unit (RC-1181) of AG-H600 series receiver, you can switch on/standby both AG-H600 and PD-H600. You cannot switch on/standby PD-H600 using the remote control unit (RC-1182) of PD-H600.
  • When you change the source on the AG-H600 series receiver from CD to another, playback stops on PD-H600.

When you want to use the system control functions, connect the SYSTEM CONTROL jack of each component by a system control connection cord (supplied with PD-H600), and set the SYSTEM CONTROL SELECTOR switch on the rear panel of the PD-H600 to "SYSTEM".

Speaker Connection

Speaker Connection

  • Check the impedance of your speakers. Connect speaker with an impedance of between 4 ohms and 8 ohms.
  • The red speaker terminals are (positive) and the black speaker terminals are (negative).
    Generally, the side of the speaker cable is marked to make it distinguishable from the side of the cable. Connect the marked side to the terminal and the unmarked side to the black terminal.
  • The metal portions of the two separate wires should not touch or an electrical short can occur. Shorted wires can create a fire hazard or induce a failure in your equipment.
  • Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the cables together with the AC power cord or other cables.

How to connect:

  1. Turn the terminal cap counterclockwise to loosen it. The speaker terminal caps cannot be fully removed from the base.
  2. Insert the wire into the terminal and turn the terminal cap clockwise to securely connect it:
    • Make sure none of the wire insulation is under the terminal and only the bare, stripped wire is touching the terminal.
  3. Make sure the cable is fastened firmly by pulling the cable lightly.

Remote Control Unit

The provided Remote Control Unit allows the unit to be operated from a distance.
When operating the remote control unit, point it towards the remote sensor on the front panel of the unit.

  • Even if the remote control unit is operated within the effective range, remote control operation may be impossible if there are any obstacles between the unit and the remote control.
  • If the remote control unit is operated near other appliances which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may operate incorrectly. Conversely, the other appliances may operate incorrectly.

Battery Installation

  1. Remove the battery compartment cover.
    Battery Installation
  1. Insert two "AAA" (R03, UM-4) dry batteries. Make sure that the batteries are inserted with their positive "" and negative "" poles positioned correctly.
  2. Close the cover.

Battery Replacement

If the distance required between the remote control unit and main unit decreases, the batteries are exhausted. In this case replace the batteries with new ones.
For more information about collection of batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Precautions concerning batteries

  • Be sure to insert the batteries with correct positive "" and negative "" polarities.
  • Use batteries of the same type. Never use different types of batteries together.
  • Rechargeable and non-rechargeable batteries can be used. Refer to the precautions on their labels.
  • When the remote control unit is not to be used for a long time (more than a month), remove the batteries from the remote control unit to prevent them from leaking.
  • If the batteries leak, wipe away the liquid inside the battery compartment and replace the batteries with new ones.
  • Do not use any other batteries not specified. Do not mix new batteries with old ones or use different types of batteries together.
  • Do not heat or disassemble batteries and never throw them in the fire or water.
  • Do not carry or store batteries with other metallic objects. The battery may short circuit, leak or explode.
  • Never recharge a battery unless it is a verified rechargeable type.

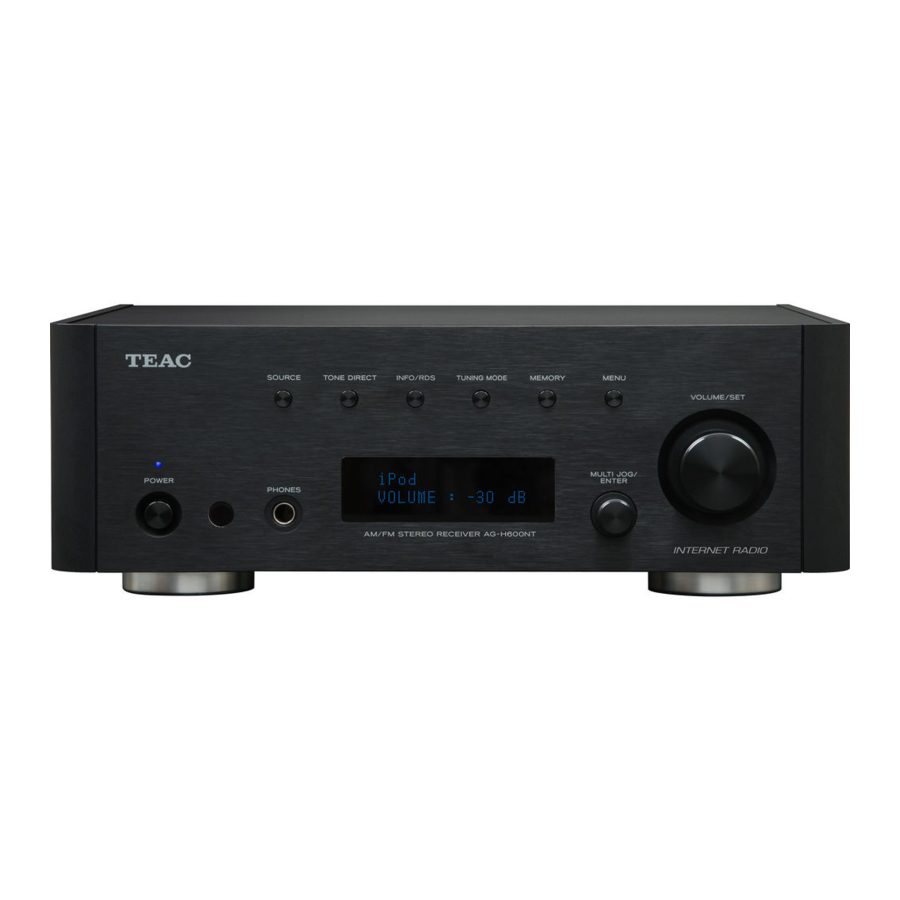

Parts Identification

Parts Identification

  1. POWER
    Press this switch to turn the unit on or off. The standby indicator lights orange when the unit is in the standby mode. When the unit is turned on, the indicator lights blue.
  2. SOURCE
    Press this button to select a source.
  3. TONE DIRECT
    When this button is pressed, the tone control is bypassed. Press it again to turn to normal.
  4. INFO
    While listening to the Internet Radio and Music Player, use this button to change the information on the second line of the display.
    Please ignore "RDS" of the remote control unit. (RDS function does not work on this unit.)
  5. TUNING MODE
    Use this button to change the tuning mode.
  6. MEMORY
    Use this button to store preset stations into memory.
  7. MENU
    While listening to the Internet Radio, press this button to open menus.
    While listening to iPod, use this button to go back to previous menu. This button is equivalent to the MENU button on your iPod.
  8. VOLUME/SET
    Turn this knob to adjust the volume.
    Press this knob to adjust tones and balance.
  9. Remote Sensor
    When using the remote control unit, point it towards the remote sensor.
  10. PHONES
    For private listening, insert the headphones plug into this jack, and adjust the volume by turning the VOLUME/SET knob.
  11. Display
  12. MULTI JOG/ENTER
    Turn this knob to tune in FM/AM stations or to select parameters in menus.
    Press this knob to enter your selection.

Remote Control

  1. STANDBY/ON
    Press this button to turn the unit on or standby.
  2. TUNER, CD, iPod, AUX, PHONO
    Use these buttons to select a source.
  3. BAND
    Use this button to select FM, AM or Internet Radio.
  4. TUNING/PRESET ()
    Use these buttons to tune in FM/AM stations.
  5. TUNING MODE/AUTO TUNING
    While listening to FM or AM, use this button to change the tuning mode.
  6. MEMORY SCAN
    While listening to FM or AM, use this button to check the list of preset stations.
  7. FM MODE
    While listening to FM, use this button to select stereo or monaural.
  8. REPEAT
    Use this button to change the repeat mode of PD-H600 or iPod.
  9. Stop ( )
    Use this button to stop playback of PD-H600 or iPod.
  10. SHUFFLE
    Use this button to change the random mode of PD-H600 or iPod.
  11. Skip/Scroll ( )
    Use these buttons to skip tracks/files during playback of the PD-H600.
    Use these buttons to scroll through menu items.
  12. Play/Pause ( )
    Use this button to start or pause playback of the PD-H600 or iPod.
  13. MUTING
    Use this button to mute the sound.
  14. DIMMER
    You can use this button to dim the display among three levels.
  15. Search ( )
    Use these buttons to search for a track/file during playback of the PD-H600.
    Use these buttons to skip tracks during playback of the iPod.
  16. VOLUME ( )
    Use these buttons to adjust the volume.

warning Note:
To simplify explanations, instructions refer to names of buttons and controls on the front panel, making no mention of the use of remote control unit.

Basic Operation

Basic Operation

  1. Press the power switch to turn the unit on.

    The standby indicator lights blue.
    • When the system control functions are activated, always set this switch on, and turn the unit on/standby using the remote control unit.
  2. Select a source.

    Each time you press the SOURCE button or the BAND button on the remote control unit, the source changes as follows:
    • You can also use the TUNER, CD, iPod, AUX and PHONO buttons on the remote control unit to select each source.
  3. Start playback of the component, or tune in a radio station on this unit.
    Please read the instructions of each component.
  4. Gradually turn up the volume to the required level by turning the VOLUME/SET knob.

Muting

Press the MUTING button to mute the sound temporarily.

  • To restore the sound, press the MUTING button again.

Adjusting Bass, Midrange, Treble, and Balance of Speakers

  1. Select the item to adjust.

    Each time you press the VOLUME/SET knob, the display changes as follows:
    • You can also use the SET button on the remote control unit.
      BASS
      Adjusts the level of low frequency sound range. The level can be adjusted from –12 to +12.
      MID
      Adjusts the level of middle frequency sound range. The level can be adjusted from –12 to +12.
      TREBLE
      Adjusts the level of high frequency sound range. The level can be adjusted from –12 to +12.
      BALANCE
      Adjusts the balance of the volume level between left and right speakers.
      DIMMER
      Adjusts the dimming level of the display in 3 levels using the DIMMER button of the remote control unit.
      Each time you press the DIMMER button, the display changes as follows:
    • This setting is not memorized when the unit turns into standby. The next time the unit is turned on, the display is illuminated as normal.
    • When the unit is operated during the setting is "LIGHT OFF", the display turns normal briefly and will turn off again.
  2. Turn the VOLUME/SET knob to change the setting.
    • You can also use the VOLUME buttons (+/–) on the remote control unit.
  3. Leave the unit idle for 3 seconds to exit the setup mode.

Tone Direct

Press the TONE DIRECT button to cancel the tone adjustments temporarily.

When this function gets active, the Tone Direct indicator lights up temporarily.

  • To cancel the Tone Direct function, press the button again.
  • When this function is active and no operation is done for about 5 seconds, the display is turned off regardless of the dimmer setting.

Listening to iPod

  1. Select iPod by pressing the SOURCE button repeatedly.
  2. Insert the iPod into the dock.

The iPod automatically turns on and starts playback from the iPod's music list.

  • When the iPod is inserted while a source other than iPod is selected, the iPod will turn on and enter the pause mode.
  • Make sure to use an appropriate dock adapter (see "Getting Started" on the owner's manual of the iPod dock).
  • The iPod is recharged when it is plugged into the dock and the AG-H600 series receiver is on. While the unit is on standby, the iPod is not recharged because the unit's power consumption is minimised to meet the regulation of IEA.
  • When headphones are plugged into the iPod, sound comes

Basic operations

To suspend playback temporarily (pause mode)
During playback, press the play/pause button (). Playback stops at the current position.

  • To resume playback, press the play/pause button ( ) again.

To skip to the next or a previous track
During playback, press the search buttons () repeatedly until the desired track is found.

  • When the search button () is pressed during playback, the current track will be played from the beginning. If you want to play the previous tracks, press the search button ( ) twice or more.

To search for a part of a track
During playback, hold down the search button ( or ) and release it when the part you want to listen to is found.

To go back to the previous menu
Press the MENU button.

  • This button is equivalent to the MENU button on your iPod.

To select the menu item
Press the scroll buttons () to scroll to the menu item you want, and then press the ENTER button.
Menu operations

  • On the main unit, turn the MULTI JOG/ENTER knob to scroll to the menu item you want, and then press the MULTI JOG/ENTER knob.

Repeat playback

Each time the REPEAT button is pressed, the repeat mode changes as follows:

  • When you select the "One", the Repeat One icon () appears in the iPod's display.
  • When you select the "All", the Repeat icon ( ) appears in the iPod's display.

Shuffle playback

Each time the SHUFFLE button is pressed, the shuffle mode changes as follows:

  • When you select "Song", the iPod shuffles songs within the list you choose to play.
  • When you select "Album", the iPod plays all the songs on an album in order, and then randomly selects another album in the list and plays through it in order.
  • During playback, the Shuffle icon () appears in the iPod's display.

Docking an iPod to this system

iPod video output
Make the following settings on your iPod's menu to output video to a TV via the dock.
In the [Video] menu, select [Video Settings]. Set [TV OUT] to [On] or [Ask].
If you have set [TV OUT] to [Ask], your iPod prompts you each time you play a video to specify whether to output it to a TV.

warning Note

  • If you output video to a TV from your iPod, the video is not displayed on the iPod's screen.
  • iPod touch does not contain this menu. You will have to specify whether to a output video to a TV each time you play it.

Using the alarm on your iPod touch
If you specify [Slide to power off] on your iPod touch, you cannot use the alarm even if the iPod touch is docked to this system. To use the alarm on your iPod touch, do not select [Slide to power off]. (The screen can be turned off without any problem.)

  • When video is displayed on your iPod touch's screen, you cannot use the alarm even if the iPod touch is docked to this system. To use the alarm on your iPod touch, select any item other than video.

Listening to FM/AM

  1. Select FM or AM by pressing the SOURCE button repeatedly.
    • You can also use the BAND button on the remote control unit.
  2. Select the desired tuning mode.

    Each time the TUNING MODE button is pressed, the tuning mode changes as follows:
    Listening to FM/AM
  3. Select the station you want to listen to.

    Manual tuning mode
    Turn the MULTI JOG/ENTER knob (or press the TUNING/PRESET button on the remote control unit) until the station you want to listen to is found.
    The frequency changes by a fixed step (FM: 50 kHz steps, AM: 9 kHz steps).
    Auto tuning mode
    Turn the MULTI JOG/ENTER knob (or press the TUNING/PRESET button on the remote control unit) to begin auto tuning. When a station is found, the unit tunes in the station automatically. Repeat this step until the station you want to listen to is found.
  • Press the TUNING MODE button to stop the auto tuning.

FM Mode

Pressing the FM MODE button alternates between Stereo mode

Stereo:
FM stereo broadcasts are received in stereo and the stereo indicator is displayed.

Mono:
Select this mode when the signal is weak. Reception will be forced monaural, reducing unwanted noise.

Preset Tuning

You can store up to 30 FM and 30 AM stations.

  1. Select AM or FM by pressing the SOURCE button repeatedly.
    • You can also use the BAND button on the remote control unit.
  2. Tune in the station you want to store.
    See above for the procedure of tuning.
  3. Press the MEMORY button.
  4. Within 4 seconds, select the preset number for this station.
    Turn the MULTI JOG/ENTER knob.
    • You can also use the TUNING/PRESET buttons (‡/°) on the remote control unit to scroll through menu items.
  5. Within 4 seconds, press the MEMORY button.

    The station is stored.
    • To store more stations, repeat steps to .
    • If you do not press the MEMORY button within 4 seconds after selecting the preset number, presetting will be cancelled.

Presetting Automatically

  1. Select FM or AM by pressing the SOURCE button repeatedly.
    • You can also use the BAND button on the remote control unit.
  2. .Press and hold the MEMORY button for more than 3 seconds.

    Up to 30 of the best received stations in your area will be stored automatically

How to select preset stations (FM/AM)Checking preset stations (FM/AM)

  1. Select FM or AM by pressing the SOURCE button repeatedly.

    Preset number and its frequency is displayed in turn. The unit turns to the preset tuning mode after all the preset stations have been displayed.
    • You can also use the BAND button on the remote control unit.
  2. Select the preset tuning mode.
    Press the TUNING MODE button repeatedly until "CH" is displayed.
  3. Select a preset channel by turning the MULTI JOG/ENTER knob.

    The selected preset channel is tuned in.

Checking preset stations (FM/AM)

You can see the list of preset stations.

Press the MEMORY SCAN button while listening to FM or AM.

Preset number and its frequency is displayed in turn. The unit to the preset tuning mode after all the preset stations have been displayed.

Internet Radio Initial Setup

Initial setup

When you use the Internet radio function for the first time, the unit starts an initial setup procedure to connect to the Internet.

  1. Select Internet Radio by pressing the SOURCE button repeatedly.
    • You can also use the BAND button on the remote control unit.
      Initial setup wizard starts.
  2. Select your country/area.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
  3. Select a network name you want to use.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
    • To use a wired Internet connection, select "[Wired]".
  4. Enter the correct password for the network if required.
    • See "How to input characters" below.
      Now the unit starts to connect to the Internet. When connection is established successfully, the Internet radio menu is displayed. See "Listening to Internet Radio" to select a station.
    • If you have a problem connecting to the Internet, see "Internet Radio Menu Operations".

How to input characters

  • You can input characters only from the remote control unit.
  1. Press the skip/scroll buttons () to select a set of characters.
  2. Press the search buttons () to select the character you want to input.
  3. Press the ENTER button to input the selected letter. Repeat steps 1 to 3 to input next characters.

<: Deletes the last character.
E: Enters your input.
C: Cancels the operation and goes back to the previous screen.

Characters you can input
0123456789
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
(space)!"#$%&'()*+,-./:;<=>?@[\]^_'{|}~

Listening to Internet Radio

Listening to an Internet Radio station/a Podcast

  1. Select Internet Radio by pressing the SOURCE button repeatedly.
    • You can also use the BAND button on the remote control unit.
    • When you use the Internet Radio function for the first time, the unit starts an initial setup procedure.
  2. Open the Internet Radio menu.
    Press the MENU button.

    The Internet Radio menu appears.
    • See for the details of the Internet Radio menu.
  3. Select "Station list".
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
  4. Select "Stations" for Internet Radio stations, or "Podcasts" for Podcasts.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
  5. Select a search method.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.

Location:
Search by the location of the broadcaster.

Genre:
Search by the genre of music played on the station/Podcast.

Search stations:
Search by the station's name.

Search podcasts:
Search by the Podcast's name.

Popular stations:
Select from a list of popular stations.

New stations:
Select from a list of recently added stations.

  1. If you have selected "Location", "Genre" or "Search stations" in step 5, search for the channel you want.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
    • For the operations of inputting characters, see "How to input characters".
      A list of stations/Podcasts is displayed.
    • Select a station or a Podcast you want to listen to.
      Turn the MULTI JOG/ENTER knob to select an item, and press the knob.

Now you can listen to the station.

To change the displayed information

Each time the INFO button is pressed, information on the second line of the display changes.
To change the displayed information

  • The types of information displayed may vary depending on the stations/Podcasts.

To store the current station/Podcast as favourite

Press and hold the MEMORY button until "Favourite Added" is displayed.

Your favourite stations can be easily accessed from "My favourites" in "Station list".

  • You can also use the ENTER button on the remote control unit.
  • You can also add to your favourite stations using the Internet radio portal.

Internet Radio Menu Operations

You can access channel lists or setup menus using the Internet Radio menu of this unit.

To open the Internet Radio menu

While listening to the Internet Radio, press the MENU button to open the Internet Radio menu.

  • Press the MENU button again to return to the playback display.

To scroll through the menu items

Turn the MULTI JOG/ENTER knob.

  • You can also use the scroll buttons ( ) on the remote control unit to scroll through menu items.

To select a menu item
Press the MULTI JOG/ENTER knob.

To go back to the previous screen
Press the search button () on the remote control unit.

Items of the Internet Radio menu

Last listened

You can select the station/Podcast from the ones you listened to recently.

Station list

My favourites
List of stations/Podcast you stored as favourite is displayed. Select a station/Podcast you want to listen to.

Stations
List of Internet Radio stations is displayed.

Podcasts
List of Podcasts is displayed.

My Added Stations
List of stations/Podcasts you personally added on the radio portal is displayed. Select a station/Podcast you want to listen to.

Help

Get access code
The "access code" of the unit is displayed.

FAQ
Audio FAQ is available.

Setup

System setup
Software and Internet settings are available.

Info
Software version and the Radio ID of the unit can be displayed.

  • The Radio ID may be required when you contact our customer support.

Network Configuration

Software update

The software of the unit can be updated via the Internet connection, so that you are able to use the latest features of the unit. Regularly check for updates.

  • You need the remote control unit for update operations.
  • You can check the current software version of your unit using the Internet radio menu. Follow the menu items as follows:
    Setup → Info → SW version
  • Do not turn off the unit during updating process.
  1. Select Internet Radio by pressing the BAND button repeatedly.
    • You can also use the SOURCE button on the main unit.
  2. Open the Internet radio menu.
    Press the MENU button.
  3. Select "Setup", "System setup", and then "Software update".
    Press the scroll buttons () to scroll to the menu item you want, and then press the ENTER button.
    Software update
    • On the main unit, turn the MULTI JOG/ENTER knob to scroll to the menu item you want, and then press the MULTI JOG/ENTER knob.
  4. When an update is available, "Press 'Info' to update to X.X.X.XXX" appears. Press INFO/RDS button to start update.
    • You can also use the INFO button on the main unit.
    • When no update is required, "Software up to date" appears. Press the MENU button to finish the operation.
  5. When the update is completed, "Update finish Select to reboot" appears. Press ENTER button to reboot the software.

Performing the setup wizard

If you have moved or modified your network environment, or if you have a problem connecting to the Internet, perform the initial setup wizard to establish the Internet connection again. Follow the menu items as follows:
Setup &rarr; System setup &rarr; Internet setup &rarr; Wizard

Setting the wireless network

If you are using a wireless network for the unit and you have moved to a new location, change the area setting so that network connection is established properly. Follow the menu items as follows:
Setup → System setup → Internet setup → Wlan region

Manual Internet setup

You can check and modify detailed settings of the Internet connection.

Follow the menu items as follows:

To check the current network settings
Setup → System setup → Internet setup → View settings

To configure settings
Setup → System setup → Internet setup → Manual settings

To delete a network profile
Setup → System setup → Internet setup → Network profile

Radio Portal

Internet Radio portal

Access the radio portal on the Internet using your computer to fully enjoy the Internet Radio function of this unit.

  • You can create a list of your favourite stations/Podcasts on the portal. This list can be viewed from your unit, making it easier for you to find your usual programmes.
    You can see the list of your favourite stations in the Internet Radio menu as follows:
    Station list → My favourites
  • If the station/Podcast you want to listen to is not in the channel list, you can create your own list.
    You can see the list of your added stations in the Internet Radio menu as follows:
    Station list → My Added Stations

Accessing the Radio portal

  1. Open your internet browser and access http://www.wifiradio-frontier.com.
  2. Click on the "Register" link to start registration.
  3. Input your access code and log in.

Checking the "access code" of your unit

Each unit of AG-H600 series receiver has its "access code". This code is required to log in the Internet Radio portal.

  1. Select Internet Radio by pressing the SOURCE button repeatedly.
    • You can also use the BAND button on the remote control unit.
  2. Open the Internet Radio menu.
    Press the MENU button.
  3. Select "Station list", "Help", and then "Get access code".
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
    Repeat this operation until the menu you want appears.

    The access code of your unit is displayed.

Setting up Music Player

About the Music Player function

Using the Music Player function, you can play back the music files in your computers on the same LAN.
There are two ways of connecting to the computer: using Shared Media and using Shared Folders.

Shared Media

Using the Shared Media function, AG-H600NT can play back the music files in the shared media library on your computer. Tag items such as artist names and album names can be viewed from AG-H600NT as well.
You need a PC running on Windows XP or Windows Vista, and Windows Media Player 11 or later on it.

Shared Folders

Once you set the files on your computer open to access, AG-H600NT can connect to the computer and play back the files. To use this function, you need to configure the sharing settings of your music folders so that other computers or AG-H600NT can read the files. This function is available both on Windows and on Macintosh.

Preparations for Shared Media

  1. Connect your computer to the LAN.
  2. Connect the AG-H600NT to the LAN.
    • If you have a problem connecting to the LAN.
  3. If the files you want to share are not yet added to the media library of Windows Media Player, add them to the media library.
    • Refer to the manual of Windows Media Player for details.
  4. On Windows Media Player, open "Library", then "Media sharing".
    Preparations for Shared Media - Step 1
    Media Sharing window opens.
  5. Activate "Share my media to:".
    The AG-H600NT appears in the device list as "Unknown Device".
  6. Select the "Unknown Device" and click "Allow".
    The AG-H600NT can now access to the shared library.
    Preparations for Shared Media - Step 2
  7. Click on "Settings...", and configure detailed sharing settings.
    Preparations for Shared Media - Step 3
    • To listen to music files regardless of their rating, set "Star ratings" to "All ratings".
    • Ensure that "Music" is checked under the "Media types" setting.

For the procedure of playback, see "Listening to Music Player (Shared Media)".

Preparations for Shared Folders (Windows XP)

  1. Check the name of the Domain or the "Workgroup" your computer belongs to.
    To enable Shared Folders, your computer needs to be a member of a Domain or a "Workgroup".
    Usually, your computer belongs to a "Workgroup" by default. To see the name of the Domain or the "Workgroup" your computer belongs to, check the PC setting as follows:
    Control Panel → System → Computer Name
  2. Check the user account name and its password.
    To access the computer from AG-H600NT, you need the user account name and the password of the computer.
  3. Right-click on the folder which contains the music files you want to share, and select "Sharing and Security".
    Preparations for Shared Folders (Windows XP)
  4. In the "Sharing" tab, check "Share this folder".

Preparations for Shared Folders (Windows Vista)

  1. Check the name of the Domain or the "Workgroup" your computer belongs to.
    To enable Shared Folders, your computer needs to be a member of a Domain or a "Workgroup".
    Usually, your computer belongs to a "Workgroup" by default. To see the name of the Domain or the "Workgroup" your computer belongs to, check the PC setting as follows:
    Control Panel → System and Maintenance → System
  2. Check the user account name and its password.
    To access the computer from AG-H600NT, you need the user account name and the password of the computer.
  3. Open "Control Panel", "Network and Internet", then "Network and Sharing Center".
  4. Set "Public folder sharing" to "On (read only)".
    Preparations for Shared Folders (Windows Vista) - Step 1
  5. Set "Password protected sharing" to "On".
    Preparations for Shared Folders (Windows Vista) - Step 2
  6. Copy the music files you want to enjoy on AG-H600NT into the "Public Music" folder in the "Public" folder.

Preparations for Shared Folders (Mac OSX 10.2.1 to 10.4.11)

  1. Check the user account name and its password.
    To access the computer from AG-H600NT, you need the user account name and the password of the computer.
  2. In "System Preferences", open "Sharing".
  3. Activate "Personal File Sharing" and "Windows Sharing".
    Prep. for Shared Folders (Mac OSX 10.2.1 to 10.4.11) - Step 1
  4. Open "Directory access" in the "Utilities" folder in "Applications", and check that the following items are enabled in the "Services" tab.
    • AppleTalk
    • LDAPv3
    • SLP
    • SMB/CIFS
      Prep. for Shared Folders (Mac OSX 10.2.1 to 10.4.11) - Step 2
  5. Select "SMB/CIFS", and click on "Configure...", and select an appropriate workgroup.
    Prep. for Shared Folders (Mac OSX 10.2.1 to 10.4.11) - Step 3

Preparations for Shared Folders (Mac OSX 10.5.0 or higher)

  1. Check the user account name and its password.
    To access the computer from AG-H600NT, you need the user account name and the password of the computer.
  2. In "System Preferences", open "Sharing".
  3. Enable "File Sharing", and then select "Read Only" for "Everyone" in "Users" window. Then Click "Options...".
    Prep.Shared Folders (Mac OSX 10.5.0 or higher) - Step 1
  4. Activate "Share files and folders using AFP" and "Share files and folders using SMB". In the same window, activate "On" for the account you want to use for file sharing.
    Prep.Shared Folders (Mac OSX 10.5.0 or higher) - Step 2

Preparation on the unit for Shared Folders (both Windows and Macintosh)

  1. Connect your AG-H600NT to the LAN.
    • If you have a problem connecting to the LAN.
  2. Enter the user name and the password required to access the computer.
    Enter the user name and the password following the menu as follows:
    Setup → System setup → Internet setup → PC Setup → User Name / Password
    For the procedure of playback, see "Listening to Music Player (Shared Folders)".

Music Player Initial Setup

Initial setup

When you use the Music player function for the first time, the unit starts an initial setup procedure to connect to the LAN.

  1. Select Music Player by pressing the SOURCE button repeatedly.
    • You can also use the BAND button on the remote control unit.
  2. Select "Shared media" or "Shared folders".
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
  3. Select your country/area.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
  4. Select a network name you want to use.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
    • To use a wired Internet connection, select "[Wired]".
  5. Enter the correct password for the network if required.
    • See "How to input characters".
    • If you have a problem connecting to the LAN.

Now the unit starts to connect to the LAN.
When connection is established successfully, the Music Player menu is displayed.

Listening to Music Player (Shared Media)

For the preparations of Shared Media.

  1. Select Music Player by pressing the SOURCE button repeatedly.

    The Music Player menu appears.
    • You can also use the BAND button on the remote control unit.
    • When you use the Music player function for the first time, the unit starts an initial setup procedure.
  2. Select "Shared media".
    Turn the MULTI JOG/ENTER knob to select "Shared media", and then press the MULTI JOG/ENTER knob.

    A list of computer name appears.
  3. Select your computer name and user account name.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
  4. Select the folders until the file you want to listen to appears.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
    Repeat this operation until the file you want appears.
    • You can also search for files by selecting "<Search>".
  5. Select the file you want to listen to.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.

    Playback of the selected file starts.

If you have a problem connecting to the shared media

  • Check if "Allow" is selected for AG-H600NT ("Unknown Device").
  • Check if your AG-H600NT is properly connected to the LAN.

Listening to Music Player (Shared Folders)

For the preparations of Shared Folders see "Preparations for Shared Folders" above.

  1. Select Music Player by pressing the SOURCE button repeatedly.

    The Music Player menu appears.
    • You can also use the BAND button on the remote control unit.
    • When you use the Music player function for the first time, the unit starts an initial setup procedure.
  2. Select "Shared folders".
    Turn the MULTI JOG/ENTER knob to select "Shared folders", and then press the MULTI JOG/ENTER knob.

    A list of connected domain and Workgroup appears.
  3. Select the Domain or the "Workgroup" that your computer belongs to, then select your computer name.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
    Listening to Music Player (Shared Folders)
  4. Select the folders until the file you want to listen to appears.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.
    Repeat this operation until the file you want appears.
    • You can also search for files by selecting "<Search>".
  5. Select the file you want to listen to.
    Turn the MULTI JOG/ENTER knob to select the item, and then press the MULTI JOG/ENTER knob.

    Playback of the selected file starts.

If you have a problem connecting to the shared folders

  • Check sharing settings on your computer.
  • Check if your AG-H600NT is properly connected to the LAN.
  • Check the settings of user name and password on AG-H600NT.
    • You can see the current settings of user name and password as follows:
      Setup → System setup → Internet setup → View settings.
    • After changing network settings, select "Wizard" in "Internet Setup" and perform network scanning for the change to take effect.

Troubleshooting

If you experience any problems with the unit, please take a moment to look through this chart and see if you can solve the problem yourself before you call your dealer or a TEAC service centre.

Amplifier section

No power.

  • Check the connection to the AC power source. Check and make sure the AC source is not a switched outlet and if it is, the switch is turned on. Make sure there is power to the AC outlet by plugging another item such as a lamp or a fan.

No sound.

  • Adjust the volume by turning the VOLUME knob.
  • Check that the speakers and components are connected securely.
  • Check the operation of the connected component.
  • Select the proper source using the SOURCE button.

Sound cuts off when listening to the music or no sound even though power is on.

  • Speaker impedance is less than prescribed for this unit.
  • Turn the power off and reduce the volume.

Low bass response.

  • Speaker polarity (+/–) is reversed. Check all speakers for correct polarity.

BASS, MID, TREBLE, BALANCE adjustments do not work.

  • Press the TONE DIRECT button to cancel the Tone Direct function.

Right and left channels are reversed.

  • The input connection or the speaker connection may be reversed.

The sound is noisy.

  • The connection cords may be close to the power cord or the fluorescent light.
  • Connect the ground lead of the turntable to the SIGNAL GND terminal of this unit.

The sound comes from only one channel.

  • Check the speaker connection.
  • Adjust the balance to the centre.

The display is off.

  • Set the dimmer to "NORMAL" or "DIMMER".
  • Press the TONE DIRECT button to cancel the Tone Direct function.

Remote control unit

Remote control does not work.

  • If the batteries are exhausted, change the batteries.
  • Use the remote control unit within the effective range (5 m) and point it toward the remote sensor on the front panel.
  • Make sure that there are no obstacles between the remote control unit and the main unit.
  • If a fluorescent light is near the unit, turn it off.

iPod Player

Cannot insert the iPod.

  • Check if appropriate adapter is inserted to the dock.
  • Remove dust or obstacles from the dock and the iPod.

The iPod does not play.

  • Remove the iPod from the dock, wait a few seconds, and insert it again.
  • Software update may solve the problem. Visit the Apple website and download the latest iPod Software.

Cannot operate the iPod on the components.

  • Select iPod as the source.

Cannot operate the iPod.

  • Make sure the HOLD switch of the iPod is not set to HOLD.

Internet Radio

Cannot connect to the Internet.

  • Connect the wireless LAN antenna properly to the unit.
  • Check if your computer can connect to the Internet using the same network.
  • Enter a correct password to the network.
  • Check the settings of your network's firewall. The unit needs access to the following UDP and TCP ports as a minimum: 80, 554, 1755, 5000 and 7070.

Cannot listen to a station/Podcast.

  • The broadcaster may have a temporary trouble with Internet connection.
  • Check if your Internet connection is not temporarily disconnected or disturbed.

Cannot find a station/Podcast in the station list.

  • The station/Podcast may not be broadcast at the moment.
  • The link of the station/Podcast may be out of date.
  • The allowed number of simultaneous listeners of station/ Podcast might have reached the maximum.
  • The Internet connection speed is too slow.
  • Add the station/Podcast to your own station list by accessing the Internet Radio portal.

Music Player

Cannot connect to the LAN.

  • Connect the wireless LAN antenna properly to the unit.
  • Check if your computer can connect to the Internet using the same network.
  • Enter a correct password to the network.
  • Check the settings of your network's firewall. The unit needs access to the following UDP and TCP ports as a minimum: 80, 554, 1755, 5000 and 7070.
  • Check if the computer is not shut down or in the sleep mode. Set up the computer not to shut down or turn into the sleep mode automatically.
  • There may be a problem with the network authentication. Press the SOURCE button or BAND button to select the Music Player again.

Cannot find a track. (Shared Media)

  • Add the track to the media library of Windows Media Player.
  • Set your AG-H600NT as a "Unknown Device" in the device list of Windows.
  • Select "Allow" for AG-H600NT ("Unknown Device").
  • Check the file format. Playable formats are MP3 and WMA.
  • If you have antivirus security software enabled on your computer, the unit may fail to connect.

Cannot find a folder/file. (Shared Folders)

  • Configure the folder/file sharing setting.
  • Add the file to the shared folder.
  • Enter a correct password of the user account.
  • Check the file format. Playable formats are MP3 and WMA.
  • If you have antivirus security software enabled on your computer, the unit may fail to connect.

If normal operation cannot be recovered, unplug the power cord from the outlet and plug it again.

To reset your unit to the factory default

If your unit is not working properly, it might help to reset it to the factory default.
This will clear your network settings (including pass keys) and other user settings (preset stations etc.).

  1. If the unit is on, press the STANDBY/ON button to turn the unit to standby.
  2. Hold down the VOLUME/SET knob until the unit turns on.

Maintenance

If the surface of the unit gets dirty, wipe with a soft cloth or use diluted neutral cleaning liquid. Be sure to remove any fluid completely. Do not use thinner, benzine or alcohol as they may damage the surface of the unit.

Specifications

Amplifier Section

Power output 75 W + 75 W (8 Ω, 1 kHz, JEITA)
90 W + 90 W (4 Ω, 1 kHz, JEITA)
Rated power output 60 W + 60 W (8 Ω, 1 kHz, 0.1%)
75 W + 75 W (4 Ω, 1 kHz, 0.1%)
Total Harmonic Distortion 0.05% (1 kHz, 8 Ω, 40 W)
S/N Ratio PHONO: 70 dB (IHF-A/input short)
AUX, CD: 100 dB (IHF-A/input short)
TONE DIRECT: 110 dB (IHF-A/input short)
Input Sensitivity/Impedance PHONO: 2.8 mV 47 kΩ
AUX, CD: 180 mV 47 kΩ
Frequency Response 10 Hz - 65 kHz (–3 dB)
Tone Control BASS: ±12 dB (100 Hz)
MID: ±12 dB (1 kHz)
TREBLE: ±12 dB (10 kHz)

FM Tuner

Tuning range 87.50 - 108.00 MHz (100 kHz steps)
Usable sensitivity 6 dBµ
Harmonic distortion 0.8% (Mono)
1.2% (Stereo)
Signal-to-Noise ratio 70 dB (Mono)
65 dB (Stereo)
Stereo separation 35 dB (1 kHz)
Preset stations 30

AM Tuner

Tuning range 530 - 1720 kHz (10 kHz steps)
Usable sensitivity 55 dBµ
Harmonic distortion 1.5% (at 74 dBµ)
Signal-to-Noise ratio 45 dB (at 80 dBµ)
Preset stations 30

Internet Radio/Music Player

Format MP3, WMA, RealAudio

Internet connection

LAN terminal 10 BASE-T
Wireless LAN IEEE 802.11 b/g
Security WEP, WPA, WPA2

General

Power requirements AC 120 V, 60 Hz
Power consumption 50 W (Standby: 0.7 W)
Dimensions (W x H x D) 290 x 102 x 338 mm (11 7/16", 4", 13 5/16")
Weight 6.8 kg (15 lb)
Operating temperature +5 ˚C - +35 ˚C
Operating humidity Operating humidity
Storage temperature –20 ˚C - +55 ˚C

Accessories

Remote control unit (RC-1181) x 1
Batteries (AAA) x 2
AM loop antenna x 1
FM Lead-type antenna x 1
Wireless LAN antenna x 1
Power cord x 1
Owner's manual x 1
Warranty card x 1

  • Design and specifications are subject to change without notice.
  • Weight and dimensions are approximate.
  • Illustrations may differ slightly from production models.

IMPORTANT SAFETY INSTRUCTIONS


TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

shock hazard The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

warning The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  1. Read these instructions.
  2. Keep these instructions.
  3. Heed all warnings.
  4. Follow all instructions.
  5. Do not use this apparatus near water.
  6. Clean only with dry cloth.
  7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
  10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
  11. Only use attachments/accessories specified by the manufacturer.

  12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
  13. Unplug this apparatus during lightning storms or when unused for long periods of time.
  14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Operation is subject to the following two conditions:

  1. this device may not cause interference, and
  2. this device must accept any interference, including interference that may cause undesired operation of the device.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

  • Do not expose this apparatus to drips or splashes.
  • Do not place any objects filled with liquids, such as vases, on the apparatus.
  • Do not install this apparatus in a confined space such as a book case or similar unit.
  • The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
  • The apparatus should be located close enough to the AC outlet so that you can easily grasp the power cord plug at any time.
  • The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
  • Products with Class I construction are equipped with a power supply cord that has a 3-prong grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.
  • If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
  • CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.
  • Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.


TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

  • DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN!
  • IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.

caution CAUTION Regarding Placement
To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) equal to, or greater than, shown below.

Left and Right Panels: 20 cm (8")
Rear Panel: 10 cm (4")
Top Panel: 5 cm (2")

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Teac AG-H600NT - Stereo Receiver Manual

Advertisement

Need help?

Need help?

Do you have a question about the AG-H600NT and is the answer not in the manual?

Questions and answers

Table of Contents
