Product Introduction

Overview

Product Introduction - Overview

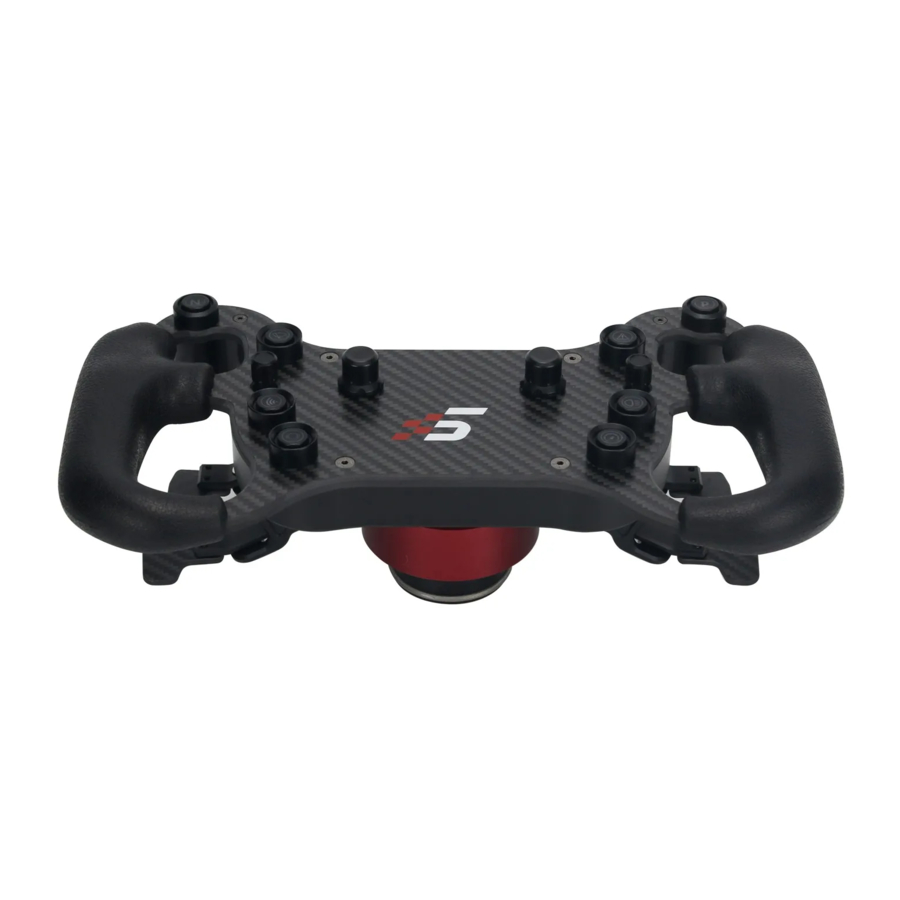

300mm grip to grip wheel length
The main body is made of high-strength aluminum CNC machining and the beautiful design of a race car brings a strong desire for conquest;
The grip is wrapped with environmentally-friendly silicone, with a brand-new comfortable skin-friendly feel;
Through the overall sandblasting oxidation process, the steering wheel has a high-profile elegant black and fine matte texture;
SIMAGIC independently designed magnetic optical induction shift paddles;
The laser-engraved SIMAGIC track element LOGO decorative panel gives the disc body a stronger sense of racing element;
Standard carbon fiber board gives users space for custom car logo.

Semi Clutch Setting

Direct drive simulator GT4 steering wheel independently designed magnetic optical shift paddle, lt has a very high real car simulation feel.
Product Introduction - Semi Clutch Setting

Specifications

Product Introduction - Dimensions

Width 300mm
Height 165mm
Weight 2.2KG

Technical Introduction

	New integrated design, the panel integrates a variety of buttons and lever operation area, which can be integrated and set quickly. 8 integrated buttons with RGB lighting; 2 four-way switches with encoder; 2 buttons with encoder.
	50mm True Quick Release steering wheel without requiring any tools. Fast yet secureusing automotive grade QR system.
	Both the paddle and clutch use non-contact sensors without contact damage.
	Instant real time mapping. The optical sensing module can quickly and accurately map the paddle shifting parameters of each moment to the control software parameter page while driving
	Equipped with self-developed control software, Race Manager has feature rich yet simple and user friendly functions that adjust data according to different personal needs.
	Comfortable leather package grip, palm force grip size, experience more enjoyable driving experience.
	The program can be updated online and more functions of hub can be developed continuously.

Basic Settings

Unit Calibration

Turn the mode switch to the Settings mode
Push the left multi-directional switch upwards (without releasing it).
While holding up the switch, pull TWICE on each of the four paddles ABCD in any order, one at a time.
After completing the above operations, turn the mode switch to C position mode to save the calibration.
Calibration is completed.

Note:

This step may be required for first time use of the Hub or if hub channel has been changed in Race Manager.
The steering wheel must be connected to powered on wheelbase during calibration.
If the paddle buttons on the control program calibration page jump or become invalid after calibration, perform calibration again

Semi-Clutch Setting

Turn the mode switch to the Settings mode
Pull and hold the desired clutch paddle (during the entire settings process)
While pushing in Knob 2 and then turning left or right to adjust accordingly. With the steering wheel mounted on the base, the size of adjustment can be viewed on the second page of the race manager
After adjusting, release the clutch and switch the back to C position mode to save the settings

Note:

This setting is only valid for the dual-clutch version (four paddle) steering wheel;

Light Regulation

Turn the mode switch on the back of the steering wheel to the Setting mode.
Press any of the 8 buttons individually to change to desired color. There are 8 different colors that can be cycled with each button press.
After completing the above operations, turn the back switch to C mode to save the changes.

Swipe to watch detailed adjustments and upgrade the video

Steering wheel adjustment, upgrade video address:
https://www.bilibili.com/video/BV1Zh411Y7oh/

Package Brief

Quick Release

Retract the red shell of the quick release toward the steering wheel (retract the shell when removing the quick release)
After aligning the holes of the base, insert the steering wheel into the base
If the quick release cannot be locked, it may be because the holes are not aligned. Rotate the steering wheel or remove it and insert it again.

Note: SIMAGlC's customized quick release adopts a high-precision design with six beads on the top and four beads on the bottom. The steel ball holes must be aligned with the base to access the base.

Upgrade Guide

Steering wheel upgrade, please protect Keep computer networking status.

Check the version status. Simagic products will always be up to date when you get them. If it's a new version please pay attention to the official channel.
Go to the Race Manager folder, Open the base upgrade program and prepare to upgrade

Note:
Do not do any operation during the upgrade. After the upgrade is successful, restart the base to complete the version upgrade, and it can be used normally.

Update (step 1):

USB cable to connect
Wheel on the electricity
Wait for the self-test to complete
Open the WheelUpdateOnLine software
Power on self-detection
Manual testing
Download operation
Exit the software
Restart the Wheel

Prompt processing:

Exit the software
Restart the Wheel
Go back to step 1

Equipment not found
Time Out
The current firmware is the latest firmware
Error 1-Error 5

Warranty Description

Obtaining Warranty Support

To request a Warranty service, please contact the Authorized Distributor you purchased from.
When purchasing from a second-hand dealer, make sure to obtain the warranty card and receipt from the dealer.

Check the Official Distributor list for reference: https://www.simagic.com/#/PageMainEn/PageShoppingEn

For more information on after-sale or warranty service, please check out our Terms and Conditions at SIMAGIC.COM or contact us @simagicoffical via social media platforms like instagram and Facebook.

Disclaimer and Notice

This product has strong force feedback strength and contains small parts. Children are forbidden to use the device without parental guidance.
Please turn off the button and power supply to prevent accidents.
Anyone trying to use your device for the first time must be instructed and monitored by you the owner.
Loose clothing and easily tangled objects such as hair, cables, and skirts should be kept away from the device.
Your SIMAGIC DDW is ready to use after being unboxed. We make sure the firmware is updated to the latest version when it leaves the factory.
For more information regarding software update, please refer to the SIMAGIC website and follow us on Twitter, Facebook, and Instagram @Simagicofficial.
Users MUST wait for 1 hour before driving a car if they had been using the device.
This instruction manual is for demonstration purposes only, not for marketing purposes. It is a general instruction of a single product (including the relevant series products). Please refer to the actual item for your purchase.
The product images and contents shown above are for demonstration purposes only. The actual products may vary slightly in terms of the external design (including but not limited to appearance, colors, and sizes) and the content display (including but not limited to backgrounds, Uls, and pictures). Please check the actual products for reference.
The test data above are all sampled from the SIMAGIC test laboratory and may not reflect the actual performance due to conditions of use and environmental factors. Please refer to the actual user experience for performance evaluation.
The above contents, such as descriptions and images, are subject to changes. SIMAGIC may adjust relevant contents to provide more accurate product information, specification, and feature description at any time based on the actual products in terms of performance, specification, index, and other information. Sometimes, the product supply may fluctuate due to unforeseen problems happening in the process of batching or delivery. In that case, SIMAGIC may change relevant descriptions and images as needed without notification. Please refer to official channels for the latest information.

* Note: Documents like product manuals are written based on SIMAGIC products as supplements. Please download the relevant documents at approved channels for the security of users' legitimate interest.

Safety Instructions

Safe Operation

* Power-on instruction: before turning on the power, make sure that the power cord is connected to the wheelbase. Only unplug the power cord when the wheelbase is switched off.

It is strictly forbidden to expose the device and its power supply to rain or humidity in order to avoid short circuit and electric shock that may cause device malfunction and fire.
Desired temperature of operation is 15°C-35°C.
The recommended operation time of the wheel with continuous force feedback activity is 1 hour. Excessive use may cause health risks. We suggest taking a 5-minute break every 20 minutes. Do not drive for more than 2 hours a day.
Although this product has force feedback configuration, children under 13 years old must be under parental supervision to complete the configuration. Parental guidance is required to monitor children's use of the device.
This product contains small pieces and is not suitable for children under 13 years old to use alone.
When you use it for the first time, please adjust the force feedback from minimum to a level you are accustomed to.
In the game, if the Force Feedback previously set is beyond your control, please stop the game immediately and adjust the force feedback parameters.
The wheelbase contains components that cannot be repaired by the user. Opening the casing is forbidden and may cause harm to people or property.
Do not open the casing of the device, as it will void the warranty.

Electrical Safety

Use only the power supply and power cord that came with your wheelbase, which is important to protect your safety, rights, and interests.
Do not use a non-standard power supply and power cord.
To ensure safety, replacements may only be issued from an authorized repair center.
Do not use non-standard power sources, even if the voltage and frequency appear acceptable.
To avoid product damage, use only AC power with a standard wall socket.
Do not expose your wheelbase to sources of heat.
Unplug the power cord of your wheelbase when unused for long periods of time.
If the wheelbase is found to have any malfunctions, stop using it immediately and contact SIMAGIC Official or authorized center for help.
Please subscribe to SIMAGIC official website and social platforms for any update regarding product information.

danger *This product is only limited to simulation driving related activities. Please distinguish simulation games from reality and drive safely!
