Product Profile

Introduction

• Special surface treatment of the body casing resulting in sleeker and more premium feel.
• Bright black body color gives the body a more robust and automotive component feel.
• The whole body is integrated design, and the adaptive control software replaces the multi line socket.
• Unique top laser logo.

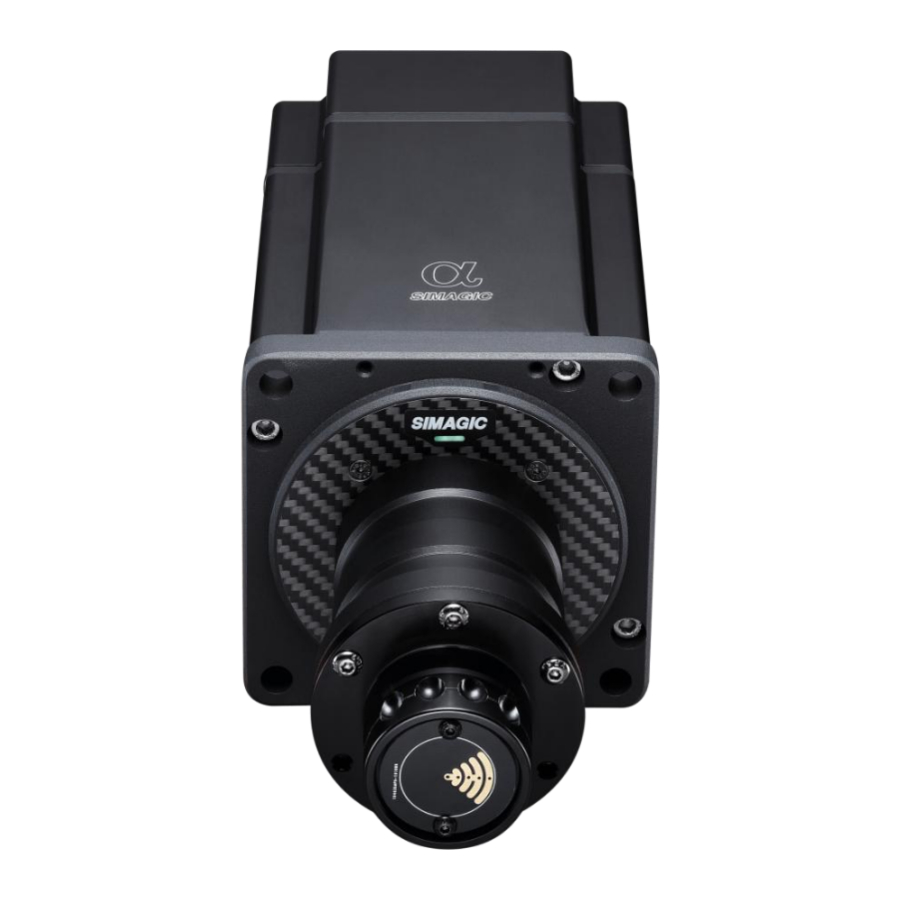

Base introduction

Alpha base is made of integrated design, with clean body and less ports.

Fuselage data

Technical Highlights

New design servo motor, for smoother and softer response; smaller body size, maximum continuous torque of 15nm.

The three CPUs respectively implement motor control, game effect presentation, and USB real-time communication. Give the entire system real-time, fast and complete presentation of every force feedback detail.

The built-in encoder has a resolution of 262144 PPR, providing more detailed game feedback.

The built-in wireless power supply and wireless communication system are continued to remove the cumbersome and inefficient physical connection.

Equipped with self-developed control software, Race Manager has feature rich yet simple and user friendly functions that adjust data according to different personal needs.

In the drift game, the unique drift mode adjustment: the force feedback size and return speed can be set separately, perfectly balancing the strength and return speed, which can bring a new real car drift experience.

Equipped with simagic custom quick release, it adapts to the steering wheel without gap.

Supports a variety of peripherals, making the simulation process more realistic.

In the drift game, the unique drift mode adjustment: the force feedback size and return speed can be set separately, perfectly balancing the strength and return speed, which can bring a new real car drift experience. without gap.

Supports a variety of peripherals, making the simulation process more realistic.

Packaging Brief

This section introduces the packaging content of Alpha. Alpha is designed and manufactured with integrated design and convenient operation

Package Contents

Operation Explanation

Simagic custom quick release adopts the design of high precision upper six balls and lower four balls, and the access base needs to align the steel ball hole position. It can be disassembled without any tools.

The quick release logo shell is the first lock. Hold the red part of the shell when removing it.
Pull out the quick release to remove it.
To fit it back in, just push the QR back on the shaft and rotate the shaft till it clicks and locks in, ensuring that the ball bearings fully seated in the shaft ring of the base.

Adapter steering wheel

This section introduces M10 compatible steering wheel, two simagic GT1, one gt4 steering wheel

SIMAGIC steering wheel

* This section is not limited to simagic single host. More simagic products can be found on simagic official website or public platform and other official information release channels.

Race Manager

This section introduces the control software of simagic direct drive simulator. Race manager is the control center

• Race manager is a host control program independently designed by simagic according to the mechanical effect of the direct drive simulator host and the source of game feedback. The interface is simple and easy to operate, which simplifies cumbersome parameter settings and complicated parameter relationships, and brings more direct product experience to users.
• SIMAGIC supports six types of game force, and game may not use all types. At the beginning of the game, the type that is chosen will turn red. Users can adjust the type of game force. The default value of game force is 100, which is the original output of the game. Users can get a good handle by adjusting the mechanical setting coefficient.
• Race manager supports parameter saving. Users can save parameters after adjusting to the best experience parameters for different games and scenes.
• Modify parameter method: the parameters in the parameter setting part can be modified directly by pulling the slider and by keyboard input (press enter to take effect.

Download and install

Users obtain simagic control software "race manager" as follows:

1. Official website of simagic Technology: www.simagic.com users can go to the homepage of the official website to navigate the "service and support" section and download the simagic professional driver software installation package "race manager" according to the guidance.
2. Through Simagic's designated sales outlets and channels. Please contact Simagic's official after-sales customer service or distributor in various regions to obtain desired "service and support" such as documents, official information release platform, etc


Installation steps

1. Extract the "race manager" driver package to the custom path: (Note: it is recommended that all software paths do not contain Chinese characters)

2. Get the racemanager folder:

3. After opening racemanager software, set parameters:


Interface introduction

Mechanical setting interface, specific parameter adjustment page, where users can set and save parameters of different scenes

Mechanical force: To enrich the handle of the game, which works while whether the game is played or not.

TotalForce
To adjust the output range of the Force engine. The positive or negative signs represent the direction of the Force.

OverallFilter
To adjust the smoothness of the output of force engine. The higher the value, the smoother the output, the lower the resonance frequency, and the less the details.

WheelSpeed
To adjust the highest speed of the wheel. The value on screen represents the highest speed. SIMAGIC algorithm does not intervene if the speed is below this value; Other wise the algorithm will limit the speed to set value.

WheelSpring
To adjust the central spring of the wheel. The larger the offset from the center, the greater the spring.

WheelDamper
To adjust the mechanical damper of the wheel. The damper force hinders the wheel rotation. Damper force= wheel speed * mechanical damper coefficient.

WheeFriction
To adjust the mechanical friction of the wheel. The direction of friction is opposite to that of wheel rotation. The value of friction can be adjusted by friction coefficient.

ConstantForce
Represents steering power in most games.

PeriodForce
In most games, it represents the intensity of game road, collision and other details.

WHEEL CENTER CALIBRATION
Rotate the wheel to center manually, and then press the button CENTER

Two ways of changing the parameter in the setting:

1. Pull the slider to change the parameter
2. Input the parameter through keyboards, and then press "enter" to function

Upload parameter s from base to RaceManager.normally RaceManager will upload parameters autoly when it is opened or base is connected.

To save parameters to base internal memorizer and remember these parameters even power off.

To save parameters to a "ini" file, user can save different setting for different game.and these setting can be loaded by pull-down menu next to "save as".

Note:

• The drawings are cut from the base and other equipment not connected. The user must install the equipment before setting.
• All parameters in the diagram are used as display instead of official recommended parameters. The hand feeling of parameter setting varies according to people and equipment. After the initial setting is familiar, it can be debugged by itself.

The second page of RaceManager is Calibration.

All peripherals from simagic will be linked to base by can bus.here show all 6 axises and 64 buttons.that will be enough for most of all games.

Motor setting interface, which can view the basic information and system status of race manager.

Motor Speed:
SIMAGIC have 5 scales of motor speed to set different feeling of motor.you can see it represent suspension hardness of car.

Game Model:
Reserved

Language:
To set language of Race Manager.

SYSTEM STATE:
To show the state of base. Errors will be show here. Normally errors can be clear by restart base.

BASE OK - This led indicated connection with base

• If there are three states of system over-current, system over-voltage and angle over limit during system loading, please refer to reset hole operation.
• There are four different motor status flags at the bottom left. You can check the connection status of the motor here to adjust the motor.

Firmware Update

This section describes the upgrade steps of hub. You can upgrade after simagic releases the new version, but the product will always be the latest version when it reaches you,

Host upgrade, please keep the computer connected.

1. Enter Race Manager to check the version status.
   The simagic products will always be the latest version when you get them. If new versions are released, please follow the official channels.

2. Go to the Race Manager folder,
   Open the base upgrade program and prepare to upgrade

3. Follow the prompts
   1. Click the"Check Update"

   2. After checking, the version can be upgraded
      Click the"DownLoad"

   3. When the progress bar shows 100% Upgrading


Additional Explanation

• Before trial use, please install the equipment on the rigid platform safely, and fix the main wheel base on a suitable platform bracket or racing equipment with the adapter screw. It is forbidden to use other types of fixings.
• Before each use, it is necessary to check the installation of the base and the strength after starting the machine.
• This product has a large feedback force and contains small parts. Children are not allowed to use this device alone.
• When terminating use, please turn off the button and power equipment to prevent accidents.
• People who use or experience your device for the first time must be instructed by the device owner.
• Loose clothing such as hair, cables, hemlines or other tangles should be kept away from the simulator.
• Simagic DDW can be used out of the box completely. We always update the latest firmware at the factory. For program upgrade and other issues, please pay attention to the official website of speedmagic technology and the official public platform "simagic speedmagic simulation".
• Users can use this product to simulate racing game activities, and should drive the car at least 1 hour after the end of the game.
• This instruction manual is only used as a general instruction manual for a single product (including different styles under a single product), and the products demonstrated in this manual are only used as product instructions instead of sales instructions. The specific style of products shall be subject to the purchase of users.
• Note: relevant documents are game adaptation documents developed by simagic based on simagic supporting equipment, In order to protect the legitimate rights and interests of users, users are requested to download all files in the channel designated by simagic.

Safety Suggestion

This section introduces the safetysuggestions for the steering wheel of the direct drive simulator inuse, which is very important.

Proper Use

• Alpha power on instructions: Always check to make sure the power connector is switched OFF before plugging in or unplugging the wheelbase. It is forbidden to plug and unplug the power connector at the base end while power is switched on.
• Equipment and power supply shall not be exposed to rain or other liquids or humid environment to avoid short circuit and leakage, which may cause damage and failure of equipment and fire.
• The suitable operating temperature is 15 ℃ - 35 ℃.
• It is suggested that the game time of power feedback is 1 hour, and overuse may lead to health risks; we suggest to take 5 minutes off every 20 minutes, and the maximum driving time per person per day is 2 hours.
• Although the product can adjust the force feedback data, the children under 13 years old must be supervised by their parents to adjust the force feedback parameters of children's model and use the device under their supervision.
• When users use it for the first time, please adjust the force feedback from small to appropriate strength.
• In the game, if the feedback force adjustment is too large to control, please stop the game immediately and adjust the feedback force parameters in time.
• This product contains small parts, and the magnetic light sensitive shift paddle adopts strong magnetic magnet, which is not suitable for children under 13 years old to operate alone.
• The hub contains circuits and other parts that cannot be repaired by the user. It is forbidden for the user to open the equipment shell to avoid greater damage to the equipment.
• It is forbidden for the user to open the hub without authorization or professional guidance, which may cause irreparable injury to the equipment and the user will not receive simagic's warranty policy service.

Electricity Safety

• The steering wheel must be installed on the simagic main engine to ensure proper matching power supply.
• The factory fitted USB cable must be used when upgrading the steering wheel.
• In order to ensure relevant safety, parts replacement can only be sent out or repaired by an officially authorized maintenance center.
• If it is not used for a long time, please pull out the steering wheel and disconnect it from the main engine.
• In case of any abnormality, please stop using immediately and ask simagic official or relevant authorized Center for help.
• Please follow simagic website and public platform for the latest product information.
• This product is only limited to simulation driving related activities. Please distinguish simulation games from reality and drive safely!

If have any questions, please contact us through information channel.

Common name of international platform: simagic official

www.simagic.com
