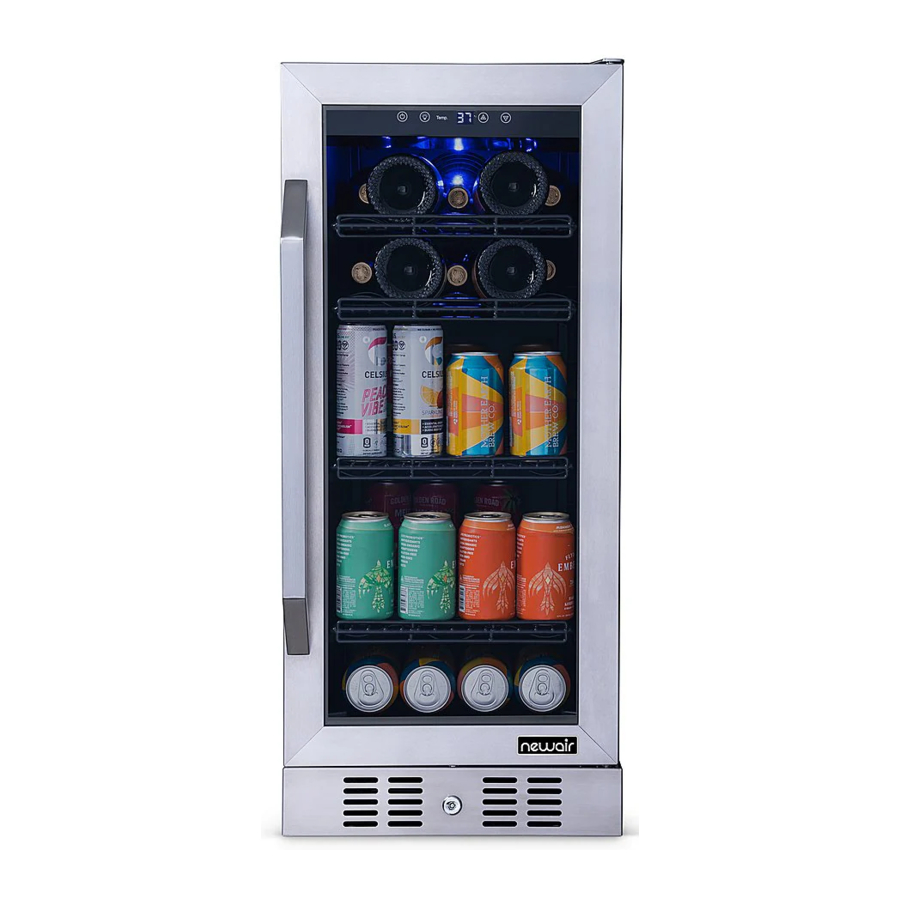

NewAir FlipShelf NWB060SS00, NWB060BS00 - Beverage Fridge Manual

SPECIFICATIONS

PARTS LIST

1. Upper Hinge
2. Door Gasket
3. Shelves
4. Door Handle
5. Bottom Hinge

ELECTRICAL CIRCUIT DIAGRAM

INSTALLATION

Before connecting the appliance to a power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

Before operating your fridge for the first time, follow these steps:

• Remove the exterior and interior packing.
• Clean the interior surface of the unit with lukewarm water and a soft cloth.
• Place the fridge on a level surface that will be strong enough to support the unit when it is fully loaded. To level your fridge, adjust the front feet located at the bottom of the unit.

REVERSING THE DOOR SWING

This appliance has reversible door but is delivered with a right hinged door.
The left hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit.

1. Open the door to 90 degrees. Remove two screws from the door bottom right hinge, slide door off hinge and pull door down to free it from the top hinge. Remove boom right hinge relocated it to the left side.
2. Remove three screws from the top right hinge. NOTE: this top right hinge will be replaced by a top left hinge located in the bag. Keep top right hinge in a known location for future door reversal.
3. Remove the three screw hole covers from the top left.
4. Install the three screw hole covers at the top right where the original right hinge was removed.
5. Install top left hinge with the three screws removed from the top right hinge.
6. Rotate the door with 180 degrees. Install the door by sliding it onto the top hinge pin, then secure the bottom hinge pin using the screws removed in step 1.

• Ensure the top of the door properly aligned with the top of the cabinet and that the rubber gasket makes a good seal with the cabinet all the way around.

OPERATING INSTRUCTIONS

HOW TO USE THE BUTTONS ON THE DISPLAY PANEL

Raise the desired temperature. *

Lower the desired temperature. *

* To set the temperature, press the or button on the control panel. The interior temperature can be adjusted in increments of 1 degree between 37°F and 65°F (3° - 18°C).

The interior light can be turned on or off by pressing the button.
To switch between Fahrenheit and Celsius, Press the button for 5 seconds.

HOW TO USE THE FLIPSHELF™ SHELVES

This beverage fridge comes with 4 adjustable flip shelves that allow you to optimally store all types of beverages. The shelves come with two sides: a flat side for beer or beverages and a wine side for standard and large wine or champagne bottles. To flip a shelf, follow these instructions:

1. Press down on the front of a shelf until the back of the shelf releases from the security nook and raises upwards, then pull the shelf out.
2. Flip the shelf.
3. Slide the shelf back into place.

Flat side
Use the flat side to stand beverages, beer cans or bottles, or growlers upright. The sturdy surface keeps cans and bottles from tipping over.

Wine side
Use the wine side to securely hold bottles in place. The grooves keep the bottles from rolling around and knocking over the other beverages in your beverage fridge.

CLEANING & MAINTENANCE

CLEANING YOUR BEVERAGE FRIDGE

To clean your beverage fridge:

• Unplug the beverage fridge and remove anything inside.
• Wash the inside of the unit with a solution made of warm water and baking soda solution (2 tablespoons of baking soda to one quart of water).
• Unscrew the water reservoir at the bottom of the unit and rinse with water.
• To clean the outside of the unit, use a mild detergent and warm water.

MOVING YOUR BEVERAGE FRIDGE

To move your beverage fridge:

• Remove anything stored inside.
• Securely tape down all loose parts located inside the unit.
• Turn the leveling feet up to the base in order to avoid damage.
• Tape the door shut.
• Be sure the beverage fridge stays in an upright position during transportation.

USAGE & STORAGE TIPS

• Only pull out one shelf at a time. Never attempt to pull more than one.
• Disperse the bottles evenly to avoid concentrating weight in one place. Bottles must not touch the back of the cabinet.
• You can increase your wine fridge's storage capacity by removing shelves and stacking bottles on top of one another. Do not stack more than 2 rows of bottles per shelf.
• The ideal temperature for long-term or short-term wine storage is around 55°F (13°C), but this can vary from wine to wine. Wine should never be kept below 25°F (4°C), which can cause wine to freeze, or above 68°F (20°C), which can accelerate the aging process and destroy volatile compounds.
• Keep your wine away from direct sunlight as much as possible. UV rays from direct sunlight can damage wine's flavors and aromas. You should also keep wines away from sources of vibration, they can disturb sediments in the bottle, disrupting the delicate process that causes wines to age favorably.
• At lower humidity levels, your corks can dry out, leaving the wine vulnerable to the effects of oxygen, while higher humidity can cause labels to peel off the bottles, making them difficult to display or sell. In general, your wine cellar humidity should be between 60 and 68 percent.
• The key to extending the shelf life of an open wine and retain its original qualities is to recork it promptly and tightly. To recork wine, place some wax paper around the cork and slide it back into its original position. The wax will ease the cork into the top and also ensure that no stray parts of the cork drop into the bottle. If recorking isn't an option, a rubber wine stopper or a wine vacuum pump can create an airtight seal.
• While most wines today are meant to be drank "young" (within a few years of production) some fine wines are best served by proper aging. But aging too long can decrease the flavor of the wine. Generally speaking, red wines can age longer than white wines, but here is a storage guide for some popular vintages.

Cabernet Sauvignon: 7-10 years
Pinot Noir: 5 years
Merlot: 3-5 years
Zinfandel: 2-5 years
Beaujolais: Drink now
Chardonnay: 2-3 years
Riesling: 3-5 years
Sauvignon Blanc: 18 months – 2 years
Pinot Gris: 1-2 years
Champagne: Ready to drink

TROUBLESHOOTING

REGISTER YOUR PRODUCT ONLINE

Register Your NewAir Product Online Today!
Take advantage of all the benefits product registration has to offer:

• Service and Support
  Diagnose troubleshooting and service issues faster and more accurately
• Recall Notifications
  Stay up to date for safety, system updates and recall notifications
• Special Promotions
  Opt-in for NewAir promotions and offers

Registering your product information online is safe & secure and takes less than 2 minutes to complete:
newair.com/register

Alternatively, we recommend you attach a copy of your sales receipt and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.
Date of Purchase
Serial Number
Model Number

Contact Us

Please reach out to our customer service team before making a return to your store of purchase. We are happy to help with any questions or concerns!
Mon-Fri from 8-4 PST at:
Call: 1-855-963-9247
Email: support@newair.com
Online: www.newair.com

A team member will respond to you within 24 hours.

Follow Us:
facebook.com/newairusa
instagram.com/newairusa
youtube.com/newairusa
twitter.com/newairusa

For technical support and warranty service, please email support@newair.com

SAFETY INFORMATION & WARNINGS

Your safety and the safety of others are very important to us.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

• Read all instructions carefully before attempting to operate your wine and beverage fridge. Improper usage could result in injury or a reduction in efficacy.
• Remove all packaging before using the wine and beverage fridge. Please keep all packaging materials out of reach of children and pets.
• Properly dispose of all packing materials immediately after unpacking product, as the bags used for packaging could present a suffocation or choking hazard.
• This product contains small parts that can be a choking hazard for children under the age of 3 years old. Please keep children away from the wine and beverage fridge during the installation process and do not let children near the fridge unsupervised.
• Never allow children to operate, play with, or crawl inside the wine and beverage fridge.
• This wine and beverage fridge is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not attempt to repair or replace any parts or service this unit unless specifically recommended in this User Guide. If the supply cord is damaged, it must be replaced by the manufacturer, a service agent, or a similarly qualified person in order to avoid a hazard.
• Use only with a properly grounded, standard 115V 60Hz electrical outlet to avoid the risk of electrical shock. Do not use with an extension cord.
• Do not store foods in this wine and beverage fridge because the temperature may not be cool enough to prevent spoilage or may cause bacteria growth.
• Do not store explosive substances such as aerosol cans with flammable propellant in this wine and beverage fridge.

IMPORTANT SETUP NOTES:

• Before plugging in your wine and beverage fridge, allow to stand upright for 2 hours.
• Only place your wine and beverage fridge on a level surface that will support the full weight once fridge has been fully loaded. You can ensure the unit is level by placing a small ball on top and checking to make sure it does not roll in any direction.
• Be sure the kick-plate on the front bottom is free of obstruction. Obstructing airflow can cause the unit to malfunction and will void the warranty.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not block any internal fans.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances other than those recommended by the manufacturer inside the storage compartments of the appliance.
• Failure to clean the condenser every six months can cause the unit to malfunction.
• Do not use mechanical devices or means other than those recommended by the manufacturer to accelerate the defrosting process.
• Allow unit temperature to stabilize for 24 hours before use.
• Keep the fridge away from hazardous materials or combustible/flammable substances.
• Use only genuine supplier's replacement parts. Imitation parts can damage the unit, affect its operation or performance, and may void the warranty.
• Do not place any objects on top of the unit.
• Avoid operating this fridge in excessively moist or humid environments.
• This wine and beverage fridge is intended for use only in the household, office and similar environments.

Risk of child entrapment. Before you throw away your old wine and beverage fridge, please follow these steps:

• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.

READ AND KEEP THESE INSTRUCTIONS
