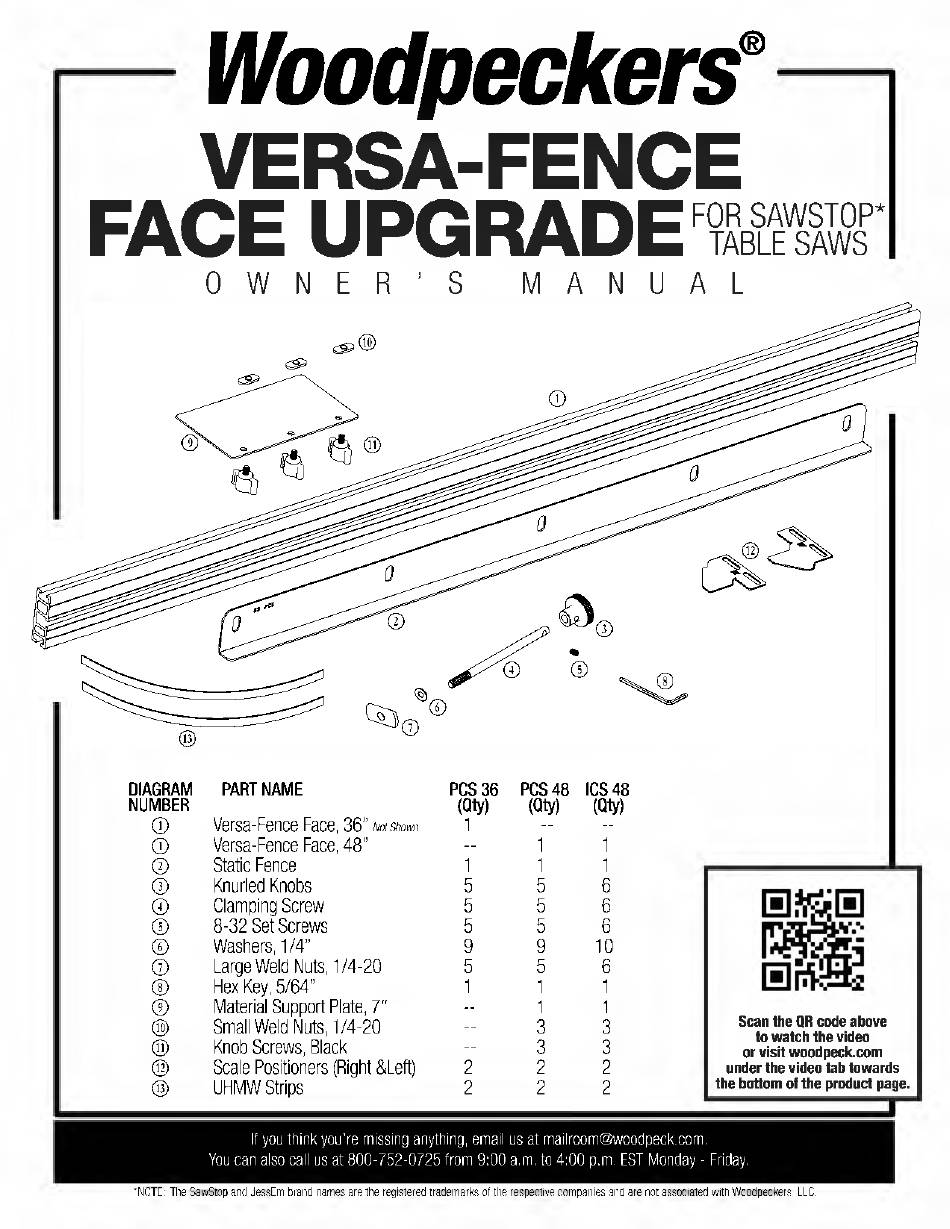

Woodpeckers VERSA-FENCE FACE Owner's Manual

oodpeckers®
ERSA-FENCE
FACE UPGRADE
For Saw Stop* Table Saws
OWNER ' S MANUAL
DIAGRAM
NUMBER
PART NAME PCS 36
(Qty)
PCS 48
(Qty)
ICS 48
(Qty)
1
ersa-Fence Face, 36 "
ot Shown
1 -- --
1
ersa-Fence Face, 48 "
-- 1 1
2 Static Fence 1 1 1
3 Knurled Knobs 5 5 6
4 Clamping Screw 5 5 6
5
8-32 Set Screws 5 5 6
6
Washers, 1/4 " 9 9 10
7
Large Weld Nuts, 1/4-20
5 5 6
8 Hex Key, 5/64 " 1 1 1
9 Material Support Plate, 7
" -- 1 1
10
Small Weld Nuts, 1/4-20 -- 3 3
11
Knob Screws, Black -- 3 3
12
Scale Positioners (Right &Left) 2 2 2
13 UHMW Strips 2 2 2
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
*NOTE: The SawStop and JessEm brand names are the registered trademarks of the respective companies and are not associated with Woodpeckers, LLC.
