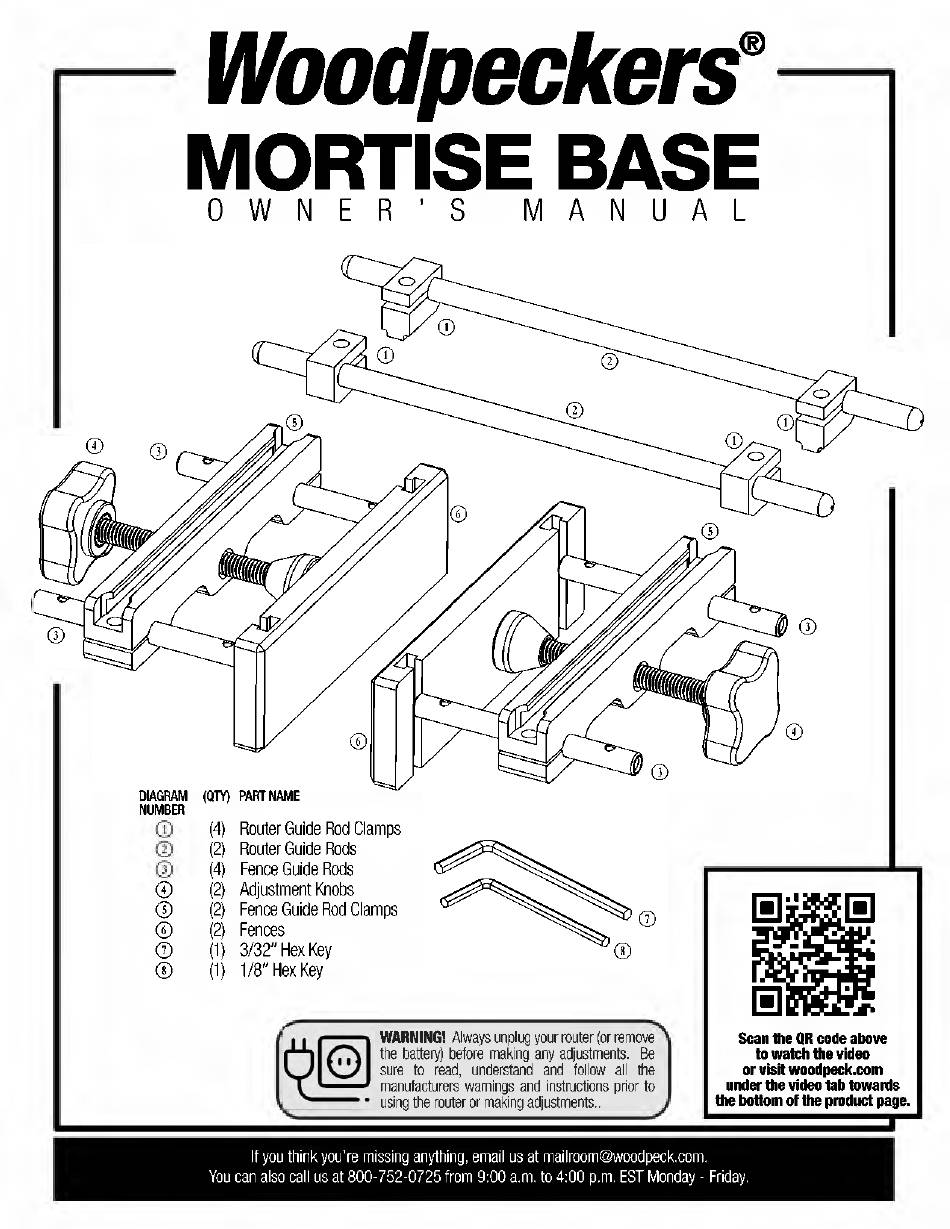

Woodpeckers MORTISE BASE Owner's Manual

oodpeckers
ORTISE BASE
WNER ' S MANUAL
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
DIAGRA
NU BER
(Q TY ) PART NA E
4)
Router Guide Rod Clamps
2
2)
Router Guide Rods
3
4) Fence Guide Rods
4
2) Adjustment Knobs
5
2) Fence Guide Rod Clamps
6
2)
Fences
7
1)
3/32" Hex Key
8
1) 1/8" Hex Key
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
WARNING!
Always unplug your router (or remove
the battery) before making any adjustments. Be
sure to read, understand and follow all the
manufacturers warnings and instructions prior to
using the router or making adjustments..
