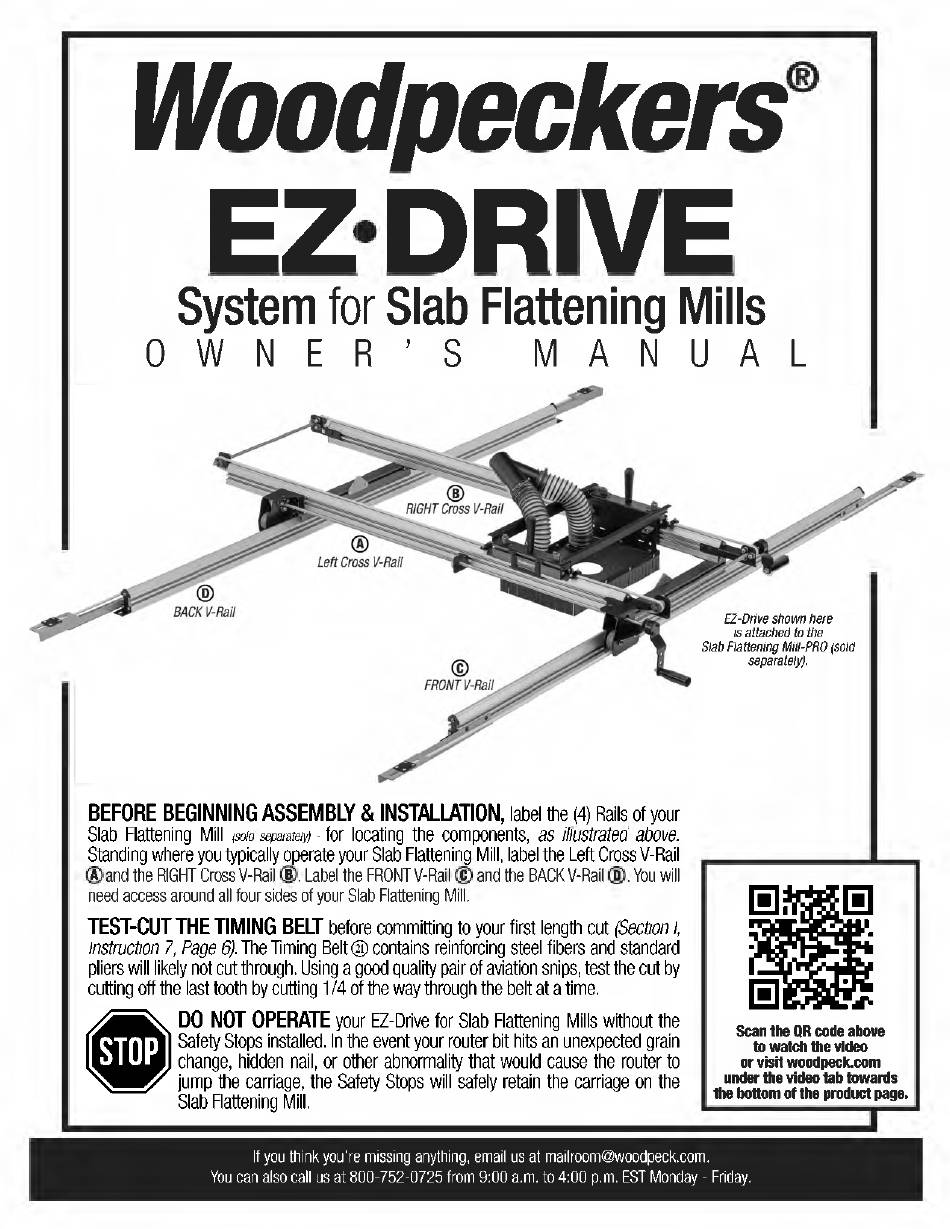

Woodpeckers EZ-DRIVE Owner's Manual

oodpeckers
- Z DRIV
System for Slab Flattening Mills
OWNER ' S MANUAL
- Z Drive shown here
is attached to the
Slab Flattening Mill-PRO (sold
separately).
BEFORE BEGINNING ASSEMBLY & INSTALLATION,
label the (4) Rails of your
Slab Flattening Mill
(sold separately) -
for locating the components, as illustrated above.
Standing where you typically operate your Slab Flattening Mill, label the Left Cross V-Rail
A
and the RIGHT Cross V-Rail
B
. Label the FRONT V-Rail
C
and the BACK V-Rail
D
. You will
need access around all four sides of your Slab Flattening Mill.
TEST-CUT THE TIMING BELT
before committing to your first length cut (Section I,
Instruction 7, Page 6) . The Timing Belt 21 contains reinforcing steel fibers and standard
pliers will likely not cut through. Using a good quality pair of aviation snips, test the cut by
cutting off the last tooth by cutting 1/4 of the way through the belt at a time.
DO NOT OPERATE
your EZ-Drive for Slab Flattening Mills without the
Safety Stops installed. In the event your router bit hits an unexpected grain
change, hidden nail, or other abnormality that would cause the router to
jump the carriage, the Safety Stops will safely retain the carriage on the
Slab Flattening Mill.
Scan the QR code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
