Summary of Contents for Elko EKO07255

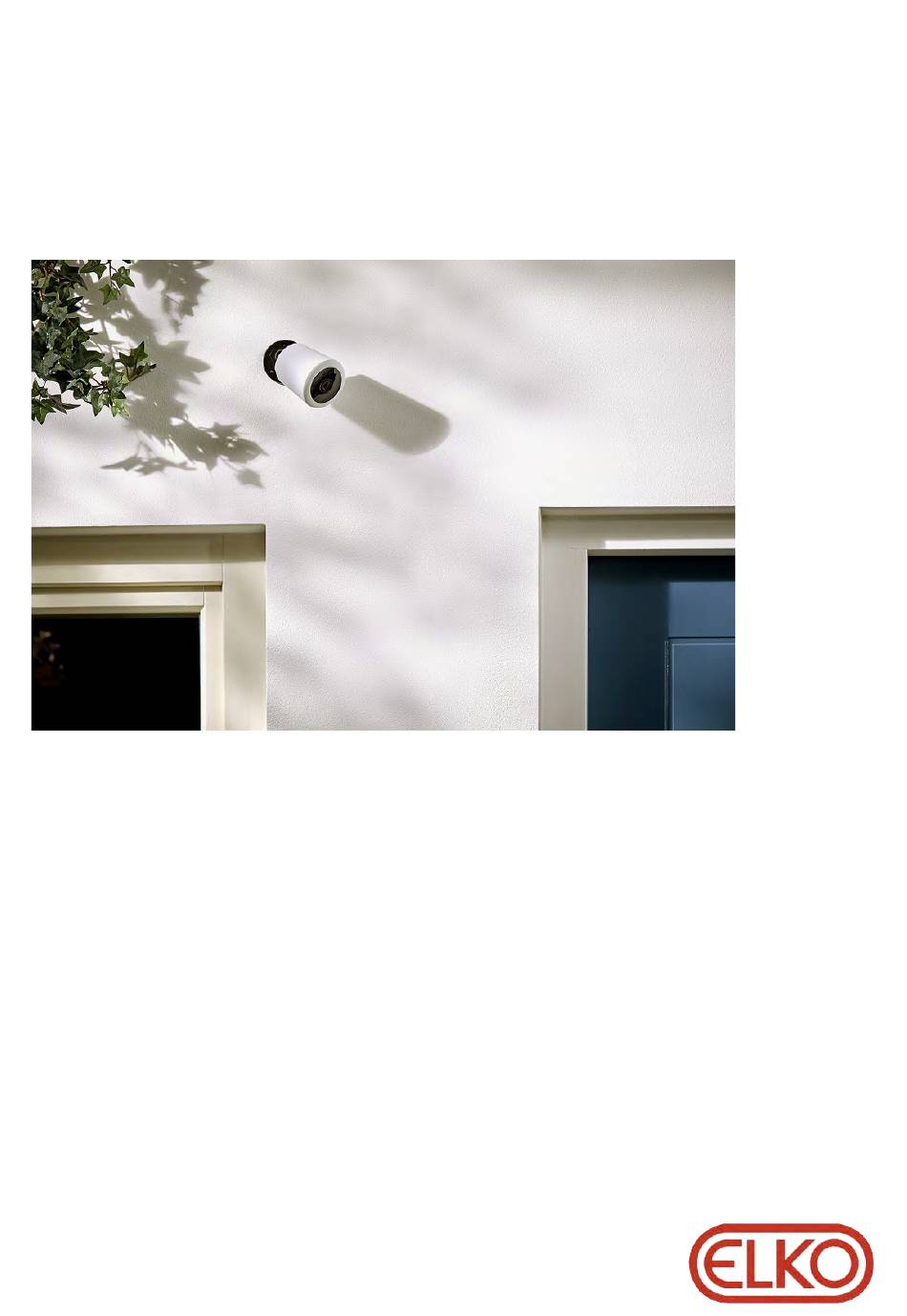

- Page 1 www.elko.no...
- Page 2 ELKO. ELKO does not grant any right or license for commercial use of the document or its content, except for a non-exclusive and personal license to consult it on an "as is"...
-
Page 3: Table Of Contents
Table of Contents Safety Information ..................4 Smart IP Camera Outdoor .................5 For your safety ..................5 About the device..................5 Installing the device ..................5 Pairing the device ..................6 Configuring the device ................7 Changing the device icon ..............7 Renaming the device ................8 Changing the device location ..............8 Configuring basic function settings ............9 Configuring IR night vision ..............9 Setting image quality................10... -
Page 4: Safety Information
Safety Information Safety Information Important Information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service, or maintain it. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure. -
Page 5: Smart Ip Camera Outdoor
Smart IP Camera Outdoor Smart IP Camera Outdoor EKO07255 For your safety NOTICE RISK OF DAMAGE TO DEVICE Always operate the product in compliance with the specified technical data. Failure to follow these instructions can result in equipment damage. About the device The Smart IP camera outdoor (hereinafter referred as IP Camera) is a Wi-Fi ®... -
Page 6: Pairing The Device
Smart IP Camera Outdoor Pairing the device Using the ELKO Smart app, pair your device with the local Wi-Fi network to register on cloud to access and control the device. To pair the device: 1. On the Home page, tap + and tap 2. -
Page 7: Configuring The Device
Configuring the device Changing the device icon You can change the device icon using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the icon. 2. At the top-right corner of the screen, tap 3. -
Page 8: Renaming The Device
Cancel Save Changing the device location You can change the device location using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the location. 2. At the top-right corner of the screen, tap 3. -
Page 9: Configuring Basic Function Settings
Configuring basic function settings The basic function settings allows you to enable the Status indicator on the device and the Time watermark on the ELKO Smart app. Status indicator Enabling the Status indicator turns on/off the LED on the device. -
Page 10: Setting Image Quality
IR night vision Auto Setting image quality Using the ELKO Smart app, you can change the image quality based on your requirement. TIP: You can switch to Standard Definition image quality when the Wi-Fi is slow or the memory card storage space is less. -
Page 11: Setting Offline Notification
Smart IP Camera Outdoor Setting offline notification Using the ELKO Smart app, you can receive a notification when the IP camera is offline. To turn on the offline notification: 1. On the Home page, tap All devices > IP Camera Outdoor. -
Page 12: Removing The Device
Smart IP Camera Outdoor Removing the device Using the ELKO Smart app, you can remove a device from the device list. To remove the device: 1. On the Home page, tap All devices > IP Camera Outdoor. 2. Tap and tap Settings. -
Page 13: Using The Device
Smart IP Camera Outdoor Using the device Using the control panel of the IP Camera, you can see live video of the outdoors on the display screen and includes the following features: Enables audio of the live video Makes the video fullscreen Takes screenshot of the live view Lets you communicate with a person near the device... -
Page 14: Using Private Mode
TIP: Alternatively, you can tap the on the control panel. Alarm sensitivity level Using the ELKO Smart app, you can adjust the sensitivity level of your motion detector. Tap Alarm Sensitivity Level (B) and select any one of the following levels: –... - Page 15 Smart IP Camera Outdoor Activity area Using the ELKO Smart app. you can set the surveillance area for motion detection. 1. Tap the toggle switch (C) to enable the Activity area. 2. Tap Detection Area Settings (D) and drag/resize the red frame to set the surveillance area and tap Save.
-
Page 16: Setting Privacy Zone
Smart IP Camera Outdoor Scheduling detection alarm Using the ELKO Smart app, you can add a schedule that allows you to turn off/on motion detection automatically based on your needs. To schedule the motion detection: 1. On the Home page, tap All devices > IP Camera Outdoor. - Page 17 Smart IP Camera Outdoor 4. Tap Privacy Zone Settings (B) and drag/resize the red frame to set the surveillance area and tap Save. The live view on the control panel will show only the saved privacy zone. NOTE: The privacy zone detection area setting overrides the motion detection activity area setting.
-
Page 18: Playback
Smart IP Camera Outdoor Playback Using the ELKO Smart app, you can review the recording whenever you want with the Playback feature. NOTE: You need to insert a micro-SD card (max 128 GB) to use the playback feature. Refer instruction sheet. - Page 19 Smart IP Camera Outdoor Recording Settings To change the recording settings: 1. On the Home page, tap All devices > IP Camera Outdoor. 2. Tap and tap Settings > Recording Settings. 3. In the Recording Settings section, tap the toggle switch (A) to enable the Local Recording.
- Page 20 Smart IP Camera Outdoor Scheduling playback Using the app, you can add a schedule that allows you to turn off/on recording automatically based on your needs. To schedule the recording: 1. On the Home page, tap All devices > . 2.
-
Page 21: Storage Settings
0.15 GB Creating a moment A Moment allows you to group multiple actions that are usually done together. Using the ELKO Smart app, you can create moments based on your needs (such as movie night). 1. On the Home page, tap 2. - Page 22 Smart IP Camera Outdoor 4. In the Action section, tap Add task (B) to open the slide-up menu. 5. In the Add task menu, you can do either or all of the following actions (C): – Run the device: select the devices that you want in a moment. –...
-
Page 23: Creating An Automation
An automation allows you to group multiple actions that are usually done together, triggered automatically or at scheduled times. By using the ELKO Smart app, you can create automations based on your needs. 1. On the Home page, tap the 2. - Page 24 Smart IP Camera Outdoor 4. Tap Any condition is met to select any one of the condition type (B): – All conditions are met: the automation is triggered when all the conditions are met. – Any condition is met: the automation is triggered when at least one condition is met.
- Page 25 Smart IP Camera Outdoor 9. In the Add task menu, you can do either or all of the following options (D): – Run the device: select the devices that you want to be triggered. – Moment or Automation: select the moment which you want to trigger or select the automation that you want to enable or disable.
- Page 26 Smart IP Camera Outdoor 12. Tap on Effective period to set the time range for the automation. You can select any one of the following (E): – All-day - 24 hours – Daytime - From sunrise to sunset – Night - From sunset to sunrise –...
-
Page 27: Led Indications
Smart IP Camera Outdoor LED indications LED Indication Status LED is Solid red Device is initiated successfully. LED blinks red Device is in reset mode. Device is ready for pairing LED is Solid blue Device is initiating. The connection is successful. LED blinks blue Device is pairing to the network. -
Page 28: Technical Data
Smart IP Camera Outdoor Technical Data Nominal voltage AC 100–240 V, 50/60 Hz Power supply 12 VDC, 1A Power consumption max. 6 W Operating temperature -20 °C to 60 °C Operating humidity < 95% RH Protection class IP Camera : IP56 Power supply : IP20 Connector : IP20 Cable length... -
Page 29: Eu Declaration Of Conformity
EU Declaration of Conformity Hereby, ELKO, declares that this product is in compliance with the essential requirements and other relevant provisions of RADIO EQUIPMENT DIRECTIVE 2014/53/EU. Declaration of conformity can be downloaded on ELKO.no. Trademarks This guide makes reference to system and brand names that are trademarks of their relevant owners. - Page 30 Norway +47 67 79 39 00 support@elko.no www.elko.no As standards, specifications, and design change from time to time, please ask for confirmation of the information given in this publication. © 2023 – 2023 ELKO. All rights reserved. DUG_Smart IPC Outdoor_ELKO-00...
