- Page 1 Smart IP Camera Indoor Device User Guide Information about features and functionality of the devices 05/2023 www.elko.no...
- Page 2 Legal Information The ELKO brand and any trademarks of ELKO AS and its subsidiaries referred to in this guide are the property of ELKO AS or its subsidiaries. All other brands may be trademarks of their respective owners. This guide and its content are protected under applicable copyright laws and furnished for informational use only.
-
Page 3: Table Of Contents
Table of Contents Safety information ..................4 Smart IP Camera Indoor ................5 For your safety ..................5 About the device..................5 Installing the device ..................5 Pairing the device ..................6 Configuring the device ................8 Changing the device icon ..............8 Renaming the device ................8 Changing the device location ..............9 Configuring basic function settings ............10 Configuring IR Night Vision .............. -
Page 4: Safety Information
Safety information Safety information Important information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service, or maintain it. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure. -
Page 5: Smart Ip Camera Indoor

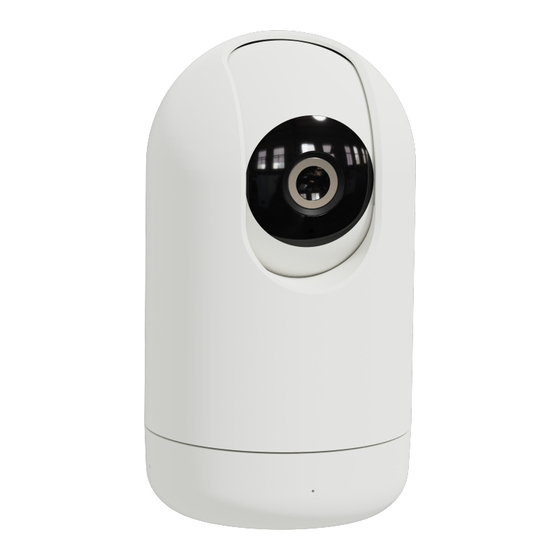

Smart IP Camera Indoor Smart IP Camera Indoor EKO07248 For your safety NOTICE RISK OF DAMAGE TO DEVICE Always operate the product in compliance with the specified technical data. Failure to follow these instructions can result in equipment damage. About the device The Smart IP Camera Indoor (hereinafter referred to as IP Camera) is a Wi-Fi ®... -
Page 6: Pairing The Device
Smart IP Camera Indoor Pairing the device Using the ELKO Smart app, pair IP camera with the local Wi-Fi network to register on cloud to access and control the device. To pair the device: 1. On the Home page, tap + and tap 2. - Page 7 Smart IP Camera Indoor 4. Select the Wi-Fi network, enter the Password (B) and tap Next. NOTE: Make sure to first connect your mobile phone to the home Wi-Fi and select 2.4 GHz network. Cancel Select 2.4GHz Wi-Fi Network and enter Password.
-
Page 8: Configuring The Device
Configuring the device Changing the device icon You can change the device icon using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the icon. 2. At the top-right corner of the screen, tap 3. -
Page 9: Changing The Device Location
Name Save Changing the device location You can change the device location using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the location. 2. At the top-right corner of the screen, tap 3. -
Page 10: Configuring Basic Function Settings
Smart IP Camera Indoor Configuring basic function settings Using the ELKO Smart app, you can configure the following features: Basic Function Settings Flip screen Enabling the Flip Screen will turn the screen upside down on the live view on control panel. -
Page 11: Configuring Ir Night Vision
– On: turns on the IR night vision at all times. Auto Setting offline notification Using the ELKO Smart app, you can receive a notification when the IP camera is offline. To turn on the offline notification: 1. On the Home page, tap All devices > IP Camera Indoor. -
Page 12: Removing The Device
Smart IP Camera Indoor Removing the device Using the ELKO Smart app, you can remove a device from the device list. To remove the device: 1. On the Home page, tap All devices > IP Camera Indoor. 2. Tap and tap Settings. -
Page 13: Using Private Mode
Smart IP Camera Indoor NOTE: • To view the saved screenshot/recording, tap > Album. • To view the notification/alarm messages, tap > Message. • To review the recordings using playback feature, refer to Playback, page Using private mode The Private Mode allows you to turn off the live view, thereby disabling all the other features on the control panel for all users connected to the same Zigbee network. -
Page 14: Detection Alarm Setting
Detection Alarm Settings Alert Sensitivity Level High Schedule Alarm sensitivity level Using the ELKO Smart app, you can adjust the sensitivity level of your motion detector. Tap Alarm Sensitivity Level (B) and select any of the following: – Low – Medium –... - Page 15 Smart IP Camera Indoor Motion tracking Enabling the Motion tracking allows the IP camera to detect the motion and automatically move the camera in the direction of the motion. Tap the toggle switch (C) to enable the Motion tracking. NOTE: The camera will only move in left and right directions. DUG_Smart IPC Indoor_ELKO-01...
- Page 16 Smart IP Camera Indoor Scheduling detection alarm Using the ELKO Smart app, you can add a schedule that allows you to turn off/on motion detection automatically based on your needs. To schedule the motion detection: 1. On the Home page, tap All devices > IP Camera Indoor.
-
Page 17: Playback
Smart IP Camera Indoor Playback Using the ELKO Smart app, you can review the recording whenever you want with the Playback feature. NOTE: You need to insert a micro-SD card (max 128 GB) to use the playback feature. Refer instruction sheet. - Page 18 Non-stop Schedule Scheduling playback Using the ELKO Smart app, you can add a schedule that allows you to turn off/on recording automatically based on your needs. To schedule the recording: 1. On the Home page, tap All devices > IP Camera Indoor.
-
Page 19: Storage Settings
Smart IP Camera Indoor Storage settings To change the recording settings: 1. On the Home page, tap All devices >. 2. Tap and tap Settings > Storage Settings. 3. In the Storage Settings section, tap Format (A) to format the inserted micro- SD card. -
Page 20: Creating A Moment
Smart IP Camera Indoor Creating a moment A Moment allows you to group multiple actions that are usually done together. Using the ELKO Smart app, you can create moments based on your needs (such as movie night). To create a moment: 1. -
Page 21: Creating An Automation
Creating an automation An automation allows you to group multiple actions that are usually done together, triggered automatically or at scheduled times. By using the ELKO Smart app, you can create automations based on your needs. To create an automation: 1. - Page 22 Smart IP Camera Indoor 3. Tap Edit name, enter the name of the automation (A) and tap Save. TIP: You can choose the cover image that best represents your automation by tapping Automation settings Automation settings Cancel Cancel Save Save My Automation Any condition is met Any condition is met...
- Page 23 Smart IP Camera Indoor 6. In the Add Condition menu, you can do either or all of the following options (C): – When weather changes: select the various weather settings. – Schedule: set the time and day. – When device status changes: select the device and it’s function. NOTE: You can add one or more conditions using Automation settings Automation settings...
- Page 24 Smart IP Camera Indoor 9. Tap on Effective period to set the time range for the automation. You can select any one of the following (E): – All-day: 24 hours – Daytime: From sunrise to sunset – Night : From sunset to sunrise –...
-
Page 25: Led Indication
Smart IP Camera Indoor 6. In the Automation Settings page, tap Save. Automation Settings Cancel Save Edit name Any condition is met (1/10) Window Door Sensor Window Door Sensor:Open Action (1/80) Auto-patrol Switch:On All-Day Once the automation is saved, it is visible on the Automation tab. You can tap the toggle switch on the automation to enable/disable it. -
Page 26: Troubleshooting
Smart IP Camera Indoor Troubleshooting Symptom Possible cause Solution The device is not reset correctly. Long press the reset button for 3 seconds The device is not ready to pair after the device is removed from the app. located on the back of the device to reset the device. -
Page 27: Technical Data
Smart IP Camera Indoor Technical Data Nominal voltage AC 100–240 V, 50/60 Hz Power supply DC 5 V, 2 A Power consumption max. 10 W Ambient temperature -10 °C to 45°C Operating humidity < 95% RH Operating frequency 2405 – 2480 MHz Max. - Page 28 EU Declaration of Conformity Hereby, ELKO, declares that this product is in compliance with the essential requirements and other relevant provisions of RADIO EQUIPMENT DIRECTIVE 2014/53/EU. Declaration of conformity can be downloaded on ELKO.no. Trademarks This guide makes reference to system and brand names that are trademarks of their relevant owners.
- Page 30 ELKO AS Sandstuveien 68, 0680 Oslo Pb 6598 Etterstad, 0607 Oslo Norway +47 67 79 39 00 support@elko.no www.elko.no As standards, specifications, and design change from time to time, please ask for confirmation of the information given in this publication.
