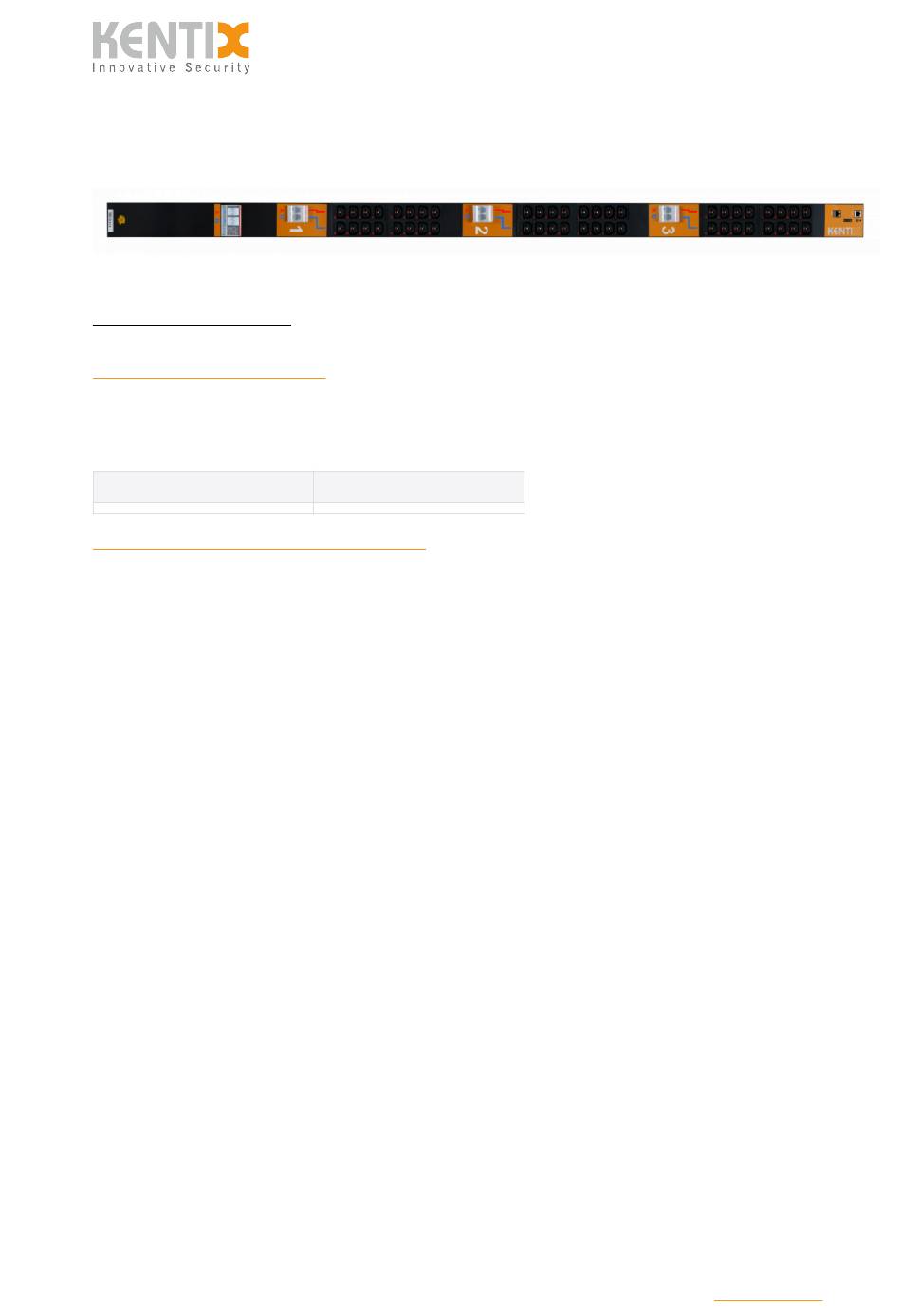

SmartPDU-40U – MANUAL | 1
ORDER-CODES:
KPMDU-RC-xxxxC13C19-x-xx
DATA SHEET SmartPDU-40U
KentixONE Operating mode
SiteManager Operation
Stand-alone operation
Further information on the operating mode
Overview
The SmartPDU is optimized for power supply of end devices in data and network cabinets with
simultaneous power monitoring, consumption data logging and environmental monitoring and is
typically mounted in a 19 inch rack. With the integrated PowerManager and MultiSensor, up to 100
SmartPDUs can be easily managed. The integrated PowerManager is network-compatible and is
supplied with power via Power over Ethernet (PoE).
The SmartPDU can be operated as the main device (operating mode: Main Device) or in a network
(operating mode: Satellite Device) with other SmartPDUs. The KentixONE software is already
integrated via the integrated web server (HTTPS). Configuration is performed via web browser and,
depending on the operating mode, locally on the SmartPDU itself (operating mode: Main Device) or
on a central instance such as SiteManager or PowerManager (operating mode: Satellite Device).
The SmartPDU has a height of approx. 178cm (40 height units) and thus fits into all common server
cabinets from 42 height units. The SmartPDU delivers a maximum output power of up to 22kVA
(depending on the version) and is therefore ideally suited for server racks with high power
consumption. Depending on the version, the SmartPDU-40U is also available as a two-phase variant
so that electronic terminal devices are protected against possible failures by two separate power
supplies. The power is supplied via a 3 meter long connection cable and a CEE plug (IEC60309)
corresponding to the design.
Safety instructions
Installation
Installation and commissioning may only be carried out by trained specialist personnel in accordance
with the instructions.
No modifications of any kind, other than those described in an appropriate manual, are permitted to
© Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit
docs.kentix.com
for the
latest documentation.
Advertisement
Related Manuals for Kentix SmartPDU-40U
Summary of Contents for Kentix SmartPDU-40U
- Page 1 (depending on the version) and is therefore ideally suited for server racks with high power consumption. Depending on the version, the SmartPDU-40U is also available as a two-phase variant so that electronic terminal devices are protected against possible failures by two separate power supplies.
- Page 2 Kentix accepts no liability for damage to the equipment or components resulting from incorrect installation. No liability is accepted for incorrectly programmed units. Kentix shall not be liable in the event of malfunctions, damage to property or other damage. Use of the products, transport and storage Protect the device during transport, storage and operation from Protect moisture, dirt and damage.
- Page 3 SmartPDU-40U – MANUAL | 3 SmartPDU-40U Front view Network connection (PoE) and Kentix system socket, Integrated sensors © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
- Page 4 Ethernet port with Power over Ethernet (100MBit, PoE Class 3) Status LED: GREEN: POWER OK, no alarms pending RED: POWER OK, alarms pending Kentix system port (type B) Top view © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
- Page 5 KPMDU-RC- Number of sockets – connector plug with residual current measurement (RCM) KPMDU-RCSW- Number of sockets – connector with residual current measurement (RCM) plug and sockets are switchable © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
- Page 6 KPMDU- type – number of sockets -6-16 2x 3-phase, 16A per phase ORDER-CODES KPMDU-RC-2406C13C19-3-32 KPMDU-RC-2406C13C19-1-32 KPMDU-RC-2406C13C19-3-16 KPMDU-RC-2406C13C19-1-16 KPMDU-RC-4800C13C19-3-32 KPMDU-RC-4800C13C19-1-32 KPMDU-RC-4800C13C19-3-16 KPMDU-RC-4800C13C19-1-16 KPMDU-RC-4800C13C19-2-32 KPMDU-RC-4800C13C19-2-16 KPMDU-RC-4800C13C19-6-16 KPMDU-RCSW-2406C13C19-3-32 KPMDU-RCSW-2406C13C19-3-16 KPMDU-RCSW-4800C13C19-3-32 KPMDU-EM-2406C13C19-3-32 © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
-
Page 7: Cable Fuse
The connection cables are available in black and red. KPMDU-IL-C13C14-2/3-B (Schwarz) © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the... - Page 8 SmartPDU-40U – MANUAL | 8 KPMDU-IL-C13C14-2/3-R (Red) KPMDU-IL-C19C20-2/3-B (Schwarz) KPMDU-IL-C19C20-2/3-R (Red) Integrated residual current measurement (RCM): Testing according to DGUV © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
-
Page 9: Circuit Breaker
SmartPDU-40U – MANUAL | 9 Depending on the version, the Kentix SmartPDU has an integrated residual current meter (RCM). This allows the plant inspection to be carried out in accordance with DGUV V3. This residual current measurement allows defective power supplies (server power supplies) to be detected at an early stage. - Page 10 SmartPDU-40U – MANUAL | 10 © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
-
Page 11: Reset To Factory Settings
All existing settings and data will be irrevocably deleted ! We recommend regular backup of the system. Assembly instructions Mounting by means of mounting bracket © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation. - Page 12 The SmartPDU-40U is mounted vertically in a server rack. Three mounting brackets are supplied with each SmartPDU-40U for mounting. These are used to mount the PDU to a 19 inch rack. © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com...
- Page 13 SmartPDU-40U – MANUAL | 13 © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
- Page 14 ATTENTION! Only use the supplied countersunk screws (M3 x 5) to attach the mounting brackets to the SmartPDU. The use of longer screws can damage the SmartPDU. Mounting by means of quick mounting bracket KPMDU-MBR-1 © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
- Page 15 The quick mounting brackets are used to mount the SmartPDU on the rack if a suspension solution is available. The quick mounting bracket is screwed onto the back of the SmartPDU-40U. There are several holes for this purpose. Two quick mounting brackets must always be used to hang the PDU securely.
- Page 16 SmartPDU-40U – MANUAL | 16 Fastening mounting bracket Assembly steps Screw quick mounting bracket to SmartPDU Hook SmartPDU into the existing suspension solution © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
- Page 17 SmartPDU-40U – MANUAL | 17 Positions for quick mounting bracket Fastening by means of mounting plates © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
- Page 18 To mount the SmartPDU, mounting plates can be ordered separately, which allow it to be mounted at a 90° vertical angle to the mounting bracket (ORDER CODE: KPMDU-MBR-3). © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
- Page 19 SmartPDU-40U – MANUAL | 19 © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
- Page 20 SmartPDU. The use of longer screws can damage the SmartPDU. Calibration of the room temperature measurement Kentix MultiSensors record all important environmental values of a room, including the room temperature. In order to achieve the most accurate temperature possible and to trigger an alarm if the room temperature exceeds the limit value, we recommend calibrating the temperature measurement at the final installation location.
- Page 21 Before you start the configuration, make sure that the software is up to date on all network-enabled Kentix devices. The version status must be the same on all devices. You can download the latest software here: KentixONE © Kentix GmbH. This file was automatically generated on 2024-12-13 01:02:47. Please visit docs.kentix.com for the latest documentation.
