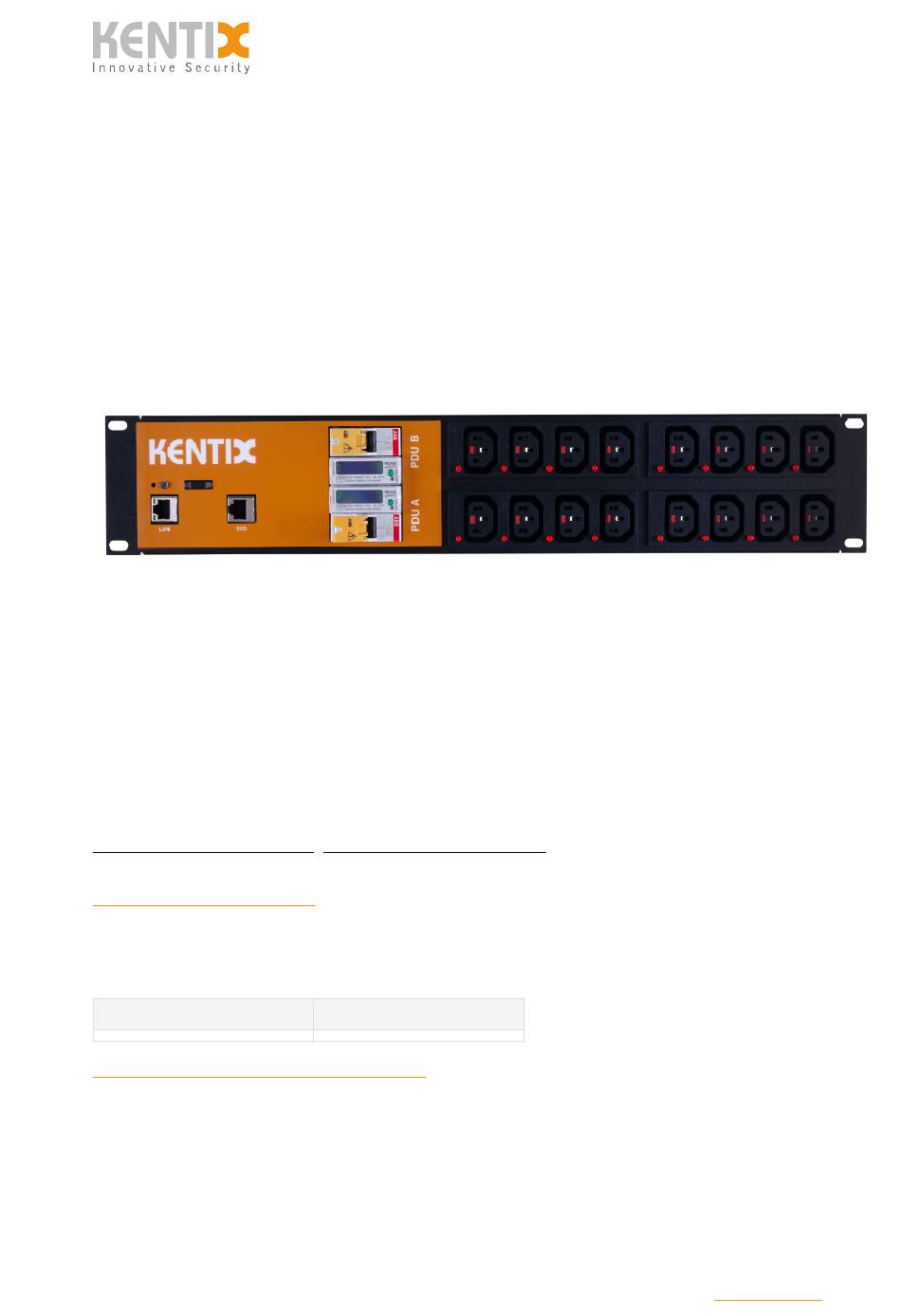

SmartPDU-2U – MANUAL | 1
ORDER-CODES:
,
KPMDU-RC-1600C13C19-2-16-H
KPMDU-NC-1600C13C19-1-16-H
DATA SHEET SmartPDU-2U
KentixONE Operating mode
SiteManager Operation
Stand-alone operation
Further information on the operating mode
Overview
The SmartPDU is optimized for power supply of end devices in data and network cabinets with
simultaneous power monitoring, consumption data logging and environmental monitoring and is
typically mounted in a 19 inch rack. With the integrated PowerManager and MultiSensor, up to 100
© Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit
docs.kentix.com
for the
latest documentation.
Advertisement
Table of Contents
Related Manuals for Kentix SmartPDU-2U
Summary of Contents for Kentix SmartPDU-2U
- Page 1 19 inch rack. With the integrated PowerManager and MultiSensor, up to 100 © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com for the latest documentation.
-
Page 2: Safety Instructions
SiteManager or PowerManager (operating mode: Satellite Device). With its small size of only 9 cm (two height units), the SmartPDU-2U is ideal for smaller server racks. Despite its small size, the SmartPDU delivers up to 4.6 kVA of output power, distributed across 16 C13 (IEC 60320-1) appliance outlets. - Page 3 RED: POWER OK, alarms pending Reset button Ethernet port with Power over Ethernet (100MBit, PoE Class 3) Kentix system port (type B) Side view © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com for the latest documentation.
- Page 4 SmartPDU-2U – MANUAL | 4 SmartPDU-2HE SD card MicroSD card slot © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com for the latest documentation.
- Page 5 KPMDU-NC-1600C13C19-1-16-H Rated power, 2x 2.3kVA, 230V 1x 2.3kVA, 230V voltage Connector plug 2x C20 IEC socket (16A) 1x C20 IEC socket (16A) © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com for the latest documentation.
-
Page 6: Cable Fuse
The connection cables are available in black and red. KPMDU-IL-C13C14-2/3-B (Schwarz) KPMDU-IL-C13C14-2/3-R (Red) © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com for the latest documentation. -
Page 7: Circuit Breaker
KPMDU-IL-C19C20-2/3-R (Red) Integrated residual current measurement (RCM): Testing according to DGUV The two-phase SmartPDU-2U has an integrated residual current meter (RCM). This allows the plant inspection to be carried out in accordance with DGUV V3. This residual current measurement allows defective power supplies (server power supplies) to be detected at an early stage. - Page 8 SmartPDU-2U – MANUAL | 8 diagram. I1= Fixed non-tripping current at 30°C I2= Fixed tripping current at 30°C © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com for the latest documentation.
- Page 9 SmartPDU-2U – MANUAL | 9 © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com for the latest documentation.
-
Page 10: Reset To Factory Settings
After approx. 2 minutes, the device can be reached with the factory settings. All existing settings and data will be irrevocably deleted ! We recommend regular backup of the system. Assembly instructions © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com for the latest documentation. - Page 11 SmartPDU-2U – MANUAL | 11 SmartPDU-2U Application example The SmartPDU-2U is installed horizontally in a 19 inch rack. The SmartPDU requires two height units for installation. 4 cage nuts and the corresponding screws are used for fastening. These are not included in the scope of delivery.
- Page 12 (operating mode: Main), or on a central instance such as the SiteManager or AlarmManager (operating mode: Satellite). All information about the software is available in the KentixONE section and the related documentation. © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com for the latest documentation.
- Page 13 Kentix devices. The version status must be the same on all devices. You can download the latest software here: KentixONE Solutions to frequently asked questions about Kentix products can be found in the general FAQ section. © Kentix GmbH. This file was automatically generated on 2024-12-13 00:40:28. Please visit docs.kentix.com...
