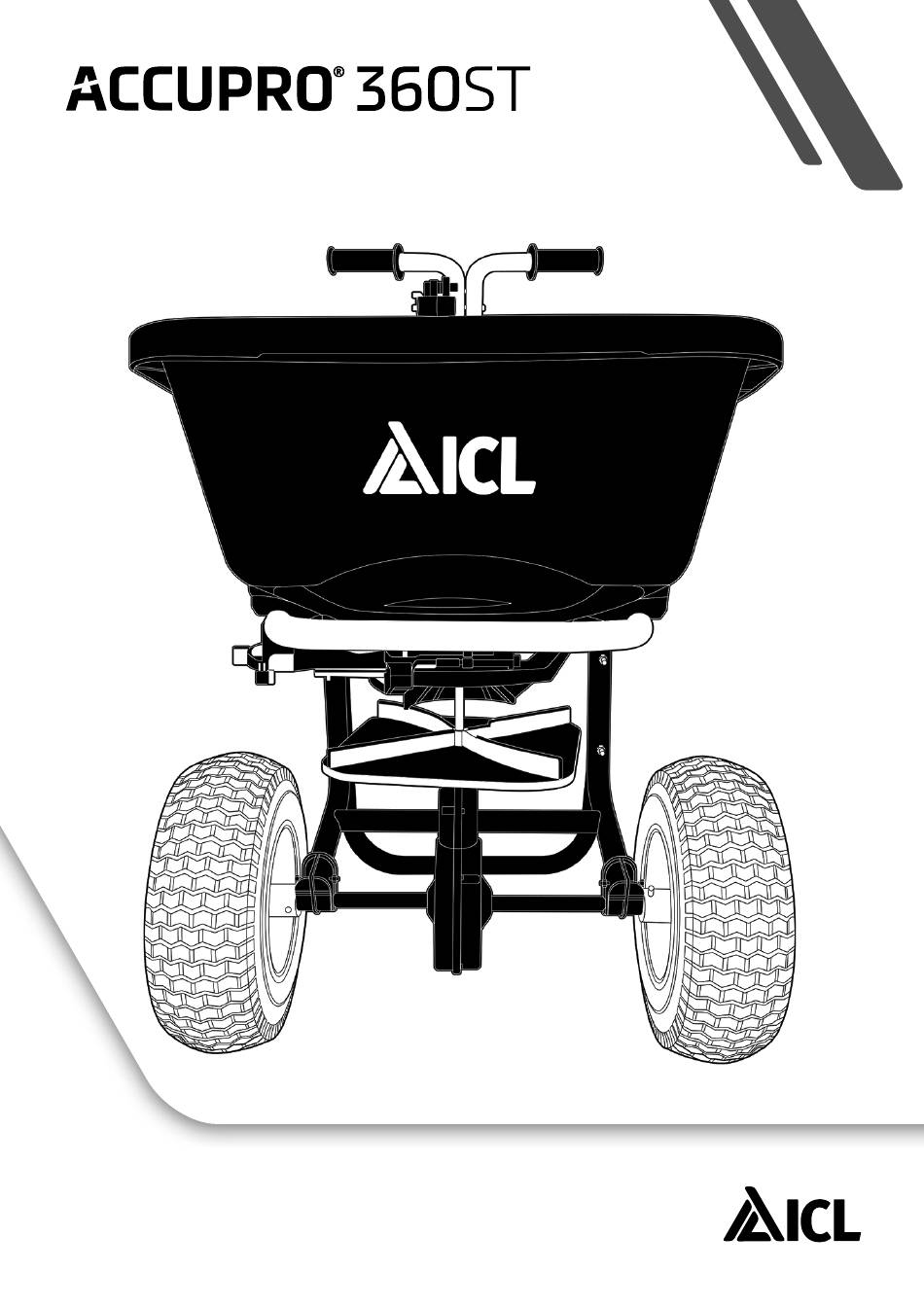

- Page 1 Manual www.icl-growingsolutions.com...
-
Page 2: Spare Parts
Spare Parts (Part images not to scale) MAIN PARTS FASTENERS PACK CONTENTS ACCUPRO 360ST parts list Tools required for assembly. 6mm spanner, plyers, phillips head screwdriver. Hopper Body Assembly Wheels Back Stand Control Rod Rain Cover PLYERS PHILLIPS HEAD Handle Assembly... - Page 3 Assembling your ACCUPRO 360ST Attaching the back stand to the spreader body Align the 4 holes in the back stand with the 4 holes in Using the 4 × M6 65mm bolts and 4 × M6 lock nuts the main frame. secure the back stand in place and fully tighten the 4 lock nuts using an M6 spanner and plyers.
- Page 4 Assembling your ACCUPRO 360ST Attach the handle to the spreader chassis Line up the handle assembly with the back stand. Using the 4 × M6 40mm bolts and lock nuts secure the handle in place. Fully tighten the 4 lock nuts.
- Page 5 Assembling your ACCUPRO 360ST Make sure the holes in the bottom of the hopper are in the fully open position as shown in picture 4E and the lever of the gauge assembly shown in picture (4F) is set at the fully open position, ensuring the marker (arrowed) is pointing at number 25 on the gauge.
- Page 6 1 to 25 scale on/off gauge assembly located on the handle for the desired application rate of the chosen fertiliser by locking the setting screw at the desired number. Further information on application rates of specific ICL products can be found on the ICL websites or through ICL appointed retailers. Step 4: Filling the hopper Ensure the control lever remains in the off/closed position (towards the handle grips) before filling the hopper.
-
Page 7: Year Limited Warranty
ACCUPRO 360ST Application rates The ACCUPRO 360ST is designed to apply different material types at accurate rates. can the QR code on your fertilizer bag to find out the recommended g/m² and spreader application settings. If you experience any issues finding the correct spreader settings or application rates, please get in contact with your ICL sales representative. - Page 8 ICL Growing Solutions Koeweistraat 4, 4181 CD Waardenburg The Netherlands Tel.: +31 (0) 418 655 700 Email: marketing.int@icl-group.com For further information contact your ICL Technical Area Sales Manager or visit www.icl-growingsolutions.com...
