Aiphone MK-1SD/B Installation & Operation Manual

83133600 0398®
© AlPHONE
r
VIDEO ENTRY SECURITY, MK
&
KA Series

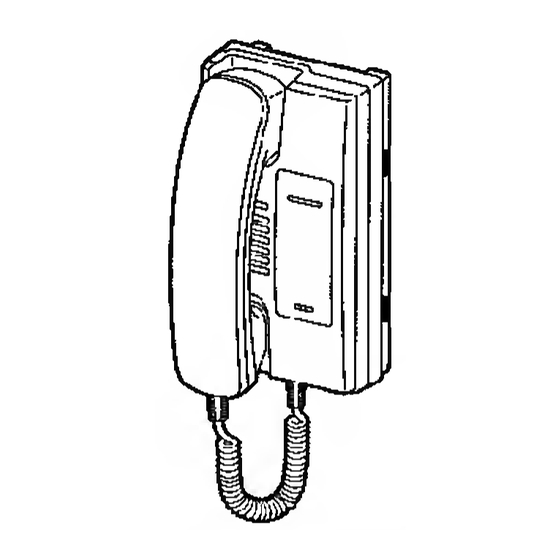

SUB AUDIO STATION
V
Model:
MK-1 SD/B
J

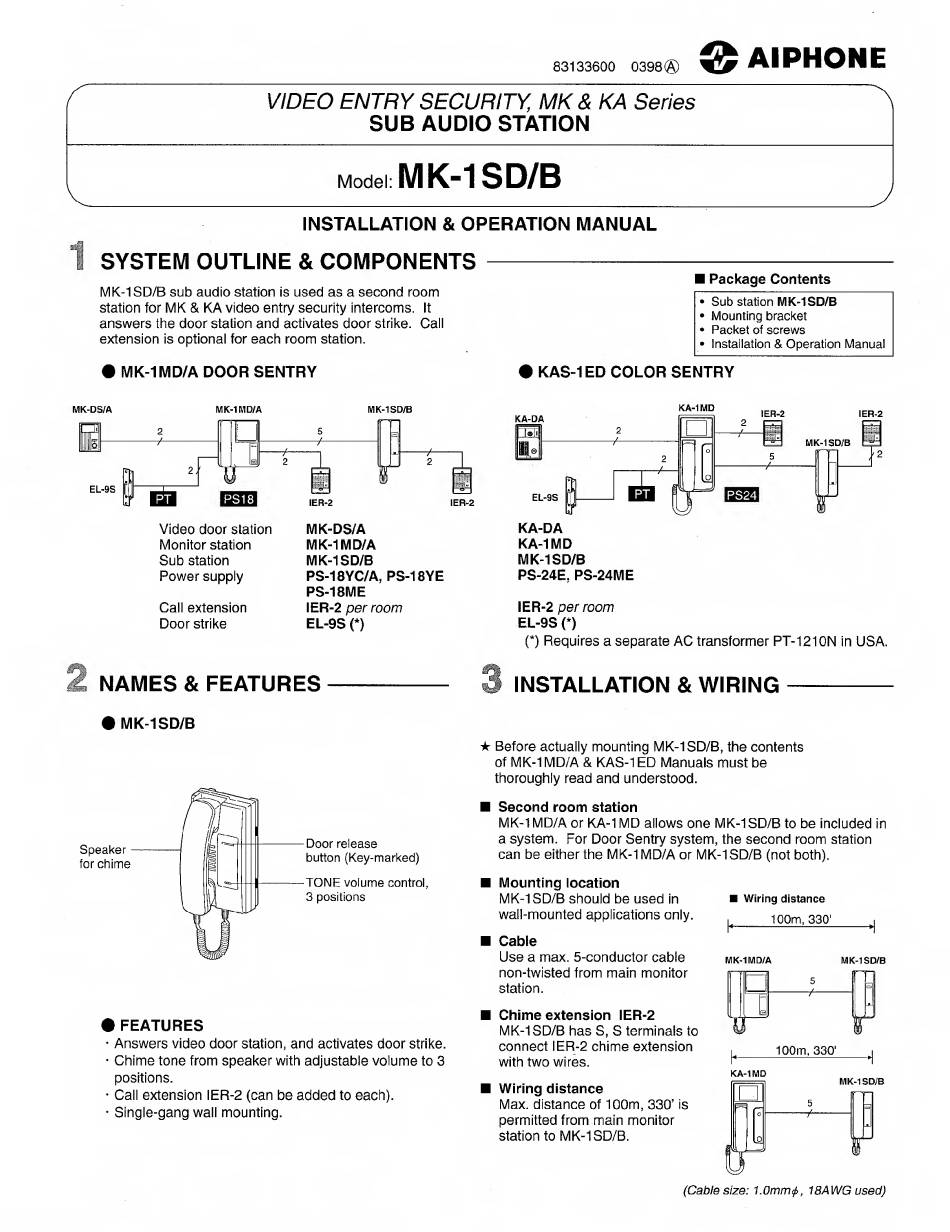

INSTALLATION & OPERATION MANUAL
SYSTEM OUTLINE & COMPONENTS
MK-1 SD/B sub audio station is used as a second room
station for MK & KA video entry security intercoms. It
answers the door station and activates door strike. Call
extension is optional for each room station.
• MK-1 MD/A DOOR SENTRY • KAS-1ED COLOR SENTRY
■ Package Contents
• Sub station MK-1SD/B
• Mounting bracket
• Packet of screws
• Installation & Operation Manual
MK-DS/A MK-1 MD/A MK-1SD/B
2
Y-
EL-9S
I
m
5
+
IER-2
Y-
2
1
IER-2
Video door station
Monitor station
Sub station
Power supply
Call extension
Door strike
MK-DS/A
MK-1MD/A
MK-1SD/B
PS-18YC/A, PS-18YE
PS-18ME
IER-2 per room
EL-9S (*)
KA-DA
KA-1MD
MK-1SD/B
PS-24E, PS-24ME
IER-2 per room
EL-9S (*)
(*) Requires a separate AC transformer PT-1210N in USA.
2
NAMES & FEATURES
3 INSTALLATION & WIRING
• MK-1SD/B
Speaker
for chime
Door release
button (Key-marked)
TONE volume control,
3 positions
* FEATURES
* Answers video door station, and activates door strike.
* Chime tone from speaker with adjustable volume to 3
positions.
* Call extension IER-2 (can be added to each).
* Single-gang wall mounting.
★ Before actually mounting MK-1 SD/B, the contents
of MK-1MD/A & KAS-1ED Manuals must be
thoroughly read and understood.
■ Second room station
MK-1MD/A or KA-1MD allows one MK-1SD/B to be included in
a system. For Door Sentry system, the second room station
can be either the MK-1 MD/A or MK-1 SD/B (not both).
■ Mounting location
MK-1 SD/B should be used in
wall-mounted applications only.
■ Cable
Use a max. 5-conductor cable
non-twisted from main monitor
station.
■ Chime extension IER-2
MK-1 SD/B has S, S terminals to
connect IER-2 chime extension
with two wires.
■ Wiring distance
Max. distance of 100m, 330' is
permitted from main monitor
station to MK-1 SD/B.
■ Wiring distance
I 100m, 330'
MK-1 MD/A MK-1 SD/B
100m. 330'
KA-1 MD
MK-1 SD/B £
l
5
0
/
]
r
fj
(Cable size: I.Ommfi, 18AWG used)
