Panasonic Real Pro Ultra EP-30003 Operating Instructions Manual

Household massage lounger
Hide thumbs Also See for Real Pro Ultra EP-30003:
Table of Contents

Advertisement

Quick Links

Download this manual

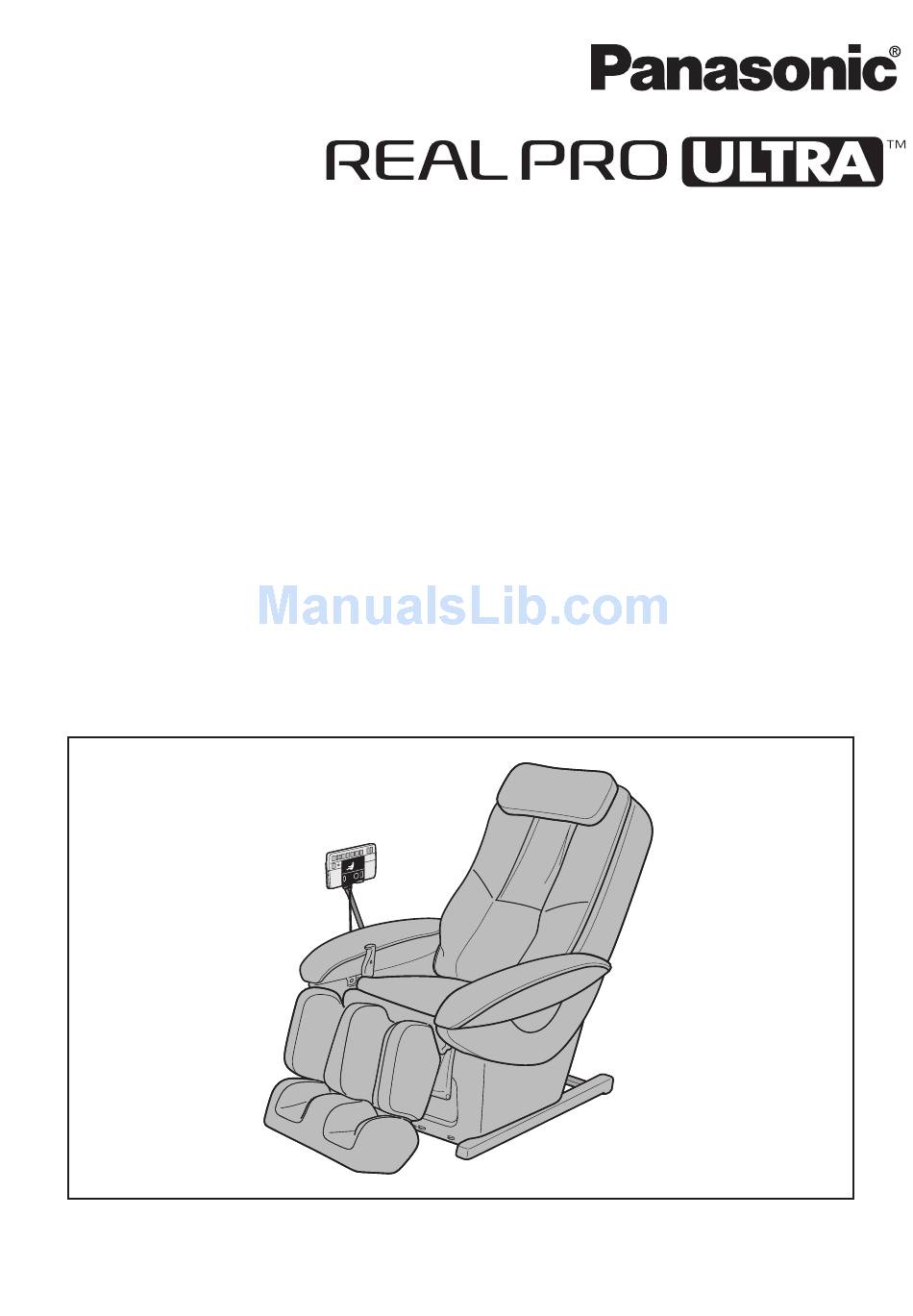

Household
Massage Lounger
Sillón de Masaje Doméstico

Operating Instructions

Instrucciones de Uso
EP30003
Model No./Nº de Modelo
Before operating this unit, please read these instructions completely.
Antes de utilizar esta unidad, lea compleatamente estas instrucciones y guárdelas para referencia futura.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Real Pro Ultra EP-30003

Summary of Contents for Panasonic Real Pro Ultra EP-30003

  • Page 1: Operating Instructions

    Household Massage Lounger Sillón de Masaje Doméstico Operating Instructions Instrucciones de Uso EP30003 Model No./Nº de Modelo Before operating this unit, please read these instructions completely. Antes de utilizar esta unidad, lea compleatamente estas instrucciones y guárdelas para referencia futura.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed when using an electrical unit, including the following. Please ensure that you read all instructions before using the Household Massage Lounger. DANGER – To reduce the risk of electric shock: 1. Always unplug this unit from the electrical outlet immediately after using and before cleaning. WARNING –...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS CAUTION: To avoid the risk of injury: 1. Persons with any of the conditions listed below or who are undergoing medical treatment or suffer from medical conditions should consult with their physicians before using the unit: a) Pregnant women, people who are ill, in poor physical shape. b) People suffering from back, neck, shoulder, or hip pain.

  • Page 4: Operating Precautions

    12. The unit must not be used in “wet rooms” (sauna, swimming pool) or outdoors. 13. Do not attempt to open or disassemble any part of the unit. Only use an authorized Panasonic servicer to fix your unit. Call 1-800-338-0552 to find the servicer nearest to you.

  • Page 5: Grounding Instructions

    GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 6: Part Names And Functions

    Part names and functions Main unit Front 10 11 1 Legrest 3 Legrest Slide Lever 10 Armrest • Extendable length to approx. 5 in. 2 Leg/Sole massage section 11 Control Panel Stand Covers (12 cm) • Includes air massage function •...
  • Page 7 Back 12 Back Cover 20 Power Supply Box 13 Control Panel Holder Lock Switch Power Switch 14 Child Safety Decal 15 Control Panel Stand 16 Power Plug 17 Power Cord 18 Safety Precaution Label 19 Wheels Lock Switch Key Lock Switch Key Tag •...

  • Page 8: Table Of Contents

    Control Panel Cover closed Cover open 1 Off/On 8 Voice Guidance Volume 14 Air Massage Controls • See page 33 • Selection of the areas to be air 2 Quick Stop massaged • Press this button to stop the 9 Ultra Knead •...

  • Page 9: User Memory

    Display * This illustration simulates when all lights are illuminated. 1 Voice Guidance Volume Display 5 Pressure Display 12 Manual Upper Body Complex Operation Display • See page 33 • Displays the pressure applied by the massage heads • Indicates optional operations added to manual upper body 6 Self-Program Setting Display operation...
  • Page 10 Setting up the massage lounger Where to use the unit Keep at least 4" (10 cm) away from the wall. Ensure there is adequate space to recline. Caution Approx. 77" (195 cm) • Do not use the unit in areas with high humidity, Width approx.
  • Page 11 Confirm that the main unit and the accessories are in the box. Main unit Width: Approx. 27" (68 cm) Height: Approx. 26" (66 cm) Length: Approx. 63" (160 cm) Accessories • Control Panel Stand • Pillow • Armrests (Right/Left) Control panel holder Fixing screw Left/Right indication...
  • Page 12 Assembly Attaching the Armrest Groove armrests (On both the right and left sides) 1. Insert the armrest into the unit. • Be careful to avoid pinching (2) Fasten the armrest with your fingers. (1) Align the the attachment screws. Right/Left position Main unit indication...
  • Page 13 Attaching the control panel stand to the right or left side panel of the unit (Diagram shows attachment to right armrest.) 1. Insert the attachment screw into the lower hole first The position of the control panel when seated can be and then tighten lightly by hand.
  • Page 14 When removing the control panel stand cover 1. Insert the head of a flat-tip screwdriver in the gap under the mark (O). 2. Push the bottom tab of the cover up to lift the cover. 3. Perform the same procedures as 1 and 2 above for the other gap.
  • Page 15 Moving the control panel cord to the left side (when control panel stand is on left side) Legrest 1. Press the button on the control panel to turn on the power. 2. Press the button on the control panel and hold until the legrest has risen far as it will go.
  • Page 16 2. Fasten the control panel cord using the clip. Lift the control panel to remove. Clip Fasten the cord so that the portion under the clip is Control panel cord not slack. Attaching the pillow 1. Attach the pillow to the velcro fastener. •...

  • Page 17: Before Sitting Down

    Before sitting down Check the following before using the unit Check the surrounding area Make sure there are no objects, people, or pets in the vicinity of the unit. Check the power cord and the power plug Warning • Remove dust from the power plug periodically. Failure to observe this precaution may result in Check defective insulation of the cord due to moisture.
  • Page 18 2. Make sure there is no foreign objects on the chair. Caution • Sit on the unit after confirming there is no foreign matter between the parts of the unit. (Check for foreign objects on the backrest, or leg/sole massage section.) Failure to observe this precaution may result in accident or injury.
  • Page 19 Program Massages Pre-Program Quick Massage Press the button to turn on the power. • The power will turn off automatically if the massage does not start within 3 minutes after turning on the power. Press one of the flashing buttons ( ) to select the program.
  • Page 20 2. Approximately 30 seconds after the body scanning starts, the massage heads slowly lower to the shoulder position, and a soft tapping action begins to determine your shoulder height. Massage Head Tapping action Keep your head on the pillow until the soft tapping begins. Lifting your head from the pillow will result in incorrect determination of the shoulder position.
  • Page 21 Overview of the Pre-Program and Quick Massage (Upper Body) Shiatsu Program (I) 1) Ultra knead/ 2) Ultra knead/ 3) Ultra knead/ 4) Ultra knead/ 5) Ultra knead/ 6) Ultra knead/ 7) Finishing Shiatsu on Neck/ Shiatsu on Back/ Shiatsu on Neck/ Shiatsu on Back/ Shiatsu on Neck/ Kneading on...
  • Page 22 Creating Self-Programs Self-Program Self-Program The Self-Program allows you to create a massage where you determine the time and intensity in neck, shoulders, back, and lower back by selecting from levels 0 (no massage) to 3 (longest and most intense). Press the button to turn on the power.
  • Page 23 Set the time and intensity for the neck, shoulder, back, and lower back, respectively ( • The level shifts sequentially whenever the button is pressed. Display How to shift the level • Press the button to shift the levels for “NECK,” “SHOULDER,” “MIDDLE,” and “LOWER” by one up/down at the same time.
  • Page 24 Manual Selection Massages Manual Operation Manual Operation Manual Operation provides a massage of your favorite body part with your favorite action by selecting neck, shoulder, back, or lower back and an action. Press the button to turn on the power. •...
  • Page 25 Select the location you want to massage ( • You can select an action combined with “FULL ROLL” by pressing the button. Display Select the massage action ( By pushing on the body part again, the massage action will toggle down from ultra knead to tap. Shoulder massage will toggle all the way to grasp.
  • Page 26 Description of Massage action (The figures are images of the respective operations.) ULTRA KNEAD SHIATSU KNEAD SWEDISH Kneading action at small Action compressing muscle Deep kneading action. Action of rubbing gently points. knots vertically. across a wide area. STRETCH FULL ROLL Slow stretching action.
  • Page 27 Adjustments During a Massage ULTRA KNEAD REPEAT SPEED BACK INTENSITY POSITION Changing the program Only for the Pre-Program, Quick Massage, and Self-Program Display Ultra knead function • When the button is pressed, the Ultra knead action will be repeated on This will be turned on when the action that point for a certain period.
  • Page 28 Adjusting the position The position may not change immediately if the button is pressed in the middle of an action. For the Pre-Program, Quick Massage, and Self-Program • Fine adjustment is possible. (Maximum numbers of adjustment) (Adjustable range) At some positions, it is impossible to adjust Approx.
  • Page 29 Air Massage Adjustments Air Massage • When a pre-program and quick massage are selected, the air massage is automatically turned on. • When Self-Program and Manual Operation are selected, the air massage is turned off. Open the left cover. Press the button to turn each off or on.
  • Page 30 Adjusting the Legrest length Adjust the legrest so that your feet fit snugly. For a person who is smaller: • If the legrest is raised up, the fit with your leg and sole of your foot will be better. Press the button.
  • Page 31 Using the leg stretch massage • When Pre-Program and Quick Massage are selected, the leg stretch massage is turned on. • When Self-Program and Manual Operation are selected, the leg stretch massage is turned off. Open the left cover. Press the button to turn the function off or on.
  • Page 32 Ottoman and Backrest height adjustment Adjusting the reclining angle and the angle of the legrest Press the button to turn on the power. Press the button to adjust the angle. • Movement will continue until a “beep-beep-beep” sound is heard if the buttons are held down. •...
  • Page 33 Extending out the legrest Slide the legrest to your favorite position by pulling the legrest slide lever. (The legrest will slide approximately 5" (12 cm).) Pull the legrest slide lever back. Push with soles of feet and the legrest slides out. Raise legs slightly and legrest returns.
  • Page 34 Adjusting the voice guidance volume Press the button to adjust the volume. Press the button to shift the volume level by one up/down. “Off” “Soft” “Medium” “Loud” Default Setting The single beep (when a button is pressed) and the triple beep (when the adjustable setting limit is reached) will always be audible.
  • Page 35 Adjusting the control panel stand and pillow Adjusting the control panel stand The direction of the pivoting stand can be adjusted. Ball joint Front/Back Left/Right Adjusting the pillow for correct height during a massage 1. Remove the pillow. 2. Adjust the height of the pillow so that the 3.
  • Page 36 Advanced user memory function The user memory function retains the adjustments for a massage, such as “REPEAT” function or “BACK INTENSITY,” so that the massage will start with the saved settings. Saving the user program settings • See page 36 for the settings that can be saved. After completing the massage, or when the massage is stopped by pressing the , the buttons will flash and the unit ready to save any settings that changed during the...
  • Page 37 Settings that can be saved The latest settings entered by the user during programs or manual operation will be saved. For Pre-Program, Quick Massage, and Self-Program Self-program levels Leg stretch settings Air massage settings Intensity of massage heads Ultra Knead/Repeat/Position •...
  • Page 38 Erasing saved data Press the button to turn on the power. • The power will turn off automatically if the massage does not start within 3 minutes after turning on the power. Press the button corresponding to the settings you wish to delete. Only the button pressed will illuminate.
  • Page 39 After completing the massage The massage will be completed in approximately 15 minutes. For a quick massage, 5 minutes. • Since the foot section pivots, the legrest will return to a down and retracted position so that you can safely sit up. To return the back of the chair to the original position, press the button twice.

  • Page 40: Position

    Disconnecting the power Warning • After use, always slide the power switch to the “off” position, turn the lock switch to the “lock” position and remove the lock switch key. Failure to observe this precaution may result in accident or injury due to children playing with the controls. Caution •...
  • Page 41 Cleaning and Maintenance Caution • Always unplug the unit before cleaning it. Never touch a power plug with wet hands. Failure to follow these instructions may lead to electrical shock or burns. Areas covered with synthetic leather Wipe these areas with a soft, dry cloth. •...
  • Page 42 Moving the Unit Caution • Always return the legrest to its original position before moving the unit. Failure to observe this precaution may result in injury due to the legrest returning to its original position when the unit is being moved.
  • Page 43 Using the wheels to move the unit Move the unit by holding onto the fabric section on the underside of the legrest and using the wheels. Fabric section Roll the unit slowly Hold onto the fabric section on the underside of the legrest Place the control panel on the seat.

  • Page 44: Stretch

    TROUBLE SHOOTING Problem Cause and Remedy Motor Noises These sounds are perfectly normal and will not have any effect • It sounds and feels like the massage heads are straining to on the operation of the unit. get over wrinkles in the cloth. •...

  • Page 45: Specifications

    Problem Cause and Remedy The unit will not operate at all. • The power cord has been disconnected. (See page 16) • Upper body (neck to lower back) massage • The power switch on the unit has not been turned on. •...
  • Page 46 Panasonic Consumer Electronics Company One Panasonic Way 1H-1 Secaucus, New Jersey 07094 1-800-338-0552 for questions and comments. www.panasonic.com/massage No. 1 EN, SP Printed in China P93103Z03231 Impreso en China...
