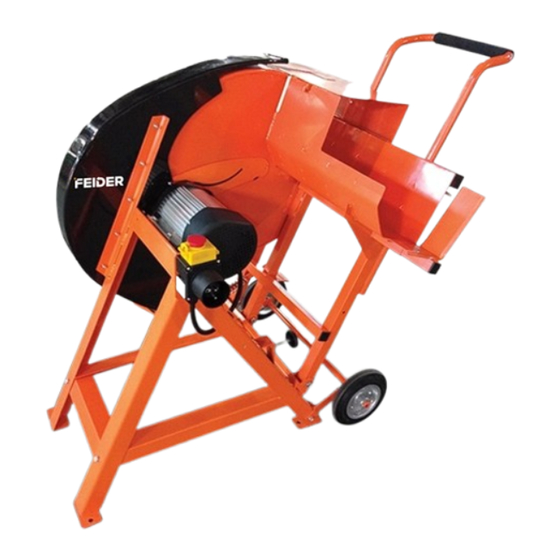

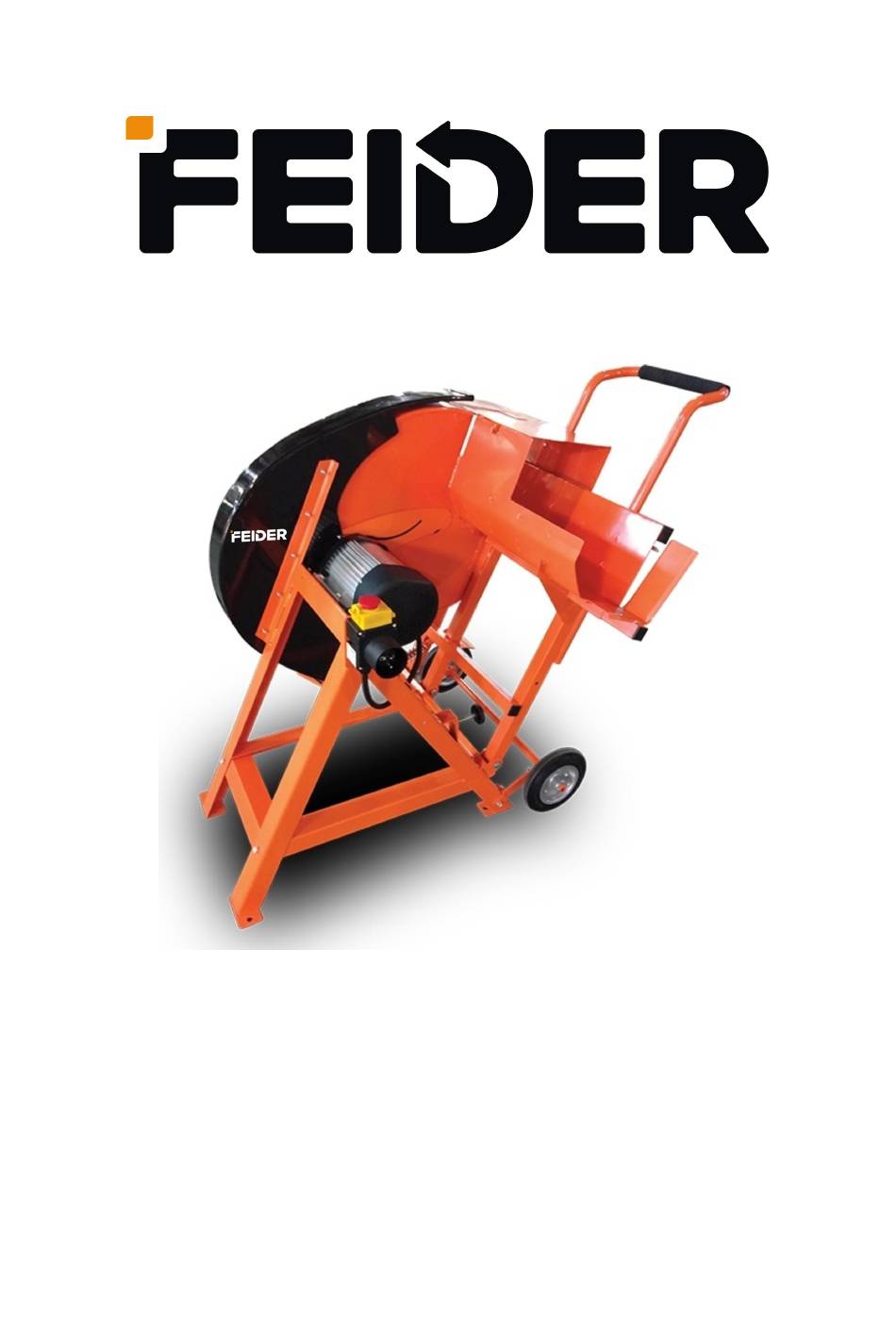

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC LOG SAW FSBE2650 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE............................. 3 2. SAFETY INSTRUCTIONS........................3 3. TECHNICAL SPECIFICATIONS......................8 4. ASSEMBLY.............................9 5. OPERATION............................12 6. MAINTENANCE...........................13 7. STORAGE.............................15 8. TROUBLESHOOTING TABLE......................16 9. DECLARATION OF CONFORMITY....................16 10. WARRANTY............................17 11. PRODUCT FAILURE........................18 12. WARRANTY EXCLUSIONS......................19... -
Page 3: Intended Use
1. INTENDED USE This machine is only intended for cutting firewood as detailed in these instructions. Unspecified use, modifications to the machine, or use of parts not tested and approved by the equipment manufacturer may cause unforeseeable damage! This machine is intended for operation by ONE person. Other persons shall keep a sufficient distance to the machine. - Page 4 Hearing protection to reduce the risk of induced hearing loss; Respiratory protection to reduce the risk of inhalation of harmful dust; Gloves for handling saw blades (saw blades should be carried in a holder wherever practicable). 9. Stop the machine running whilst unattended. 10.
-
Page 5: Safe Working Practice
A device for automatic disconnection of the power supply must to be installed by the user in the line powering the machine to protect people against electrical shock due to indirect contact in the machine. Risk of personal injury and crushing by moving parts! Do not operate the machine without installed guard. -
Page 6: Residual Risk
Adequately trained in the use, adjustment and operation of the machine; Instructed in factors that influence exposure to noise e.g.: saw blade designed to reduce the emitted noise; saw blade and machine maintenance. Informed of factors that influence exposure to dust e.g.: type of material being machined;... -
Page 7: Description Of The Symbols
■ Within the range of the rotating machine parts In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are: ■ Impairment of hearing. ■ Risk of accidents caused by the uncovered parts of the rotating cutting blade. ■... -
Page 8: Technical Specifications
Always switch off the appliance, disconnect the power and wait till the machine comes to a standstill prior to maintenance, cleaning or repair work! Keep children away. The unit must be always operated by one person only. Other people should keep a safe distance from the work area, especially when the log saw is under operations. -
Page 9: Assembly
information, however, will enable the user of the machine to make a better evaluation of the hazard and risk. Wear hearing protection! Pay attention to the factors that influence exposure to noise, this includes: Use saws blades designed to reduce the emitted noise Maintain saw blade and the machine properly 4. - Page 10 Picture 5 3. Assemble the wheel parts. Firstly disassemble all screws and nuts on it. Then connect it with the frame and tighten all screws and nuts (see picture 6 and picture 7). Position the wheel kit under the machine and screw the 4 bolts, nuts and washers into their places(see picture 8). Picture 6 Picture 7 Picture 8...
- Page 11 Picture 9 Picture 10 5. Assemble the working table cover. Insert the rotating block on cover into the corresponding fixing block on working table and fix it with M4x8 cross countersunk head screw (see picture 11). Picture 11 6. Assemble the operating handle. Put it into the right holes on working table and Screw on the 2 knobs after sliding the 2 tubes of the carrying handle (2 positions with notches: high and low).(see picture 12).
-
Page 12: Operation
Picture 13 picture 14 8. Position the flyweight in its place and screw on the 2 nuts(see picture 15). Picture 15 5. OPERATION Hazard generated by machine defects! NOTE: Before Using the Machine, Please fix the 2 holes with Bolts (M8X20) at the Bottom of the Stand to avoid overturning or moving during the operation! -
Page 13: Maintenance
5.1 SAWING 1. Open the machine by removing the safety bar at the bottom of the machine. 2. Turn on the machine. 3. Wait until the saw blade has reached its maximum speed. 4. Place the wood on the rocker by using the pusher. 5. - Page 14 No Name SPEC Qty No Name SPEC Inner-hex bolt Wheel shaft Outer flange Connecting plate Saw blade Inner-hex bolt M8×20 Inner flange Inner-hex bolt M12×55 Saw blade Guard motor Inner-hex bolt M6X15 Support assembly washer Inner-hex bolt M8×15 Anti-loose nut Transverse reinforcement Plastic sticker 1 Inner-hex bolt...
-
Page 15: Every 50 Hours Of Operation
Spring bar Bolt chain big nesting Limit mat Extend holder assembly ruler bar small nesting working table guard Anti-loose nut Extended board washer Extended board Inner-hex bolt M8×50 Plastic rivets hook handle washer Lower cover for saw blade guard Inner-hex bolt M12×12 Lock spring Fixing plate... -
Page 16: Troubleshooting Table
Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 The undersigned, hereby certifies that the units described below ELECTRIC LOG SAW Model: FSBE2650 S/N: 20240604073-20240604096 is in compliance with the provisions of the following European directives: 2014/30/EU " Electromagnetic Compatibility " 2006/42/EC "Machinery"... -
Page 17: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 18: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
