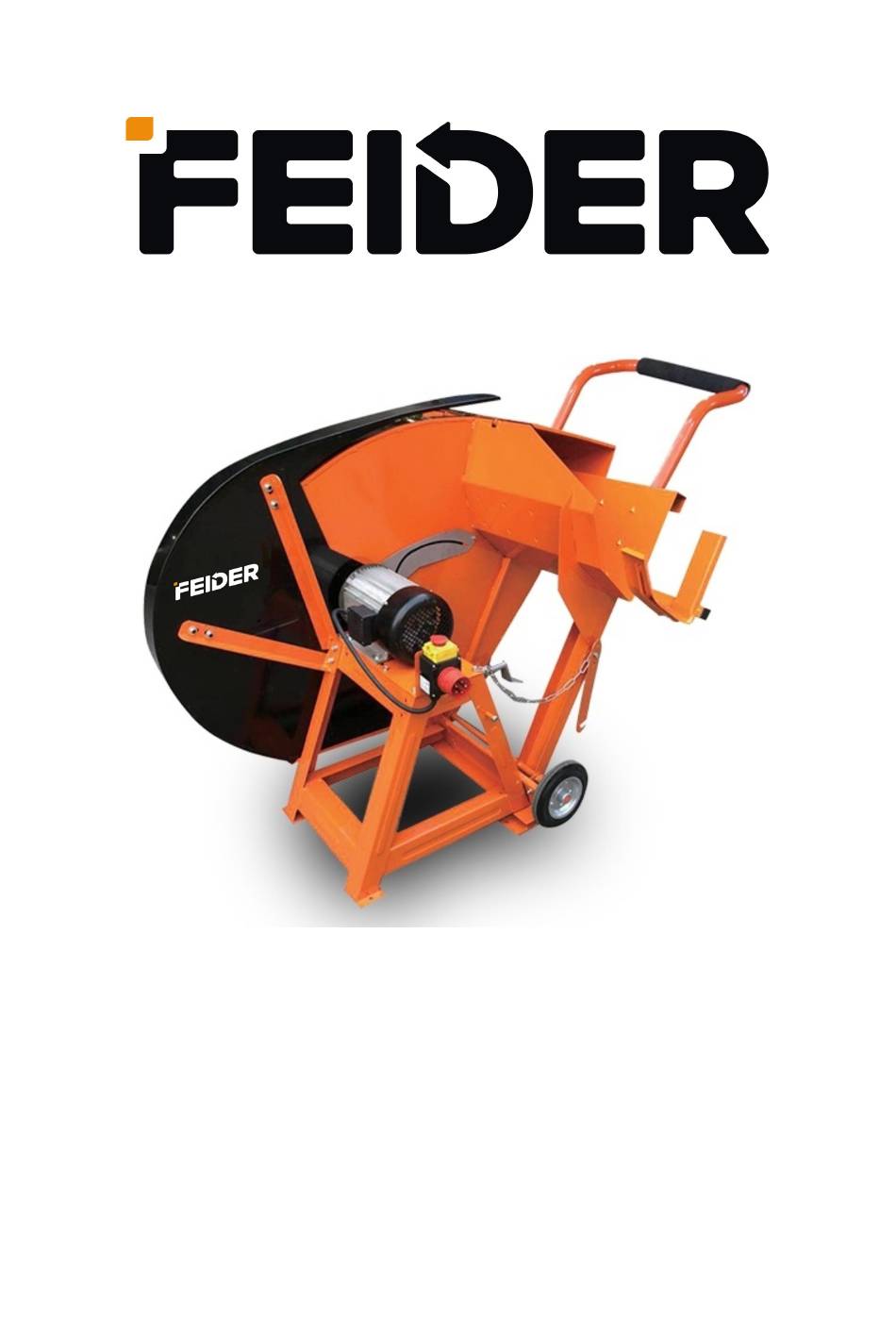

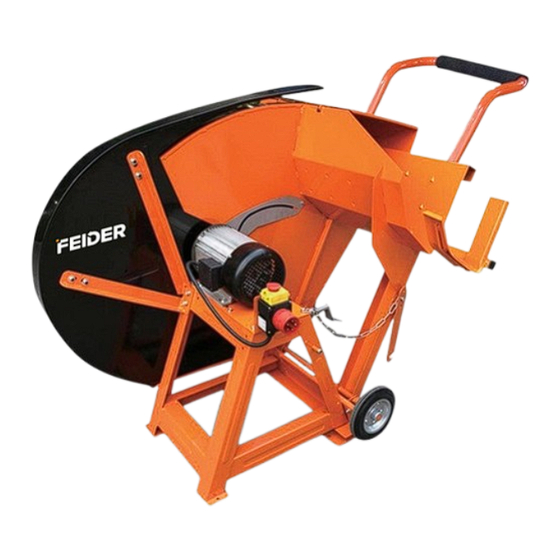

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC LOG SAW FSBE3570 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. DESCRIPTION OF SYMBOLS......................3 2. SAFETY INSTRUCTIONS........................4 3. INTENDED USE............................. 8 4. TECHNICAL SPECIFICATIONS......................8 5. ASSEMBLY.............................9 6. OPERATION............................11 7. MAINTENANCE AND STORAGE....................12 8. TROUBLESHOOTING........................13 9. DECLARATION OF CONFORMITY....................14 10. WARRANTY............................15 11. PRODUCT FAILURE........................16 12. WARRANTY EXCLUSIONS......................17... -
Page 3: Description Of Symbols
1. DESCRIPTION OF SYMBOLS The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents. Read the operator’s manual. -
Page 4: Safety Instructions
Keep children away. The unit must be always operated by one person only. Other people should keep a safe distance from the work area, especially when the log saw is under operations. Never use another people to help you with freeing jammed log. Conforms to European standards. - Page 5 around the machine is level, well maintained and free from loose material e.g. chips and off-cuts. 7. Stock and finished workpieces to be located close to the operators normal working position. 8. The wear of suitable personal protective equipment when necessary; This may include: Hearing protection to reduce the risk of induced hearing loss;...
- Page 6 Danger! Risk of electric shock! To ensure the machine remains weatherproof, before any use check to see that the switch, power cable or plug are not damaged (no cracks, etc.) Do not use the power cable for any purpose it is not intended for. A device for automatic disconnection of the power supply must be installed by the user in the line powering the machine to protect people against electrical shock due to indirect contact in the machine.
- Page 7 WARNING! Electricity - Risk of electric shock. Warning symbol Use a protection for face 2.2 SPECIAL SAFETY INSTRUCTIONS Observe the permissible dimensions of logs to be cut (see “Technical Specifications”). Never cut several workpieces at the same time – and also no bundles containing several individual pieces.
-
Page 8: Intended Use
Report faults in the machine, including guards or saw blades, as soon as they are discovered; Adopt safe procedures for cleaning, maintenance and remove chips and dust regularly to avoid the risk of fire; Follow manufacturers instruction for use, adjustment and repair of saw blades; Select the correct riving knife, depending on the saw blade thickness, when using a dual purpose circular sawing machine for firewood/circular saw bench in the saw bench mode;... -
Page 9: Assembly
Saw blade Ø700 × Ø30 × 4mm x 42T Cutter Capacity Ø30-230mm Machine weight 110kg Sound pressure level LpA: 91 dB(A) K=2 dB(A) Sound power level LwA: 110 dB(A) K=2 dB(A) Measured sound values determined according to EN ISO 3744: 2010. The noise figures quoted are emission levels and are not necessarily safe working levels. - Page 10 3. Assemble the vice working table. Firstly use six M8X15 large semicircular head square neck bolts to assemble the connect plate for vice working table on main working table, secondly use six M8X15 large semicircular head square neck bolts to assemble vice working table on connect plate. 4.
-
Page 11: Operation
6. Assemble the inlet and switch component. Put it on the right position and tighten the 4 screws. 7. Assembling finished, clear away tools. 6. OPERATION Hazard generated by machine defects! NOTE: Before Using the Machine, Please check all parts are fixed firmly and follow carefully below instructions to avoid overturning or moving during the operation! Sawing 1. -
Page 12: Maintenance And Storage
5. Take hold of handle bar of the rocker with both hands and lead it evenly to the saw blade; thus the saw blade is revealed. 6. Push the rocker evenly to ensure the engine speed does not drop. 7. Remove the saw wood from the rocker before putting on the next piece. 8. -
Page 13: Troubleshooting
damage the engine or cause a fire risk. Clean your tool, using a damp cloth and a soft brush. Never clean the product with water and never immerse it in liquid. Never use solvents or detergents as this may damage the plastic parts of the product. -
Page 14: Declaration Of Conformity
EC directives listed below. In case of modifications to the machine, the present declaration loses its validity. Designation of the machine: ELECTRIC LOG SAW Model: FSBE3570 S/N: 20240604097- 20240604104 is in compliance with the provisions of the following European directives:... -
Page 15: Warranty
10 . WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 16: Product Failure
1 1 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 17: Warranty Exclusions
1 2 . WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 18 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
