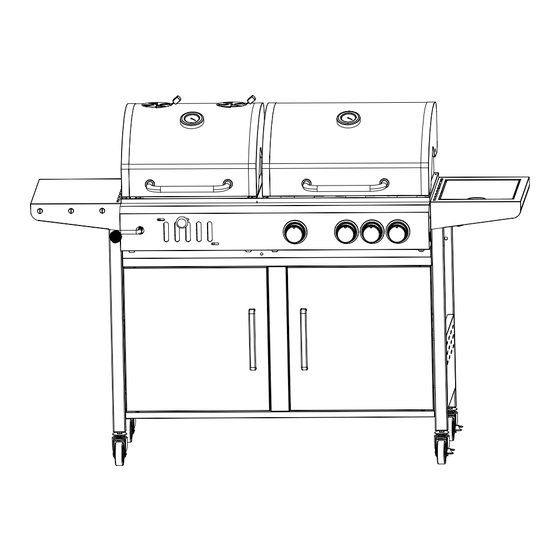

  • Page 1 Enjoy Your USE AND CARE GUIDE E02GR019 This appliance is for Household use only. Assembly, Care And Use Instructions This is not a commercial appliance. Read Carefully Important:Retain These Instructions For Future Reference. Questions, problems, missing parts? Before returning to the store, please contact our Customer Service service@alphamarts.com...

  • Page 2: Table Of Contents

    Table of Contents Safety Information Troubleshooting First-time Operation 22-23 Warnings Care and Maintenance 24-25 Package Contents Product Specifications Preparation Assembly Instructions Warranty 8-17 Operation Instructions 18-20 Safety Information Assembler/Installer This instruction manual contains important information necessary for the proper assembly and safe use of this appliance.

  • Page 3: Warnings

    IMPORTANT SAFETY Please read this manual carefully and before installing or using your Captiva Designs gas grill to ensure proper operation, installation, and servicing, and to reduce the risk of fire, burn hazard, and/or other injury. This manual should be retained for your information.

  • Page 4: Proper Use

    Never use charcoal or any other solid fuel in the grill. PROPER USE This Captiva Designs grill in NOT intended for commercial use. Do not operate the grill in a building, garage, or any other enclosed areas. This could result in carbon monoxide buildup, which may cause injury or death.

  • Page 5: General Warnings

    Warnings BEWARE OF SPIDERS BURNER TUBES MUST BE INSPECTED AND CLEANED BEFORE EACH USE. Spiders and small insects occasionally spin webs or make nests in the burner tubes of gas grills. These webs can lead to a gas flow obstruction, which could result in a fire in and around the burner tubes. This type of fire is known as “flash-back”...

  • Page 6: Package Contents

    Package Contents...
  • Page 7 Package Contents Name Name Non-locking caster Warming rack（charcoal) Cooking grills(small) Right leg(back) Flame tamer Right leg(front) Air vent Lifting handle Lid & Body assembly Side burner table Left side table Ash tray Cart frame Locking caster Door axle Gas cylinder adjustment bar Left leg(back) Air vent handle Left leg(front)

  • Page 8: Preparation

    Preparation Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list on previous page and hardware contents below. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle, Pliers, Adjustable Wrench...
  • Page 9 Assembly Instructions A M6 x 12 2 pcs B M6 x 50 4 pcs G M6 1 pc A M6 x 12 4 pcs...
  • Page 10 Assembly Instructions A M6 x 12 4 pcs...
  • Page 11 Assembly Instructions D M4 x 15 8 pcs E Door Bolt 2 pcs A M6 x 12 4 pcs...
  • Page 12 Assembly Instructions C M4 x 6 4 pcs Please remove bottom and two sides shipping protective metal bracket before assembly.
  • Page 13 Assembly Instructions R pin pre-installed on the part. Please remove it from the part and then use R pin to x. B M6 x 50 4 pcs...
  • Page 14 Assembly Instructions B M6 x 50 4 pcs A M6 x 12 6 pcs...
  • Page 15 Assembly Instructions Step1: Take out the corrugated pipe connect gas tube to side burner. Step3: Connect the ignition wire. Step2: Insert the corrugated pipe into side burner and x by E. The hole here between pipe and side burner is correct for mix Oxygen. Finished F Burner clamp 1 pc...
  • Page 16 Assembly Instructions A M6 X 12 1PC G M6 A M6 X 12 2PCS G M6 2PCS...
  • Page 17 Assembly Instructions C M4 x 6 2 pcs...

  • Page 18: Operation Instructions

    Operation Instructions CHECKING FOR LEAKS After all connection are made, check all connections and ttings on the LP gas tank valve, gas hose and regulator for leaks with a water and soap solution. To prevent re or explosion while testing for a leak: •...

  • Page 19: Connecting Gas Cylinder

    Operation Instructions CONNECTING GAS CYLINDER The propane gas supply cylinder to be used must be constructed and marked in accordance with the specifications for LP gas Cylinders of the U.S. Department of Transportation(D.O.T) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...

  • Page 20: Connecting The Lp Tank

    Operation Instructions Other cylinders may be acceptable for use with this appliance if they are compatible NOTE: with the appliance nesting hole and retention means. Refer to Page 20 of the Assembly Instructions for correct cylinder to cylinder holder connection. WARNING: ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT FIRE, DAMAGE AND/OR INJURY.

  • Page 21: Troubleshooting

    Troubleshooting Problem Solution Possible Cause 1. Carefully follow the lighting procedures outlined on Pages 22. Remember, all gas grill valves must be in the OFF position when the tank valve Low heat or low ame 1. For propane: improper is turned on. Slowly turn the tank on to allow when valve is turned lighting procedure.

  • Page 22: First-Time Operation

    First-time Operation Prior to using your Captiva Designs gas grill, verify that all of the following is true: • The burner tube is free of any debris or obstruction. • The proper gas type, gas connection, and regulator settings have been installed.
  • Page 23 First-time Operation Igniting the Fuel WARNING: Risk of burning! When petrol or white spirits are ignited uncontrollable heat can develop as a result of de agration. You should therefore only use harmless fuel. 1. Use quality products. 2. Stack some of the charcoal or briquettes on the charcoal plate. 3.

  • Page 24: Care And Maintenance

    Care and Maintenance Cooking Grates The best time to ‘burn-off’ the cooking grates is after every use (approx. 15 minutes). The grill is already hot from cooking thus requiring less fuel to obtain necessary temperature for ‘burn-off’. To ‘burn off’ or heat clean your grill, turn the burners to highest position and run for 15 minutes with the lid closed.
  • Page 25 Care and Maintenance Burner Assembly Removing The Burner Assembly 1. Make sure all control knobs are in the OFF position, the LP gas supply valve has been closed, and the gas hose is disconnected from the gas supply. 2. Open lid and remove warming rack, cooking grates, heat tents, clip for burner, ignition chain and main burners.

  • Page 26: Product Specifications

    Installation, repair, and maintenance work should be performed by an authorized service technician. Work by unqualified persons could be dangerous and will void the warranty. All Captiva Designs gas grills must have a qualified installer complete the installation for the warranty to be in effect. Incorrect installation of the grill will void the warranty.
