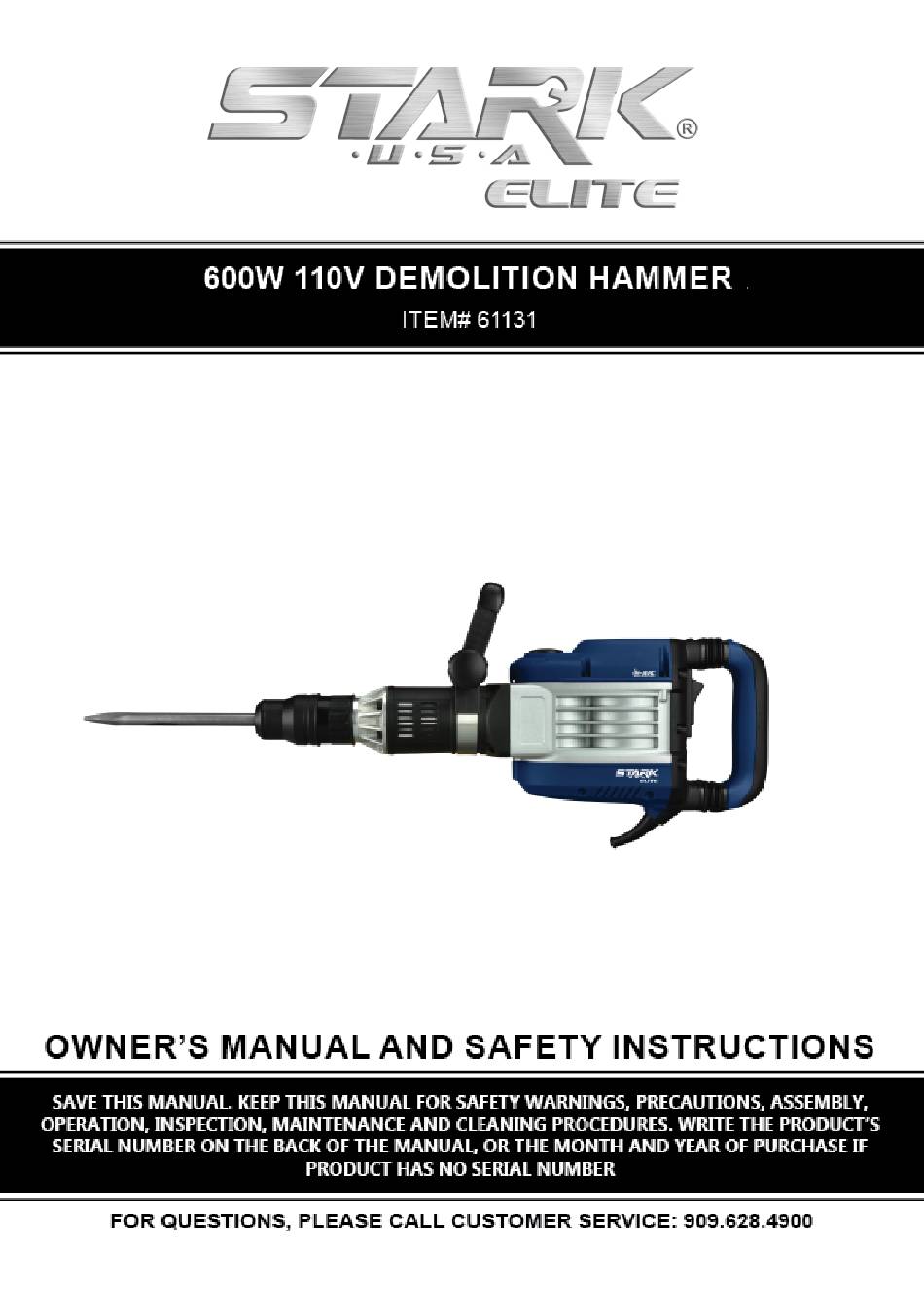

Stark 61131 Owner's Manual And Safety Instructions

600w 110v demolition hammer

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 61131 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stark 61131

  • Page 2: Technical Specifications

    Application This Electric Chisel should be applied to breaking concrete, chipping off concrete, grooving, bar cutting, and driving piles in installation of piping and wiring, unitary facility installation, machinery installation water supply, and drainage work, interior jobs, harbor facilities and other civil engineering work etc.
  • Page 3: Standard Accessories

    1 couple Optional accessories (sold separately) Notice: Optional accessories (sold separately) are recommended only for Stark tools for specified purpose in manual, any other brand accessories or attachments used may present risk of injury. 4. Goose Chisel :18*400mm (SDS max ) 1.
  • Page 4: General Power Tool Safety Warnings

    In this operator's manual/or machine’s labels following symbols are used: Denote risk of personal injury, loss of Read the operating life or damage to the tool in case of instructions before use. nonobservance of the instruction in this manual. Double insulation Indicate electrical shock hazard.
  • Page 5 Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
  • Page 6 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
  • Page 7 Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Special requirements for Demolition hammer Wear ear protectors. Exposure to noise can cause hearing loss. Use auxiliary handle(s), if supplied with the tool.
  • Page 8: Prior To Operation

    Prior to operation Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up use of this products. 1. Power source Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the hammer.
  • Page 9: Maintenance And Inspection

    Mounting tool bits Warning: before do it, make sure unplug the machine! Warning: Always wear gloves when changing accessories. The exposed may become extremely hot during operation. Fig1 Fig2 Fig3 Fig4 1. The Chisel needs to be wiped clean before ready to use. 2.
  • Page 10 When you have to replacement the carbon brushes by yourself, please following the order: (1) Loosen the six set screws and remove the fan cover. (2) Remove the helical spring and carbon brushes. (3) After replacing the carbon brushes, install the helical spring and fan cover, with securely tightening six set screws.
