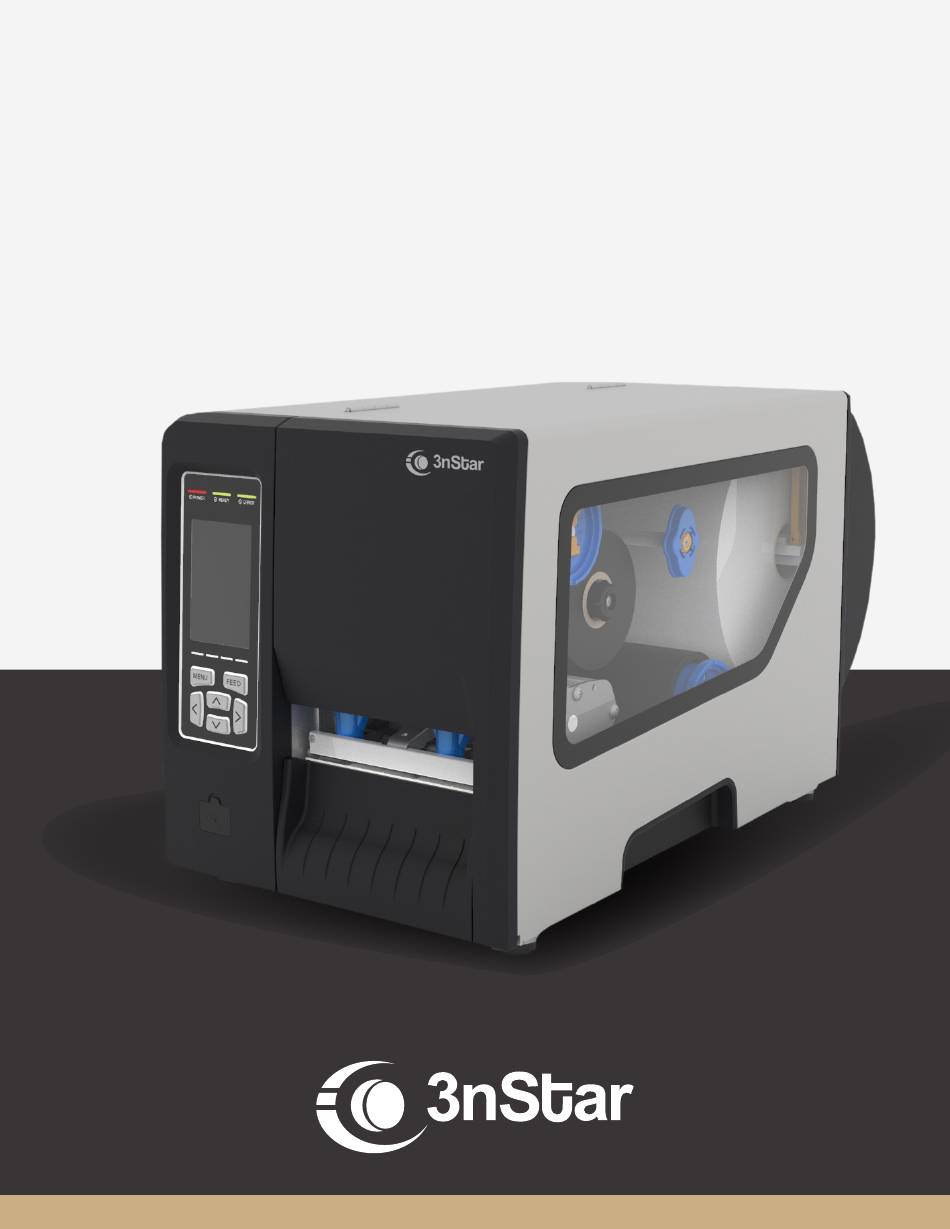

- Page 1 USER’S MANUAL LABEL PRINTER LTT644...
-
Page 2: Table Of Contents
TABLE OF CONTENTS • Product Overview • Box Content • Printer Setup Instructions • Installation of Paper • Ribbon Installation • Interior Components • Control Panel • Routine Maintenance and Care Guide... - Page 3 DISCLAIMER DISCLAIMER Please be aware that the transmission interface and appearance of the printer shown in this picture may differ depending on the specific model you have purchased. For precise information regarding the transmission interface and appearance, we advise consulting the actual product or reaching out to your supplier directly.
-
Page 4: Product Overview
Product Overview Flip - top Control Panel Visible Window Main USB Lid Handle Paper Exit Paper Ba e SIDE VIEW The interface for operating the printer and CONTROL PANEL configuring settings. The primary USB port for connecting the MAIN USB printer to a computer or other devices. -
Page 5: Rear View
Network Port Poper Inlet Serial Port Parallel Port SD Card Power Switch Power Interface REAR VIEW NETWORK PORT Port for connecting the printer to a network. Additional USB port for peripheral connections. Port for serial communication connections. SERIAL PORT Port for parallel data connections. PARALLEL PORT Slot for inserting an SD card for storage or SD CARD... -
Page 6: Interior View
Ribbon Supply Shaft Medium Spindle Lock Paper Buckle Radiation suction sheet Ribbon Recycling Shaft Print Head Bracket Guide Paper Ba e Paper Jam Guide Block INTERIOR VIEW Component for reducing static and ensuring smooth RADIATION SUCTION SHEET paper handling. RIBBON RECYCLING SHAFT Shaft for collecting used ribbon. -
Page 7: Box Content
Box Content: NAME QUANTITY PRINTER POWER CORD USB CABLE USER MANUAL SELF-ADHESIVE COATED PAPER MIXED WAX-BASED CARBON RIBBONS Printer Setup Instructions: 1. Place the printer on a stable surface and ensure it is turned off. -
Page 8: Installation Of Paper
2. Connect one end of the USB cable to the printer and the other end to the computer. 3. Insert the power cord into the power socket on the back of the printer, then plug the other end into an AC outlet. Plug Installation of Paper: 1. -
Page 9: Ribbon Installation
Open the cover Medium Spindle Medium Pull out the block of paper Guide Paper Ba e Lift the Cover Handle Paper clip guide block The print head is clossed Print head up Ribbon Installation: 1. Lift the cover handle as shown in the picture. 2. - Page 10 3. Raise the print head and stick the ribbon around the ribbon recycling spokes according to the picture. 4. Rotating the ribbon on the recovery shaft several times to prevent shedding. 5. Turn off the print head and close the lid. Open the cover Ribbon Supply Shaft Ribbon...
-
Page 11: Interior Components
Interior Components: Ribbon supply Guide Shaft Ribbon recycling Medium Supply Media Sensor Media flattening guide Cutting Knife Ribbon Sensor MEDIUM SUPPLY RIBBON RECYCLING RIBBON SUPPLY GUIDE SHAFT MEDIA FLATTENING CUTTING KNIFE MEDIA SENSOR RIBBON SENSOR GUIDE Media Oriented Ribbon recycling Medium Supply Ribbon supply Bottom Paper Recycling... -
Page 12: Control Panel
Control Panel: Feed Button: In standby mode on the main page, press the feed button once to automatically feed the label paper. During printing, pressing the button once will pause printing. Press the feed button again to resume the operation. After entering the function setting interface, this button serves as a confirmation function. - Page 13 The following table is a list of common problems the average operator has and how to solve them. If you have followed our suggestions to troubleshoot the situation and the printer still does not function properly, please contact the customer service department of the business you purchased from for more assistance.
-
Page 14: Routine Maintenance And Care Guide
TROUBLESHOOT POTENTIAL ISSUES INDICATION SOLUTIONS • Readjust the specs and print • Label size setting is incorrect or incomplete Which occurs when • Moderately reduce the gap value and print printing situation • The label sensor is covered by a foreign body, causing incorrect •... - Page 15 Important Precautions: Avoid direct contact with the print head. Use only medicinal alcohol for cleaning. Avoid industrial alcohol as it can damage the print head. If error messages are frequent, consider cleaning the sensors.
