Quick Installation Guide

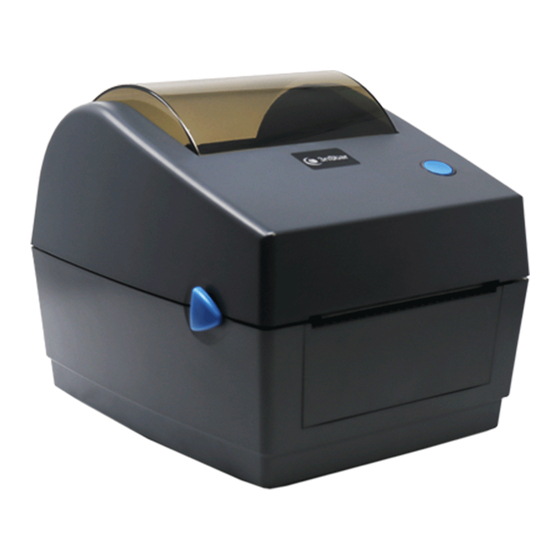

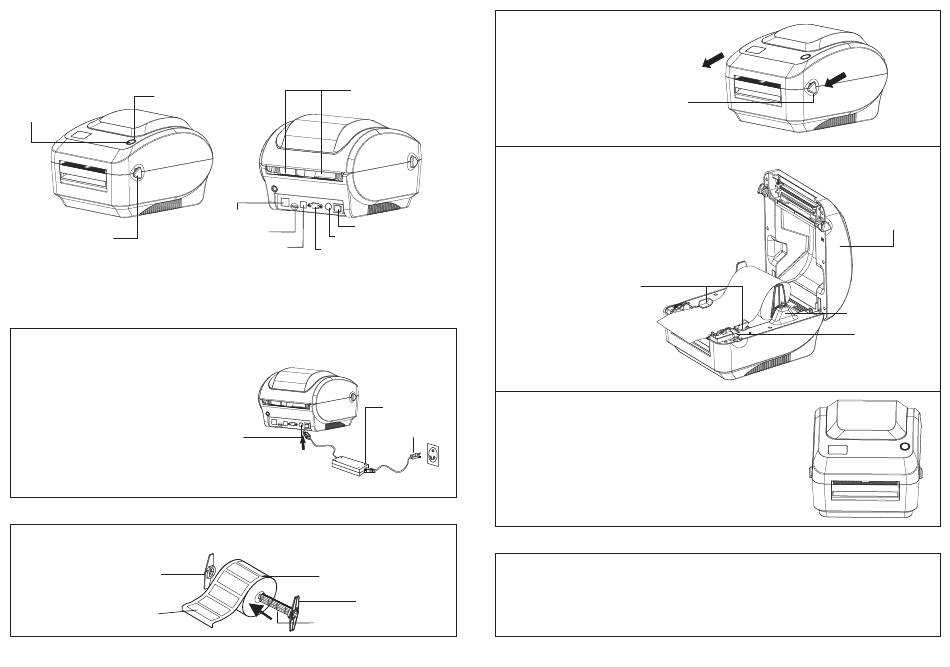

Printer overview
LED indicator
Feed button
Top cover open lever
Note:
The interface picture in the quick start guide is for reference only. Please
refer to the product specification for the interfaces availability.
Printer Installation
1.Arrange this printer on a reliable flat surface and make sure the power switch is off.
2.Connect the printer to a computer mainframe with a provided Centronics,RS-232 or
USB cable.
3.Plug the power cord into the power jack
connector at the rear of the printer, then plug
the power cord into a properly grounded outlet.
Power jack
Note:
Please switch OFF printer power switch prior to
plug in the power cord to printer power jack.
Loading the label
1.Insert a 1" label spindle into a paper roll (* If your paper core is 1''inch, remove
the 1.5'' core adapter from the fixed tab).
1.5'' Core Adaptor
Printing side face up
Rear paper guide
Ethernet interface
power switch
MicroSD slot
Power jack
USB interface
RS-232
Paper Roll
Fix Tab
1"label spindle
01
2.Open the printer top cover by pushing
forward the top cover open levers.
3.Orient a roll of paper on the paper roll mount.
4.Feed the paper, printing side face up, through
the label guide and pass over the platen.
5.Adjust the black center-biasde label guides in
or out turning adjustment knob so they are
slightly touch the edges of the label backing.
6.Close the printer top cover slowly and make sure
Power supply
the cover locks latch securely.
Power plug
7.Use the "Diagnostic tool" to set the media sensor type
and calibrate the selected sensor. (See "Diagnostic
tool" and "Sensor Calibrate" in the next page).
Note:
1. Please calibrate the gap/black mark sensor when changing media.
2. Failure to securely close and lock the cover will result in
poor print quality.
Button functions
(1)Feed labels
When the printer is ready, press the button to feed one label to the beginning of next label.
(2)Pause the printing job
When the printer is printing, press the button to pause a print job. When the printer is
paused the LED will blink green. Press the button again to continue the printing job.
Top cover open lever
Label guide
02
Printer top cover
Paper roll mount
Adjustment knob
