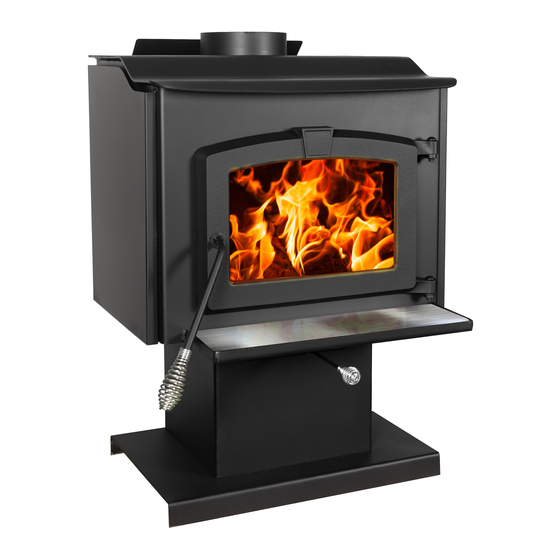

High Efficiency Wood Stove - Small
Model Series:
PH1200WS, PH1200WS-B, GWS-1200,
GWS-1200-B, WSL-1200, WSL-1200-B,
WS-1200, WS-1200-B
Non-Mobile Home rated with Legs
SAFETY NOTICE: IF THIS WOOD BURNING APPLIANCE IS NOT PROPERLY INSTALLED,
OPERATED, AND MAINTAINED, A HOUSE FIRE MAY RESULT.
TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. FAILURE
TO FOLLOW THE INSTALLATION INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY OR EVEN DEATH. CONTACT LOCAL BUILDING OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
BEFORE LIGHTING YOUR FIRST FIRE, REMOVE PLASTIC FILM OFF TRIM AND CLEAN THE
PLATED SURFACES WITH DENATURED ALCOHOL OR A GOOD QUALITY, NON-ABRASIVE LIQUID
GLASS CLEANER. APPLY WITH A VERY SOFT, CLEAN CLOTH. DO NOT USE PAPER TOWELS
TO CLEAN THE PLATED PARTS. FAILURE TO CLEAN ALL MARKS AND FINGERPRINTS FROM
THE PLATED SURFACES WILL CAUSE PERMANENT DAMAGE.
NOTE: Some states and provinces do not allow the exclusion or limitation of incidental or consequen-
tial damages. The above limitations may not apply to you.
US Environmental Protection agency certified to comply with 2020 particulate emissions standards using
cordwood. Please read this entire manual before you install and use your new room heater. This wood
heater needs periodic inspection and repair for proper operation. It is against federal regulations to oper-
ate this wood heater in a manner inconsistent with operating instructions in this manual. Please read this
entire manual before you install and use your new room heater. Failure to follow instructions may result in
property damage, bodily injury, or even death.
This stove is listed by OMNI-Test Laboratories of Portland,
Oregon using Test Method ASTM 3053 and Tested to
UL-1482-11 (R2015)/ULC-S627-00
(UM) 84 HUD, mobile home approved.
6440 W. Howard St.
Niles, IL 60714-3302
877-447-4768
W a r m i n g Y o u r H o m e.
Save These Instructions
Do Not Discard This Manual: Retain for Future Use
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 877-447-4768 8:00 a.m. - 4:30 p.m. CST,
Monday - Friday or e-mail us at customerservice@ghpgroupinc.com.
W a r m i n g Y o u r H e a r t.
Model Series:
SWS-1200, HWS-1200, HWS-1200-B
Mobile Home Approved in USA Only
Not for use in Mobile Homes in Canada
WARNING
6" Flue
required
Español p. 21
Français p. 43
Tested &
Listed By
OMNI-Test Laboratories, Inc.
REPORT NO. 0418WS019E/0418WS019S
80-10-635
EM
Portland
Oregon USA
11/02/2022
Advertisement
Table of Contents
Related Manuals for pleasant hearth PH1200WS
Summary of Contents for pleasant hearth PH1200WS
- Page 1 Español p. 21 Français p. 43 Model Series: Model Series: SWS-1200, HWS-1200, HWS-1200-B PH1200WS, PH1200WS-B, GWS-1200, Mobile Home Approved in USA Only GWS-1200-B, WSL-1200, WSL-1200-B, Not for use in Mobile Homes in Canada WS-1200, WS-1200-B Non-Mobile Home rated with Legs SAFETY NOTICE: IF THIS WOOD BURNING APPLIANCE IS NOT PROPERLY INSTALLED, OPERATED, AND MAINTAINED, A HOUSE FIRE MAY RESULT.
-
Page 2: Operation
CAUTION DO NOT operate heater if glass window is broken. OPERATION WHY THE CORRECT FLUE SIZE IS IMPORTANT - 6” Note: The BTU ratings mentioned above are based on the EPA Draft is the force which moves air from the appliance up test protocol under specific test conditions. -
Page 3: Mobile Home Approved
OPTIONAL BLOWER: MODEL PBAR-2427, • Electric screw driver with bits 120 VOLTS, 60Hz, 1.0 AMPS, 2900 RPM • Silicone sealant DANGER: RISK OF ELECTRIC SHOCK. • Drills and saws necessary for cutting holes through DISCONNECT POWER BEFORE SERVICING UNIT. the wall or flooring in your home IMPORTANT: FOR OPTIMUM HEATER PERFORMANCE AT LOW BURN RATE, OPERATE AN OUTSIDE AIR KIT (ITEM NO: OAK-MH) IS... - Page 4 ITEMS NEEDED FOR FIRST FIRE: • Approximately 1/2 lb. of small kindling • 6 pcs. of medium kindling 11” long WOOD STOVE QUICK START GUIDE • 6 pcs. of medium kindling 15” long • 6 pcs. of start up logs 11” long •...
-
Page 5: Building A Fire
OPERATION 1. Remember to Ventilate well. Do not use a grate or elevate fire. Never burn with door 2. Allow the stove to cure before burning for long open as this may result in fire. Build wood fire directly on periods at high temperatures. -
Page 6: Glass Care
burn improperly.) 5. Attach glass gasket (from GHP Group replacement NEVER USE GASOLINE, GASOLINE-TYPE LANTERN parts page 18) to new glass and install in door frame. FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR 6. Replace glass retainers with screws making sure not SIMILAR LIQUIDS TO START OR FRESHEN UP A to cross thread or overtighten. -
Page 7: Ash Disposal
removed to reduce the risk of a chimney fire. this container. WAYS TO PREVENT AND KEEP UNIT FREE OF CREOSOTE 1. What type of wood is best to use as Firewood? 1. Burn with air control open for several minutes at Dry seasoned hardwood should be used. - Page 8 Atmospheric Pressure and Air Supply Atmospheric pressure affecting the draft from a chimney can be either outside the home, inside the home or both. Outside the home, a high-pressure day (clear and cool) generally creates a better draft in the chimney than a low-pressure day (overcast and damp).
- Page 9 QUICK REFERENCE MAINTENANCE GUIDE Start the first inspection after the first 2 months of use, CAUTION! Allow the appliance or if performance changes, and adjust your schedule to completely cool down before accordingly. Maintenance is required for safe operation performing any cleaning or maintenance. and must be performed to maintain your warranty.
- Page 10 Brick Pattern GHP Group reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Item No. Description Qty. Part No. Door Assembly 75-23-115 2. & 3. Glass (13.00”W x 8.38”H) and Gasket 75-23-511 1/8”...
