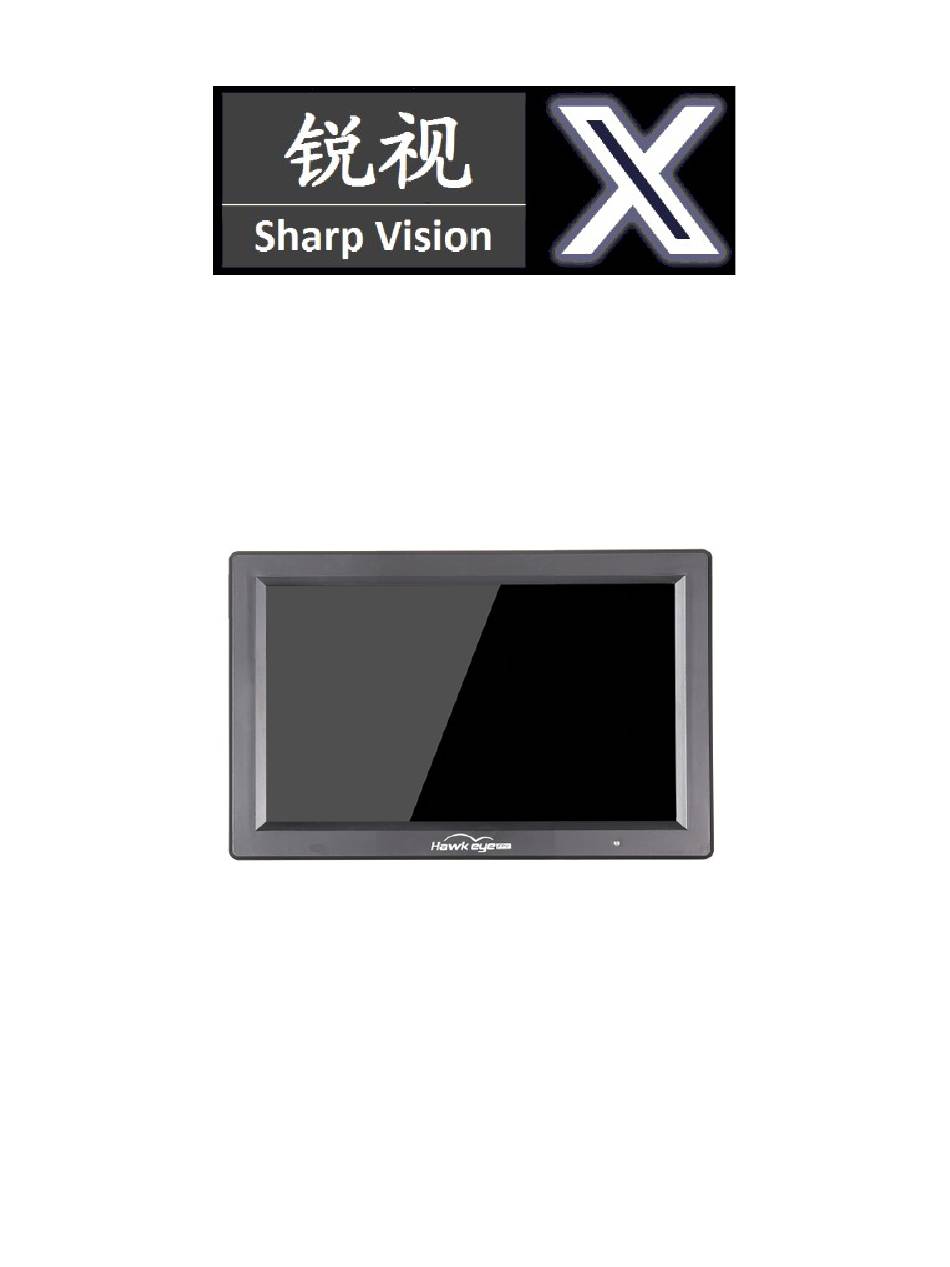

- Page 1 Explore a new world! www.cnfpv.com Hawkeye Litle Pilot Sharp Vision 2 7 inch 1000LUX FPV Monitor, DVR, HDMI User Manual...
-
Page 2: Table Of Contents
Explore a new world! www.cnfpv.com Specifications and Features: ................14 Features: ......................14 Button Functions: ....................15 DVR Control Buttons: ..................15 Display Control Buttons: ..................15 FPV Interface Descriptions ................16 DVR Interface: ....................16 External video input Interface: ............... 16 HDMI Interface: ..................... - Page 3 Explore a new world! www.cnfpv.com Default Settings: ..................21 Quick Access Descriptions: ................22 Interface Switch: ..................22 Show/Hide Indication Windows: ..............22 Show Help Menu: ..................22 Packing and Accessories: ................... 22 Size and Weight: ..................22 Accessories: ....................22 FAQ: ........................
-
Page 4: Specifications And Features
Explore a new world! www.cnfpv.com Specifications and Features: Display resolution 1024×600 Backlight Brightness 1000 Lux LED Screen Aspect ratio 4：3 Response time 10ms Color system PAL/NTSC Working voltage DC：3S-6S battery Power Supply Current 820MA @3S；410MA @6S Input Signal Video（PAL/NTSC） ，HDMI Output Signal Video... -
Page 5: Features
Explore a new world! www.cnfpv.com Features: Specially designed for aerial photography system, Sharp Vision Ⅱ all-in-one monitor has the following features: High brightness: 1000 Lux. Dual receiver: built-in dual receivers. DVR : integrated DVR black box can run in the background for recording. ... -
Page 6: Fpv Interface Descriptions
Explore a new world! www.cnfpv.com Note: Four display resource types of this monitor are: FPV interface, DVR interface , External video input interface and HDMI interface.Use LETF key(shortcut key ) to switch the interface. FPV Interface Descriptions FPV interface is the default boot interface. Voltage Time RSSI/Channel in use... -
Page 7: External Video Input Interface
Explore a new world! www.cnfpv.com External video input Interface: 11.5 00:30 HDMI Interface: 11.5 00:30 HDMI HDMI input :480i/p, 576i/p, 720p, 1080i/p. Display Interface Setting: Press OK button to po pup menu setting: FRQA SCAN FRQB A1 5645 FRQADJ FORMAT AUTO SHARP GAMA... -
Page 8: Frequency Group Selection
Explore a new world! www.cnfpv.com Frequency Group Selection: 1.1 You can manually select the desired frequency from 12 groups: A, B, E,F,R ,L,J,X,U,l,K and Z or select SCAN option to start auto search. Dual 5.8G receivers cover 96 channels: （Note: Currently, only data between 4.867G and 6.10 0G is supported） 1.2 You can manually input the frequency, The specific operation steps are as follows: FRQA... -
Page 9: Format
Explore a new world! www.cnfpv.com Note: Currently, only frequencies between 4.867G and 6.100G are supported. If not within this range, the prompt bar will turn red and the setting will not be successful. Please re-enter. Frequency fine-tuning: RSSI 5635 5637 5639 5641 5643... -
Page 10: Zoom
Explore a new world! www.cnfpv.com ZOOM: Press LEFT or RIGHT button to enter system setting, 16:9 / 4:3 VOLADJ: Control buttons: LEFT (-), RIGHT (+).Range: -0.5 to +0.5 LED: Adjust the power indicator light, ON/ OFF. Language: Control buttons: LEFT (-), RIGHT (+).Options: Chinese/English. Reset: Reset values to default. -
Page 11: Resolution
Explore a new world! www.cnfpv.com Resolution: D1(720×576（PAL） ） ，720×480（NTSC）),VGA(640×480) QVGA（320×240）. Cycle Recording: If Cycle Recording is selected, the latest videos recorded will cover the earliest ones when the TF card is full. “OFF”: if Cycle Recording function is closed, video files will not be cut into small segments;... -
Page 12: Motion Detection Sensitivity
Explore a new world! www.cnfpv.com Motion Detection Sensitivity: Motion Detection Sensitivity can be adjusted by 3 levels: High/Medium/Low; the higher level is selected, the more easily the DVR is triggered to record. Date Stamp: Select ON/OFF to decide whether date and time will be showed at the bottom of the video images. -
Page 13: Image Quality
Explore a new world! www.cnfpv.com Image Quality: Image definition and video file size can be adjusted by 3 levels. Higher image quality results in higher image definition and larger video file; When resolution D1(720×576（PAL）) is selected, the file sizes of videos recorded at different Image Quality options are as follows: Best: 1.7G/h Good: 1.2G/h... -
Page 14: Date/Time
Explore a new world! www.cnfpv.com Date/Time: Enter Advanced Settings → select Date/Time option → press UP/DOWN button to select a desired date/time → press MENU button to exit. Language: Enter Advanced Settings → select Language option → press UP/DOWN button to select a desired language from 8 languages provided →... - Page 15 Explore a new world! www.cnfpv.com Default Settings: This option leads back to factory default settings. Quick Access Descriptions: In any mode except menu setting, Monitor keys can be used as shortcuts described as follows: Interface Switch: Pressing RIGHT/LEFT button can switch between FPV, DVR, external video interfaces and HDMI interfaces.
-
Page 16: Packing And Accessories
Explore a new world! www.cnfpv.com Packing and Accessories： Size and Weight: 205mm×130mm×105mm Packing size Specification Gross weight（dual 0.58kg receiver + DVR） Accessories: 3.5mm connector cable Accessories 5.8G antenna Bandage Yellow Video output 3.5mm cable Interface descriptions White Video input Audio output FAQ: Not able to search channels automatically: ... - Page 17 Explore a new world! www.cnfpv.com NOTE: Check on www.CNfpv.com for new firmware/Manual updates. For more information please check our Youtube/Facebook/Instagram channel: HawkeyeFPV Youtube Facebook...
- Page 18 Explore a new world! www.cnfpv.com Instagram...
