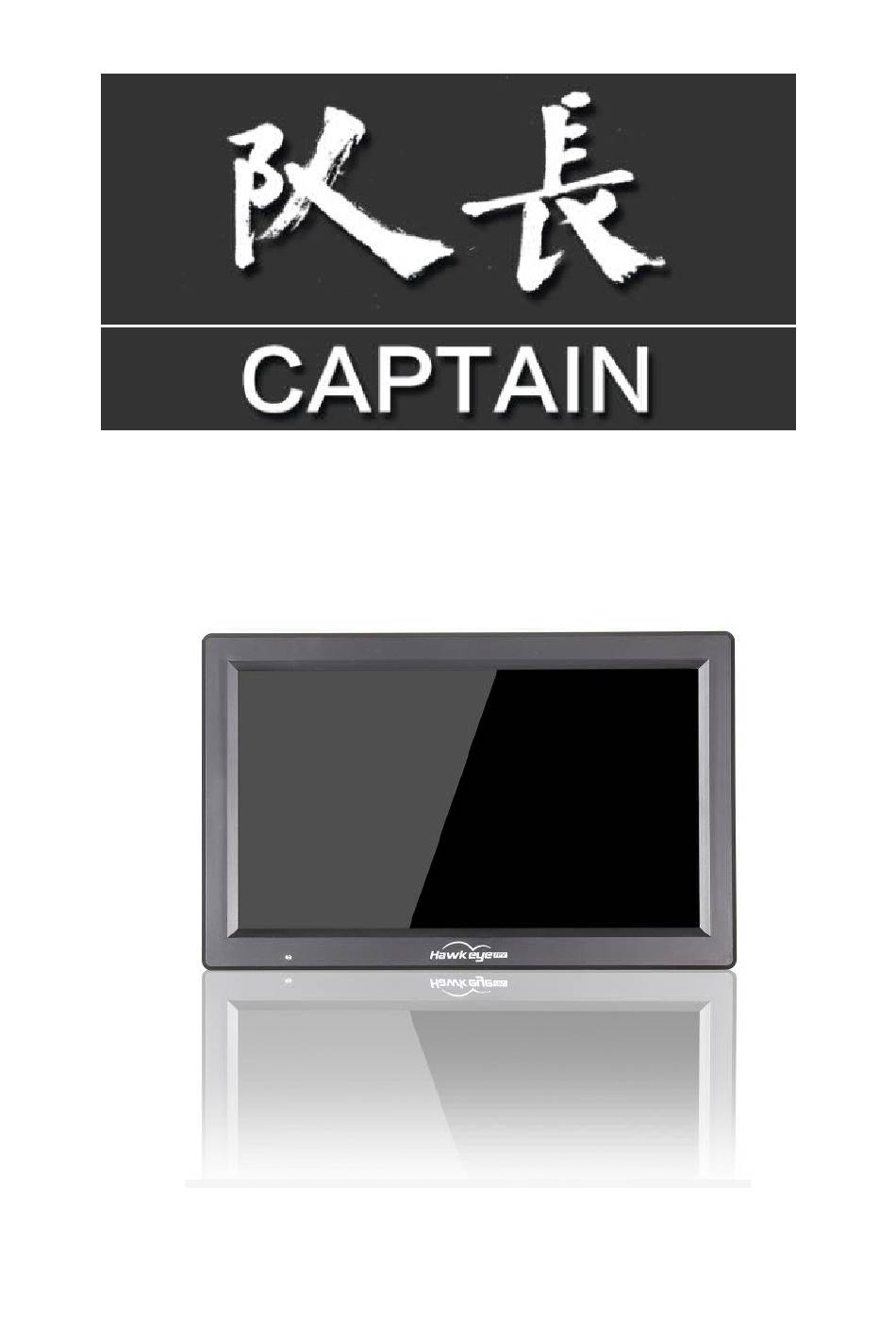

- Page 1 Hawkeye Litle Pilot Captain 10.2 inch 1000LUX FPV Monitor, DVR, HDMI User Manual...
-
Page 2: Table Of Contents
Specifications and Features:..................4 Features:........................5 Button Functions:....................6 DVR Control Buttons:.....................6 Display Control Buttons:..................6 FPV Interface Descriptions................7 DVR Interface:....................7 External video input Interface:................7 HDMI Interface:....................7 Display Interface Setting:..................8 Frequency Group Selection:................8 FORMAT:......................9 Brightness:......................9 Contrast:......................9 Saturation:.......................9 Sharp:......................9 Latitude:......................9 SPEAKER:......................9 Black light:.......................9 ZOOM:......................9 VOLADJ:......................9 LED:........................9 Language:.......................9 Reset:......................9 DVR Interface Descriptions:...................9 Video Playback.....................10 Recording Settings:..................10 Resolution:....................10 Cycle Recording:...................11 Motion Detection:..................11 Motion Detection Sensitivity:.................11 Date Stamp:....................12 Audio Acquisition:..................12 Image Quality:....................12 Auto power up recording:................13 Advanced Settings:....................13 Format:......................13 Date/Time:.....................13 Language:.....................14 TV Mode:.......................14... - Page 3 Default Settings:....................14 Quick Access Descriptions:..................15 Interface Switch:...................15 Show/Hide Indication Windows:..............15 Show Help Menu:..................15 Packing and Accessories:..................15 Size and Weight:...................15 Accessories:....................16 FAQ:........................16 Not able to search channels automatically:..........16 The video displayed is black-and-white:............16 Can not start after connected to power:............16 No channel can be received:................17 Volume is too low:..................17...
-
Page 4: Specifications And Features
Specifications and Features : Display resolution 1280×720 Backlight Brightness 1000 Lux LED Screen Aspect ratio 16：9 Response time 10ms Color system PAL/NTSC Working voltage DC：3S-6S battery Power Supply Current 1.74A @3S；850MA @6S; Video（PAL/ Input Signal NTSC）， HDMI Output Signal Video 5V(input power >12V) Resolution D1/VGA/QVGA TF card supported Max 64G Packing size 300mm×200mm×60mm Monitor size 265mm×170mm×31mm Specification Gross weight 1.13kg 5.8G Sensitivity... -
Page 5: Features
Features: Specially designed for aerial photography system, CAPTAIN all-in-one monitor has the following features: High brightness: 1000 Lux. Dual receiver: built-in dual receivers. DVR : integrated DVR black box can run in the background for recording. No delay/anti blue screen/anti black screen: the built-in DVR system won’t cause any delay in receiving signal; blue screen or black screen will definitely not occur. Auto/manual channel scan: no need for DIP switch. HDMI input. Button Functions: At the back of the monitor, there are 2 groups of buttons, one for DVR control and the other for display control. DVR Control Buttons: Functions Move cursor up DOWN Move cursor down MENU Po pup/exit menu/sub menu (left button) MODE Enter/exit video playback (right button) mode Confirm selection /play/stop Display Control Buttons: Functions Shortcut key Hiding OSD/ Press 2 seconds Move cursor up for Auto channel search in DOWN Move cursor down Popping up HELP menu LEFT/ -... -
Page 6: Fpv Interface Descriptions
Right/+ Adjustment key(+) Popping up next interface Po pup menu/confirm selections Note: Four display resource types of this monitor are: FPV interface, DVR interface , E xternal video input interface and HDMI interface .Use LETF key(shortcut key ) to switch the interface. FPV Interface Descriptions FPV interface is the default boot interface. Voltage Time RSSI/Channel in use 11.5 00:30 25 20 1 Voltage indicator: input voltage value is displayed; Display from 10V to 26 V. When the battery is low, the menu turns red and starts flashing. When the battery is too low, the blue light flashes faster and faster in the lower left corner and the buzzer alarms. Please replace the battery immediately to avoid damage to the battery. Recording indicator: a red “R” flashes when DVR is working in the background. Time indicator: monitor running time is displayed. Signal strength indicator: the strength of both the signals received by ANT1 and ... -
Page 7: Hdmi Interface
External video input Interface: 11.5 00:30 HDMI Interface: 11.5 00:30 HDMI HDMI input :480i/p, 576i/p, 720p, 1080i/p. Display Interface Setting: Press OK button to po pup menu setting: FRQA SCAN FRQB A1 5645 FRQADJ FORMAT AUTO SHARP GAMA SPEAKER LIGHT ZOOM 16:9 VOLADJ +0.0V RESET EXIT... -
Page 8: Frequency Group Selection
Frequency Group Selection: You can manually select the desired frequency from 6 groups: A, B, C ,D,R and F or select SCAN option to start auto search. Dual 5.8G receivers cover 48channels: 1 5.645G 5.740G 5.725G 5.733G 5.658G 5.362G 2 5.665G 5.760G 5.745G 5.752G 5.695G 5.399G 3 5.865G 5.780G 5.765G 5.771G 5.732G 5.436G 4 5.705G 5.800G 5.785G 5.790G 5.769G 5.473G 5 5.885G 5.820G 5.805G 5.809G 5.806G 5.510G 6 5.905G 5.840G 5.825G 5.828G 5.843G 5.547G 7 5.925G 5.860G 5.845G 5.847G 5.880G 5.584G 8 5.945G 5.880G 5.865G 5.866G 5.917G 5.621G Frequency fine-tuning:... -
Page 9: Brightness
Brightness: Control buttons: LEFT (-), RIGHT (+).Range: 1-40. Contrast: Control buttons: LEFT (-), RIGHT (+).Range: 1-40. Saturation: Control buttons: LEFT (-), RIGHT (+).Range: 1-40. Sharp: Control buttons: LEFT (-), RIGHT (+).Range: 1-15. Latitude: Control buttons: LEFT (-), RIGHT (+).Range: C1-C3. SPEAKER: Control buttons: LEFT (-), RIGHT (+).Range: 1 to 40. Black light: Adjust LED light brightness, Auto, High, Low. ZOOM: Press LEFT or RIGHT button to enter system setting, 16:9 / 4:3 VOLADJ: Control buttons: LEFT (-), RIGHT (+).Range: -5 to +5 LED: Adjust the power indicator light, ON/ OFF. Language: Control buttons: LEFT (-), RIGHT (+).Options: Chinese/English. Reset: Reset values to default. DVR Interface Descriptions: Note ： Please back up your data in TF card; when the TF card is used for the first time, it will be auto formated . Pressing RIGHT button can switch FPV interface to DVR interface and pressing ... -
Page 10: Video Playback
LEFT button can switch back to FPV interface. Video Playback First, switch to the DVR interface, pressing MODE (RIGHT) button can start video playback. Press UP or DOWN button to select a desired file, then press OK button to start playing it. Functions Move cursor up DOWN Move cursor down MENU Po pup/exit menu/sub menu (LEFT) MODE Enter/exit video playback (RIGHT) mode Confirm selection /play/stop DVR can run front-end or back-end. In any interface except DVR setting and video playback mode, pressing OK button (middle one of DVR control group) can start recording in the background, without affecting FPV use. Recording Settings: Press MENU button to select sub menu: Resolution: D1(720×576（PAL））， 720×480（NTSC）),VGA(640×480) QVGA（320×240）. Cycle Recording: If Cycle Recording is selected, the latest videos recorded will cover the ... -
Page 11: Motion Detection
earliest ones when the TF card is full. “OFF”: if Cycle Recording function is closed, video files will not be cut into small segments; If you select 3 min to 10 min, Cycle Recording function is open then; the length of each video segment is corresponding to the selected value. Motion Detection: If Motion Detection is selected, the DVR will automatically start recording according to its internal algorithm when any motion is detected. Motion Detection Sensitivity: Motion Detection Sensitivity can be adjusted by 3 levels: High/Medium/Low; the higher level is selected, the more easily the DVR is triggered to record. Date Stamp: Select ON/OFF to decide whether date and time will be showed at the bottom of the video images. -
Page 12: Audio Acquisition
Audio Acquisition: Select ON/Off to decide whether sounds can be recorded real-time into video files. Image Quality: Image definition and video file size can be adjusted by 3 levels. Higher image quality results in higher image definition and larger video file; When resolution D1(720×576（PAL）) is selected, the file sizes of videos recorded at different Image Quality options are as follows: Best: 1.7G/h Good: 1.2G/h Standard: 800M/h Auto power up recording: Select YES/ON to decide whether videos need to be auto recorded when power ... -
Page 13: Advanced Settings
Advanced Settings: Press the MENU button twice will pop up the Advanced Setting options including Format, Date/Time and Language. Format: Enter Advanced Settings, and select Format option to format the TF card. In order to optimize the file system ,DVR will format the TF card, if it’s used for the first time; Please back up your data in TF Card. Note: all files stored in the TF card will be deleted after the card is formatted. Date/Time: Enter Advanced Settings → select Date/Time option → press UP/DOWN button to select a desired date/time → press MENU button to exit. Language: Enter Advanced Settings → select Language option → press UP/DOWN button... -
Page 14: Tv Mode
to select a desired language from 8 languages provided → press MENU button to exit. TV Mode: Video output system can be selected and video input system will be automatically identified. Select the system according to which country you are in. （Keep it in PAL, do not change） Default Settings: This option leads back to factory default settings. Quick Access Descriptions : In any mode except menu setting, Monitor keys can be used as shortcuts described as follows: Interface Switch: Pressing RIGHT button can switch between FPV, DVR, external video interfaces... -
Page 15: Show/Hide Indication Windows
and HDMI interfaces. Show/Hide Indication Windows: In any interface, pressing UP button (of the display control group) once can hide the indication windows, and pressing UP again can show them again. Show Help Menu: In any interface, pressing DOWN button (of the display control group) can show Help menu, pressing DOWN again can make it disappear. The power indicator light: When the system starts, if the power indicator is on, it indicates that the power is In any of the FPV, DVR and external video interfaces ，When recording, the LED will flash. When the battery is too low and the system alarms, the LED will flash. The power indicator is very important, but for humane settings, you can enter the menu to turn it off at night if you feel dazzling. Packing and Accessories ： Size and Weight: 300mm×200mm×60mm Packing size Specification Gross weight（dual 1.13kg receiver + DVR） Accessories: Female XT60 plug to male DC connector cable Accessories 3.5mm connector cable 5.8G antenna Bracket Yellow Video output 3.5mm cable Interface descriptions White Video input Audio output... -
Page 16: Faq
FAQ: Not able to search channels automatically: Auto channel scan only functions in the FPV interface. In the DVR interface, users should search channels manually. The video displayed is black-and-white: Check whether the camera output is black-and-white (some cameras might automatically shift to black-and-white in low-light conditions) Can not start after connected to power: First fully charge the battery, and make sure its discharge current at least reaches 1.4A. Check whether the battery power is enough. If a 3S battery is being used, try a 4S battery for testing. Check whether it is caused by poor contact of the DC-plug and battery cable. Check whether the power source is correctly connected to positive No channel can be received: Install antennas, and move the monitor close to the 5.8 GHz transmitter. Connect video signal to the transmitter. Check whether the channel provided by the transmitter is one of those listed in the channels-able-to-be-received-table; check with other channels. Volume is too low: Turn it to full volume. Check whether the microphone of the transmitter works well. NOTE: Check on www.CNfpv.com for new firmware/Manual updates. - Page 17 For more information please check our Youtube/Facebook/Instagram channel: HawkeyeFPV Youtube Facebook Instagram...
