Summary of Contents for Heatrae Sadia Aquatap Boil and Chill

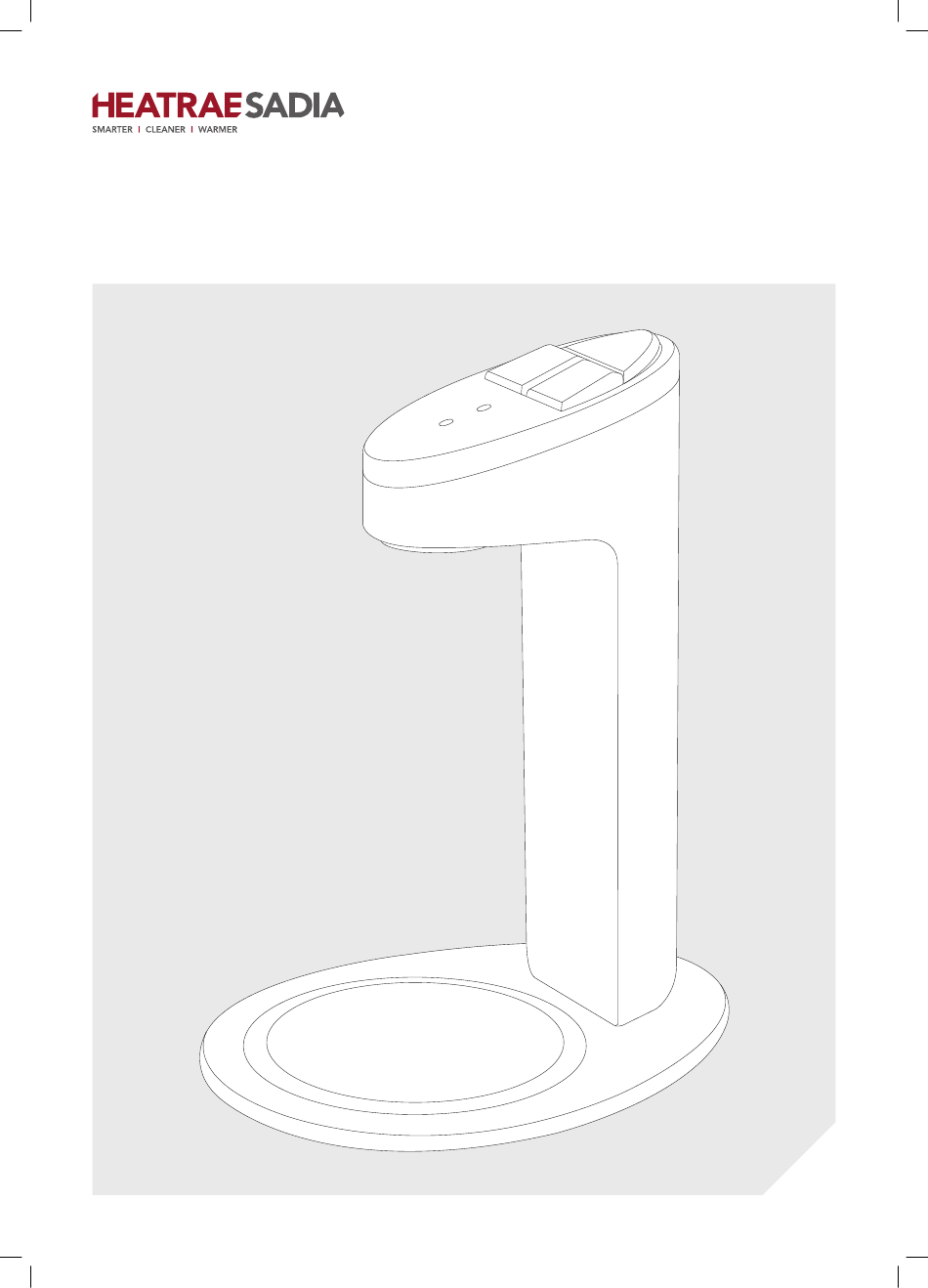

- Page 1 Aquatap (Boil and Chill / Boil and Ambient models) Simple installation guide...
- Page 2 Aquatap – tap installation Heater / chiller installation Tap with drip tray Ventilation installation AQUATAP DISPENSER Tap only installation MESH COVER FIXING SCREW TOP WASTE DRAIN WASHER Air circulation must be provided so air DRIP TRAY can flow through the cupboard. Failure FIXING SCREW SPACER to do this may result in the Aquatap...
- Page 3 Heater / chiller installation AQUATAP DISPENSER HOT TAP DISPENSING OUTLET HOSE CABLE FUSED FUSED SPUR SPUR TAP VENT HOSE FLEXIBLE HOSE MAINS WATER SUPPLY CHILLED WATER SUPPLY HEATER UNIT CHILLER UNIT PRESSURE REDUCING VALVE ISOLATING Vent and outlet hoses VALVE (all pipes should be cut as short Dispensing cable as possible and rise continuously)
- Page 4 T: 0844 871 1535 F: 0844 871 1528 E: heatraesadiaservice@heateam.co.uk www.heatraesadia.com/heateam Heatrae Sadia Heating may introduce modifications to their products from time to time. Consequently, the details given in this brochure are subject to alteration without notice. 36006226 issue 2...
