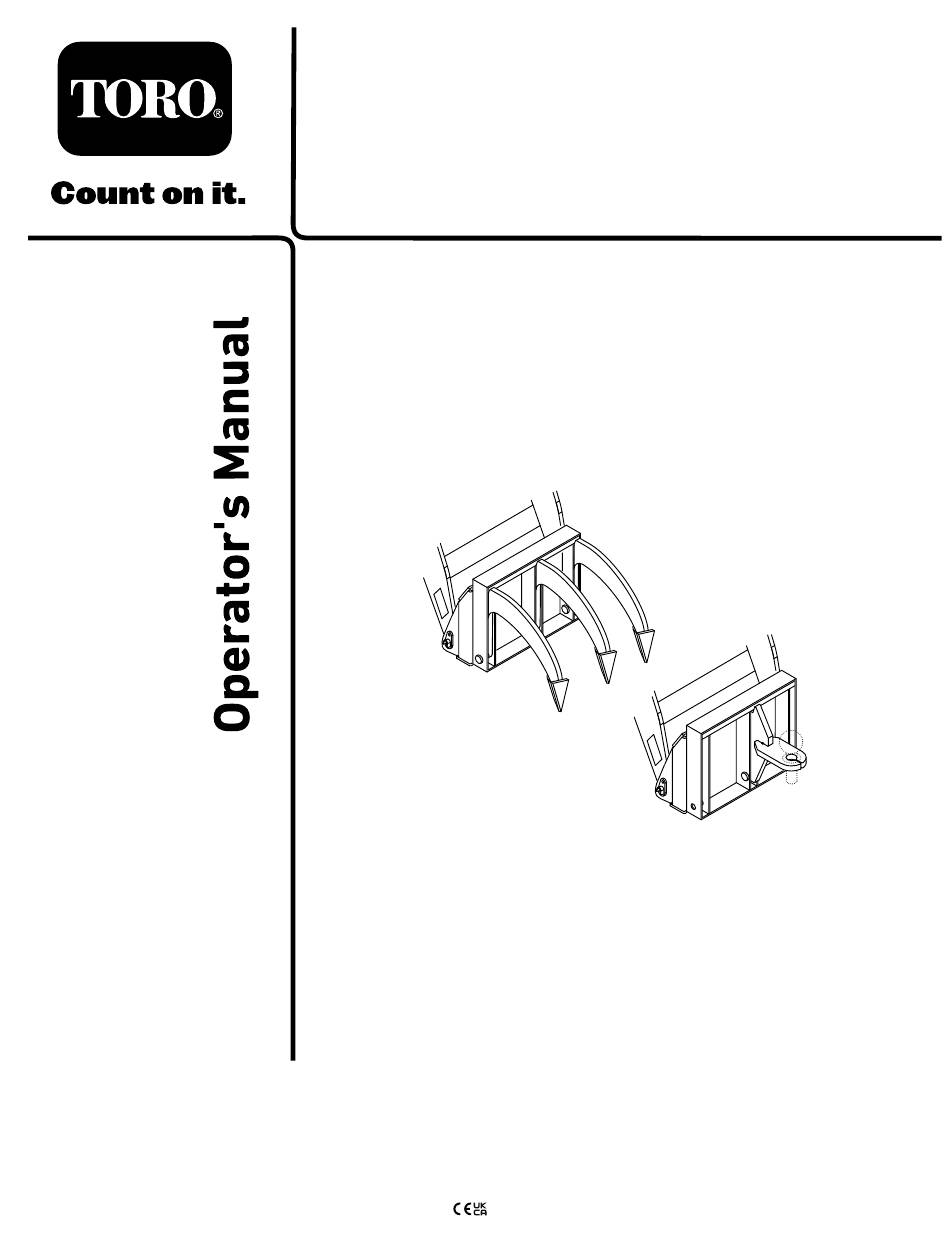

- Page 1 Form No. 3463-876 Rev A Multi-Purpose Tool Compact Tool Carrier Model No. 22672—Serial No. 400000000 and Up *3463-876* Register at www.Toro.com. Original Instructions (EN)
- Page 2 Figure 1 1. Model and serial number location The multi-purpose tool is intended to be used on a Toro compact tool carrier. The scarifier tool is designed primarily for loosening hard-packed ground, tearing up bushes and roots, and raking up debris Model No.
-
Page 3: Table Of Contents
Contents Safety Safety ............... 3 DANGER General Safety ........... 3 Slope Safety ............4 There may be buried utility lines in the work Multi-Purpose Tool Safety........4 area. Digging into them may cause a shock Maintenance and Storage Safety......4 or an explosion. -
Page 4: Slope Safety
Slope Safety Multi-Purpose Tool Safety • Operate the machine up and down slopes with • After striking a foreign object, shut off the engine, the heavy end of the machine uphill. Weight remove the key, thoroughly inspect the attachment distribution changes with attachments. This for any damage, and repair the damage before attachment makes the rear of machine the heavy starting and operating the attachment. -
Page 5: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal133-8061 133-8061 decal161-1354 161-1354 1. Collision hazard—do not 3. Do not exceed a hitch load operate the machine on of 227 kg (500 lb). -
Page 6: Setup
Setup Product Overview Installing an Accessory to the Tool Frame All accessories (scarifier teeth and hitch) are installed into the slots in the tool frame in the same way. g444039 Figure 4 1. Tool frame 3. Hitch 2. Scarifier/ripper tooth g004043 Figure 3 Scarifier tooth installation shown... -
Page 7: Specifications
Hitch capacity 227 kg (500 lb) To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous, and such use could void the product warranty. -
Page 8: Using The Hitch
Using the Hitch Transport Position Important: When transporting the attachment, keep it as close For traction units with wheels, use to the ground as possible, no more than 15 cm (6 the counterweight on the platform when pulling inches) above the ground. Tilt it rearward. trailers. -
Page 9: Maintenance
Maintenance Storage Before long-term storage, wash the attachment Replacing Scarifier Teeth with mild detergent and water to remove dirt and Tips grime. Paint all scratched or bare metal surfaces. Service Interval: Every 25 hours—Check the scarifier Note: Paint is available from your Authorized teeth tips for damage or wear. - Page 10 Notes:...
- Page 11 Notes:...
- Page 12 California Proposition 65 Warning Information What is this warning? You may see a product for sale that has a warning label like the following: WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov. What is Prop 65? Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into California.
