shopPOPdisplays 18398 Assembly Instructions

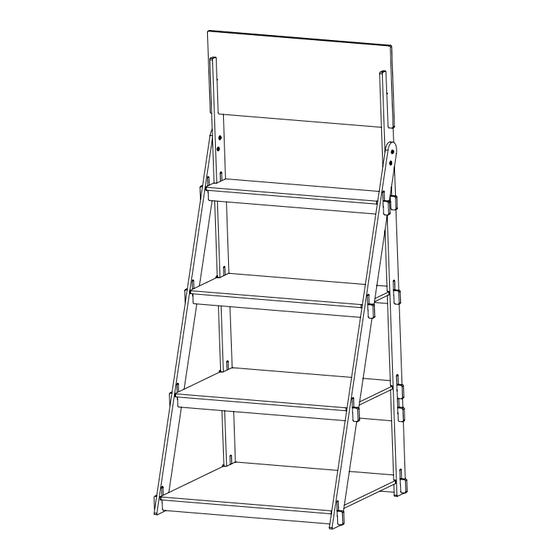

Multi-Tiered Floor Standing Wooden Shelving Display with Header, Collapsible (18398)
ASSEMBLY INSTRUCTIONS
Back Leg
Front Leg
(2 pcs)
(2 pcs)
*Tools Required for assembly : Flathead & Phillips-head screwdriver (Not Included)
STEP 1: Connect the Front Legs to the Back Legs by assembling the Screw & Nut to the two (2) top holes
of the legs. The connection should feel snug but do not overtighten the metal hardware. Make sure
that the Front Legs are positioned on the outside of each Back Leg and the Front Legs are orientated
towards the desired front direction.
shopPOPdisplays makes no claim that these assembly instructions cover all details, conditions, or variations, or that they cover all possible contingencies in connection with the assembly or installation of
this product. It is the purchaser's responsibility to ensure that all components of this product are properly assembled and installed in accordance with these instructions. shopPOPdisplays assumes no
obligation or liability on account of any third-party recommendations, opinions, or advice as to the assembly or installation of this product.
PLEASE CAREFULLY READ & FOLLOW ALL THE INSTRUCTIONS IN THE DESIGNATED SEQUENCE.
First Shelf
(1 pc)
Second Shelf
(1 pc)
Third Shelf
(1 pc)
Fourth Shelf
(1 pc)
Front Legs are
orientated towards
the desired front
direction
PARTS LIST:
Single Back Brace
Double Back Brace
Header
(1 pc)
Front Brace
(3 pcs)
(4pcs)
(1 pc)
Screw & Nut
Front Legs are
positioned on the
outside of Back Legs
1 4
page of
Screw & Nut
(4 pcs)
