shopPOPdisplays WOODEN WEDGE WALL MOUNT SHELF Assembly Instructions

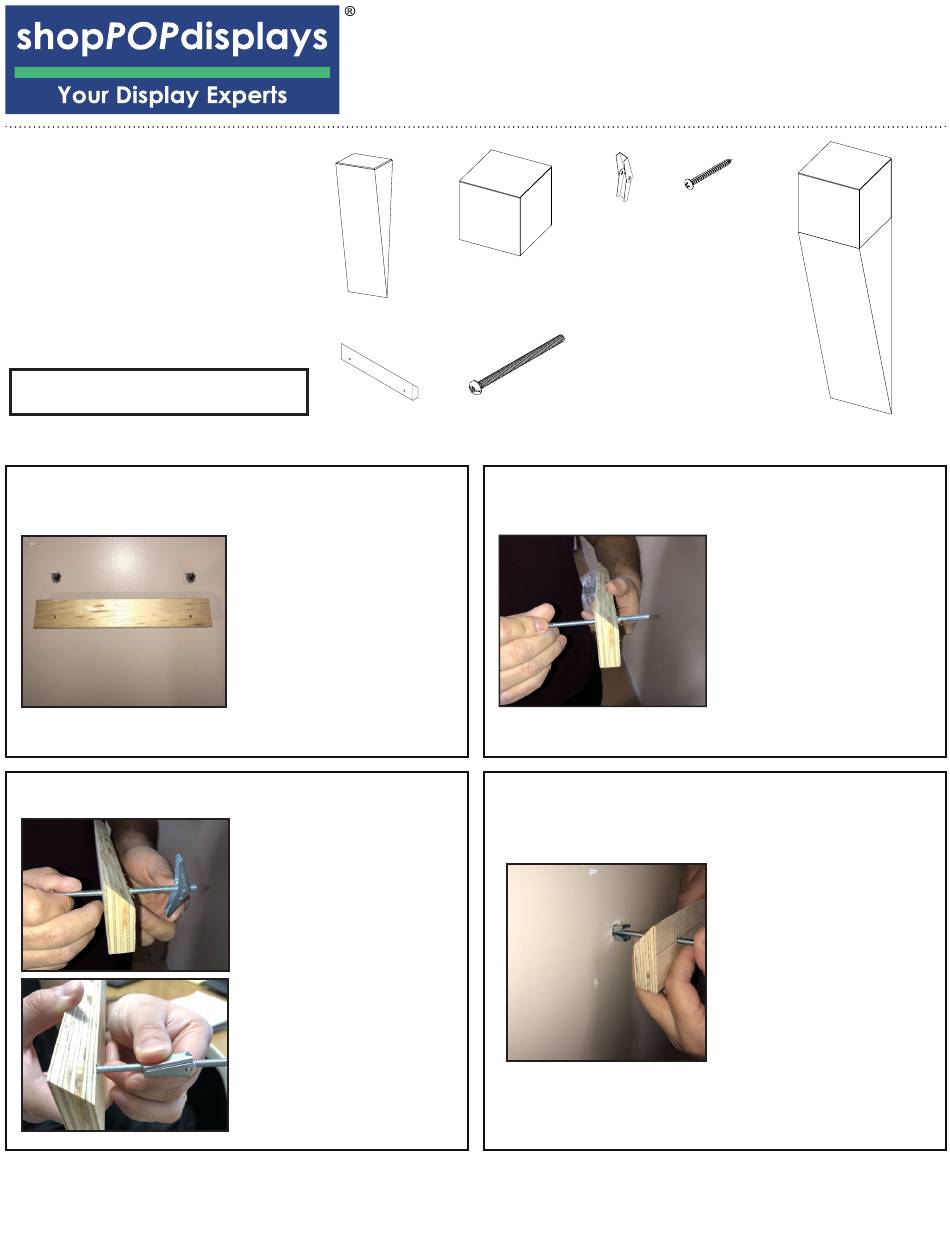

1: IDENTIFY ALL PIECES

PARTS (PIECES)
A. SHELF (1)
B. CLEAT (1)
C. ACRYLIC COVER (1)
D. BOLT (2)
E. WING (2)
F. SCREW (2)
PLEASE READ ALL INSTRUCTIONS
BEFORE ASSEMBLING
2 PERSON ASSEMBLY RECOMMENDED
*TOOLS REQUIRED: 1 POWERDRILL WITH 5/8" DIAMETER DRILL BIT AND PHILLIPS HEAD SCREWDRIVER (NOT INCLUDED)
**SCREW(PART F) MAY NOT BE NECESSARY AND IS INCLUDED IN CASE MOUNTING POSITION INTERSECTS STUD IN WALL.

2: DRILL MOUNTING HOLES

4: SCREW WINGS ONTO BOLTS

shopPOPdisplays makes no claim that these assembly instructions cover all details, conditions, or variations, or that they cover all possible contingencies in connection with the assembly or installation of this product. It is the
purchaser's responsibility to ensure that all components of this product are properly assembled and installed in accordance with these instructions. shopPOPdisplays assumes no obligation or liability on account of any third-party
recommendations, opinions, or advice as to the assembly or installation of this product.
WOODEN WEDGE WALL MOUNT SHELF
A
B
Unless Mounting into a stud,
drill two 5/8" diameter holes
that match the distance of the
two holes in the Cleat(B) when
it is in the desired position on
wall. These holes will be used
to mount the cleat.
Note : If mounting into a stud
in the wall, use a Screw(F) to
directy drill into the stud. If
mounting into a stud, do not
drill a 5/8" hole for that side.
Screw the Wings(E) onto the
Bolts(D) as shown. Screw the
wing about 1/3 of the way up
the bolt.
Note : The wing should be
positioned such that when
it is pinched, the wings fold
towards the cleat, as shown in
the bottom picture to the left.
(WITH ACRYLIC COVER)
ASSEMBLY INSTRUCTIONS
C E
D

3: INSERT BOLT INTO CLEAT

5: INSERT BOLTS INTO WALL

F
FINISHED PRODUCT
Insert both Bolts(D) into the
holes in the Cleat(B) in the
orientation as shown.
Note : The heads of the bolts
must be on the taller face of
the cleat when it is inserted.
With the wings screwed on,
insert the bolts into the holes
drilled in Step 2. Pinch the
wings and insert them into the
holes. Push Bolt into hole until
wing opens on other side of
drywall.
Note : When wing opens, you
cannot pull the bolt out of
wall and you cannot reposi-
tion the cleat.
Note : Ensure the short face of
the cleat is facing the wall.
