Sonance CINEMA LCR1 Instruction Manual

I N S T R U C T I O N M A N U A L
S O N A N C E C I N E M A
L C R 1 C A B I N E T S P E A K E R S
Introduction
Thank you for purchasing a
Sonance Cinema Series LCR1
Cabinet speaker. When properly
installed, these speakers will
deliver film soundtracks and
music with outstanding clarity
and realism, even in the largest
home theater rooms. To get the
most out of your new speakers,
please read this manual thor-
oughly before you begin instal-
lation.

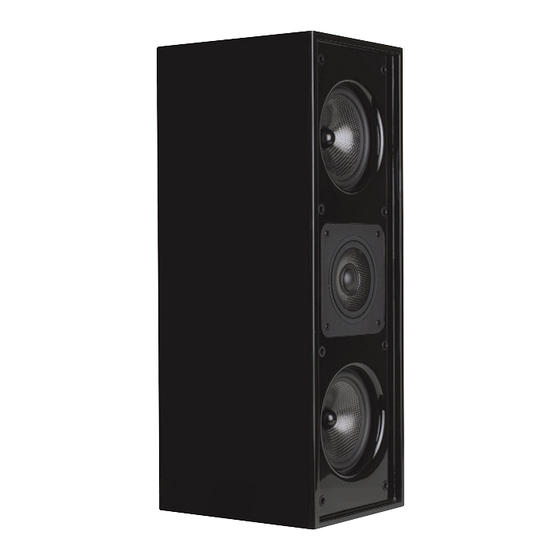

Box Contents
E a c h S o n a n c e C i n e m a L C R 1
C a b i n e t S p e a k e r
i n c l u d e s t h e f o l l o w i n g :
(1) Sonance Cinema Series LCR1
Cabinet speaker
(1) Cloth grille
(4) Self-adhesive rubber feet

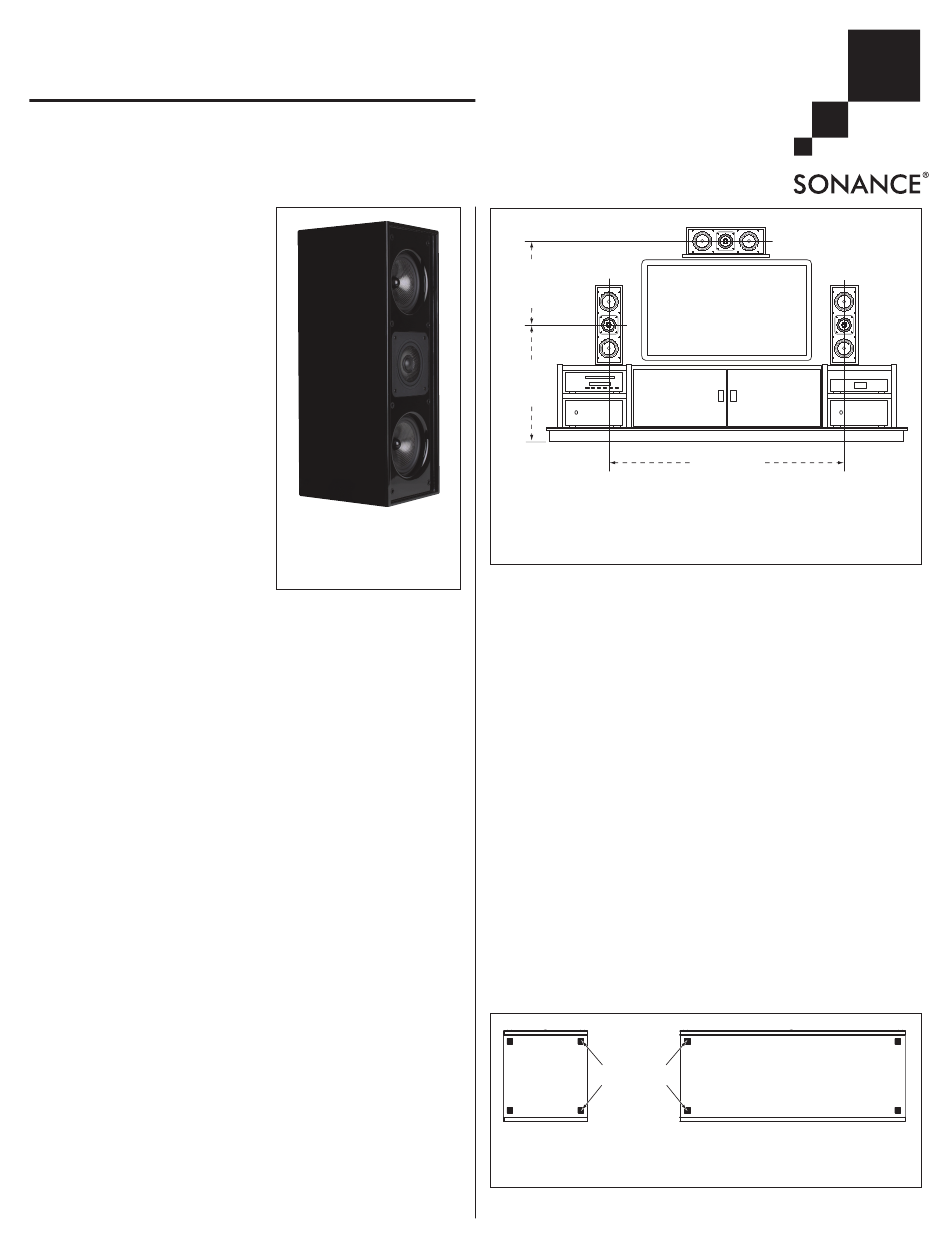

Speaker Placement
IMPORTANT: T S
HE ONANCE
25 . B ,
LBS EFORE PLACING IT
IS STURDY ENOUGH TO SUPPORT ITS WEIGHT
Sonance Cinema Series LCR1 Cabinet speakers can be oriented
either vertically or horizontally with nearly identical performance.
P l a c i n g t h e L e f t a n d R i g h t S p e a ke r s
In most cases you will want to orient the left and right speakers
vertically, but you can also orient them horizontally without
affecting their performance. Place the left and right channel
speakers on either side of the video screen, 6 – 10 feet (1.8m –
3m) apart, with their mid/tweeter units 3 – 4 feet (0.9m – 1.2m)
from the floor (which corresponds to the height of your ears when
you are seated on a couch or chair). The main listening position
should be 8 – 12 feet (2.4m – 3.7m) away from the speakers. Use
Figure 2 as a guide.
If you are placing the speakers inside of an entertainment
center or other furniture, bring the speakers all the way to the
fronts of the openings so their front edges are even with the front
edges of the furniture.
® S E R I E S
F 1:
IGURE
b o x
S C
ONANCE INEMA
LCR1 C
ABINET
C LCR1 C
INEMA ABINET SPEAKER WEIGHS
MAKE SURE THAT THE SHELF OR PLATFORM
.
2'
(0.6m)
(max)
3' – 4'
(0.9m –
1.2m)
S
ONANCE
S
ERIES
S
PEAKER
P l a c i n g t h e C e n t e r C h a n n e l S p e a ke r
In most cases you will want to orient the center speaker
horizontally, but you may also orient it vertically without affecting
its performance. Locate the center speaker as close to the same
height as the left and right speakers as possible. This will help
maintain consistent tonality between all three front speakers. If
you must place the center speaker above or below a video
screen, we recommend placing it no more than 2 feet (0.6m)
above or below the center of the left and right speakers. Use
Figure 2 as a guide.
If the center speaker is placed above or below ear level, angle it
up or down so it is aimed directly at the listeners. Use a pair of
rubber door stops or similar devices to elevate the front or rear
edge of the speaker cabinet as required.
Attaching the Rubber Feet
Peel the adhesive backing from the included rubber feet. If you
are orienting the speaker vertically, place the feet on one of the
speaker's end panels. If you are orienting the speaker horizontally,
place the feet on one of the speaker's side panels (see Figure 3).
The feet should be located approximately 1" (25mm) from the
speaker's edges.
Vertical
Orientation
6' – 10'
(1.8m – 3m)
apart
F 2:
IGURE
C S LCR1 C
INEMA ERIES ABINET
Attach
Rubber Feet
At Corners
F 3: A R
IGURE TTACHING THE UBBER
S P
PEAKER LACEMENT
Horizontal
Orientation
F
EET
1
