Summary of Contents for Huawei OptiXstar HN8010Ts-20

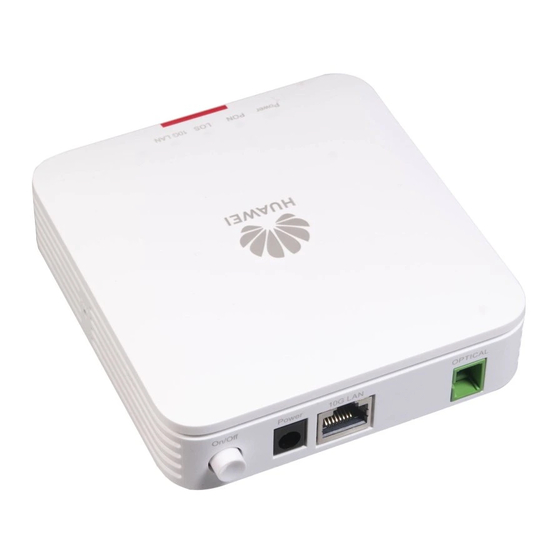

- Page 1 Huawei OptiXstar HN8010Ts-20 Quick Start for QR code Issue Date 2023-08-08 HUAWEI TECHNOLOGIES CO., LTD.
- Page 2 Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...
-
Page 3: Table Of Contents
Huawei OptiXstar HN8010Ts-20 Quick Start for QR code Contents Contents 1 Placing the Device........................1 2 Connecting Cables........................3 3 Indicator Description......................5 4 Technical Specifications......................7 5 FAQs............................8 Issue 01 (2023-08-08) Copyright © Huawei Technologies Co., Ltd. -
Page 4: Placing The Device
The figure below shows an ONT that is horizontally placed on a desk. NO TE The appearance shown in this document may be different from the actual appearance of the product. The actual product prevails. Issue 01 (2023-08-08) Copyright © Huawei Technologies Co., Ltd. - Page 5 ONT onto the screws. NO TE It is recommended that the screw be about 4 mm in diameter and longer than 20 mm. Issue 01 (2023-08-08) Copyright © Huawei Technologies Co., Ltd.
-
Page 6: Connecting Cables
● The fiber connector connected to the optical port on the wall varies depending on actual conditions. ● To ensure normal use of fibers, make sure that the fiber bending radius is larger than 30 Issue 01 (2023-08-08) Copyright © Huawei Technologies Co., Ltd. - Page 7 NOTE Reset Huawei ONTs with caution. Otherwise, the ONTs may fail to access the Internet. If an ONT cannot access the Internet after a reset, contact your Internet service provider.
-
Page 8: Indicator Description
Steady on A connection is set up between the ONT and its upper-layer device. Blinks once The ONT is not connected to fibers every 2 or does not receive optical signals. seconds Issue 01 (2023-08-08) Copyright © Huawei Technologies Co., Ltd. - Page 9 Blinks once The hardware is faulty. every 2 every 2 seconds seconds NO TE If the ONT is not powered on or the power switch is turned off, all indicators are off. Issue 01 (2023-08-08) Copyright © Huawei Technologies Co., Ltd.
-
Page 10: Technical Specifications
Ambient humidity: 5%–95% (non-condensing) ● Dimensions (H x W x D): 32 mm x 105 mm x 110 mm (Without pads) ● Weight: About 163g ● Maximum system power consumption: 6 W Issue 01 (2023-08-08) Copyright © Huawei Technologies Co., Ltd. -
Page 11: Faqs
58/Edge 14/Firefox 54/Safari 10/Opera 55 or later is recommended. If the browser of an earlier version is used, compatibility issues may occur. Use a network cable to connect a PC to the Huawei ONT. Set the IP address of the PC in the same subnet as the web address of the For example, if the web address of the Huawei ONT is Huawei ONT. - Page 12 How do I restore the Huawei ONT to factory setting? Press Reset by using a needle-type object for longer than 10s to restore factory defaults and reset the Huawei ONT. If the indicator is off and then is lit, the system restarts successfully.
Need help?
Do you have a question about the OptiXstar HN8010Ts-20 and is the answer not in the manual?
Questions and answers

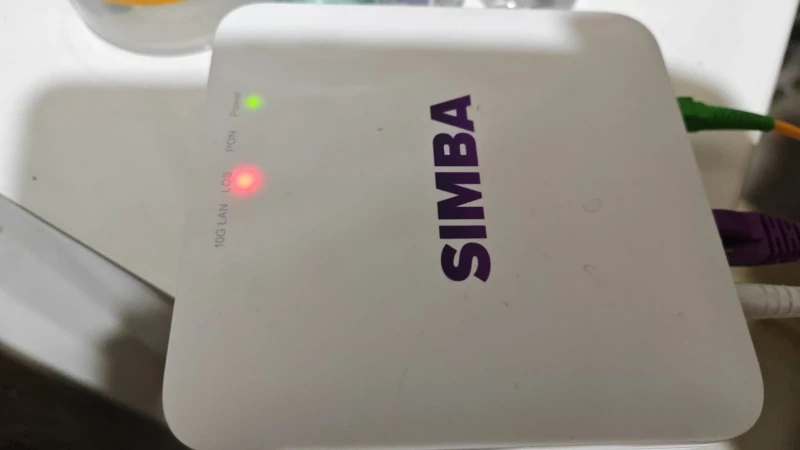

Why LOS light is blinking
The LOS light on the Huawei HN8010Ts-20 is blinking because the ONT is either not connected to fibers or is not receiving optical signals.
This answer is automatically generated
