Related Manuals for Huawei EchoLife EG8141A5-10
Summary of Contents for Huawei EchoLife EG8141A5-10
- Page 1 EchoLife EG8141A5-10 Quick Start for QR code Issue Date 2023-05-08 HUAWEI TECHNOLOGIES CO., LTD.
- Page 2 Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...
-
Page 3: Table Of Contents
EchoLife EG8141A5-10 Quick Start for QR code Contents Contents 1 Placing the Device........................1 2 Connecting Cables........................3 3 Indicator Description......................5 4 Technical Specifications......................7 5 FAQs............................8 Issue 01 (2023-05-08) Copyright © Huawei Technologies Co., Ltd. -
Page 4: Placing The Device

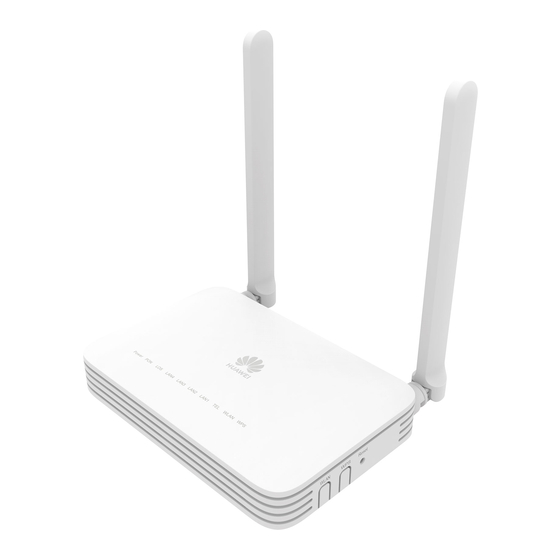

The figure below shows an ONT that is horizontally placed on a desk. NO TE The appearance shown in this document may be different from the actual appearance of the product. The actual product prevails. Issue 01 (2023-05-08) Copyright © Huawei Technologies Co., Ltd. - Page 5 NO TE It is recommended that the screw be about 4 mm in diameter and longer than 20 mm. The screw head should be between 6 mm and 9 mm in diameter. Issue 01 (2023-05-08) Copyright © Huawei Technologies Co., Ltd.
-
Page 6: Connecting Cables
● The fiber connector connected to the optical port on the wall varies depending on actual conditions. ● To ensure normal use of fibers, make sure that the fiber bending radius is larger than 30 Issue 01 (2023-05-08) Copyright © Huawei Technologies Co., Ltd. - Page 7 NOTE Reset Huawei ONTs with caution. Otherwise, the ONTs may fail to access the Internet. If an ONT cannot access the Internet after a reset, contact your Internet service provider.
-
Page 8: Indicator Description
The WLAN function is enabled. Blinking Data is being transmitted over the WLAN port. The WLAN function is disabled. Steady on The WPS function is enabled. Blinking A Wi-Fi terminal is accessing the system. Issue 01 (2023-05-08) Copyright © Huawei Technologies Co., Ltd. - Page 9 Blinks once every 2 The ONT is not connected to seconds fibers or does not receive optical signals. Blinks once Blinks once every 2 The hardware is faulty. every 2 seconds seconds Issue 01 (2023-05-08) Copyright © Huawei Technologies Co., Ltd.
-
Page 10: Technical Specifications
● Dimensions (H x W x D): 32 mm x 145 mm x 97 mm (without external antenna and pads) ● Weight: About 155g ● Maximum system power consumption: 12 W Issue 01 (2023-05-08) Copyright © Huawei Technologies Co., Ltd. -
Page 11: Faqs
● Wireless login Connect your mobile phone, pad, or PC to the Wi-Fi network of the Huawei ONT. Enter the IP address in the address box of a browser and press Enter. On the displayed login page, enter the username and password. - Page 12 ● Change the initial password after logging in to the web page for the first time. How do I change the Wi-Fi password? Log in to the Huawei ONT web page using your mobile phone, pad, or PC. For details, see "How do I log in to the Huawei ONT web page?"...
- Page 13 ONT positions or add new repeaters to enhance the Wi-Fi coverage. 3. Using the correct radio channel. Generally, the Huawei ONT automatically selects the optimal channel. If the network is slow or the quality turns poor from time to time, you can use a Wi-Fi scanner such as Wi-Fi Stumbler or Wi-Fi Analyzer to search for the optimal channel.
- Page 14 How do I restore the Huawei ONT to factory setting? Press Reset by using a needle-type object for longer than 10s to restore factory defaults and reset the Huawei ONT. If the indicator is off and then is lit, the system restarts successfully.
Need help?
Do you have a question about the EchoLife EG8141A5-10 and is the answer not in the manual?
Questions and answers
When it flashes red
The Huawei EchoLife EG8141A5-10 flashes red when there is a hardware fault.
This answer is automatically generated
No me acuerdo mi contraseña

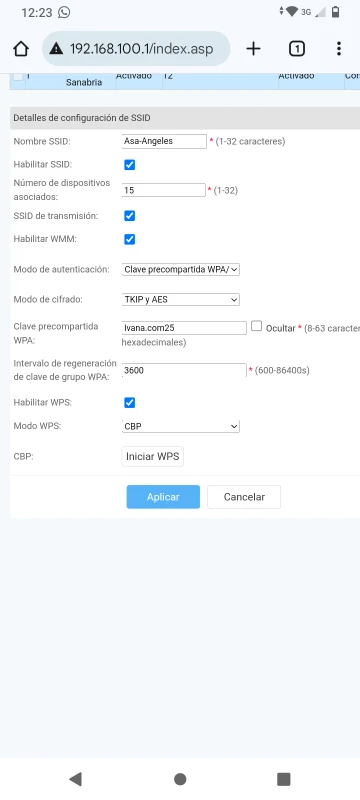

To reset the password for the Huawei EchoLife EG8141A5-10:
1. Log in to the Huawei ONT web page using a mobile phone, tablet, or PC. Use the login user name and password printed on the ONT nameplate.
2. Navigate to Advanced Configuration > WLAN and select Basic Network Settings to change the Wi-Fi password.
3. If you forget the Wi-Fi password, log in to the Huawei ONT web page using a PC with a wired connection and follow the same steps.
4. Change the initial password after the first login for security reasons.
If the login password is forgotten, a factory reset may be required by pressing the reset button on the device.
This answer is automatically generated
I am using Huawei echolife eg8141a5 router ,and I blacklisted someone using wifi mac filter and now no one can connect the wifi network.
