Panasonic RZ-B120W Operating Instructions Manual
Panasonic RZ-B120W Operating Instructions Manual

Panasonic RZ-B120W Operating Instructions Manual

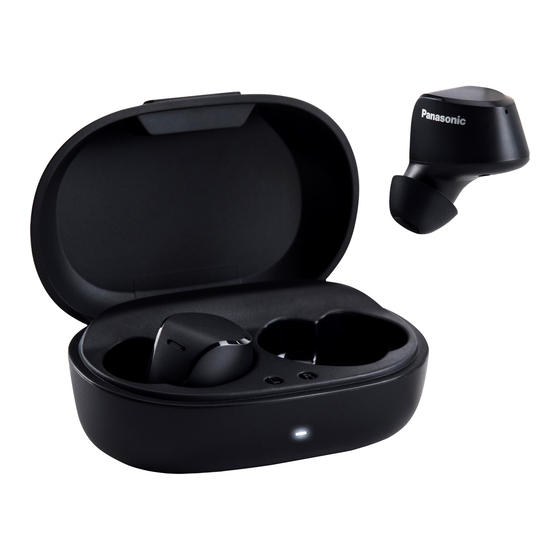

Digital wireless stereo earphones

Advertisement

Quick Links

Operating Instructions
Digital Wireless Stereo Earphones
RZ-B120W
Model No.
Thank you for purchasing a Panasonic product.
Please read these operating instructions before using the unit and save them for
future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RZ-B120W and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic RZ-B120W

  • Page 1 Operating Instructions Digital Wireless Stereo Earphones RZ-B120W Model No. Thank you for purchasing a Panasonic product. Please read these operating instructions before using the unit and save them for future reference.
  • Page 2 Table of Contents Before use Accessories ..........3 (Important) About water resistance ....3 Charging ............4 How to fit the earphones ......5 Part names ...........6 Turning the earphones on and off ....7 ® Connecting to a Bluetooth device ....8 Operation Listening to music ........10 Making a phone call ........10 Activating voice functions ......11 Operating with the touch sensors ....11...
  • Page 3 Before use Expressions used in this document R The product illustrations may differ from the actual product. Accessories 1 x USB charging cord (Input plug: USB Type-A Shape, Output plug: USB Type-C Shape) 1 x Earpieces set (2 each of sizes S, M, and L) (M size fitted to the earphones) (Important) About water resistance Specifications for this unit are equivalent of IPX4 of IEC 60529, the protection level of electronic device enclosures that protects from splashes, and is not designed to be totally waterproof.
  • Page 4 Before use Charging The chargeable battery (installed in the unit) is not charged initially. Charge the battery before using the unit. Before initial use: Remove the insulation sheet before charging. : USB charging cord (supplied) : Power source (e.g., PC) Use the USB charging cord (supplied) to connect the charging cradle to a 5.0 V power source (500 mA or higher).
  • Page 5 Before use Note: R Do not use any other USB charging cords except the supplied one. Doing so may cause malfunction. R Charging may not be performed or may stop if the computer is in or switched to standby or sleep mode.
  • Page 6 Before use Removing the earpieces R Hold the earpiece with your fingertips and twist slightly to pull it out. How to attach the earpieces R Make sure the earpieces are fitted firmly onto the earphones and confirm that they are not at an angle.
  • Page 7 Before use Microphones Raised dot indicating the L side Earpieces Charging contacts Main unit (Charging cradle) Rear G Charging cradle lid H Charging slot I Status indicator J Charging terminal R Connect the USB charging cord (supplied) to this terminal when charging. (page 4, “Charging”) Turning the earphones on and off n To turn the earphones on Take the earphones out of the charging cradle.
  • Page 8 ® Turn on the Bluetooth device and enable the Bluetooth function. ® ® From the Bluetooth menu of the Bluetooth device, select device name “RZ-B120W”. e.g. RZ-B120W Bluetooth Bluetooth Device Select RZ-B120W ® Confirm that the earphones and the Bluetooth device are connected.
  • Page 9 ® ® From the Bluetooth menu of the Bluetooth device, select device name “RZ-B120W”. ® Confirm that the earphones and the Bluetooth device are connected. Note: R If you have two devices paired and the last device you used with the earphones was the ®...
  • Page 10 Operation Listening to music ® ® If the Bluetooth compatible device supports the “A2DP” and “AVRCP” Bluetooth profiles, music can be played back with remote control operations on the unit. R A2DP (Advanced Audio Distribution Profile): Transmits audio to the unit. R AVRCP (Audio/Video Remote Control Profile): Allows remote control of the device using the unit.
  • Page 11 Operation Activating voice functions You can use a touch sensor on the earphone to activate the voice functions (Siri, Google Assistant, etc.) on your smartphone or similar device. ® ® Connect the Bluetooth device and the unit. (page 8, “Connecting to a Bluetooth device”) Touch and hold the L touch sensor for 2 seconds to activate the voice function.
  • Page 12 Operation Function Touch sensor (L) Touch sensor (R) Turning on Touch and hold L or R for about 3 seconds Turning off Touch and hold for about 5 seconds in disconnected state Note: R You can also use just one side of the earphones independently. (page 12, “Using just one earphone”) Using just one earphone By pairing (registering) this unit, you can also use just one of the earphones independently.
  • Page 13 R To re-pair the earphones with a Bluetooth device, delete the registered information (device ® name: RZ-B120W) on the device, then pair the earphones with the Bluetooth device again. Firmware updates If it is necessary to update the firmware for the unit, we will post a notification on the following website.
  • Page 14 Other R Is the unit already charged? If the unit is fully charged, the status indicator will light red immediately. R If the status indicator does not flash or light even after putting the earphones into the charging cradle, there is no charge remaining in the charging cradle battery. First charge the charging cradle.
  • Page 15 Other Cannot make a phone call. ® R Check if the Bluetooth compatible device supports “HFP” profile. For details on profiles, see “Listening to music” (page 10) and “Making a phone call” (page 10). Also refer to the operating ® manual for the Bluetooth enabled phone.
  • Page 16 Other Specifications n General Power supply DC 5 V, 500 mA (Charging cradle) Internal battery Earphones: 3.7 V, Lithium polymer 45 mAh Charging cradle: 3.7 V, Lithium polymer 450 mAh Approx. 6.5 hours (AAC) Operating time Approx. 6.5 hours (SBC) (Earphones) Approx.
  • Page 17 The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Holdings Corporation is under license. Other trademarks and trade names are those of their respective owners. Siri is a trademark of Apple Inc., registered in the U.S. and other countries.
  • Page 18 Other R The actions below are punishable by law in some countries: – Taking apart/modifying this unit. – Removing specification indications. Restrictions of use ® R Wireless transmission and/or usage with all Bluetooth equipped devices is not guaranteed. R All devices must conform to standards set by Bluetooth SIG, Inc. R Depending on the specifications and settings of a device, it can fail to connect or some operations can be different.
  • Page 19 Other Earpiece Cleaning Regular cleaning is necessary to continue using the earpieces comfortably. Remove the earpieces. R Hold the earpiece with your fingertips and twist slightly to pull it out. R If you clean the earpieces while they are attached to the earphones, you may damage the protective mesh on the earphones.
  • Page 20 Other When the earpieces are very dirty Wash the earpieces with the tips of your fingers. (Using a diluted neutral detergent in warm water is effective.) Rinse well with clean water after washing. Put in between a soft, dry cloth, press firmly 3 to 5 times to ensure the moisture is eliminated.
  • Page 21 Other Clean the charging contacts of charging cradle Use cotton swab to gently clean the charging contacts of the charging cradle. Use a cotton swab to the tip of the charging contacts (B) from above. Wipe off dirt by stroking the tip of the charging contacts with a cotton swab. Important: Do not apply force to the charging contacts from the side or at any angle.
  • Page 22 Notes...
  • Page 23 Notes...
  • Page 24 © Panasonic System Networks Malaysia Sdn. Bhd. 2024 PNQP1929ZA PP0624NE0...
