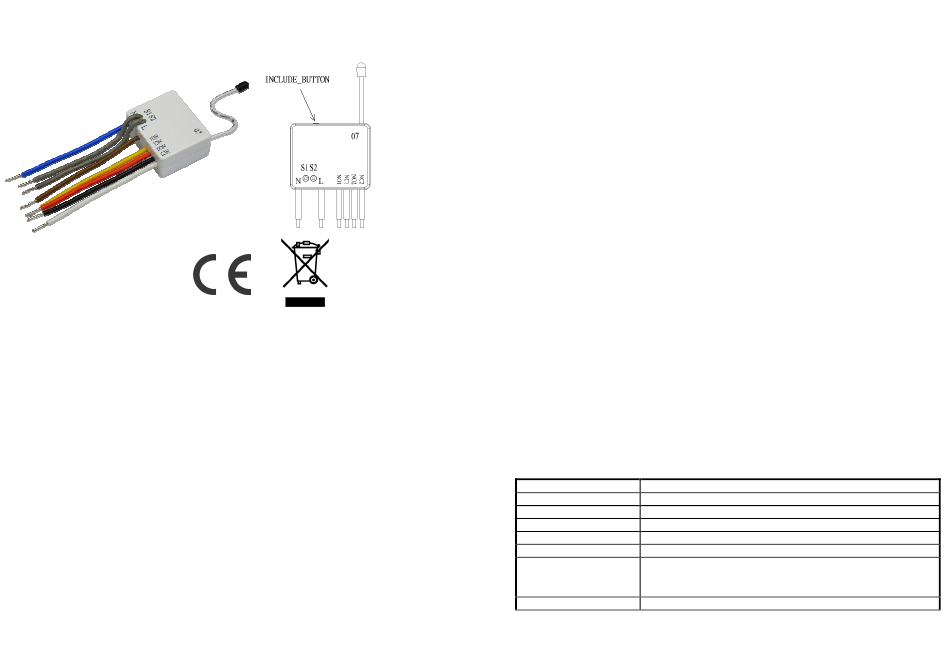

PAN07
TWO SPDT Switch module with meter
Introduction
This in-wall dual relay switch module is a transceiver which is a Z-Wave Plus
enabled device and is fully compatible with any Z-Wave
size design let the module can easily hide itself into the wall box and that will be
good for the house decoration.
There are many kind of application by using the module to switch AC power On
and Off, one main application is the light control. The new smart relay calibration
technology can reduce the inrush current caused by the load and let the module
work perfectly with many kind of light like incandescent, fluorescent and LED
light.
This in-wall switch module is able to detect Instant power wattage and overload
current (6A with resistive load) of connected light or appliances. When detecting
TM
TM
enabled network. Mini
1
overload state, the Module will be disabled and its On/Off button will be lockout
of which LED will flash quickly. However, disconnect and re-connect the Module
will reset its overload condition to normal status.
Safety Precautions and Installation
Avoid installing the unit in storming or raining weather.
Be sure to isolate or switch off power source before installing or
maintenance.
Do ensure that the power supply circuit protected by a 16A circuit breaker
or suitable equivalent fuse.
IMPORTANT
Installation must be performed by skilled technicians who are informed
about the standards and technical requirements of the appliance and its
proper installation.
Check your local codes as they apply to your situation. If the house wiring
is of aluminum, consult with an electrician about proper wiring methods.
Before proceeding with the installation, TURN OFF THE POWER TO THE
LIGHTING CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID
ELECTRICAL SHOCK.
Specification
Rated Voltage
100-240VAC 50Hz/60Hz 5A
Maximum Load
5A (230Vac/120Vac) (Resistive load)
Range
Minimum 40m indoor 100m outdoor line of sight
Operating Temperature
0° C
to
40° C
Humidity
Up to 85% max.
Storage Temperature -20° C to 60° C
Frequency Range
868.40MHz; 869.85MHz (EU)
908.40MHz; 916.00MHz (USA/Canada)
920.9MHz, 921.7MHz, 923.1MHz (TW/KR/Thai/SG)
RF Power
+5dBm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAN07 and is the answer not in the manual?

Questions and answers

Related Manuals for Philio PAN07

Summary of Contents for Philio PAN07

  • Page 1 Module will be disabled and its On/Off button will be lockout PAN07 TWO SPDT Switch module with meter of which LED will flash quickly. However, disconnect and re-connect the Module will reset its overload condition to normal status.

  • Page 2: Troubleshooting

    For Instruction to http:// www.philio-tech.com FCC ID RHHPAN07 Dimensions 47.5 x 39 x16 mm Wire 0.75mm², 18AWG ** Specifications are subject to change and improvement without notice. Troubleshooting Cause of Failure Recommendation Symptom The Switch not working and The Switch is not...

  • Page 3: Led Indication

    ID to the Switch. 2-second off PAN07 already installed in a wall box. To solve this issue, PAN07 support a special 1. Put your Z-Wave controller into feature that can use S1 or S2 to execute exclusion, inclusion, Reset or Association” at...
  • Page 4 Note: If the BASIC_GET/BINARY_SWITCH_GET command follow the switch On/Off command, it should add 0.5s time delay before the Get 2. Connect the wall switch to the PAN07 as Fig1. command. 3. To manually turn ON the Switch, press and release the On/Off button. The...
  • Page 5 3 association groups which every group has one node support. Group1~Group3 support SWITCH_BINARY_REPORT, When PAN07 detect the overload, it will send Alarm Report to the correspond METER_REPORT_COMMAND_V3 Group。 For group 1, the Switch will report (1) ON/OFF status of Relay1 and Relay2 (2)
  • Page 6 Command to the node asked. Precision = 1 Size = 2 (2 Bytes of V) Meter Value 1 = 0x09(V) Meter Get Command: [Command Class Meter, Meter Get, Scale = 0x00 KW/h)] Meter Value 2 = 0x01(V) AC load Voltage = (Meter Value 1*256) +(Meter Value 2)= 230.5 (V) Meter Report Command: I I I I 2-2-5 AC load current (...
  • Page 7 If endpoint set to 2 and PAN07 will reply state of Relay2. will reply ON(0xFF) when Relay is If endpoint set to 3 and PAN07 will reply ON(0xFF) either Relay 1 or Relay2 ON, report OFF (0x00) when Relay 1 is ON, report OFF(0x00) when both Relay 1 and Relay2 OFF.
  • Page 8 (Command_Class_Meter_V3 = 0x32) 2-3-3 METER_SUPPORTED_GET： ： ： ： Command =0x04 (Meter_Supported_Report = 0x04) This command is to ask the endpoint of PAN07 what kind of meter data can be reported (Meter Reset =1 ， Meter Type=0x01) Parameter 1 = 0x81...
  • Page 9 2-3-5 METER_GET： ： ： ： 0x05) command inquirer’s Endpoint value) Using meter get command to get the KWH, W, V, I, PF from endpoint of PAN07 2-3-5-1 Get KWH from endpoint Command Class = 0x32 (Command_Class_Meter_V3 = 0x32) Meter_GET example:...
  • Page 10 Meter_GET example: Parameter 1 = 0x10 (Scale = W = 0x02) COMMAND_CLASS_MULTI_CHANNEL MULTI_CHANNEL_CMD_ENCAP PAN07 Instant Power Consumption (W) Report example： Source End Point = 0x05 (this is the endpoint of command inquirer, here we assume endpoint is 5，if the COMMAND_CLASS_MULTI_CHANNEL...
  • Page 11 (this is the endpoint of command inquirer, here we assume endpoint is 5，if the inquirer doesn’t support multi PAN07 AC load Voltage report example： Channel this value will be 0) COMMAND_CLASS_MULTI_CHANNEL (Bit Address =0；Destination End Point (Bit Address+Destination End Point =...
  • Page 12 Parameter 1 = 0x30 (Scale = PF = 0x06) Command Class = 0x32 (Command_Class_Meter_V3 = 0x32) Command =0x02 (Meter_Report = 0x02) PAN07 power factor report example： (Scale Bit2 = 1 ，Rate Type = 0x01， Parameter 1 = 0xA1 COMMAND_CLASS_MULTI_CHANNEL Meter Type=0x01) MULTI_CHANNEL_CMD_ENCAP (Precision = 2，Scale Bit1Bit0 = 0x01，...
  • Page 13 3-1 Watt Meter Report Period: Meter 0x7FFF Report KWH Report 1~0x7FFF: If the setting is configured for 1hour (set value =720), the PAN07 will report its instant power consumption every 1 hour to the node of correspond Group. Period 6*10min= 1 hour Slected 1：Relay1...
  • Page 14 Relay1 I1+Relay2 I2 setting value is 600 (6A), when the load current of Relay1 over this value, Meter_Get Current PAN07 will send current meter report to the node of correspond Group, the Meter_Get Power factor PF Only Relay1 Range of the setting value is from 10 to 600, and the default value is 600 (6A).
  • Page 15 The Switch supports Command Classes including… 3-10-1 Disable : The function of Watt differential report will be disabled. * COMMAND_CLASS_ZWAVEPLUS_INFO 3-10-2 5% : When the differential value of Watt is over 5%, PAN07 will send a * COMMAND_CLASS_VERSION_V2 meter report to the associated group.

  • Page 16: Fcc Interference Statement

    They can take this product for environmental safe recycling. for compliance could void the user's authority to operate this equipment. Philio Technology Corporation This transmitter must not be co-located or operating in conjunction with any other antenna 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City or transmitter.
