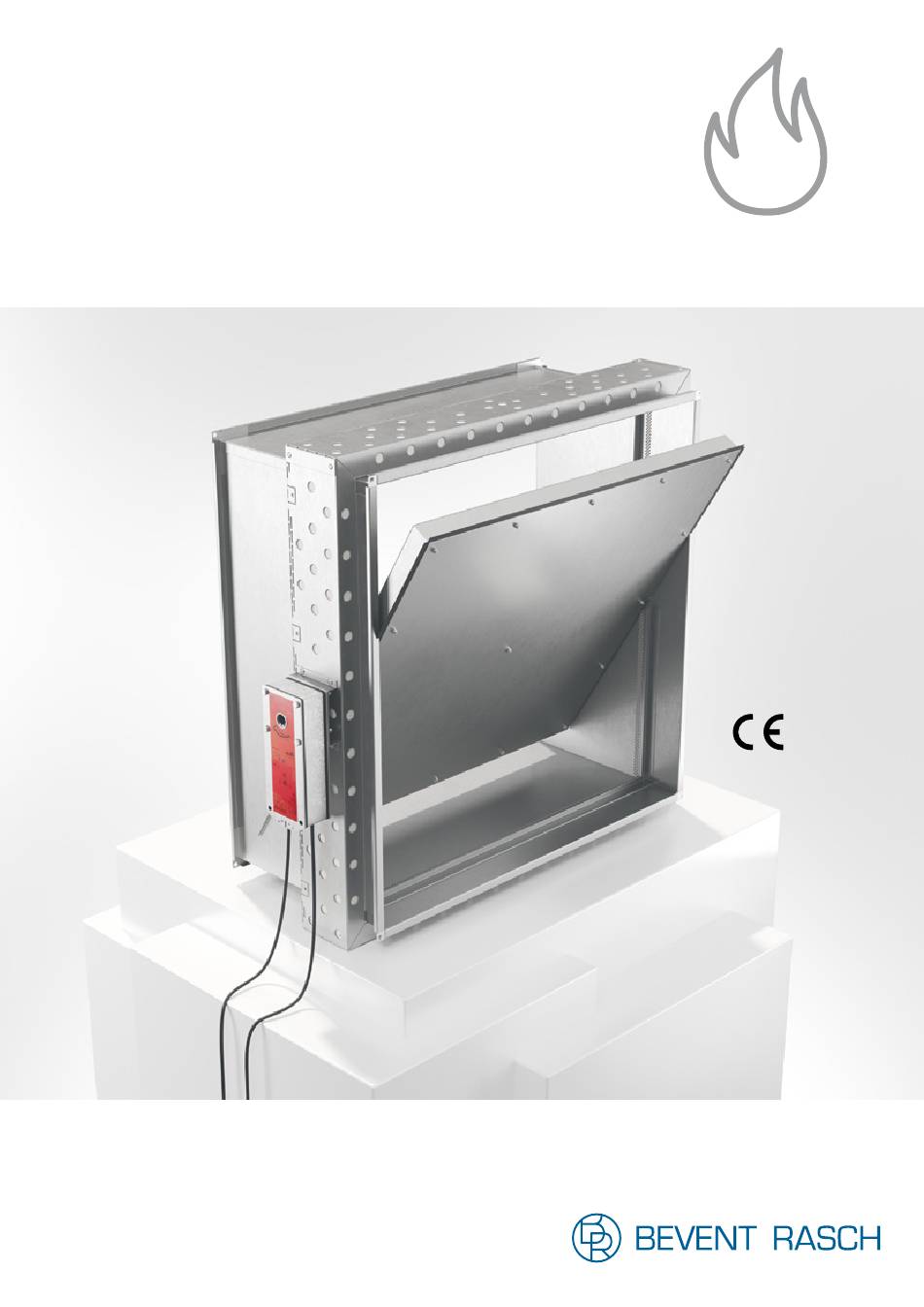

- Page 1 BSK6R Rectangular regulating fire damper FIRE SAFETY 20/06/2024 www.bevent-rasch.com...
-
Page 2: Installation
• CE-marked building product according to 15650:2010 Installation Two dampers and actuator in one! BSK6R is installed in fire cell separating walls or joist sys- Bevent Rasch has developed a fire damper, fire class tems, according to the adjoining installation instructions. -
Page 3: Specification
Dampers for protection against the spread of fire and Example: combustion gases shall be closed via impulses from a Fire damper BSK6R - 600 - 400 - 1 - 0 smoke detector. Smoke detectors are mounted in ventila- tion ducts or monitored spaces. Fire dampers, smoke Size... -
Page 4: Dimensions And Weight
Brand-/Brandgasspjäll BSKC6 EI60 Regulating fire damper BSK6R EI60 / EI60S Dimensions and weight max*) Flanged connection *) applies to standard design Dimensions, mm Weight incl. 24V actuator, kg Tel +46 (0)33 - 23 67 80 Tel +46 (0)8 - 54 55 12 70 BORÅS... - Page 5 EI60 Brand-/Brandgasspjäll BSKC6 EI60 / EI60S Regulating fire damper BSK6R Installation Connection spigot Extension spigot RBFS BRAS Min. damper BRAS RBFS Ød size 200 x 200 – – 200 x 200 – – 200 x 200 – – 200 x 200 –...
-
Page 6: Technical Data
Sound data The speed is calculated on the damper’s gross area, i.e. a BSK6R - 400 x 400 has a gross area of 0.16 m The specified pressure drop applies to the damper without accessories. Due to the thickness of the damper blades, noise and pressure drop data differs in the smaller sizes compared to the larger when the damper is fully open. -
Page 7: Wiring Diagram
EI60 Brand-/Brandgasspjäll BSKC6 EI60 / EI60S Regulating fire damper BSK6R Potential free contact max. 24 V AC, 3 A Wiring diagram Drawn in de-energised/alarm mode. *) Microswitch for O only includ- Option 1 – Connection to parent system Option 2 – Connection to RCTU... -
Page 8: Installation Instruction
Regulating fire damper BSK6R EI60 / EI60S Installation instruction Building element (wall or joist structure) in fire resistance class EI60. Damper’s fire resistance class: EI60 (ve ho i <-> o) S. EC certificate 0402-CPR-SC1299-13 Option 1 Option 2 Reinforcement joist, Refinish...
