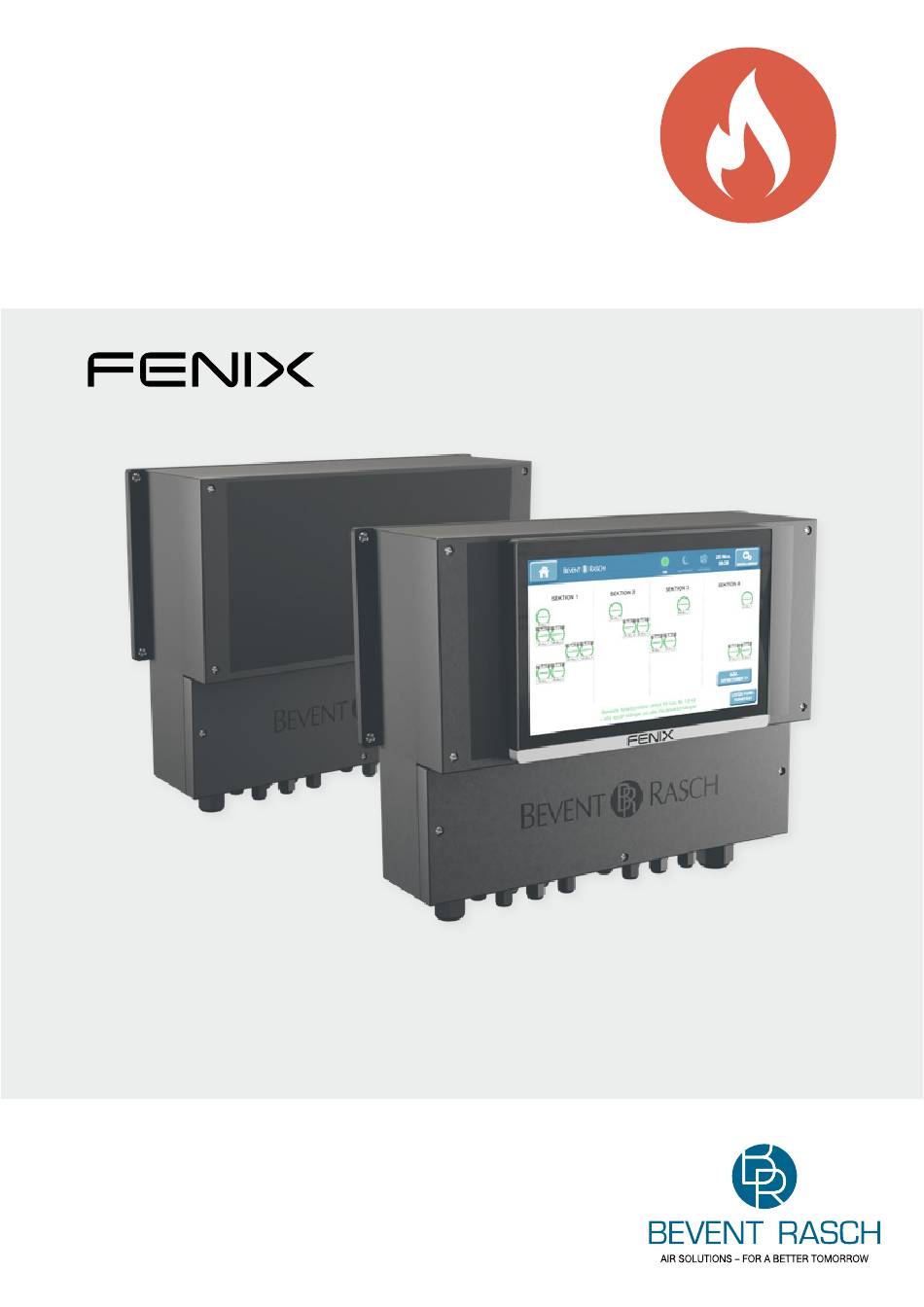

- Page 1 FENIX4 / FENIX+ Monitoring system FIRE SAFETY Commissioning instruction 22/01/2021 www.bevent-rasch.com...
-
Page 2: Table Of Contents
Management and service ................10 General The FENIX4 master control unit and FENIX+ slave unit contain electronic com- ponents that may be damaged in the event of improper use. When connecting dampers, smoke detectors and other connections, the unit must be powered... -
Page 3: Products
The FENIX 0-10 V module is mounted on a wall or cable ladder. Power supply cables and end position indication from the damper motor are connected directly to the damper module. This in turn, is connected to FENIX4 master or FENIX+ slave unit. -
Page 4: Connection
S2 S6 G0 0-10 V 0-10 V FENIX 0-10 V Between FENIX4 and FENIX+ slave units: UTP cable AWG22, AWG24 with 2 pairs. For local 0-10 V 0-10 V A, , B, N must be connected (one conductor will be over). - Page 5 FENIX4 Monitoring system – Commissioning instruction 2. Connection cont. Connection terminals Function Description 4+5, 11+12, 18+19, Connection of smoke detector Each smoke detector circuit should have a 2.2 kOhm's resistance mounted at the 25+26 circuits end of the circuit, see the wiring diagram. The terminating resistance of 2.2 kOhm is connected to the last detector in each circuit.
-
Page 6: Commissioning
FENIX4 Monitoring system – Commissioning instruction 3. Commissioning 1. Make sure that connected slave units are addressed in the order 1, 2, 3 according to the addressing knob at the far right of the FENIX+ slave unit as shown below. If no FENIX+ slave unit is used, you can ignore this point. - Page 7 FENIX4 Monitoring system – Commissioning instruction Make sure that the number of FENIX+ slave units found matches your installation. If the number of units is not correct, use the trouble- shooting guide on the display. Example system with 1 FENIX+ slave unit.
- Page 8 FENIX4 Monitoring system – Commissioning instruction Symbol descriptions SLAVE 1 SLAVE 1 SLAVE 1 SLAVE 1 SLAVE 1 DAMPER 1 DAMPER 1 DAMPER 1 DAMPER 1 AMPER AMPER DAMPER 1 AMPER AMPER DAMPER 1 AMPER AMPER DAMPER 1 AMPER AMPER...
-
Page 9: Functions
If necessary, you can easily perform a functional test via tates any service and troubleshooting in the event of a fault the display on FENIX4. Can also be performed by shorting during the lifespan of the property. The same pedagogical terminals 32 and 33. -
Page 10: Management And Service
FENIX4 Monitoring system – Commissioning instruction Management and service The FENIX system is designed to facilitate management and service by present- ing troubleshooting suggestions and measures for each specific service issue. This means that you do not have to keep any troubleshooting manuals and other documentation. - Page 11 FENIX4 Monitoring system – Commissioning instruction Tel +46 (0)33 - 23 67 80 Tel +46 (0)8 - 54 55 12 70 BORÅS STOCKHOLM...
- Page 12 www.bevent-rasch.com...
