- Page 1 BSK6 Rectangular Fire damper FIRE SAFETY 13/09/2017 www.bevent-rasch.com...

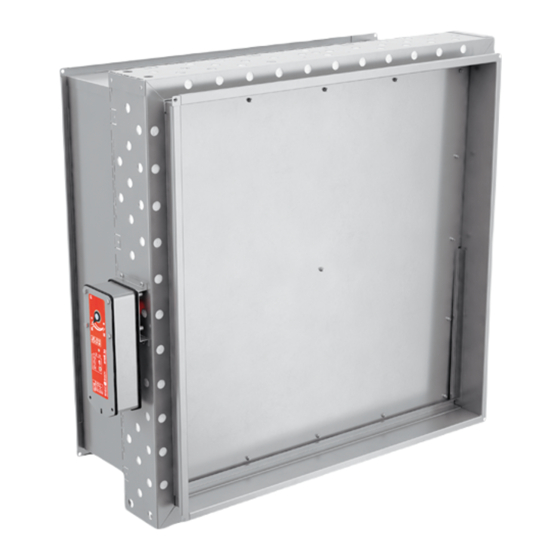

- Page 2 EI60 Quick facts Installation BSK6 is installed in duct work separating walls or joist sys- • Fire resistance class EI60 / EI60S tems, according to the adjoining installation instructions. • Sizes from 200 x 200 mm to 800 x 800 mm Should not be installed outdoors or in damp areas.
- Page 3 From 200 x 200 mm to 800 x 800 mm, in steps of 50 mm. Example: Design Fire damper BSK6 - 400 - 400 - 1 - 1 BSK6 is supplied complete with factory mounted, Size maintenance-free, 24V or 230V electric safety actuator...
- Page 4 Brand-/Brandgasspjäll BSKC6 EI60 Fire damper BSK6 EI60 Dimensions and weight max*) Flanged connection *) applies to standard design Dimensions, mm Weight incl. 24V actuator, kg Electrical data (values in brackets refer to 230V) Wiring Actuator diagram Actuator type BF... Sizing, max ...... 10 VA (12.5 VA) Running time: 5°...
- Page 5 EI60 Brand-/Brandgasspjäll BSKC6 EI60 Fire damper BSK6 Installation Connection spigot Extension spigot RBFS BRAS Min. damper BRAS RBFS Ød size 200 x 200 – – 200 x 200 – – 200 x 200 – – 200 x 200 – –...
- Page 6 Technical data Sound data The speed is calculated on the damper’s gross area, i.e. a BSK6 - 400 x 400 has a gross area of 0.16 m The specified pressure drop applies to the damper without accessories. Sound power level 1 Damper Height <...
- Page 7 EI60 Brand-/Brandgasspjäll BSKC6 EI60 Fire damper BSK6 Installation instruction Building element (wall or joist structure) in fire resistance class EI60. Damper’s fire resistance class: EI60 (ve ho i <-> o) S. EC certificate 0402-CPR-SC1299-13 Option 1 Option 2 (Protective grille,...
