Syba NS1068 Installation

Introduction
NS1068 is a versatile high-performance and low power USB 3.0 to SATA bridge controller.On one
side,it interfaces with the USB interface and is compatible with USB SuperSpeed (5Gbps), Hi-Speed
(480Mbps), and Full-Speed (12Mbps). On the other side, it interfaces with hard drive or SSD devices
through the SATA interface. NS1068 supports SATA | (1.5Gbps),SATAII (3Gbps)and SATA III (6Gbps)
It feature humanized technology design, reduce the trouble of installation. Simple and convenient
to expand your HDD capacity, transfer data and backup data more convenient.It features high end
plastic material, independent power supply design for stable power.This kind of HDD docking station
features light weight, exquisite design, easy to carry, convenient for your work.
Features
> Features high strength ABS plastic material, fashionable and stable
> Tool free and vertical plug design, quickly and easy to use
> Horizontal HDD installation design, smooth and steady, beneficial to the heat dissipation
> 12V/2.5A independent power supply, with power switch, low-carbon and green
> Plug and play, support hot-swap, driver free design, easy to use
> Connect the storage devices with any computers easily via USB3.0 interface
> Support USB 3.0 Specification Revision 1.0.and USB Specification Revision 2.0
> Support USB Super-speed/High-speed/Full-speed (5Gbps/480Mbps/12Mbps) data transfer rates.
> Support Gen2i/Gen2m of Serial ATA Specification Revision 2.6.
> Support Gen3i of Serial ATA Specification Revision 3.0.
> Unique LED indicator with blue light flashing for HDD R/W status
> Support all 3.5" SATA III HDD on the market (downward compatible with SATA II/SATAI HDD)
Package Contents
. 1 x USB 3.0 HDD docking station
* 1 x User Manual
. 1 x Warranty card
. 1x USB3.0 Cable
* 1x 12V2.5A DC Power Adapter
Note: Contents may vary depending on country/market.
System Requirements
+ Win8/7/Vista/XP/Me,Linux and Mac OS 9.X/10.X
Driver Installation
+ Windows will automatically detect and install the drivers for the USB3.0 to SATA Cable
Hardware Installation and Usage
1. Environment requirements
+ Hardware system requirements: PC/MAC with support USB3. 0
=e
* Operation system requirements: Win8/7/Vista/XP/Me,Linux and Mac OS 9:X/10.X

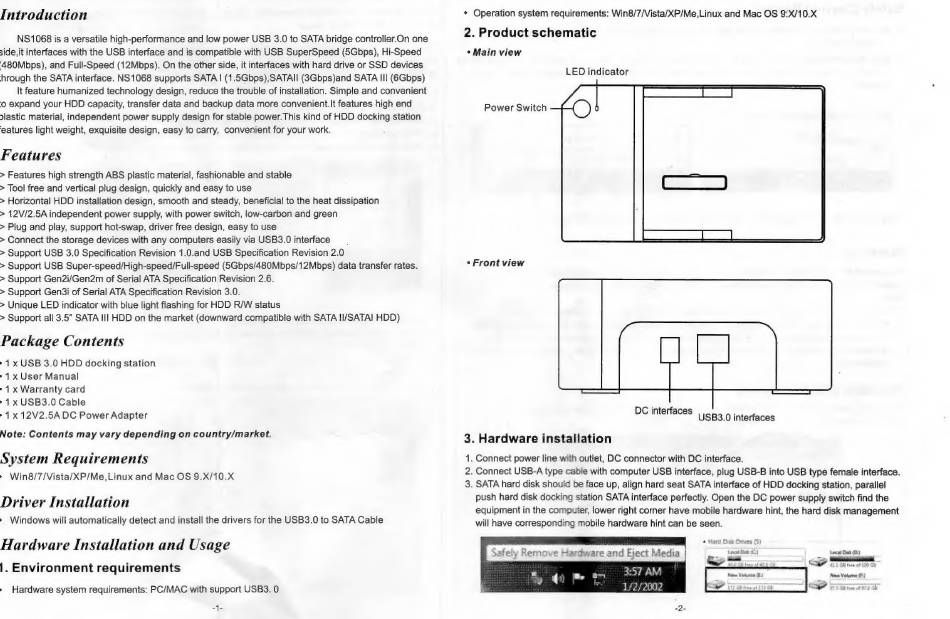

2. Product schematic
+ Main view
LED indicator
Power Switch
e Front view
DC interfaces W555 9 interfaces
3. Hardware installation
1. Connect power line with outlet, DC connector with DC interface.
2. Connect USB-A type cable with computer USB interface, plug USB-B into USB type female interface.
3. SATA hard disk should be face up, align hard seat SATA interface of HDD docking station, parallel
push hard disk docking station SATA interface perfectly. Open the DC power supply switch find the
equipment in the computer, lower right corner have mobile hardware hint, the hard disk management
will have corresponding mobile hardware hint can be seen.
