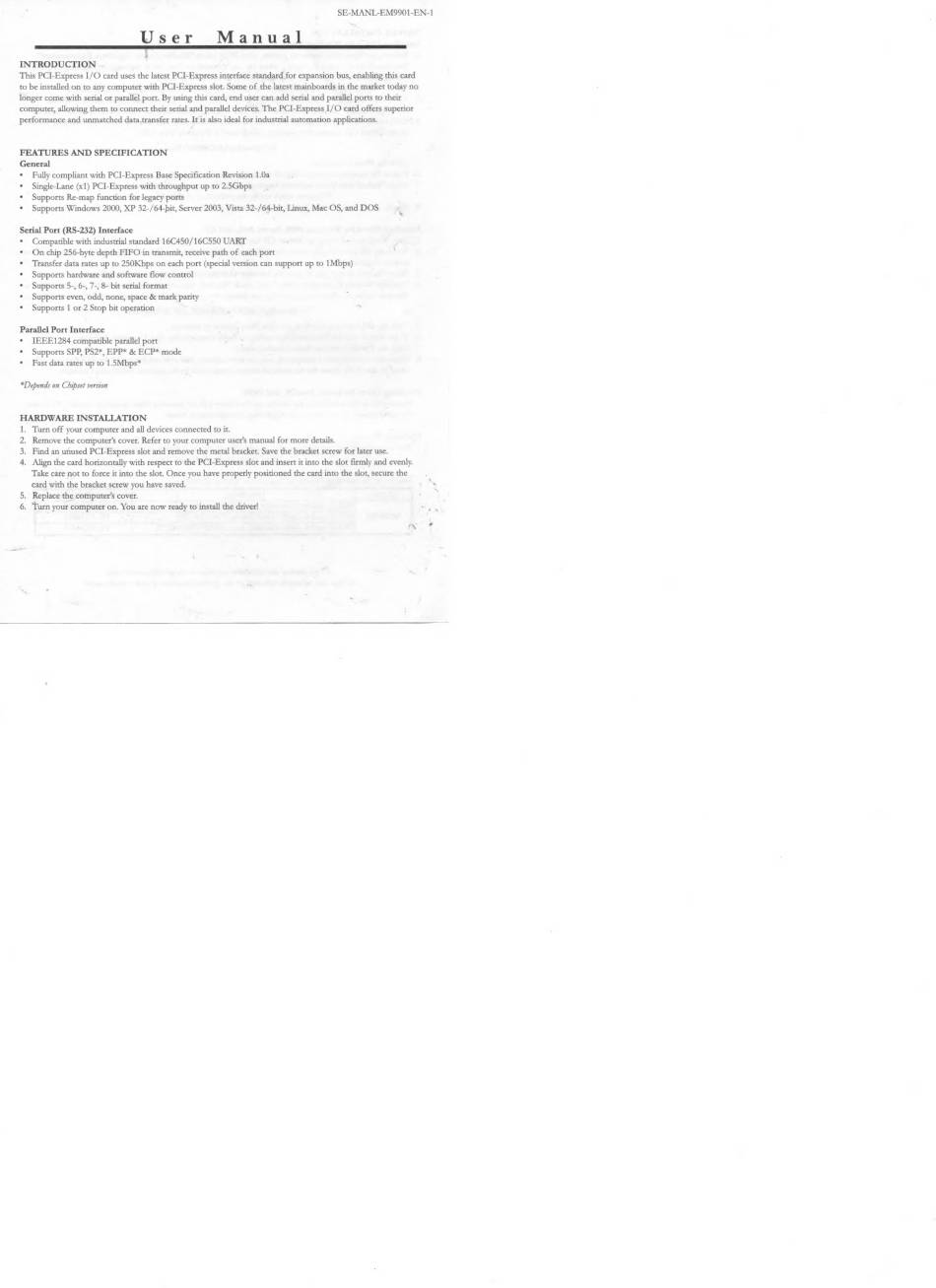

Syba SD-PEX15011 User Manual

SE-MANL-EM9901-EN-1
User Manual
INTRODUCTION
This PCI-Express I/O card uses the latest PCI-Express interface standard for expansion bus, enabling this card
to be installed on to any computer with PCI-Express slot. Some of the latest mainboards in the market today no
longer come with serial or parallel port. By using this card, end user can add serial and parallel ports to their
computer, allowing them to connect their serial and parallel devices. The PCI-Express I/O card offers superior
performance and unmatched data transfer rates. It is also ideal for industrial automation applications.
FEATURES AND SPECIFICATION
General
* Fully compliant with PCI-Express Base Specification Revision 1.0a
* Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
* Supports Re-map function for legacy ports
* Supports Windows 2000, XP 32-/64-bit, Server 2003, Vista 32-/64-bit, Linux, Mac OS, and DOS
Serial Port (RS-232) Interface
* Compatible with industrial standard 16C450/16C550 UART
* On chip 256-byte depth FIFO in transmit, receive path of each port
* Transfer data rates up to 250Kbps on each port (special version can support up to 1Mbps)
* Supports hardware and software flow control
e Supports 5-, 6-, 7-, 8- bit serial format
e Supports even, odd, none, space & mark parity
* Supports 1 or 2 Stop bit operation
Parallel Port Interface
* TEEE1284 compatible parallel port
* Supports SPP, PS2*, EPP* & ECP* mode
° Fast data rates up to 1.5Mbps*
*Depends on Chipset version
HARDWARE INSTALLATION
Turn off your computer and all devices connected to it.
Remove the computer's cover. Refer to your computer users manual for more details.
Find an unused PCI-Express slot and remove the metal bracket. Save the bracket screw for later use.
Align the card horizontally with respect to the PCI-Express slot and insert it into the slot firmly and evenly.
Take care not to force it into the slot. Once you have properly positioned the card into the slot, secure the
card with the bracket screw you have saved.
Replace the computer's cover.
6. Turn your computer on. You are now ready to install the driver!
