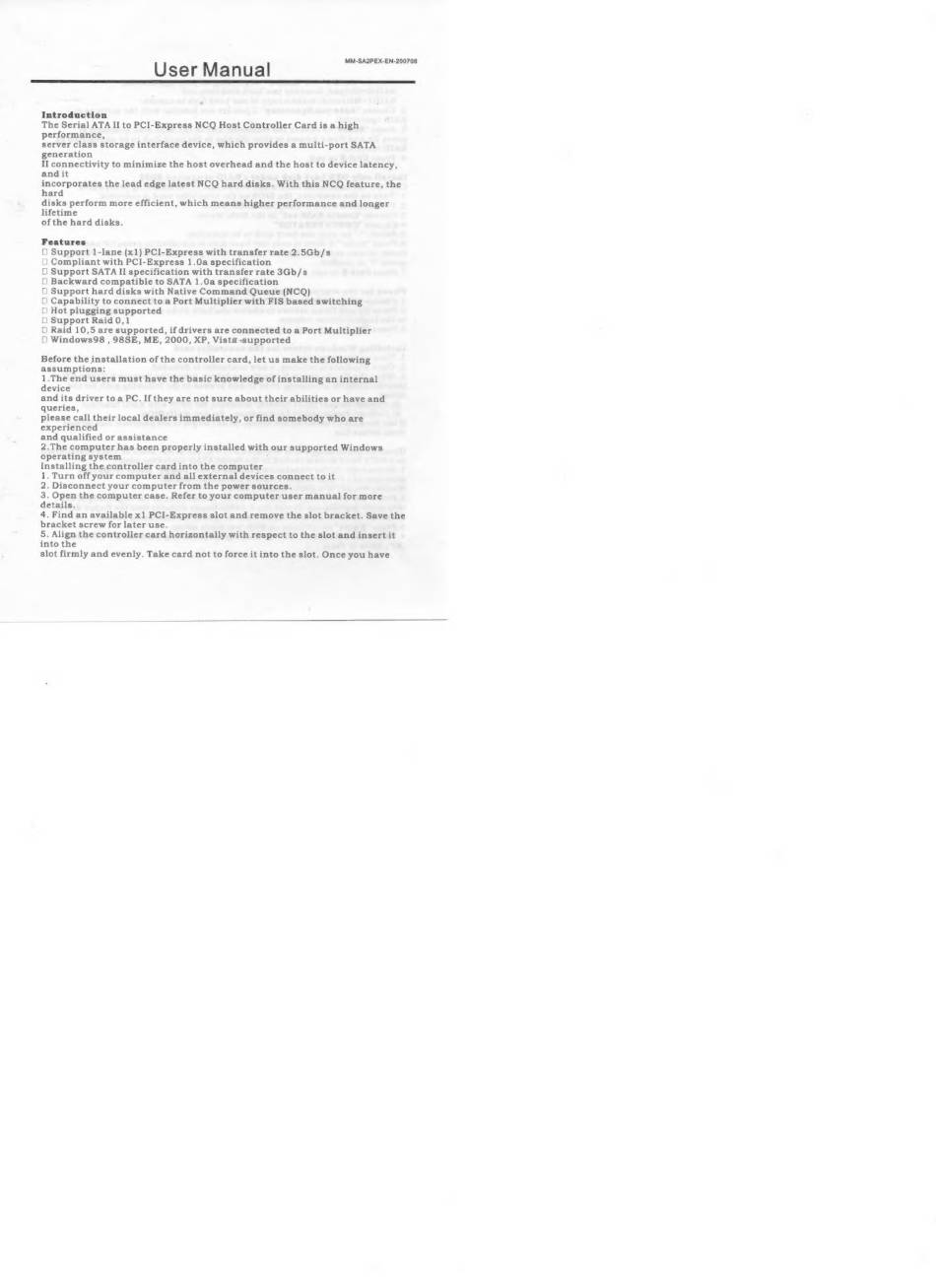

Syba SY-PEX40015 User Manual

MM-SA2PEX-EN-200708
User Manual
Introduction
The Serial ATA II to PCI-Express NCQ Host Controller Card is a high
performance,
server class storage interface device, which provides a multi-port SATA
generation
II connectivity to minimize the host overhead and the host to device latency,
and it
incorporates the lead edge latest NCQ hard disks. With this NCQ feature, the
hard
disks perform more efficient, which means higher performance and longer
lifetime
of the hard disks.
Features
O0 Support 1-lane (x1) PCI-Express with transfer rate 2.5Gb/s
O 0 Compliant with PCI-Express 1.0a specification
0 Support SATA II specification with transfer rate 3Gb/s
O0 Backward compatible to SATA 1.0a specification
O0 Support hard disks with Native Command Queue (NCQ)
O Capability to connect to a Port Multiplier with FIS based switching
O Hot plugging supported
O Support Raid 0,1
0 Raid 10,5 are supported, if drivers are connected to a Port Multiplier
O0 Windows98 , 98SE, ME, 2000, XP, Vista -supported
Before the installation of the controller card, let us make the following
assumptions:
1.The end users must have the basic knowledge of installing an internal
device
and its driver to a PC. If they are not sure about their abilities or have and
queries,
please call their local dealers immediately, or find somebody who are
experienced
and qualified or assistance
2.The computer has been properly installed with our supported Windows
operating system
Installing the.controller card into the computer
1. Turn off your computer and all external devices connect to it
2. Disconnect your computer from the power sources.
3. Open the computer case. Refer to your computer user manual for more
details.
4. Find an available x1 PCI-Express slot and remove the slot bracket. Save the
bracket screw for later use.
5. Align the controller card horizontally with respect to the slot and insert it
into the
slot firmly and evenly. Take card not to force it into the slot. Once you have
