- Page 1 CORDLESS LAWN TRIMMER HHT36YXB DLT Owner’s Manual ORIGINAL INSTRUCTIONS Thank you for choosing Honda Cordless Lawn Trimmer. For your safe use, please read this manual before operating and save the manual properly.
- Page 2 The products shown in this manual may differ from the actual products. If a problem should arise, or if you have any questions about your product, consult your servicing dealer. Honda dealer is dedicated to your satisfaction and will be pleased to answer your questions and concerns.
-
Page 3: Table Of Contents
CONTENTS Product Introduction......................1 Warning Label........................2 Safety Instructions........................4 Main Specification........................7 Assembly..........................8 Operation..........................11 Battery Charge........................12 Daily Maintenance......................13 Troubleshooting.........................14 Technical lnformation.......................15... -
Page 4: Product Introduction

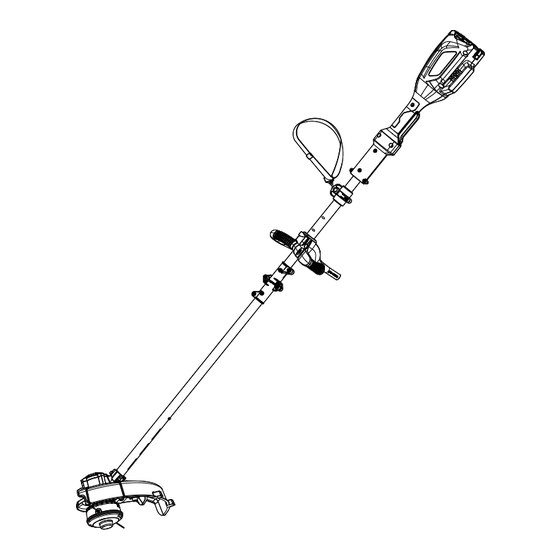

PRODUCT INTRODUCTION 1. Battery Pack 6. Shaft 2. Trigger 7. Trimmer Head Guard 3. Safety Switch 8. Cutting Head Guard 4. Shoulder Strap 9. Trimmer Head 5. Handle 10. Cutting Line... -
Page 5: Warning Label
WARNING LABEL Warning labels will remind you of potential hazards that may cause harm, please read carefully. If the label falls off or the content is unclear, please contact your servicing dealer. Warning. WARNING - To reduce the risk of injury, user must read instruction manual. Always wear eye protection, ear protection and head protection. - Page 6 WARNING LABEL Wear protective gloves. Wear sturdy, non-slip footwear. Do not expose the product to rain or wet conditions. Thrown objects can ricochet and result in personal injury or property damage. Keep bystanders a safe distance away from the work area. Do not use metal blades.
-
Page 7: Safety Instructions
SAFETY INSTRUCTIONS GENERAL MACHINE SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 8 SAFETY INSTRUCTIONS moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
-
Page 9: Intended Use
SAFETY INSTRUCTIONS manufacturer or authorized service providers. LAWN TRIMMER SAFETY WARNINGS a) Do not use the machine in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. b) Thoroughly inspect the area for wildlife where the machine is to be used. Wildlife may be injured by the machine during operation. -
Page 10: Main Specification
MAIN SPECIFICATION Model HHT36YXB DLT Rated Voltage 36 V DC Rated Power 350 W No-Load Speed 6300 r/min Cutting Capacity 330 mm Line Type Nylon twist line Overall Size (L×W×H) 1750×320×235 mm Weight (tool only) 3.4 kg Matched Battery DP3650XYD... -
Page 11: Assembly
ASSEMBLY Shaft Join the two shafts and install the bolt by a hexagon wrench. Do not overtighten. Ensure the shaft coupler is fixed securely. Fig. 1 Fig. 2 Handle 1. Loosen the hand bolt on the side without hand shank. 2. - Page 12 ASSEMBLY Trimmer Head 1. Insert a hexagon wrench into the locking hole until the head collar stops. 2. Screw the trimmer head in place and remove the wrench. Fig. 7 Shoulder Strap Fasten the hook on the strap buckle. Adjust the length of the strap to attain a comfortable working position.
- Page 13 ASSEMBLY Indicators Fully Lit Status ■ □ 75% - 100% ■■■■ 50% - 75% ■■■□ 25% - 50% ■■□□ 5% - 25% ■□□□ Needs to be charged □□□□ If more than one LED lights on, users can decide whether to charge according to their actual use. If none of the LED lights are on, battery must be fully charged before use.
-
Page 14: Operation
OPERATION Switch ON/OFF 1. To turn the tool ON, push and hold the safety switch with your thumb, while squeezing the trigger. Once the trigger engages, you can release the safety switch and proceed with operation. 2. To turn the tool OFF, release the trigger. Fig. -
Page 15: Battery Charge
BATTERY CHARGE 1. Plug the charger into an approved power supply and the red charging indicator on the charger is on. 2. Press down on the battery pack to be sure the contacts on the battery pack engage properly with contacts in the charger. -
Page 16: Daily Maintenance
Do not adjust the product while it is running. Always turn the product off, remove the battery pack, and let the product cool down before performing cleaning and maintenance work. Repair this product at your servicing dealer and only use the genuine Honda accessories. -
Page 17: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Battery pack not inserted Insert correctly Product does not start Battery is discharged Charge battery pack Cutting line too short Tap the bump knob Poor cutting Cutting line is out Replace with new cutting line Loosen parts Stop and check Vibration or noise is... -
Page 18: Technical Lnformation
TECHNICAL INFORMATION Please write down the battery pack model, product model, and purchase date on the following line. This information is required when ordering parts, technical or warranty inquiries. Battery Model Product Model Purchase Date Battery Model DAAAY-******* Product Model HACY-*******... - Page 19 Manufacture: Honda Power Products (Fuzhou) Co., Ltd Address: No.7 Houyu Road, Jin’an District, Fuzhou City, Fujian Province, China. 42Y0KT00 © 2024 Honda Motor Co., Ltd. Printed in China 00X42-Y0K-T000...
