  • Page 1: Table Of Contents

    Options ......................... 40 Appendices................... 43 Troubleshooting ...................43 Projector Status Indication ................46 Remote Control ...................47 Replacing the Lamp..................48 Compatibility Modes ..................50 RS232 Commands and Protocol Function List..........52 Ceiling Mount Installation ................56 Optoma Global Offices ................57 Regulation & Safety notices ................59 English...

  • Page 2: Usage Notice

    Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. 7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fi re or electric shock.

  • Page 3: Precautions

    Usage Notice Precautions Please follow all warnings, precautions and maintenance as recommended in this user’s guide. ▀■ Warning- Do not look into the projector’s lens when the lamp is on. The bright light may hurt and damage your eyes. ▀■ Warning- To reduce the risk of fi re or electric shock, do not expose this projector to rain or moisture.
  • Page 4 Usage Notice  Turn off and unplug the power plug from the AC outlet before cleaning the product.  Use a soft dry cloth with mild detergent to clean the display housing.  Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

  • Page 5: Eye Safety Warnings

    Usage Notice Eye Safety Warnings ▀■ Avoid staring/facing directly into the projector beam at all times. Keep your back to the beam as much as possible. ▀■ When projector is used in a classroom, adequately supervise students when they are asked to point out something on the screen.

  • Page 6: Introduction

    Introduction P ackage Overview Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center. VGA Cable .8m Power Cord .8m Projector with lens cap  Due to different IR Remote Control 2 × AAA Batteries applications in each Country, some regions may have Documentation : different accessories.  User’s Manual ...

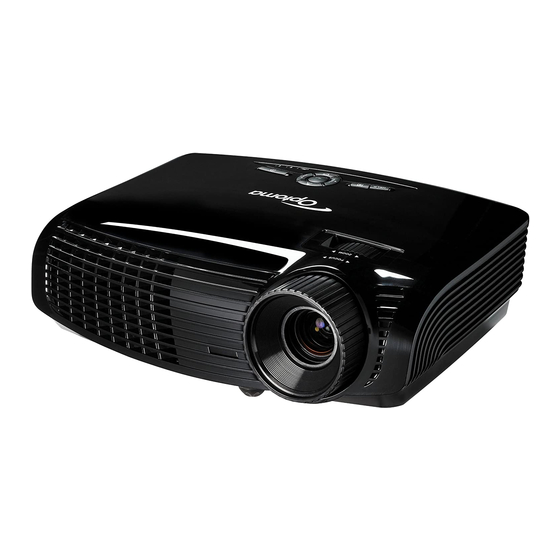

  • Page 7: Product Overview

    Introduction Product Overview Main Unit . Control Panel 6. Tilt-Adjustment Feet 2. Zoom Ring 7. Security Bar 3. Focus Ring 8. Input / Output 4. Zoom Lens Connections 5. IR Receivers 9. Power Socket English...

  • Page 8: Control Panel

    Introduction Control Panel . Help 2. Menu 3. Source 4. Enter 5. Re-Sync 6. Power 7. Keystone Correction 8. Four Directional Select Keys 9. On/Standby LED 0. Lamp Fail LED . Temp LED 2. IR Receiver English...

  • Page 9: Input / Output Connections

    Introduction Input / Output Connections 12V OUT AUDIO-OUT RS-232 VGA-OUT VGA-IN S-VIDEO VIDEO (VGA) (S-VIDEO/VIDEO) (S-VIDEO/VIDEO) SCART / YPbPr / AUDIO-IN AUDIO-IN-L AUDIO-IN-R HDMI . USB Connector (Connect to PC for Remote Mouse function) 2. VGA-Out Connector (Monitor Loop-through Output from VGA-In) 3.

  • Page 10: Remote Control

    Introduction Remote Control . LED Indicator 3. Freeze 2. Power On/Off 4. S-Video 3. Page Up 5. HDMI 4. Mouse Right Click 6. Brightness 5. Four Directional 7. Menu Select Keys 8. Keystone +/- 6. Re-Sync 9. Source 7. Page Down 20.

  • Page 11: Installation

    Installation C onnecting the Projector C onnect to Computer/Notebook MOLEX  I/O confi guration depends on 12V OUT AUDIO-OUT RS-232 models. VGA-OUT VGA-IN S-VIDEO VIDEO (VGA) (S-VIDEO/VIDEO) (S-VIDEO/VIDEO) SCART / YPbPr / AUDIO-IN AUDIO-IN-L AUDIO-IN-R HDMI  Due to the difference in applications for each country, some regions may + 2V Output have different...
  • Page 12 Installation C onnect to Video Sources DVD Player, Set-top Box, HDTV receiver S-Video Output Composite Video Output 12V OUT AUDIO-OUT RS-232 VGA-OUT VGA-IN S-VIDEO VIDEO (VGA) (S-VIDEO/VIDEO) (S-VIDEO/VIDEO) SCART / YPbPr / AUDIO-IN AUDIO-IN-L AUDIO-IN-R HDMI  I/O confi guration depends on models + 2V Output  Due to the difference in applications for...

  • Page 13: Powering The Projector On / Off

    Installation P owering the projector On / Off Powering On the Projector . Remove the lens cap.  2. Securely connect the power cord and signal cable. When connected, the ON/STANDBY LED will turn Amber. 3. Turn on the lamp by pressing “ ” button either on the top of the projector or on the remote.

  • Page 14: Powering Off The Projector

    Installation Powering Off the Projector . Press the “ ” button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen. Press the “ ” button again to confirm the shut down. If the button is not pressed, the message will disappear after 5 seconds.

  • Page 15: Adjusting The Projected Image

    Installation Adjusting the Projected Image Adjusting the Projector’s Height The projector is equipped with elevator feet for adjusting the image height. . Locate the adjustable foot you wish to modify on the underside of the projector. 2. Rotate the adjustable ring counter clockwise to raise the projector or clockwise to lower it. Repeat with the remaining feet as needed.

  • Page 16: Adjusting The Projector's Zoom / Focus

    Installation Adjusting the Projector’s Zoom / Focus You may turn the zoom lever to zoom in or out. To focus the image, rotate the focus ring until the image is clear.  .2x Zoom series will focus at distances from 4.92 to 32.8 feet (.50 to 0.00 meters).

  • Page 17: User Controls

    User Controls Control Panel & Remote Control Control Panel Using the Control Panel Refer to the “Power On/Off the Projector” section on Power pages 3-4. Automatically synchronize the projector to the input RE-SYNC source. Enter Confi rm your item selection. SOURCE Press “SOURCE”...

  • Page 18: Remote Control

    User Controls Remote Control Using the Remote Control Refer to the “Power On/Off the Projector” Power section on pages 3-4. Laser Press to use laser pointer. L Button Mouse left click. R Button Mouse right click. Page + Use this button to page up. Page - Use this button to page down.
  • Page 19 User Controls Remote Control Using the Remote Control HDMI Press “HDMI” to choose HDMI source. Press “Freeze” to pause the screen image. Freeze Press this button again to unlock. Momentarily turns off/on the audio and AV mute video. S-Video S-Video Press “...

  • Page 20: Using The Help Button

    User Controls Using the HELP button The HELP function ensures easy setup and operation. Press the “?” button on the control panel to open the Help  Menu. English...
  • Page 21 User Controls Help menu button functions only when no input source  is detected.  Please refer to the “Troubleshooting” section on pages 43-46 for more details. English...
  • Page 22 User Controls If input source is detected and help button is pressed, the  following pages will appear to help diagnose any problems. English...

  • Page 23: On-Screen Display Menus

    User Controls O n-screen Display Menus The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. How to operate To open the OSD menu, press “Menu” on the Remote Control or Projector Keypad. When OSD is displayed, use keys to select any item in the main menu. While making a selection on a particular page, press or “Enter”...

  • Page 24: Menu Tree

    User Controls Menu Tree ) “Saturation”  and “Tint” are only supported in Video mode. ) “Signal” is only  supported in Analog VGA (RGB) signal. ) “IRE” is only  supported in NTSC signal. Video English...

  • Page 25: Image

    User Controls IMAGE Display Mode There are many factory presets optimized for various types of images. Presentation: Good color and brightness from PC input.  Bright: Maximum brightness from PC input.  Movie: For home theater.  sRGB: Standardised accurate color. ...
  • Page 26 User Controls IMAGE Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Press the to decrease the contrast.  Press the to increase the contrast.  Sharpness Adjust the sharpness of the image. Press the to decrease the sharpness.
  • Page 27 User Controls IMAGE | Advanced Noise Reduction The motion Adaptive Noise Reduction reduces the amount of vis- ible noise interlaced signals. The range is from “0” to “0”. (0: Off) Gamma This allows you to choose a gamma table that has been fine-tuned to bring out the best image quality for the input.

  • Page 28: Color Settings

    User Controls Advanced | Color Settings Color Settings Use these settings for advanced adjustment of the individual Red, Green and Blue Colors. Reset Choose “Yes” to return the factory default settings for color adjustments. Advanced | Input Source Input Source Use this option to enable / disable input sources.

  • Page 29: Display

    User Controls DISPLAY Format Use this function to choose your desired aspect ratio. 4:3: This format is for 4×3 input sources.  6:9: This format is for 6×9 input sources, like HDTV and DVD  enhanced for Wide screen TV. LBX: This format is for non-6x9, letterbox source and for users ...
  • Page 30 User Controls Detail informations about LBX mode : . Some Letter-Box DVDs are not enhanced for 6x9 TVs. In this situation, the image will not look right when displayed in 6:9 mode. In this situation, please try to using the 4:3 mode to view the DVD.
  • Page 31 User Controls DISPLAY Zoom Press the to reduce the size of an image.  Press the to magnify an image on the projection screen.  Overscan Overscan function removes the noise in a video image. Overscan the image to remove video encoding noise on the edge of video source.

  • Page 32: Setup

    User Controls SETUP | Language Language Choose the multilingual OSD menu. Press into the sub menu and then use the key to select your preferred language. Press “Enter” to fi nalize the selection. English...
  • Page 33 User Controls SETUP Projection Front-Desktop  This is the default selection. The image is projected straight on the screen. Rear-Desktop and  Rear-Desktop  Rear-Ceiling are to be used with a When selected, the image will appear reversed. translucent screen. Front-Ceiling ...
  • Page 34 User Controls SETUP Mute Choose the “On” to turn mute on.  Choose the “Off” to turn mute off.  Audio Input The default audio settings are on the back panel of the projector. Use this option to reassign any of the Audio Inputs (VGA, or S-VIDEO/VIDEO) to the current image source.
  • Page 35 User Controls SETUP | Security Security On: Choose “On” to use security verification when the turning  on the projector. Off: Choose “Off” to be able to switch on the projector without  password verification. Timer-Month/Day/Hour Use this function to set the how long (Month/Day/Hour) the projector can be used.

  • Page 36: Change Password

    User Controls SETUP | Security Change Password Password default  First time:  value is “234” . Press “ ” to set the password. (first time). 2. The password has to be 4 digits. 3. Use number button on the remote to enter your new password and then press “...
  • Page 37 User Controls SETUP | Signal RGB Source “Signal” is not  supported when the source is HDMI or DVI-D. Phase Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or fl ickers, use this function to correct it.

  • Page 38: Video Source

    User Controls SETUP | Signal Video Source “Signal” is not  supported when the source is HDMI or White Level DVI-D. Allow user adjust White Level when inputting S-Video or Video/ CVBS signals. Black Level Allow user adjust Black Level when inputting S-Video or Video/ CVBS signals.

  • Page 39: Logo Capture

    Logo Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered Optoma: The default startup screen.  User: Use stored picture from “Logo Capture” function. ...

  • Page 40: Options

    User Controls OPTIONS Source Lock On: The projector will only search current input connection.  Off: The projector will search for other signals if the current  input signal is lost. High Altitude When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

  • Page 41: Direct Power On

    User Controls OPTIONS | Advanced Direct Power On Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “ ” key on the projector control panel or on the remote control.

  • Page 42: Lamp Settings

    User Controls OPTIONS | Lamp Settings Lamp Hours Display the projection time. Lamp Reminder Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.

  • Page 43: Appendices

    Appendices Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. No image appears on-screen Ensure all the cables and power connections are correctly and  securely connected as described in the “Installation” section. Ensure all the pins of connectors are not bent or broken. ...
  • Page 44 Appendices 7. Click on “Show all devices”. Next, select “Standard monitor types” under the SP box; choose the resolution mode you need under the “Models” box. 8. Verify that the resolution setting of the monitor display is lower than or equal to 920 × 080. If you are using a Notebook: ...
  • Page 45 Appendices Image is out of focus Make sure the lens cap is removed.  Adjust the Focus Ring on the projector lens.  Make sure the projection screen is between the required distance.  See page 6. The image is stretched when displaying 6:9 DVD title When you play anamorphic DVD or 6:9 DVD, the projector will ...

  • Page 46: Projector Status Indication

    Appendices The projector stops responding to all controls If possible, turn off the projector, then unplug the power cord and  wait at least 60 seconds before reconnecting power. Check that “Keypad Lock” is not activated by trying to control the ...

  • Page 47: Remote Control

    Appendices On Screen Messages Temperature warning:  Fan failed:  Lamp warming:  Out of display range:  Remote Control If the remote control does not work Check the operating angle of the remote control is within ±5°  both horizontally and vertically of one of the IR receivers on the projector.

  • Page 48: Replacing The Lamp

    Appendices Replacing the lamp The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message. When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.
  • Page 49 Appendices The screws on the  lamp cover and the lamp cannot be removed. The projector  cannot be turned on if the lamp cover has not been placed back on the projector. Do not touch the  glass area of the lamp.

  • Page 50: Compatibility Modes

    Appendices Compatibility Modes Computer Compatibility  V.Frequency Mode Resolution AAnalog Digital (Hz) 800 x 600   800 x 600   SVGA 800 x 600   800 x 600   800 x 600   1024 x 768 ...

  • Page 51: Video Compatibility

    Appendices Video Compatibility  NTSC M (3.58MHz), 4.43 MHz B, D, G, H, I, M, N SECAM B, D, G, K, K, L SDTV/HDTV 480i/p, 576i/p, 720p@50Hz/60Hz, 080i/p@50Hz/60Hz English...

  • Page 52: Rs232 Commands And Protocol Function List

    Appendices RS232 Commands and Protocol Function List RS232 Pin Assignments Spec. Pin no. (from projector side) I/O (From Pin no. Name Projector Side) English...
  • Page 53 Appendices RS232 Protocol Function List --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Baud Rate : 9600 Note : There is a <CR> after all ASCII commands Data Bits: 8 0D is the HEX code for <CR> in ASCII code Parity: None Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable Projector Return (Pass): P Projector Return (Fail): F XX=01 99, projector's ID, XX=00 is for all projectors...
  • Page 54 = 0 (a=30) ~ 10 (a=31 30) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma ~XX82 2 7E 30 30 38 32 20 32 0D User ~XX83 1 7E 30 30 38 33 20 31 0D...
  • Page 55 FW version e : Display mode 0/1/2/3/4/5/6/7/8 None/Presentation/Bright/Movie/sRGB/User1/User2/ Blackboard/Classroom ~XX151 1 7E 30 30 31 35 31 20 31 0D Model name n:1=EH1020 ~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours OKbbbb bbbb: LampHour ~XX108 2...

  • Page 56: Ceiling Mount Installation

    Ceiling Mount Installation . To prevent damage to your projector, please use the Optoma ceiling mount. 2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector...

  • Page 57: Optoma Global Offices

    Bâtiment E Tel : +33  4 46 2 20 8-83 avenue Edouard Vaillant Fax: +33  4 46 94 35 9200 Boulogne Billancourt, France Service : savoptoma@optoma.fr Spain C/ José Hierro,36 Of. C Tel : +34 9 499 06 06...
  • Page 58 サポートセンター: Taiwan 5F., No. 08, Minchiuan Rd. Tel : +886-2-228-2360 Shindian City, Fax: +886-2-228-233 Taipei Taiwan 23, R.O.C. Service : services@optoma.com.tw www.optoma.com.tw asia.optoma.com Hong Kong Unit A, 27/F Dragon Centre, 79 Wing Hong Street, Tel : +852-2396-8968 Cheung Sha Wan,...

  • Page 59: Regulation & Safety Notices

    Appendices Regulation & Safety notices This appendix lists the general notices of your projector. FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 5 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 60: Operation Conditions

    Appendices Operation conditions This device complies with Part 5 of the FCC Rules. Operation is subject to the following two conditions: . This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation.
