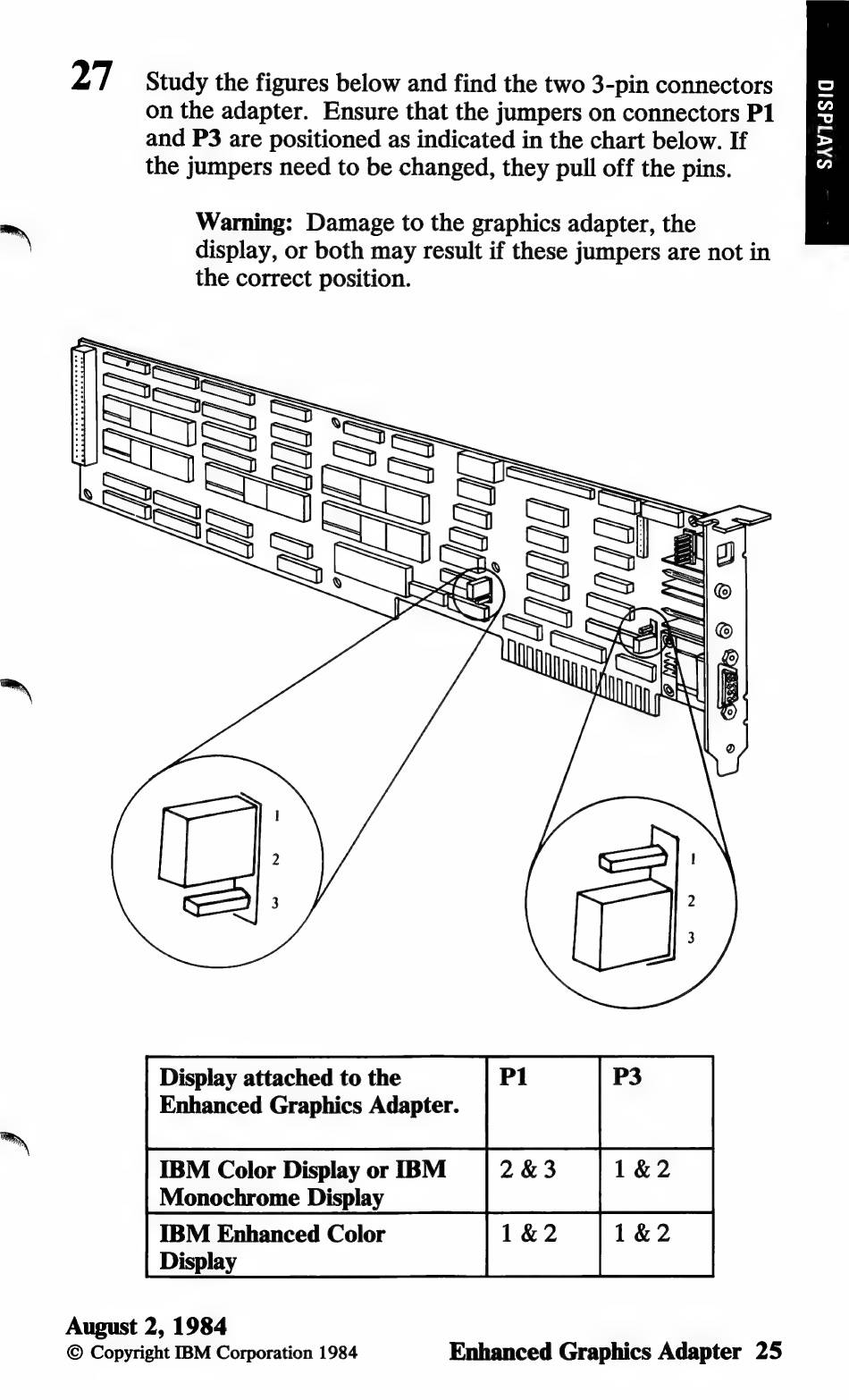

27 Study the figures below and find the two 3-pin connectors
on the adapter. Ensure that the jumpers on connectors P1
and P3 are positioned as indicated in the chart below. If
the jumpers need to be changed, they pull off the pins.
=
"
0
rf
>
—<
7
Warning: Damage to the graphics adapter, the
display, or both may result if these jumpers are not in
the correct position.
a f / fi: LR
Display attached to the
Enhanced Graphics Adapter.
IBM Color Display or IBM
Monochrome Display
& 3 1 &
IBM Enhanced Color 1&2
Display
August 2, 1984
© Copyright IBM Corporation 1984 Enhanced Graphics Adapter 25
